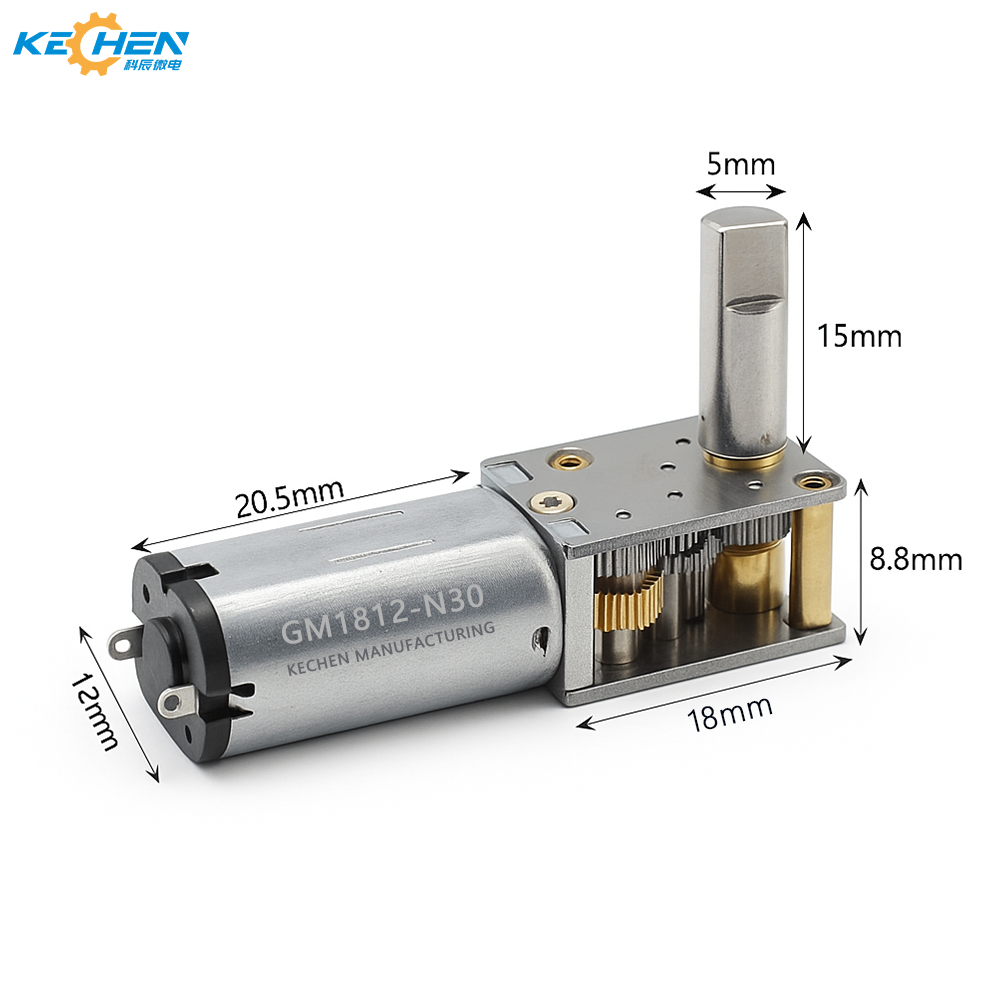

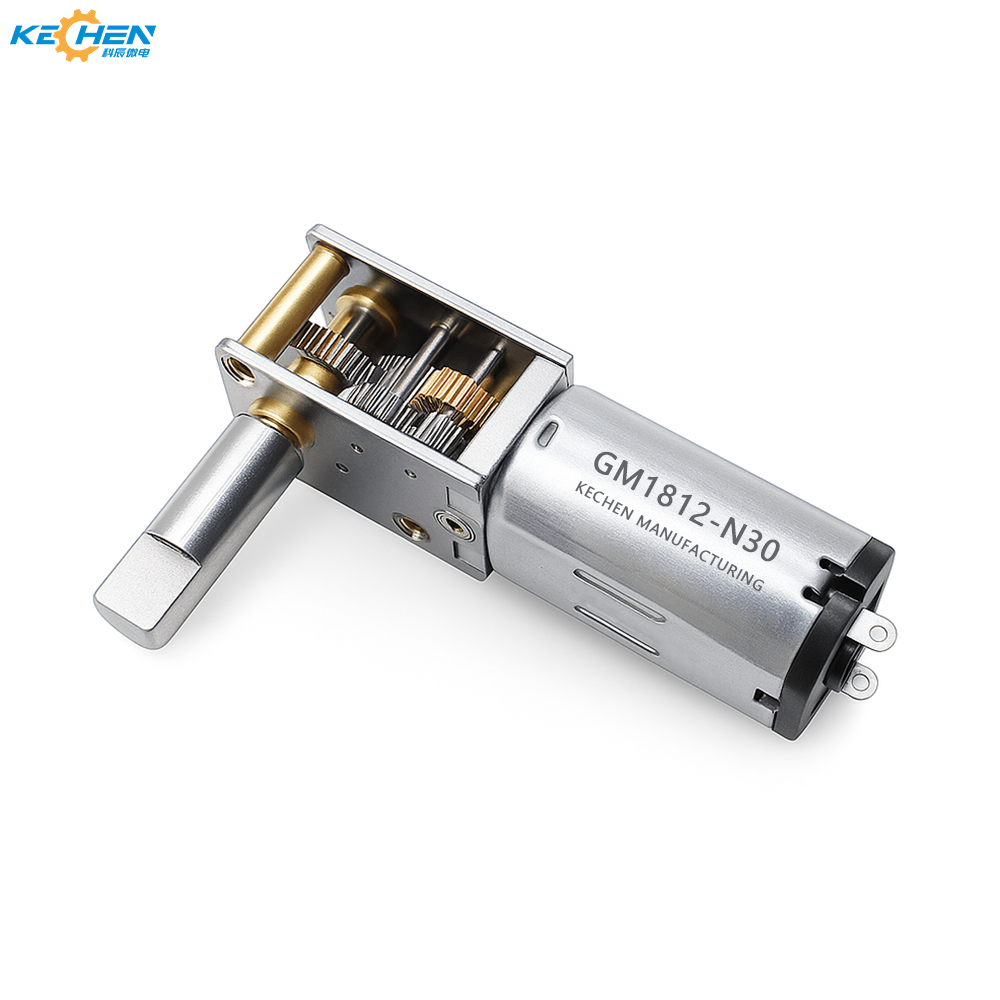

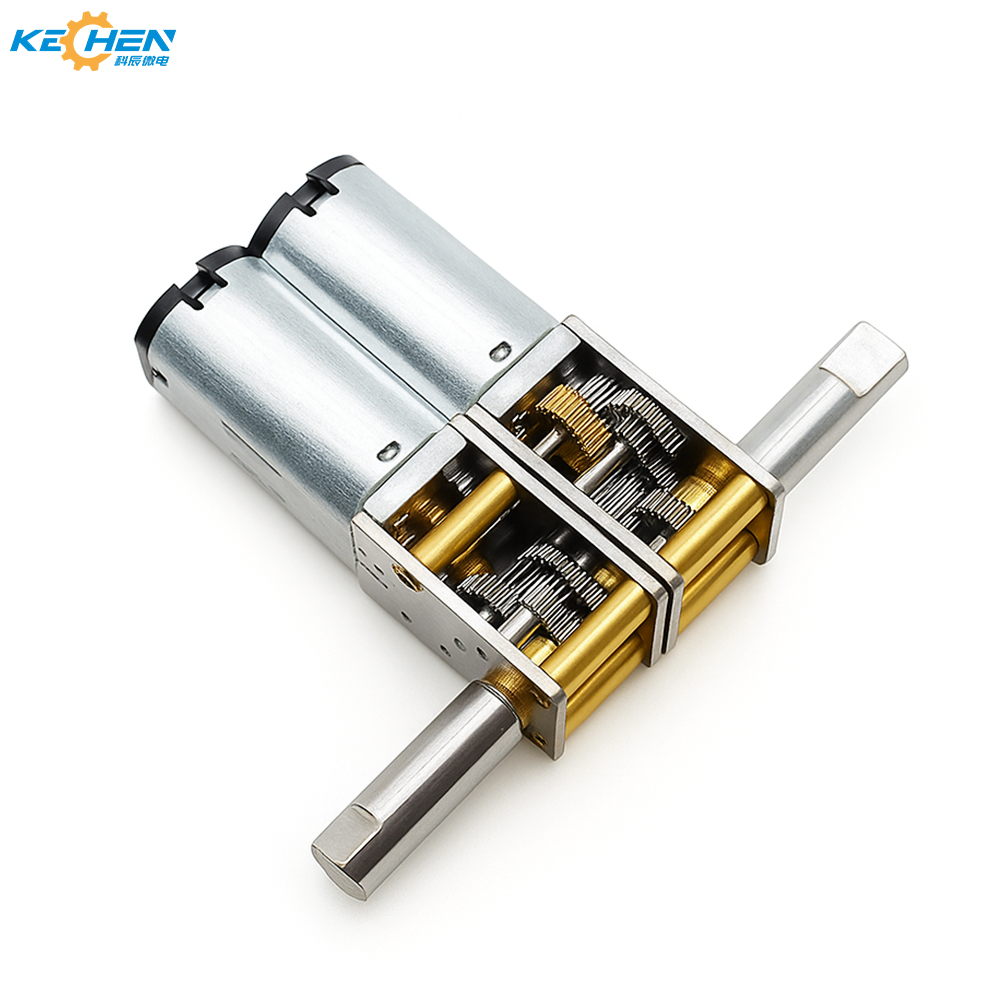

12mm 6V 12V N30 Worm Gear Motor for Smart Lock Aroma Diffuser Medical Device Camera Pump

Product Description

Products Description

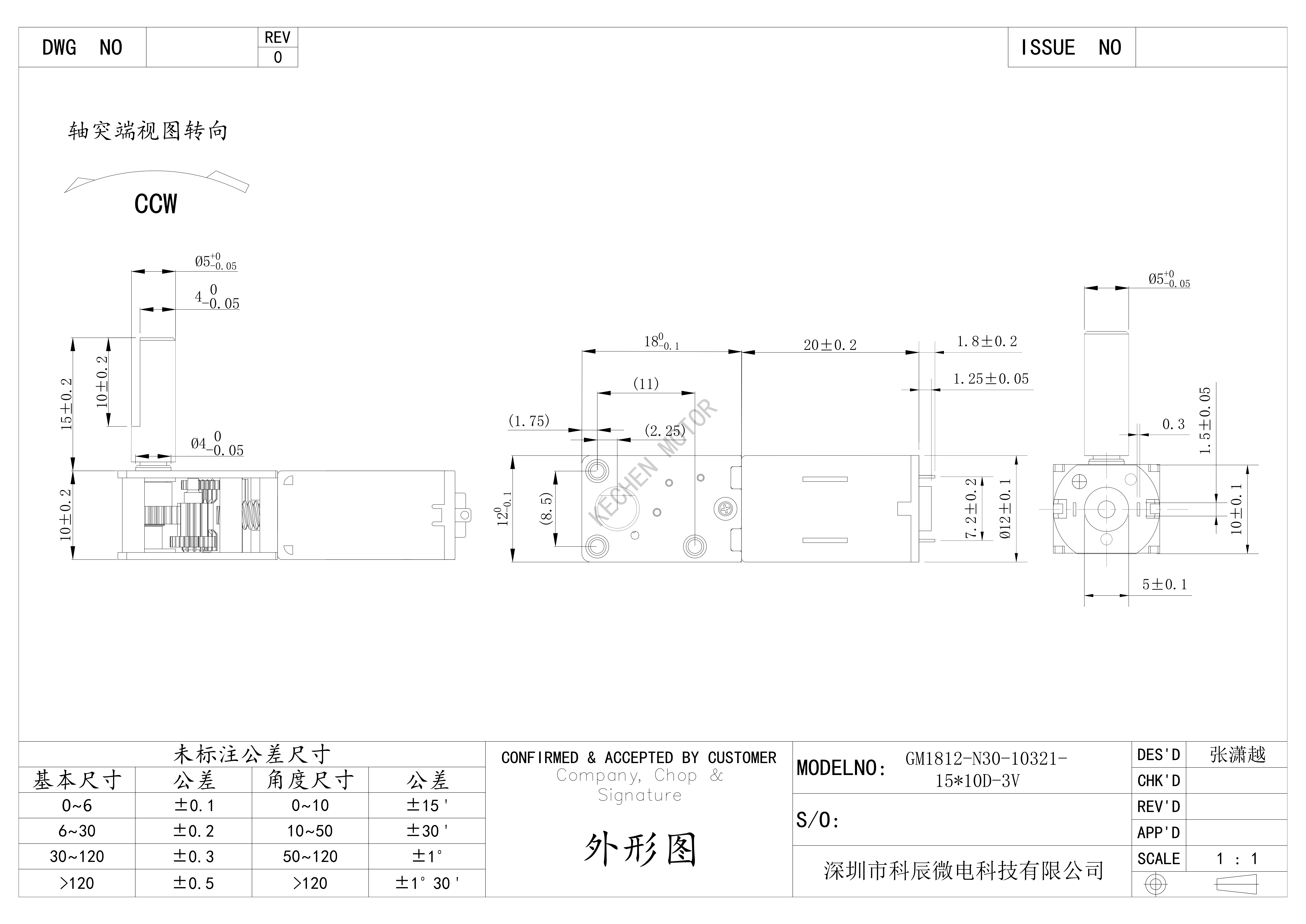

Products Description Image
GM1812-N30 DC worm gear motor parameters
Motor diameter 12 mm
Voltage 3 V ~ 24 V DC
No-load output speed 5 rpm ~ 500 rpm
Rated output torque 0.05 kg·cm ~ 1.5 kg·cm
Reduction ratio 16:1/54:1/157:1/210:1/298:1/345:1/446:1/500:1/698:1/726:1/800:1/993:1/1576:1
Encoder 3ppr/7ppr/12ppr
Shaft type D-type, round, M3 lead screw
Shaft diameter 3mm/4mm/5mm

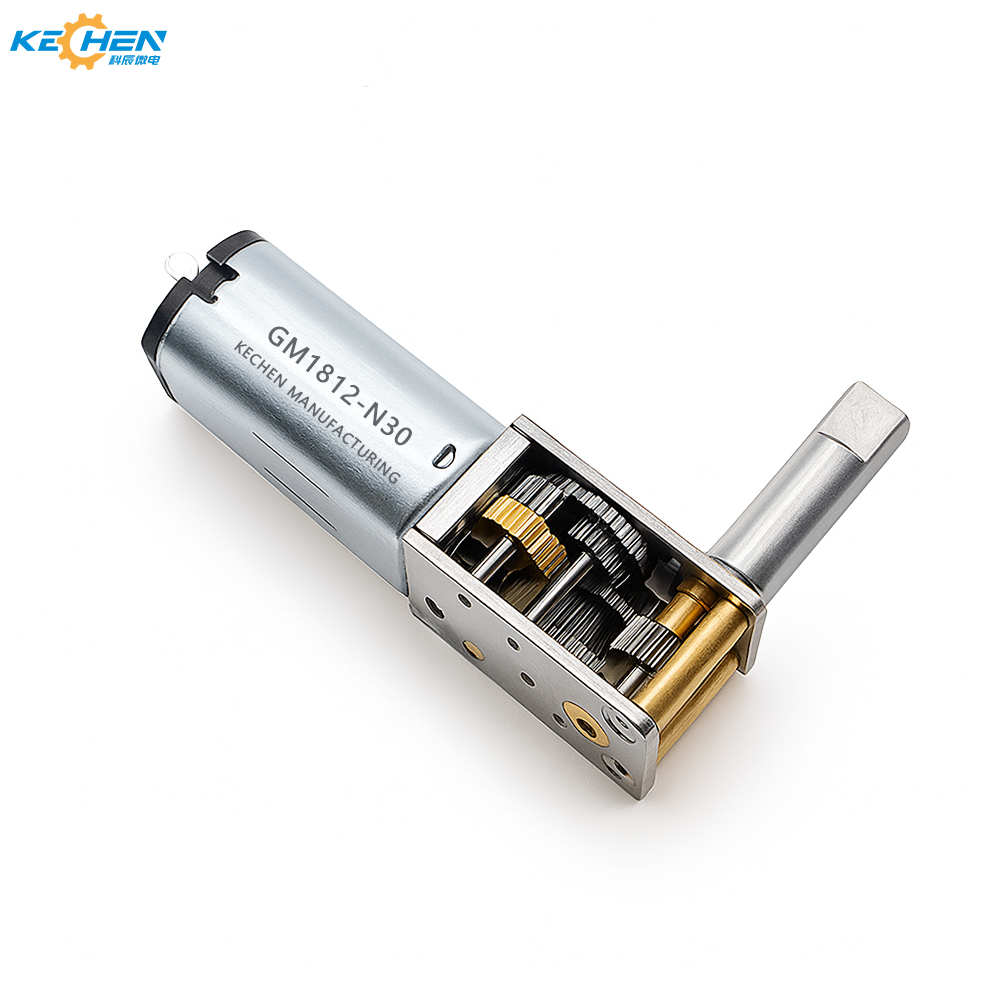

Product View 1 Product View 2 Product View 3

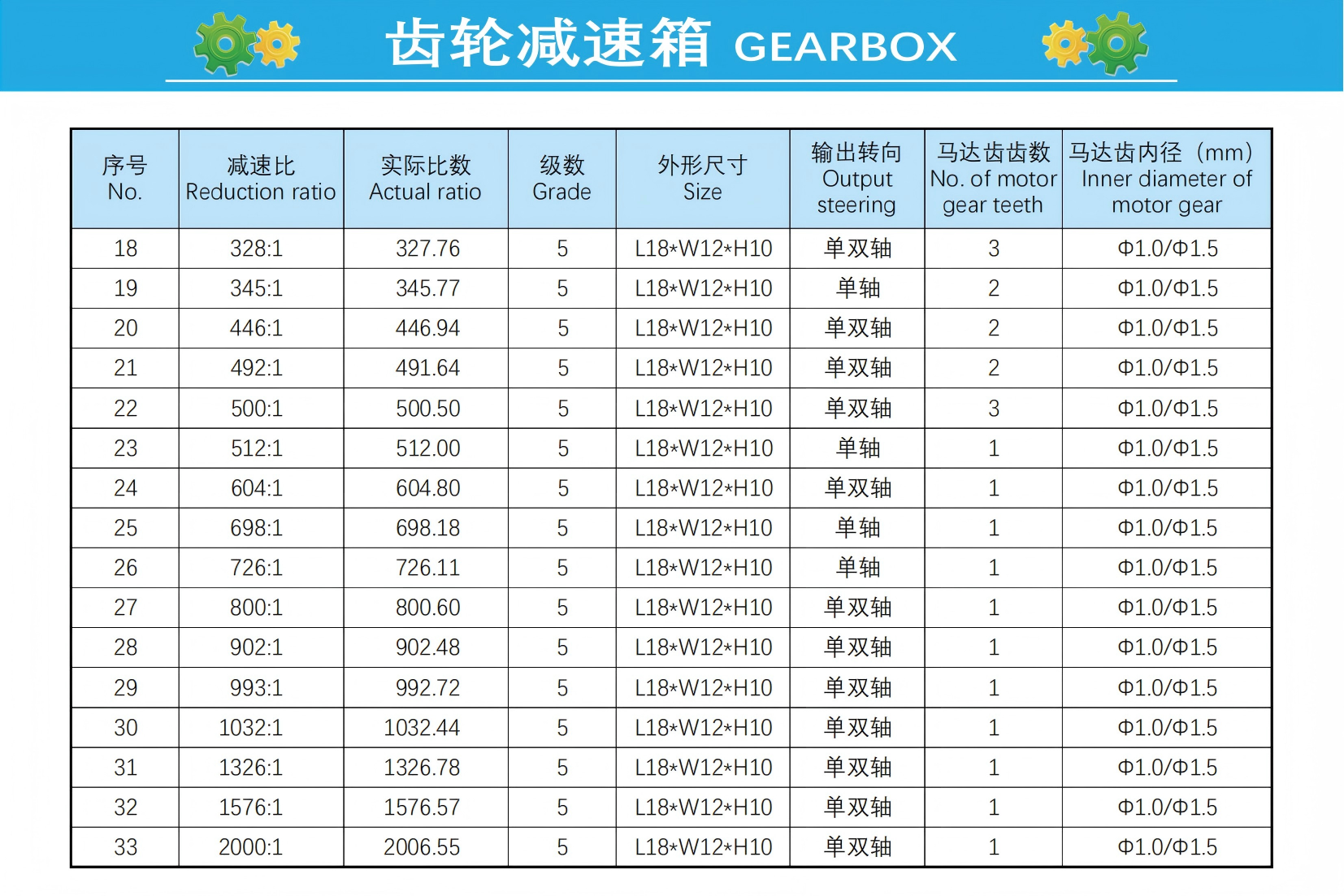

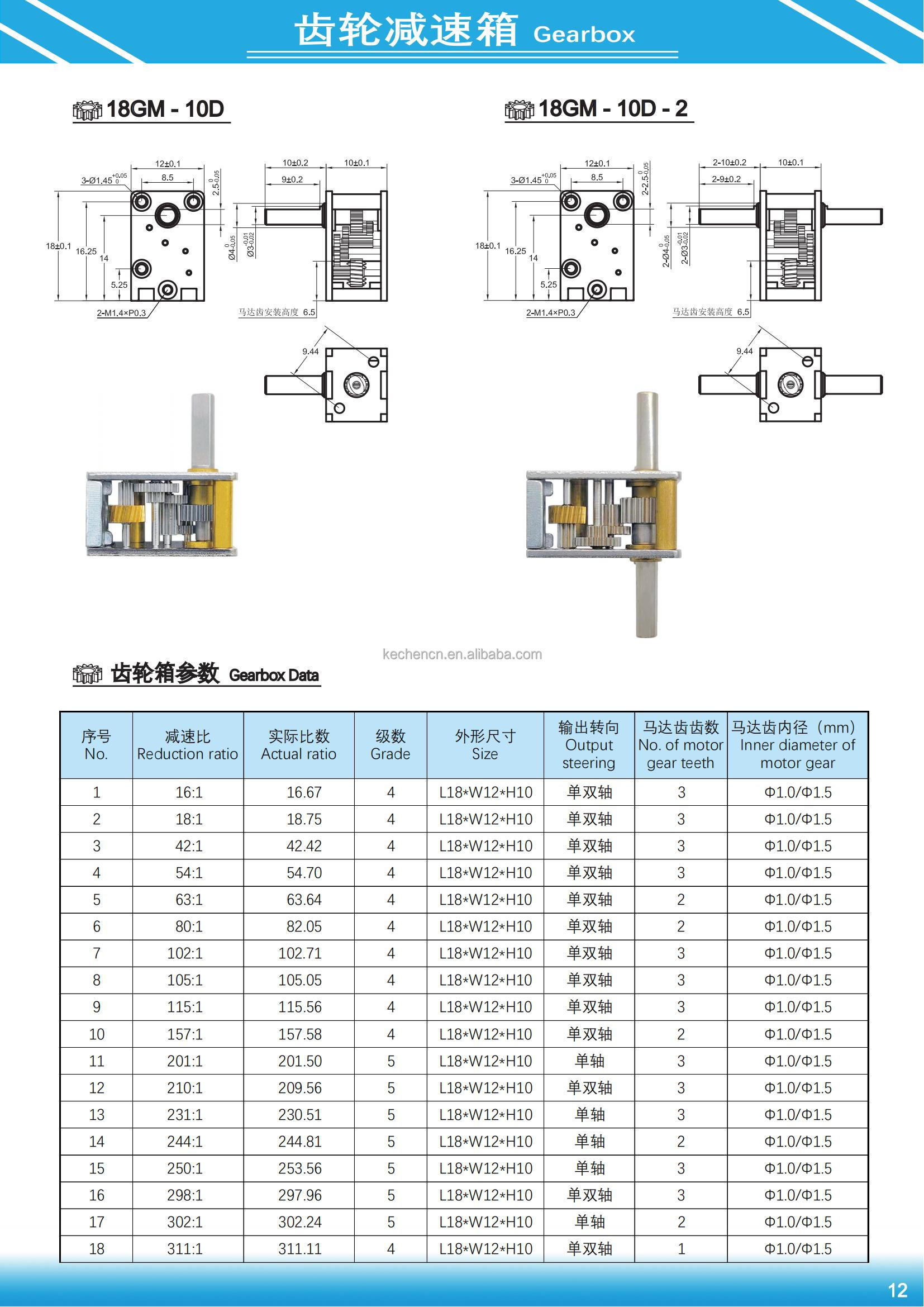

Product Detail 1 Product Detail 2 Product Detail 3

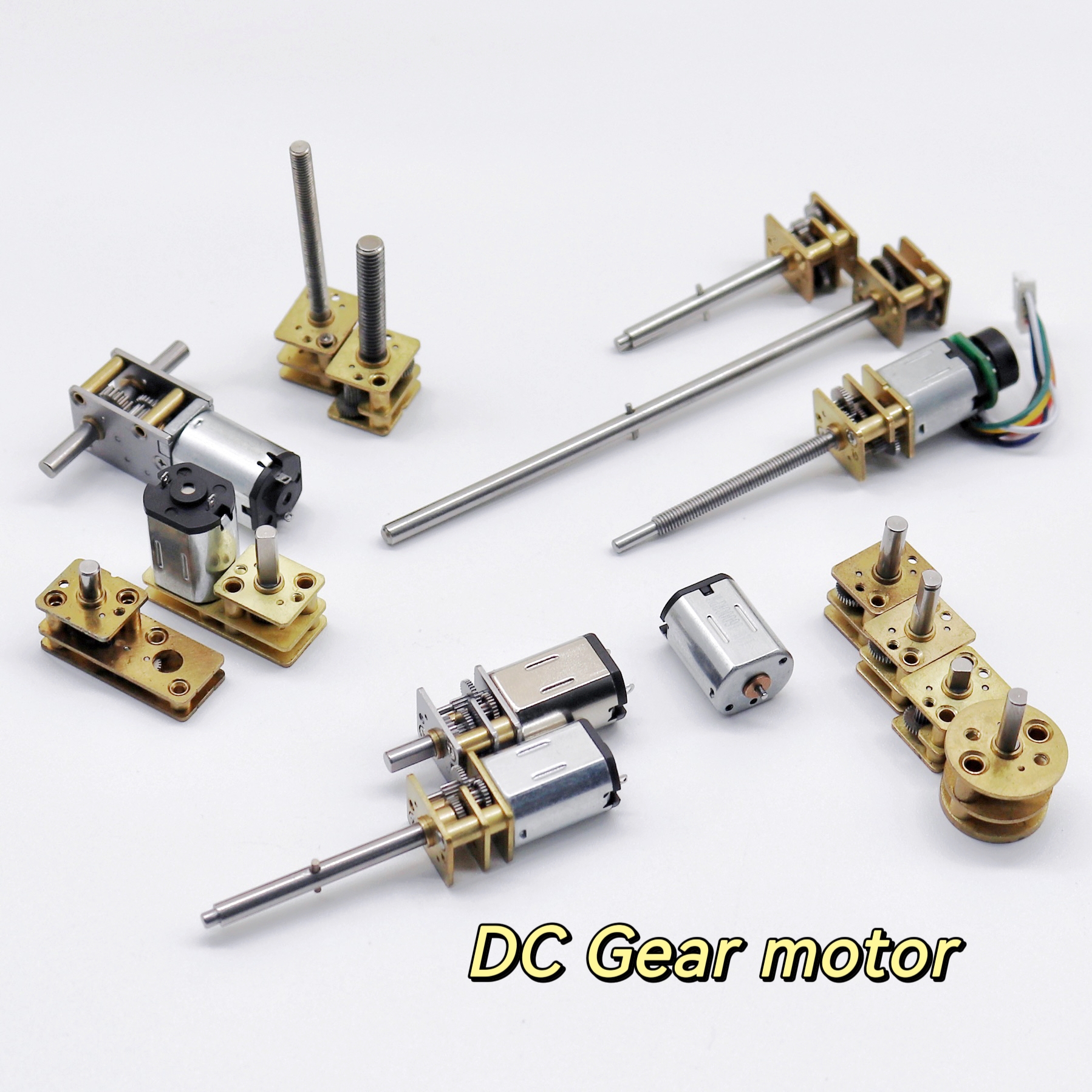

Recommend Products
Recommend Product 1 Recommend Product 2
Motor Raw Materials
Motor Raw Materials
Production Equipment
Production Equipment 1 Production Equipment 2 Production Equipment 3
Company Profile
Company Facility
Established in August 2017, the enterprise integrates the research and development, production, and marketing of micro motor series products. The main products include: various precision DC motors, stepper motors, reduction motors, planetary reduction motors, and brushless motors. Micro motors are widely used in medical equipment, medical detection and analysis, financial security, 5G applications, automotive appliances, intelligent communication, iris technology, AI intelligence, smart grid, smart home, commercial intelligent locks, smart switches, smart medicine cabinets, fresh food cabinets, smart wear, outdoor equipment, intelligent robots, electric tools, beauty tools, etc. Since its establishment, it has adhered to the concept of "people-oriented, pioneering and innovative spirit". After eleven years of rapid development, it has a group of young and pragmatic, professional and efficient work teams, advanced production facilities, efficient management, excellent quality, and high-quality services to meet customers' needs of continuously improving product levels, reducing energy consumption, facilitating production, and improving efficiency, winning more and more recognition from customers.
Certifications
Certifications Grid
Application Scenario
Application Scenarios Illustration
Industry Category Typical Application Products
Medical equipment sphygmomanometer, Massaging mattress, Air pump, Urine Analyzer.
Business Machines Intelligent robot, Copiers and Scanners, 3D Printers, Tattoo pen.
Electric powered equipment Electric toothbrush, Electric tool, Electric toy car, Electric curtain.
Smart Home Intelligent window opener, vacuum cleaner, Smart coffee machine, hair drier, Fascia gun, fan, air cleaner, Hair removal device, door lock, Intelligent door lock.
Food and Beverage Hand Blenders, Blenders, Mixers, Coffee Machines, Food Processors, Juicers, Fryers, Ice Makers, Soy Bean Milk Makers.
Robotics Servicing robotics, Food delivery robot, Reception robot, Medical serving robot, AGV & AMR, Conveying robot, Inspection robot.
Global Market Distribution
Market Distribution 1 Market Distribution 2 Market Distribution 3
Frequently Asked Questions
Q How to select a suitable motor?
If you have motor pictures or drawings to show us, or you have detailed specs like voltage, speed, torque, motor size, working mode of the motor, needed lifetime, and noise level etc, please do not hesitate to let us know, then we can recommend a suitable motor per your request accordingly.
Q Do you have customized service for your standard motors?
Yes, we can customize per your request for the voltage, speed, torque, and shaft size/shape. If you need additional wires/cables soldered on the terminal or need to add connectors, or capacitors or EMC, we can make it too.
Q Do you have individual design service for motors?
Yes, we design motors individually for our customers, but it may require a mold charge and design fee depending on requirements.
Q Can I have samples for testing first?
Yes, definitely. After confirming the needed motor specs, we will quote and provide a proforma invoice for samples. Once we receive the payment, we will proceed with sample production accordingly.
Q How do you make sure motor quality?
We have strict inspection procedures: for incoming materials, we verify signed samples and drawings to ensure qualification; for the production process, we conduct in-process tour inspections and a final inspection before shipping.
Q What certifications do you have?
We currently hold CE, RoHS, ISO13485, IATF16949, and REACH certifications.
