High-Torque 12V DC Motor for Smart Home Electric Car Cosmetic Instrument Boat Low-Rise GM24-N20VA DC Motor RoHS

Product Description

Products Description

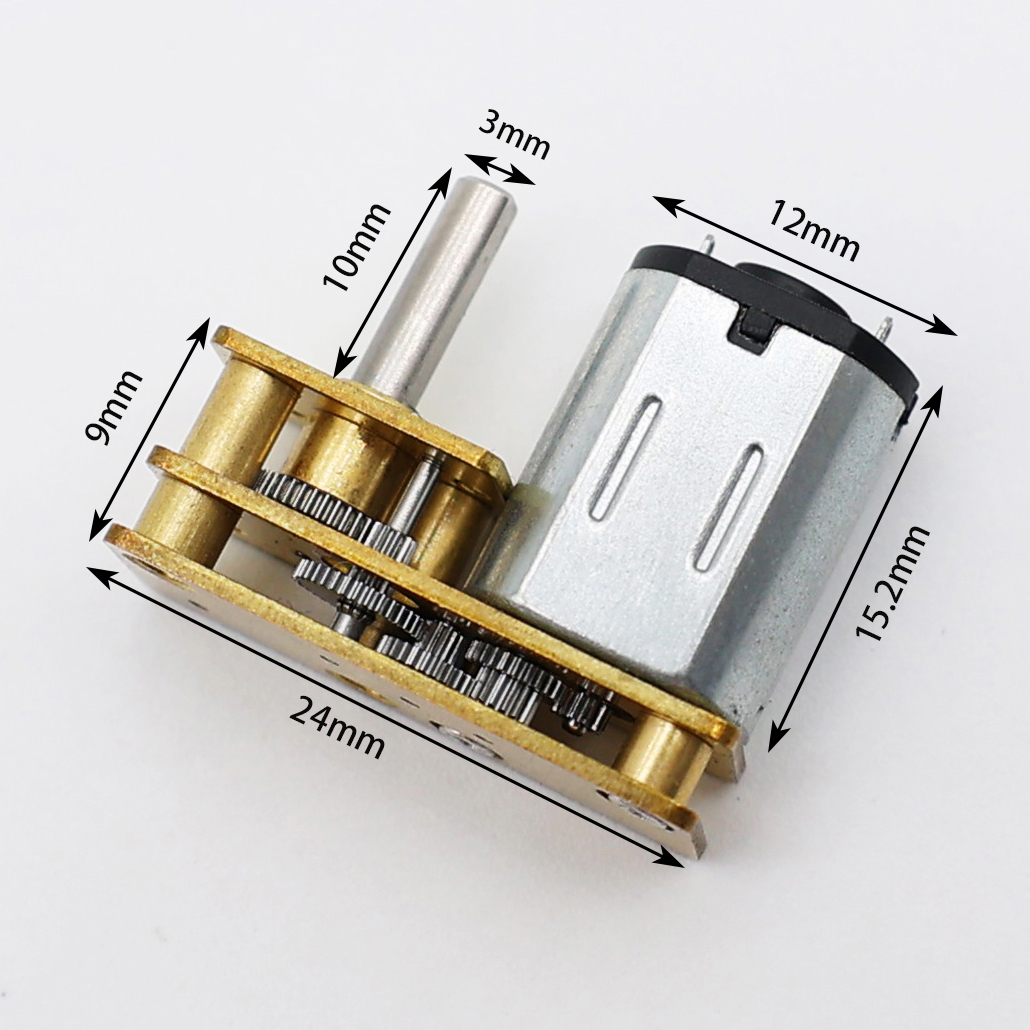

GM1024-N20VA small spur gear dc motor
  • Model: GM1024-N20 micro metal gearmotor
  • Main Features: Micro DC motor N20VA assembled with 24mm metal spur gearbox
  • Gearbox: 24 mm metal spur gear reducer
  • Rated Voltage: DC 3V, 4.5V, 5V, 6V, 9V, 12V, 24V
  • Rated Torque: Max. 1.8Kgf-cm
  • Size: Φ24 * L TBD
  • Square Gearbox Size: 12mm * 10mm
  • Shaft: Φ3mm D-cut 0.5mm, M3, M4, custom
  • Encoder: Magnetic encoder available
  • Commutation: Carbon brush / Graphite brush / Metal brush
  • Construction: Micro Permanent Magnet iron cored DC electric motor
  • MOQ: 500 pcs

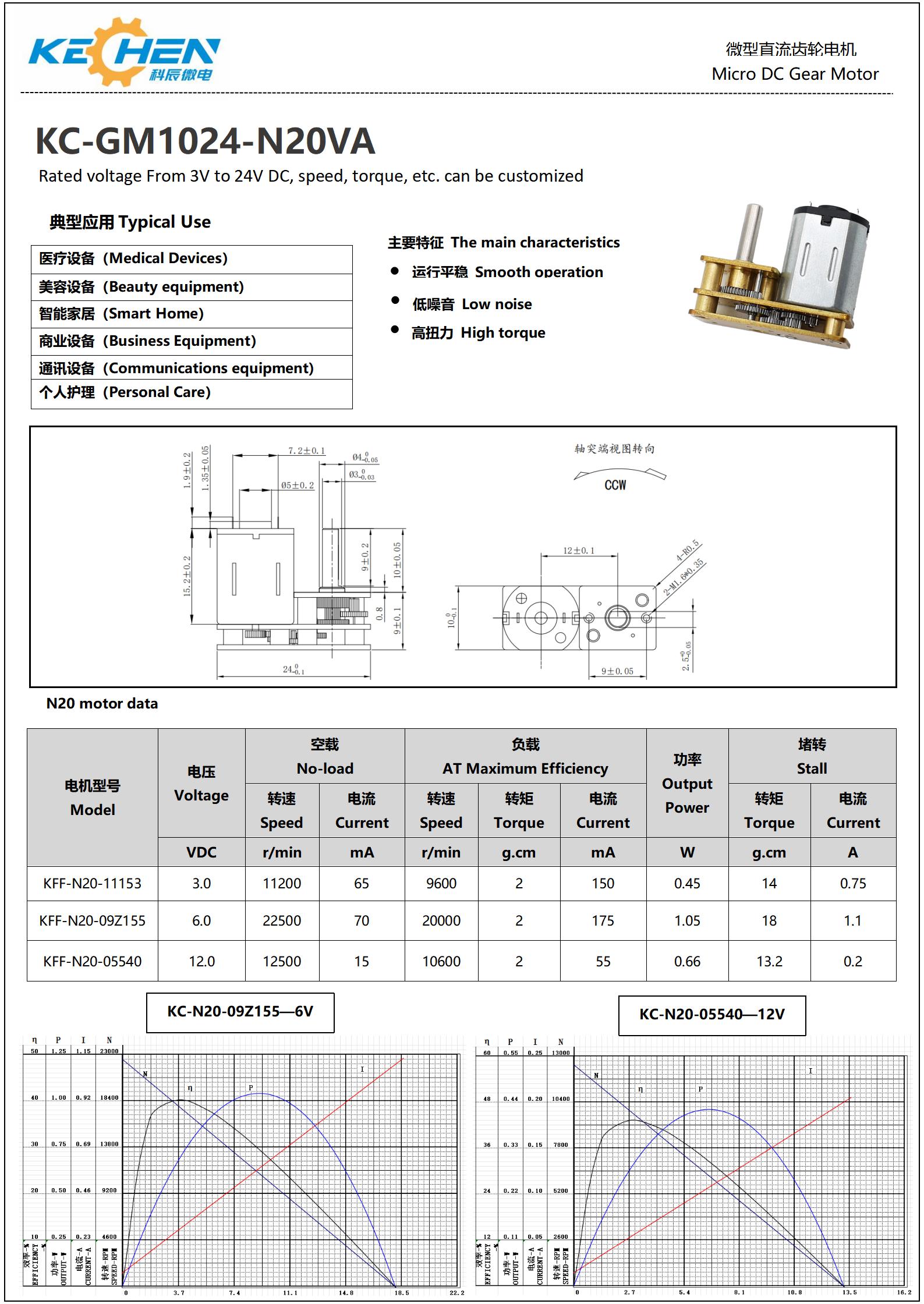

Motor Dimension Details
Technical Parameter Data
Gearbox with motor Data: GM1024-N20-09Z155-6.0V
Reduction 10 30 50 100 150 218 250 298 350
Length(mm) 9 9 9 9 9 9 9 9 9
No-load speed(rpm) 2250 750 450 225 150 103 90 76 64
Rated speed(rpm) 2000 667 400 200 133 92 80 67 57
Rated torque(kg.cm) 0.02 0.04 0.06 0.12 0.12 0.17 0.2 0.24 0.28
Stalling Torque (kg.cm) 0.14 0.32 0.54 1.08 1.08 1.57 1.8 2.15 2.52
Gearbox with motor Data: GM1024-N20-05540-12.0V
Reduction 50 100 168 210 250 298 380 500 2000
Length(mm) 9 9 9 9 9 9 9 9 12
No-load speed(rpm) 250 125 74 60 50 42 33 25 6.3
Rated speed(rpm) 212 106 63 50 42 36 28 21 5.3
Rated torque(kg.cm) 0.06 0.12 0.13 0.17 0.2 0.24 0.3 0.4 0.8
Stalling Torque (kg.cm) 0.39 0.79 0.88 1.11 1.32 1.57 2.0 2.63 5.26

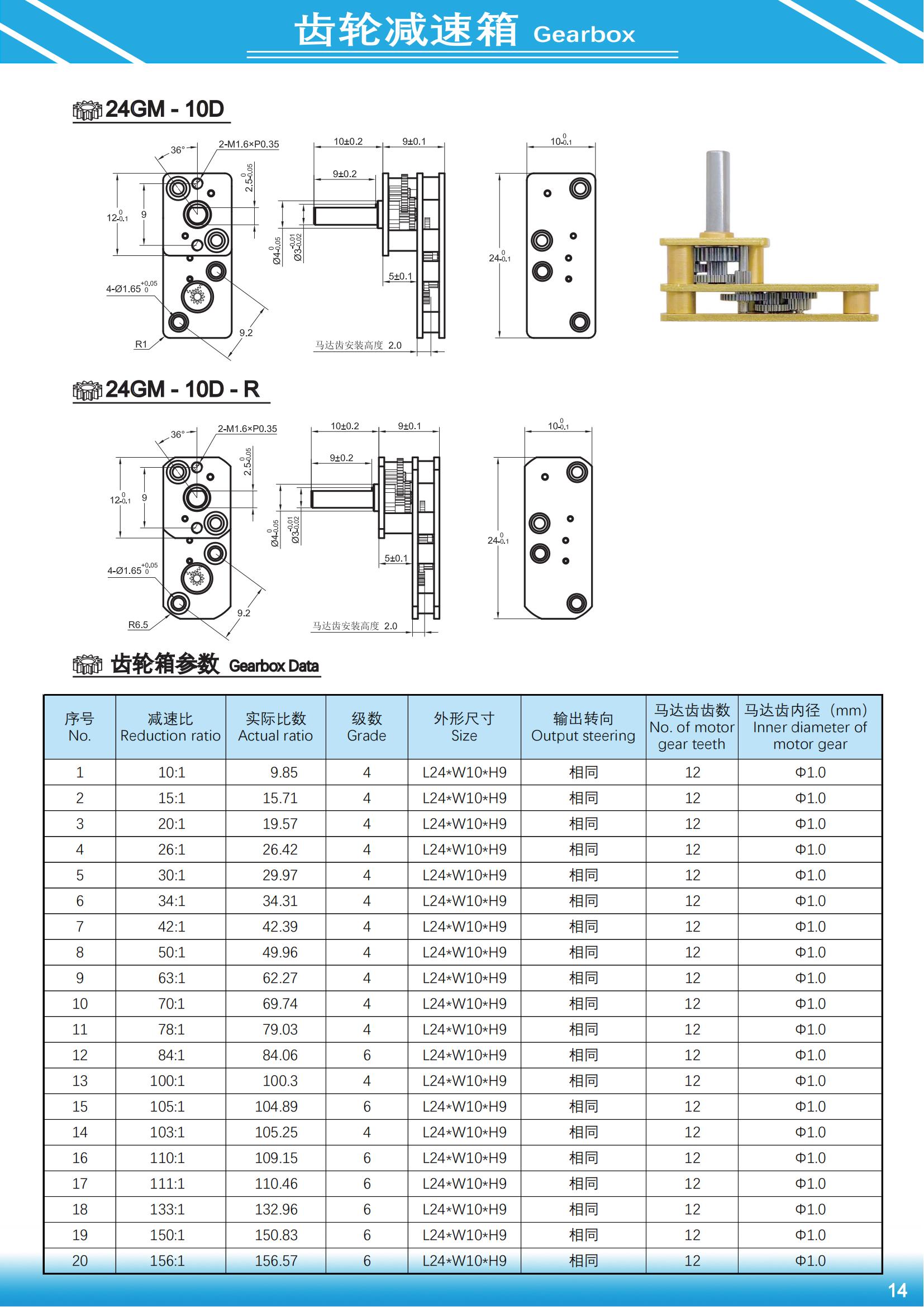

Motor Structure Diagram
Recommend Products
Recommended Motor Product 1
Recommended Motor Product 2
Recommended Motor Product 3
Motor Raw Materials
High Quality Raw Materials Overview
Production Equipment
Precision Production Equipment 1
Precision Production Equipment 2
Precision Production Equipment 3
Company Profile
Production Facility Overview
Established in August 2009, this high-tech enterprise integrates the research and development, production, and marketing of micro motor series products. The main products include various precision DC motors, stepper motors, reduction motors, planetary reduction motors, and brushless motors.

Micro motors are widely used in medical equipment, medical detection and analysis, financial security, 5G applications, automotive appliances, intelligent communication, iris technology, AI intelligence, smart grid, smart home, commercial intelligent locks, smart switches, smart medicine cabinets, fresh food cabinets, smart wear, outdoor equipment, intelligent robots, electric tools, beauty tools, and more.

Since its establishment, the enterprise has adhered to the concept of "people-oriented, pioneering and innovative spirit". After eleven years of rapid development, it boasts a group of young, pragmatic, professional, and efficient work teams. Equipped with advanced production facilities, efficient management, excellent quality, and high-quality services, it meets customers' needs of continuously improving product levels, reducing energy consumption, facilitating production, and improving efficiency, winning widespread recognition from worldwide clients.
Certifications
Industrial ISO and Quality Certificates
Application Scenario
Micro Motor Application Fields Showcase
Global Market Distribution
Global Market Map
Global Shipping and Logistics
Frequently Asked Questions
What are the primary applications for the GM1024-N20 micro gearmotor?
It is highly suited for medical devices, automated medical testing, financial security systems, 5G terminal operations, smart home appliances, intelligent commercial locks, robotic devices, and beauty equipment.
Does the GM1024-N20 support customization for shaft and voltage configurations?
Yes, we provide customizable options for shafts including Φ3mm D-cut 0.5mm, M3, M4, and other options. The rated voltage options span from DC 3V up to 24V according to project requirements.
Is it possible to attach an encoder to this gearmotor?
Yes, magnetic encoder integrations are available for this miniature spur gear motor to enable precise speed and position control.
What is the standard minimum order quantity (MOQ)?
The minimum order quantity for production run orders is 500 pieces per batch. Please consult for sample evaluations.
What commutation options are offered?
We offer carbon brush, graphite brush, and metal brush commutation configurations to suit different operating life profiles and environments.
What is the max rated torque limit of this 24mm gearbox?
The 24mm metal spur gearbox can handle a maximum rated torque of up to 1.8 Kgf-cm.
