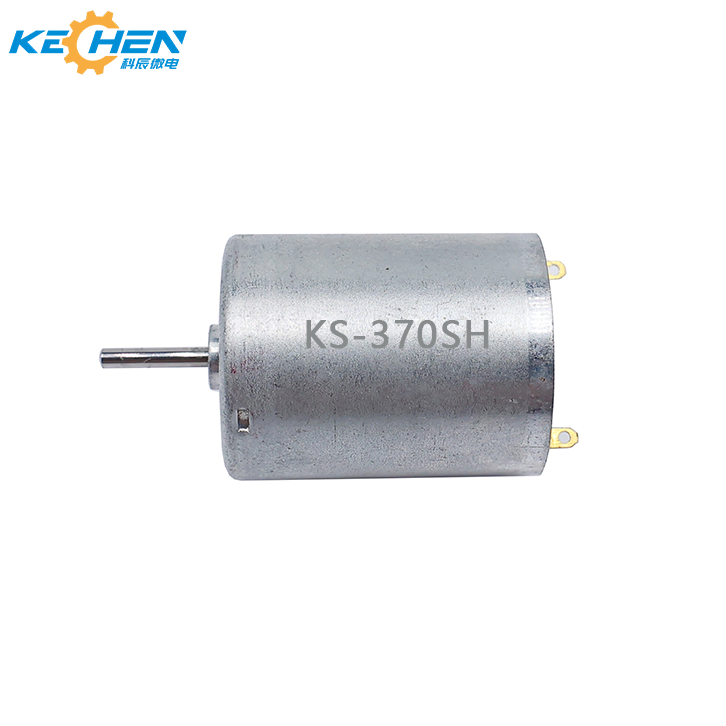

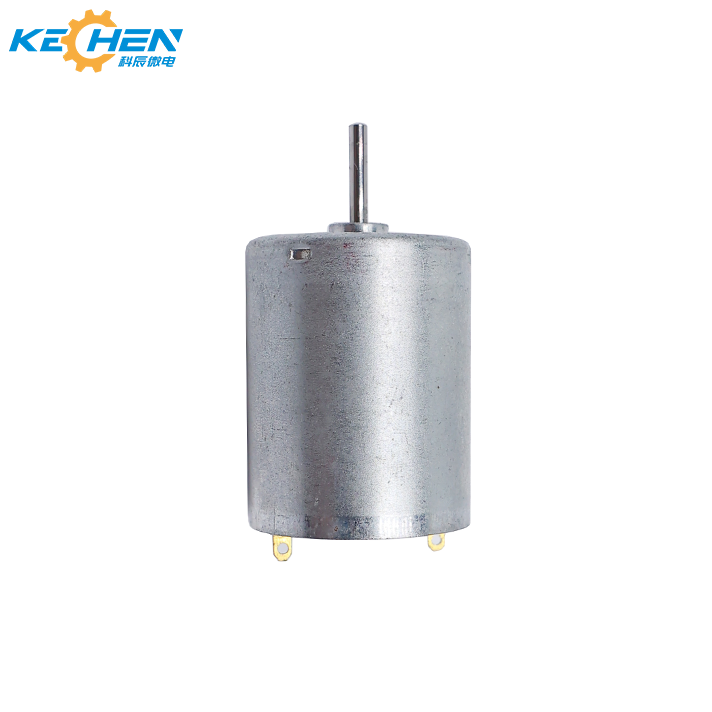

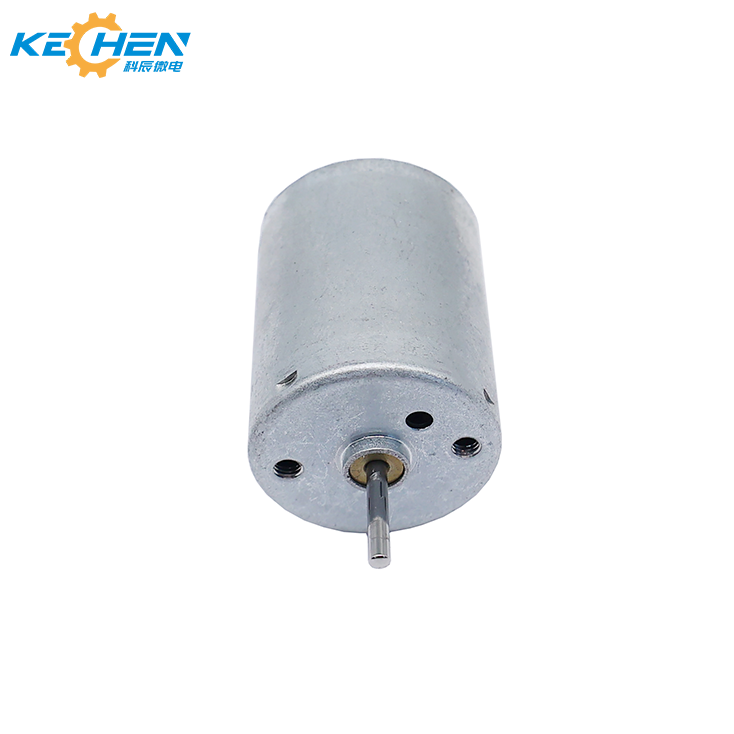

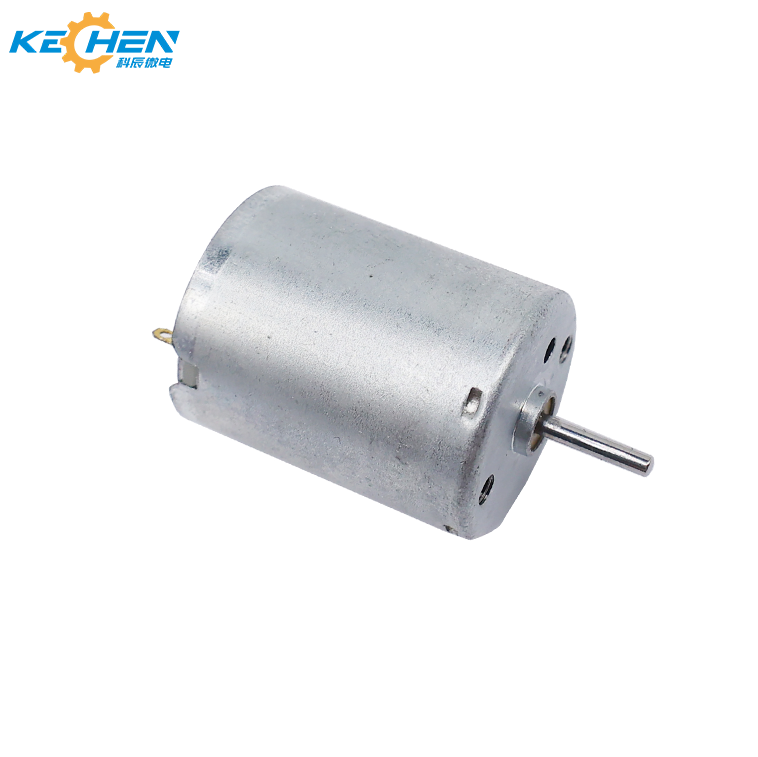

Dc 3.7v 4.5v Diaphragm air Motor Small 6 Volt Micro Vacuum Pump with 3v 6 v 12v 370 24mm Dia

Products Description

Typical Specifications of a 370 DC Motor

Motor TypeBrushed DC Motor

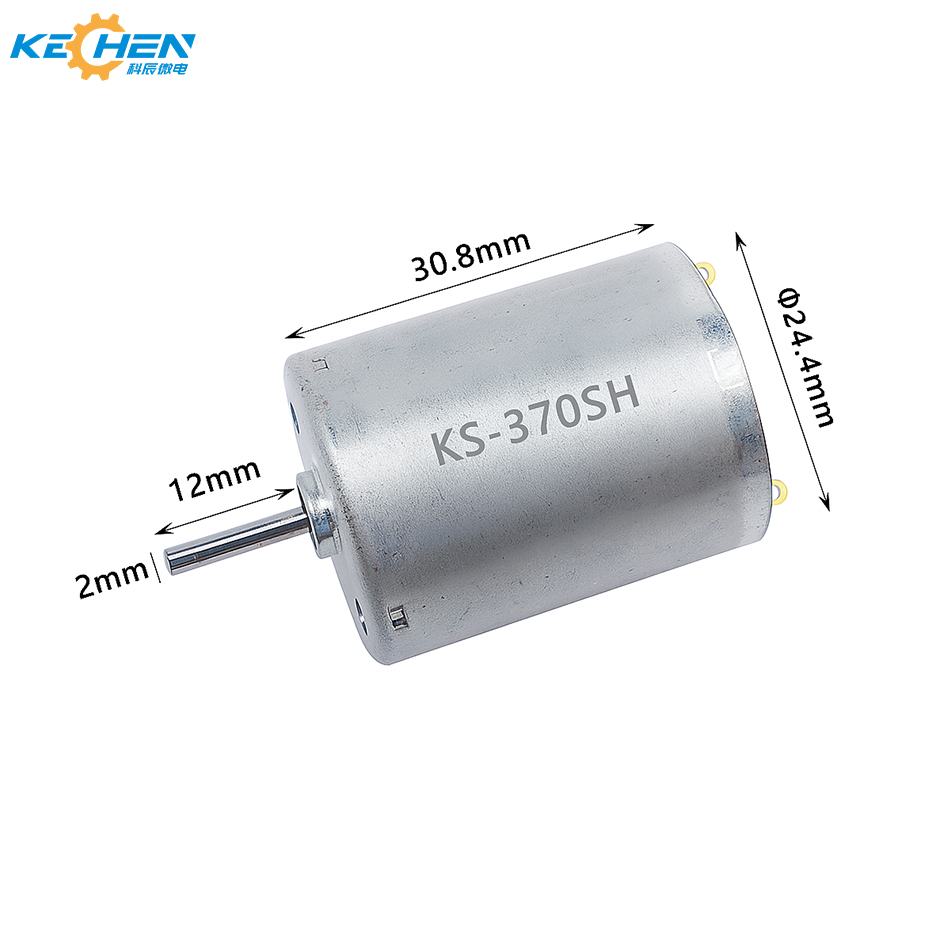

Motor SizeDiameter ≈ 24 mm, Length ≈ 30–38 mm (excluding shaft)
Shaft Diameter≈ 2 mm (some versions 2.3 mm)
Rated Voltage3V – 12V (commonly available in 6V, 9V, and 12V versions)
No-Load Speed (at 12V)≈ 10,000 – 20,000 RPM (depending on winding)
No-Load Current≈ 70 – 200 mA
Stall Current≈ 1.5 – 3.5 A
Stall Torque≈ 80 – 200 g·cm
Rated Torque≈ 20 – 60 g·cm
Output Power≈ 1 – 5 W
Rotation DirectionCW / CCW (reversible by polarity)

Key Features

Compact size with stable and medium power output.
High-speed operation optimized for fans, pumps, RC models, and gearmotors.
Commonly integrated with gearboxes for applications requiring low-speed and high-torque performance.

Recommend Products

Motor Raw Materials

Production Equipment

Profile

Our enterprise was established in August 2009. It is a high-tech enterprise that integrates the research and development, production, and marketing of micro motor series products. The main products include: various precision DC motors, stepper motors, reduction motors, planetary reduction motors, and brushless motors.

Micro motors are widely used in medical equipment, medical detection and analysis, financial security, 5G applications, automotive appliances, intelligent communication, iris technology, AI intelligence, smart grid, smart home, commercial intelligent locks, smart switches, smart medicine cabinets, fresh food cabinets, smart wear, outdoor equipment, intelligent robots, electric tools, beauty tools, etc.

Since its establishment, the factory has adhered to the concept of "people-oriented, pioneering and innovative spirit". After eleven years of rapid development, it has a group of young and pragmatic, professional and efficient work teams, advanced production facilities, efficient management, excellent quality, and high-quality services to meet customers' needs of continuously improving product levels, reducing energy consumption, facilitating production, and improving efficiency, winning more and more recognition from customers.

Certifications

Application Scenario

Medical equipment	Sphygmomanometer, Massaging mattress, Air pump, Urine Analyzer.
Business Machines	Intelligent robot, Copiers and Scanners, 3D Printers, Tattoo pen.
Electric powered equipment	Electric toothbrush, Electric tool, Electric toy car, Electric curtain.
Smart Home	Intelligent window opener, vacuum cleaner, Smart coffee machine, hair drier, Fascia gun, fan, air cleaner, Hair removal device, door lock, Intelligent door lock.
Food and Beverage	Hand Blenders, Blenders, Mixers, Coffee Machines, Food Processors, Juicers, Fryers, Ice Makers, Soy Bean Milk Makers.
Robotics	Servicing robotics, Food delivery robot, Reception robot, Medical serving robot, AGV & AMR, Conveying robot, Inspection robot.

Global Market Distribution

Frequently Asked Questions

What are the primary applications of a 370 DC motor?

A 370 DC motor is widely used in high-speed applications such as fans, pumps, RC models, and gearmotors. When combined with a gearbox, it is ideal for systems requiring low-speed and high-torque output.

What is the typical voltage range for these micro motors?

The 370 DC motors typically operate within a rated voltage range of 3V to 12V, with 6V, 9V, and 12V being the most commonly used options.

Can the rotation direction of the 370 motor be reversed?

Yes, the rotation direction (Clockwise / Counter-Clockwise) is fully reversible by simply swapping the polarity of the electrical connections.

In which industries are your precision micro motors commonly deployed?

Our micro motors are utilized across multiple industries, including medical equipment, smart home systems, robotic systems, commercial business machines, food and beverage processing, and electrical tools.

Are these products certified for quality and safety standards?

Yes, all of our products go through rigorous testing and hold quality and regulatory certifications to ensure compliant integration into domestic and international projects.
