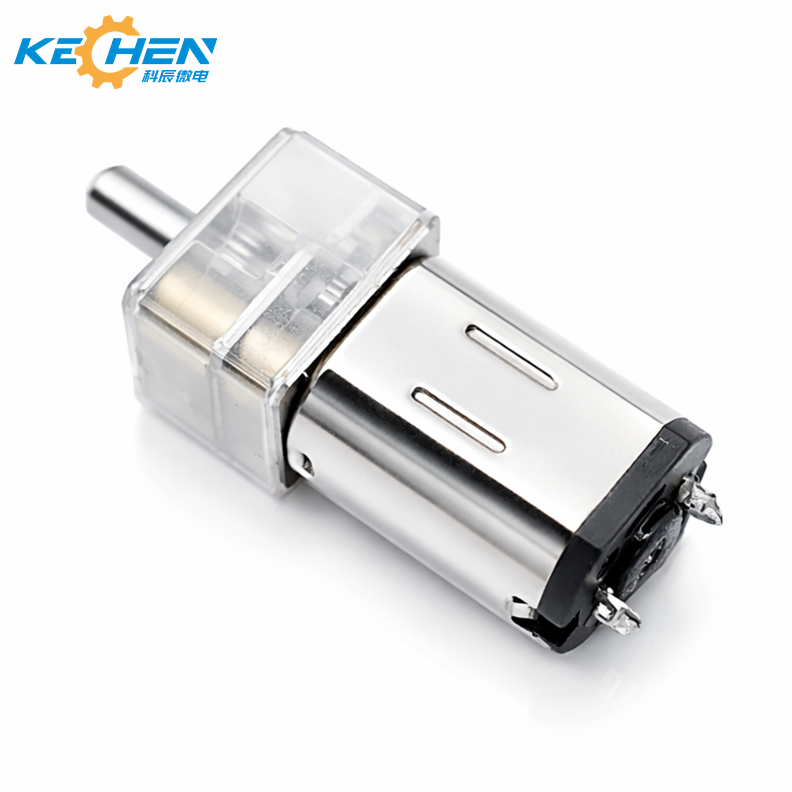

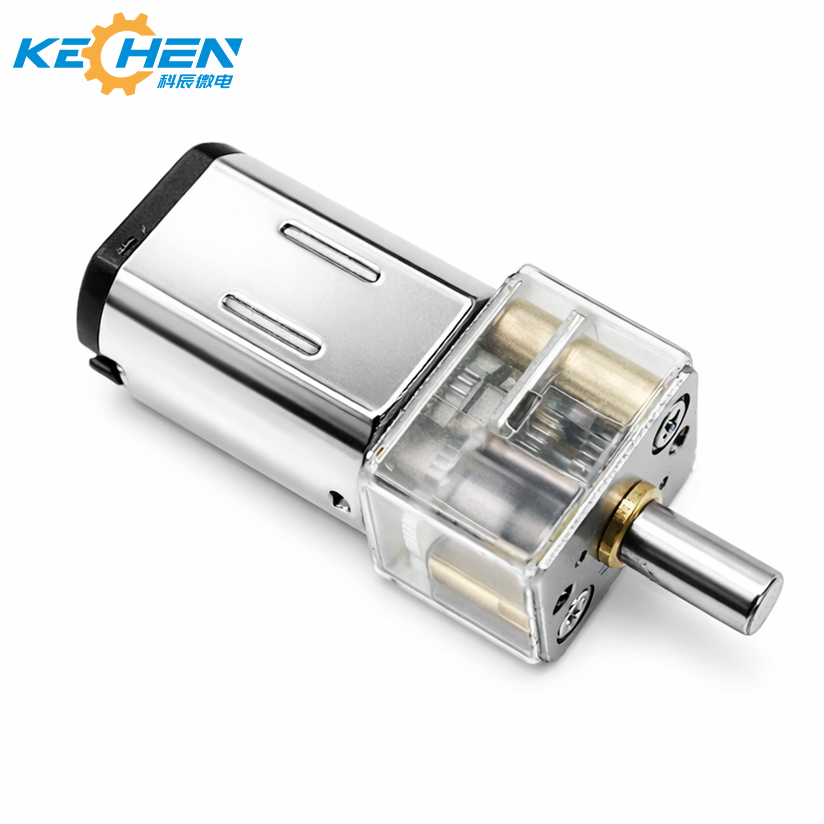

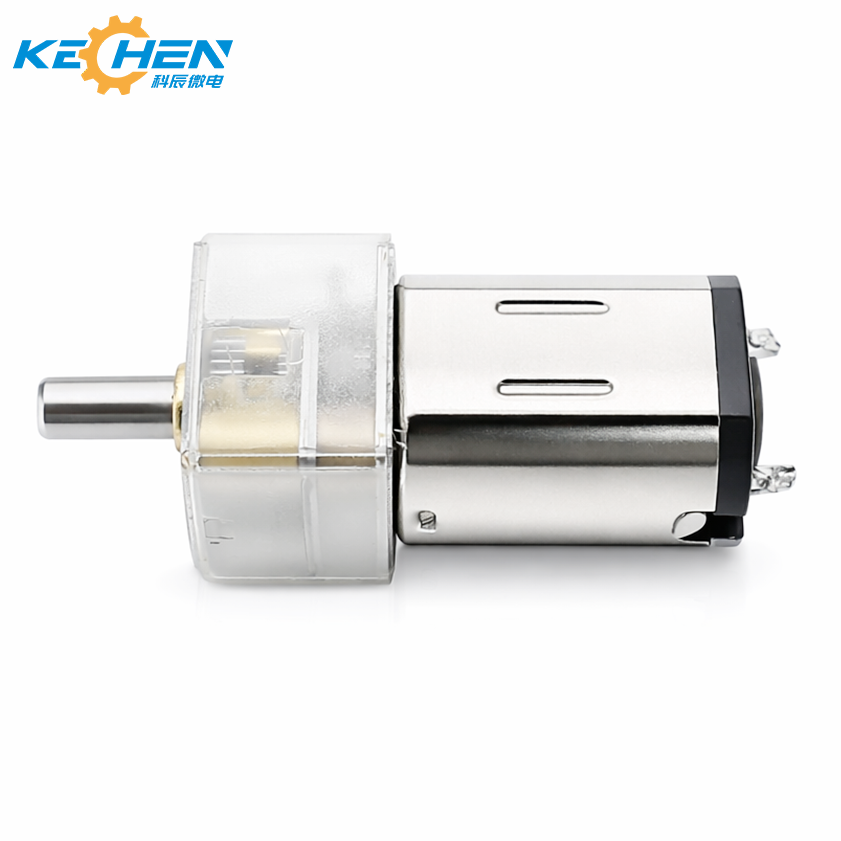

N20 Series Micro Metal Gearmotor 300 RPM DC Motor with Permanent Magnet Dust Cover for Home Appliances & Electric Bicycles

Products Description

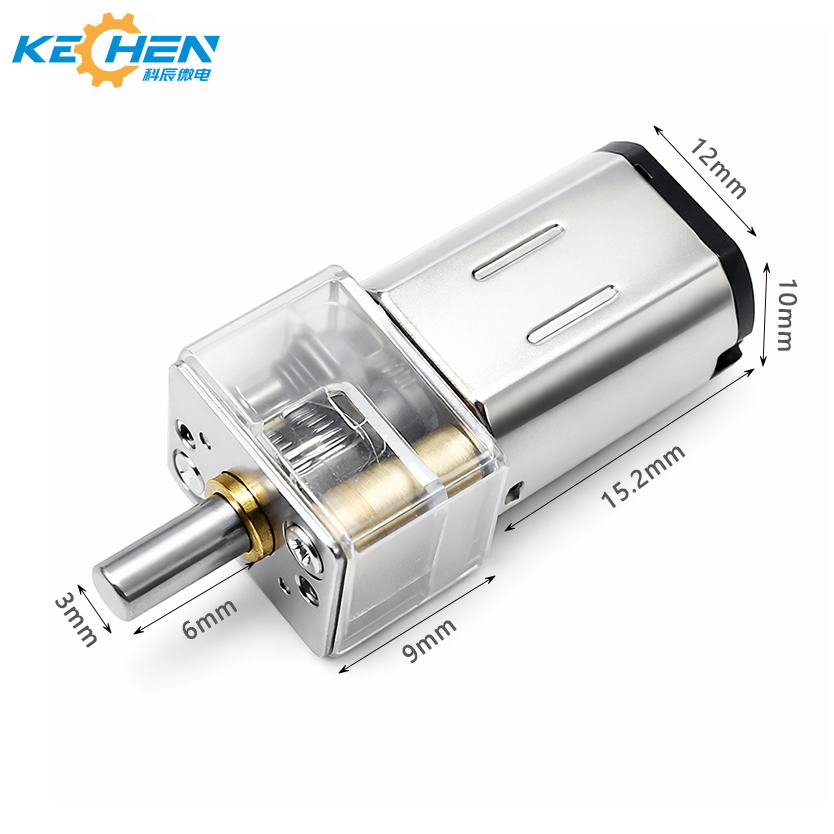

12mm small spur gear dc motor

Main features:

Model: GM12-N20VA-ED
Gearbox: metal spur gear reducer
Rated Voltage: DC 1.5V, 3V, 6V, 9V, 12V, 24V
Rated Torque: Max. 1.5kgf-cm
Size: Φ12mm * L TBD
Shaft: concentric driveshaft, Φ3mm D-cut 0.5mm, O, M3, M4, custom
Commutation: Carbon brush/Graphite brush
Construction: Permanent Magnet iron cored motor
Encoder: Magnetic encoder 3ppr/7ppr
MOQ: 500 pcs

Gearbox with motor Data:
GM12-N20-09170-3.0V
Reduction	10	30	50	100	150	210	250	298	330
Length(mm)	9	9	9	9	9	9	9	9	9
No-load speed(rpm)	960	320	192	96	64	46	38	32	29
Rated speed(rpm)	730	243	146	73	49	35	29	24	22
Rated torque(kg.cm)	0.02	0.04	0.06	0.12	0.15	0.21	0.25	0.30	0.33
Stalling Torque (kg.cm)	0.07	0.18	0.25	0.50	0.63	0.88	1.04	1.24	1.38
GM12-N20-07310-12.0V
Reduction	50	100	150	210	250	298	330	380	1000
Length(mm)	9	9	9	9	9	9	9	9	12
No-load speed(rpm)	460	230	153	110	92	77	70	61	23
Rated speed(rpm)	410	205	137	98	82	69	62	54	21
Rated torque(kg.cm)	0.06	0.12	0.15	0.21	0.25	0.30	0.33	0.38	0.60
Stalling Torque (kg.cm)	0.55	1.10	1.38	1.93	2.30	2.74	3.04	3.50	5.52

Recommend Products

Motor raw materials

Production Equipment

Company Profile

Established in August 2009, this high-tech enterprise integrates the research and development, production, and marketing of micro motor series products. The main products include: various precision DC motors, stepper motors, reduction motors, planetary reduction motors, and brushless motors.

These micro motors are widely used in medical equipment, medical detection and analysis, financial security, 5G applications, automotive appliances, intelligent communication, iris technology, AI intelligence, smart grid, smart home, commercial intelligent locks, smart switches, smart medicine cabinets, fresh food cabinets, smart wear, outdoor equipment, intelligent robots, electric tools, beauty tools, and more.

Since its establishment, the enterprise has adhered to the concept of "people-oriented, pioneering and innovative spirit". After eleven years of rapid development, it features a group of young, pragmatic, professional, and efficient work teams, advanced production facilities, efficient management, excellent quality, and high-quality services to meet customers' needs for continuously improving product levels, reducing energy consumption, facilitating production, and improving efficiency, winning more and more recognition from customers.

Certifications

Application Scenario

Global Market Distribution

Frequently Asked Questions (FAQ)

What are the main features of the GM12-N20VA-ED motor?

The motor features a compact 12mm metal spur gear reducer, supports custom concentric driveshafts (D-cut, round, M3, M4), options for carbon or graphite brushes, and optional magnetic encoders (3ppr/7ppr).

What voltage options are available for this small spur gear DC motor?

This gear motor is rated for multiple voltage options, including DC 1.5V, 3V, 6V, 9V, 12V, and 24V. Custom voltage adjustments can also be evaluated.

What is the torque capability of this miniature reduction motor?

It offers a rated torque up to a maximum of 1.5kgf-cm depending on the reduction ratio and configured voltage.

What industries and applications use these micro motors?

These micro motors are widely used in medical equipment, smart locks, smart home appliances, financial security equipment, AI robotics, beauty devices, and outdoor smart gear.

Can the shaft specifications be customized for specific project needs?

Yes, the concentric driveshaft can be customized to match your specification requirements, including Φ3mm D-cut (0.5mm), concentric O-cut, M3/M4 threads, or other customized configurations.

What is the Minimum Order Quantity (MOQ) for orders?

The standard MOQ for the GM12-N20VA-ED miniature DC spur gear motor is 500 pieces.
