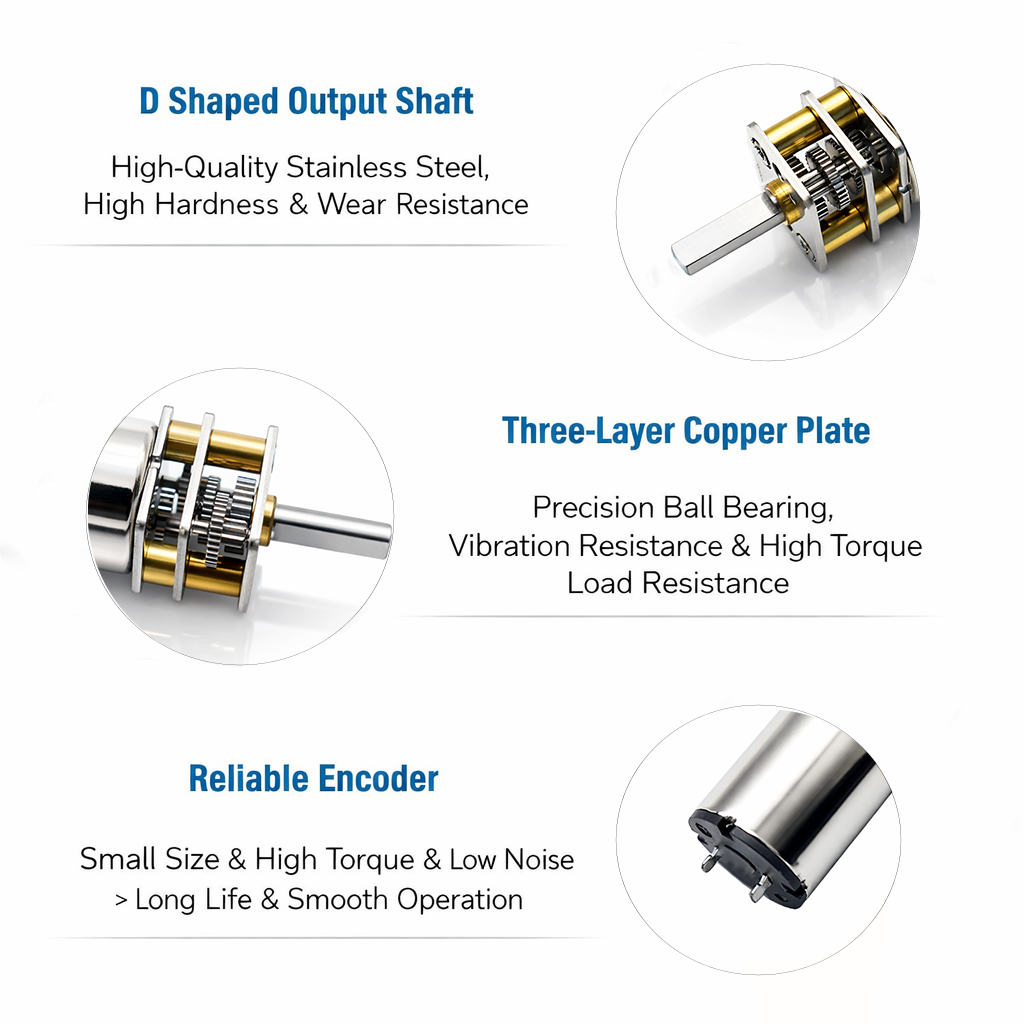

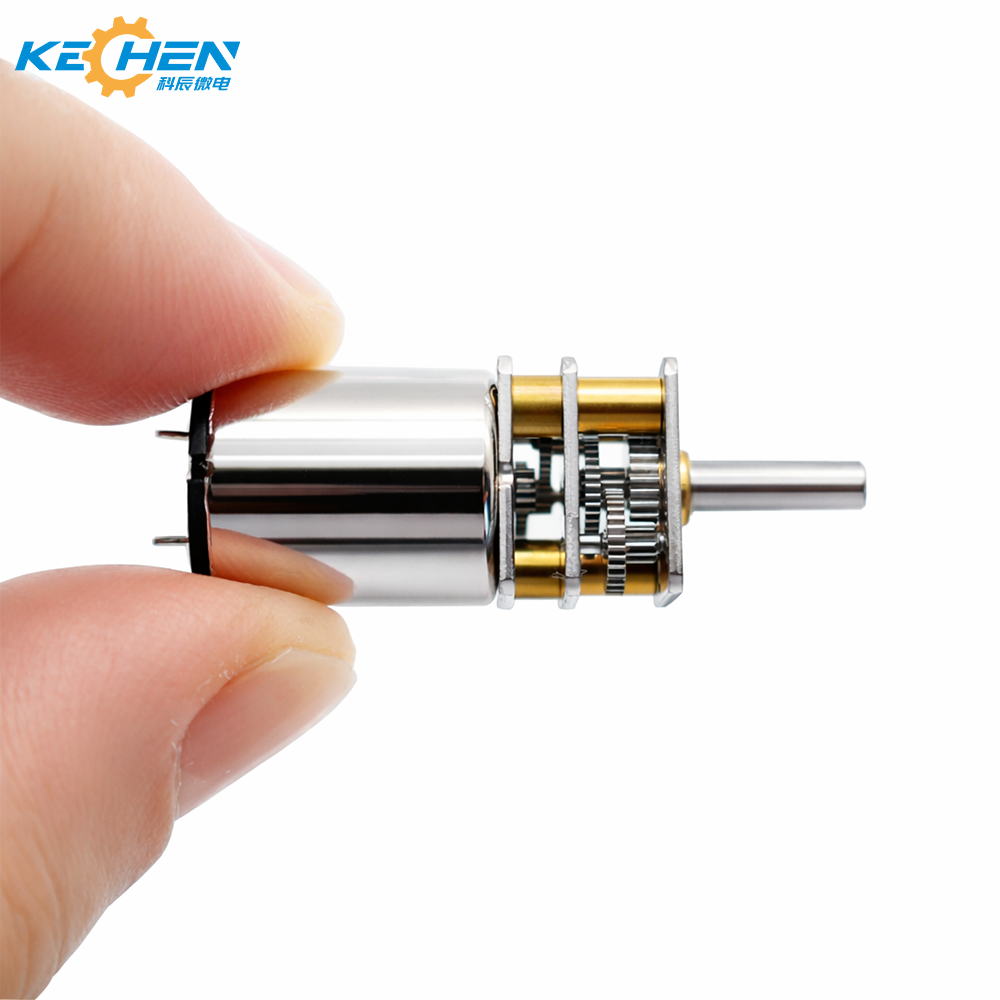

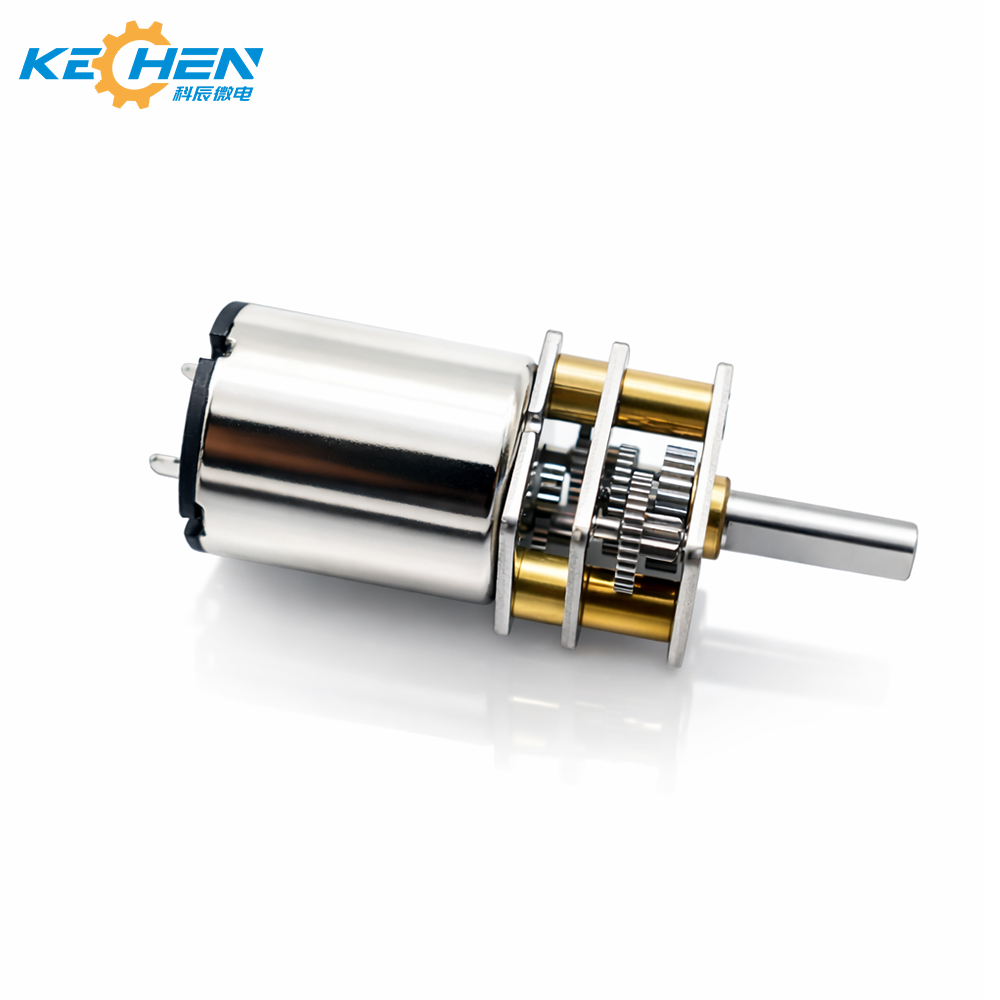

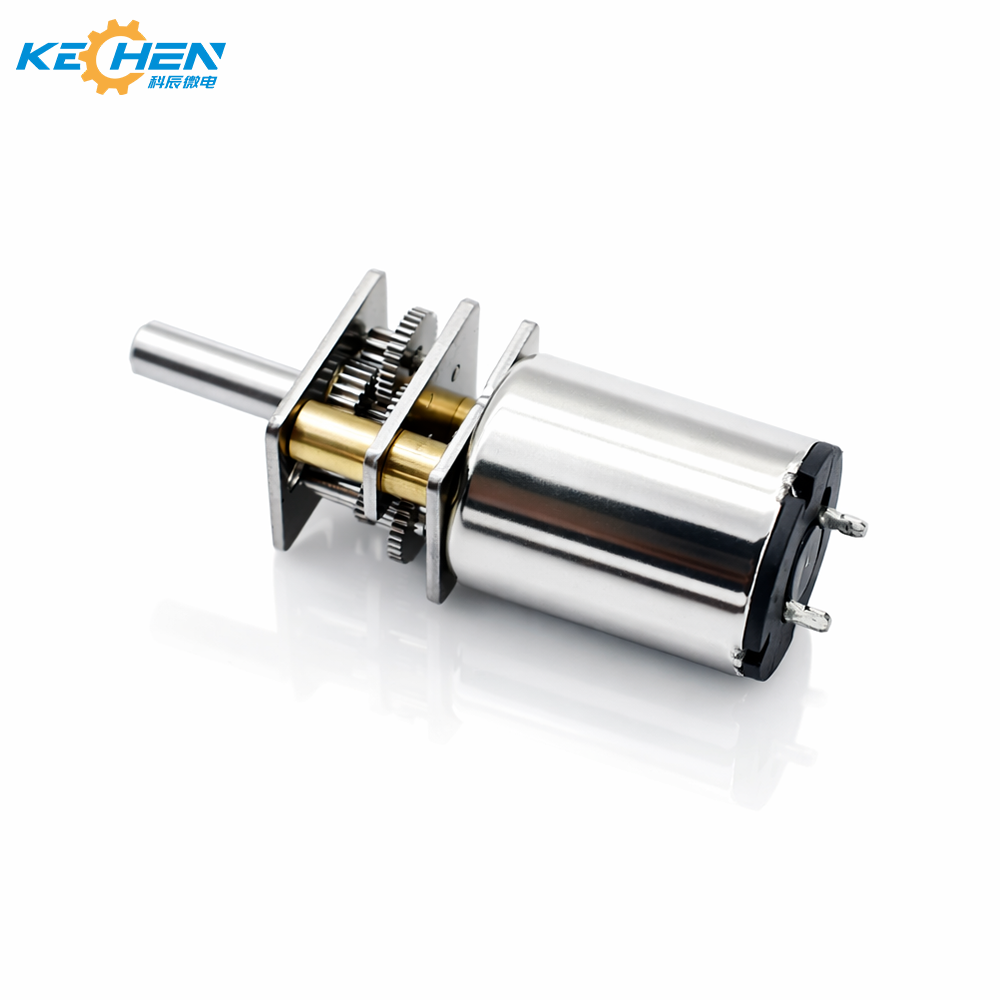

High Torque 12mm GM12-1215 Coreless DC Gear Motor Permanent Magnet Construction Voltages 3V 6V 12V

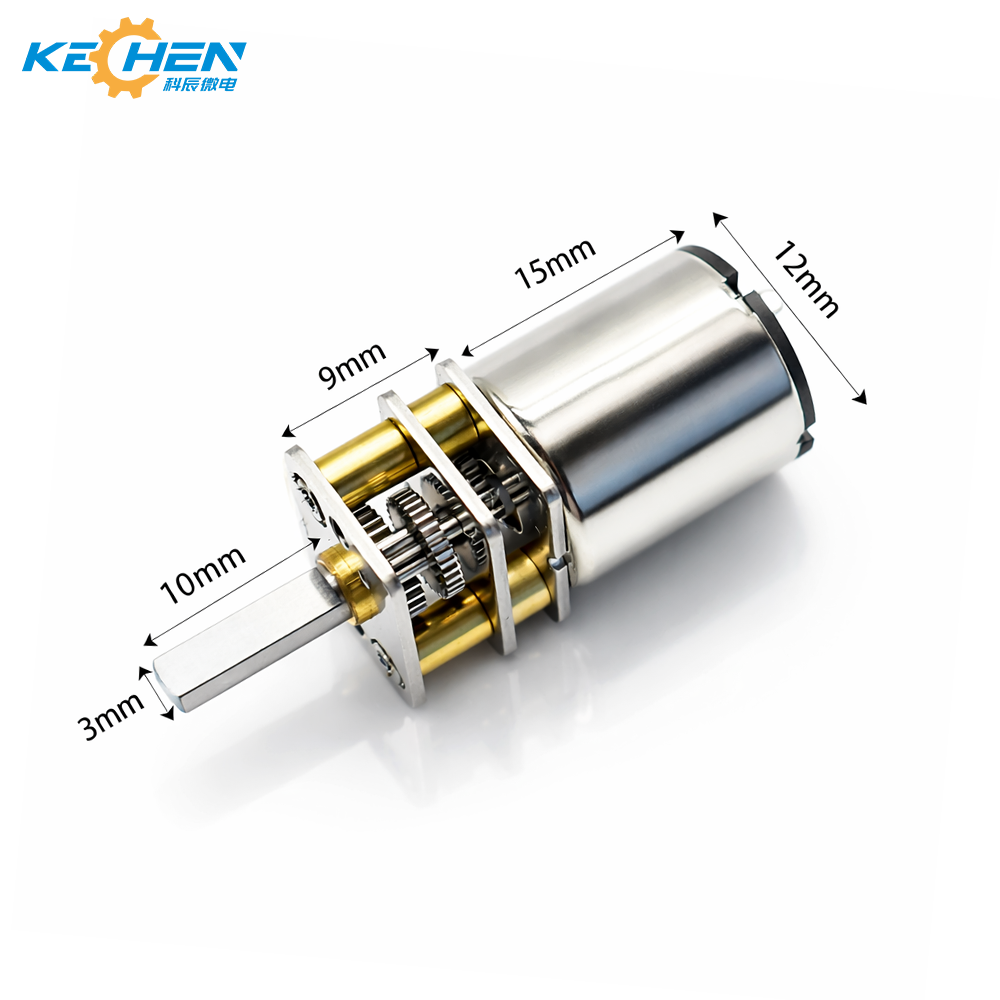

Products Description

Gearbox with motor Data: GM12-1215-6.0V
Reduction Ratio	10	20	30	50	100	150	210	298	380
No-load speed (rpm)	1050	530	360	210	107	70	50	36	28
Rated torque (kg.cm)	0.05	0.1	0.15	0.25	0.5	0.7	1.0	1.4	2
Rated speed (rpm)	600	300	200	120	60	40	28	20	15
Rated current (A)	0.16	0.16	0.16	0.16	0.16	0.16	0.16	0.16	0.16
Stalling Torque (kg.cm)	0.1	0.2	0.3	0.5	1.0	1.5	2.0	3.0	3.0
Stall current (A)	0.45	0.45	0.45	0.45	0.45	0.45	0.45	0.45	0.45
Gearbox with motor Data: GM12-1215-12.0V
Reduction Ratio	10	20	30	50	100	150	210	298	380
No-load speed (rpm)	2150	1015	720	430	215	140	100	72	56
Rated torque (kg.cm)	0.1	0.2	0.3	0.5	1.0	1.5	2.0	2.0	2.0
Rated speed (rpm)	1200	600	400	240	120	80	57	50	45
Rated current (A)	0.3	0.3	0.3	0.3	0.3	0.3	0.3	0.3	0.3
Stalling Torque (kg.cm)	0.2	0.4	0.6	1.0	120	80	57	50	45
Stall current (A)	0.75	0.75	0.75	0.75	0.75	0.75	0.75	0.75	0.75

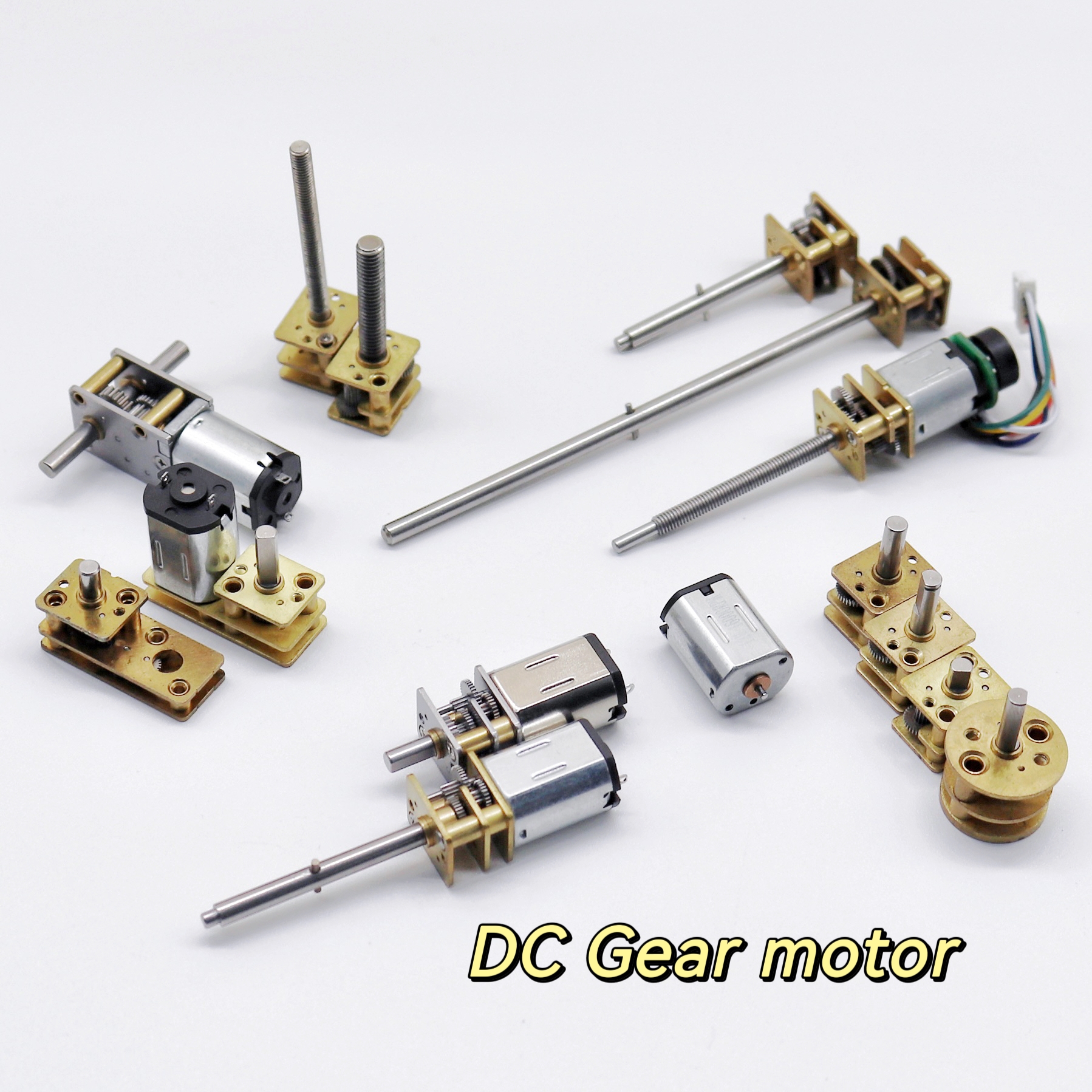

Recommend Products

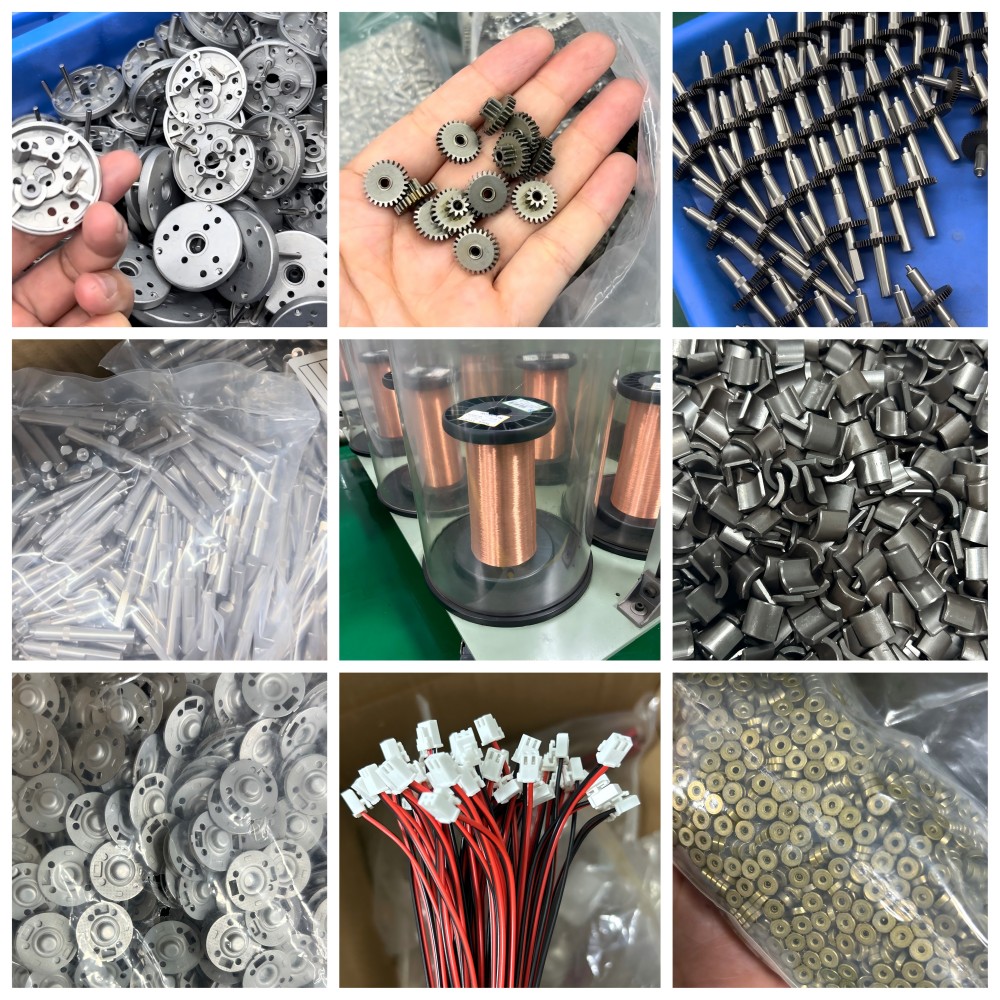

Motor raw materials

Production Equipment

Company Profile

Established in August 2009, this high-tech enterprise integrates the research and development, production, and marketing of micro motor series products. The main products include: various precision DC motors, stepper motors, reduction motors, planetary reduction motors, and brushless motors. Micro motors are widely used in medical equipment, medical detection and analysis, financial security, 5G applications, automotive appliances, intelligent communication, iris technology, AI intelligence, smart grid, smart home, commercial intelligent locks, smart switches, smart medicine cabinets, fresh food cabinets, smart wear, outdoor equipment, intelligent robots, electric tools, beauty tools, etc. Since its establishment, the team has adhered to the concept of "people-oriented, pioneering and innovative spirit". After eleven years of rapid development, it has a group of young and pragmatic, professional and efficient work teams, advanced production facilities, efficient management, excellent quality, and high-quality services to meet customers' needs of continuously improving product levels, reducing energy consumption, facilitating production, and improving efficiency, winning more and more recognition from customers.

Certifications

Application Scenario

Global Market Distribution

Frequently Asked Questions (FAQ)

1. What are the key voltage specifications for the GM12-1215 series motors?

The GM12-1215 series micro gear motors are available in standard 6.0V and 12.0V configurations, optimized for various speed and torque application demands.

2. Can the reduction ratios of these motors be customized?

Yes, our standard range features multiple preset reduction ratios including 10, 20, 30, 50, 100, 150, 210, 298, and 380 to meet custom performance specifications.

3. What kinds of products commonly utilize micro gear motors?

These motors are widely integrated into medical diagnostics, financial security devices, AI intelligence, smart locks, home automation, beauty tools, and portable robotic systems.

4. What is the relationship between the gear reduction ratio and torque?

Higher reduction ratios (e.g., 380) output significantly higher torque but lower speeds, whereas lower reduction ratios (e.g., 10) deliver faster output speeds with lower torque limits.

5. Are these planetary reduction motors reliable for industrial uses?

Yes, our motors are constructed using high-quality raw materials and manufactured under strict quality standards, making them suitable for long-term precision operations.
