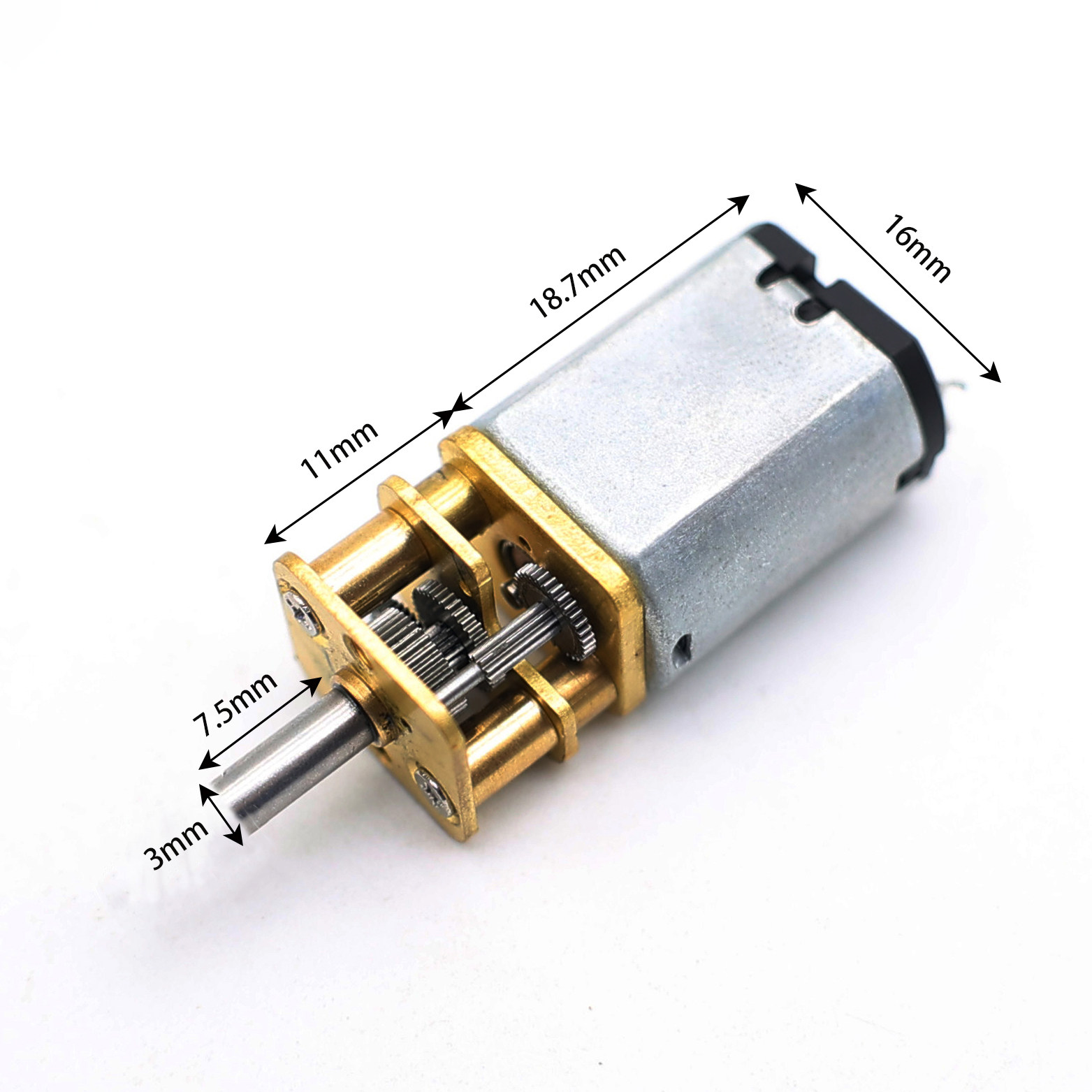

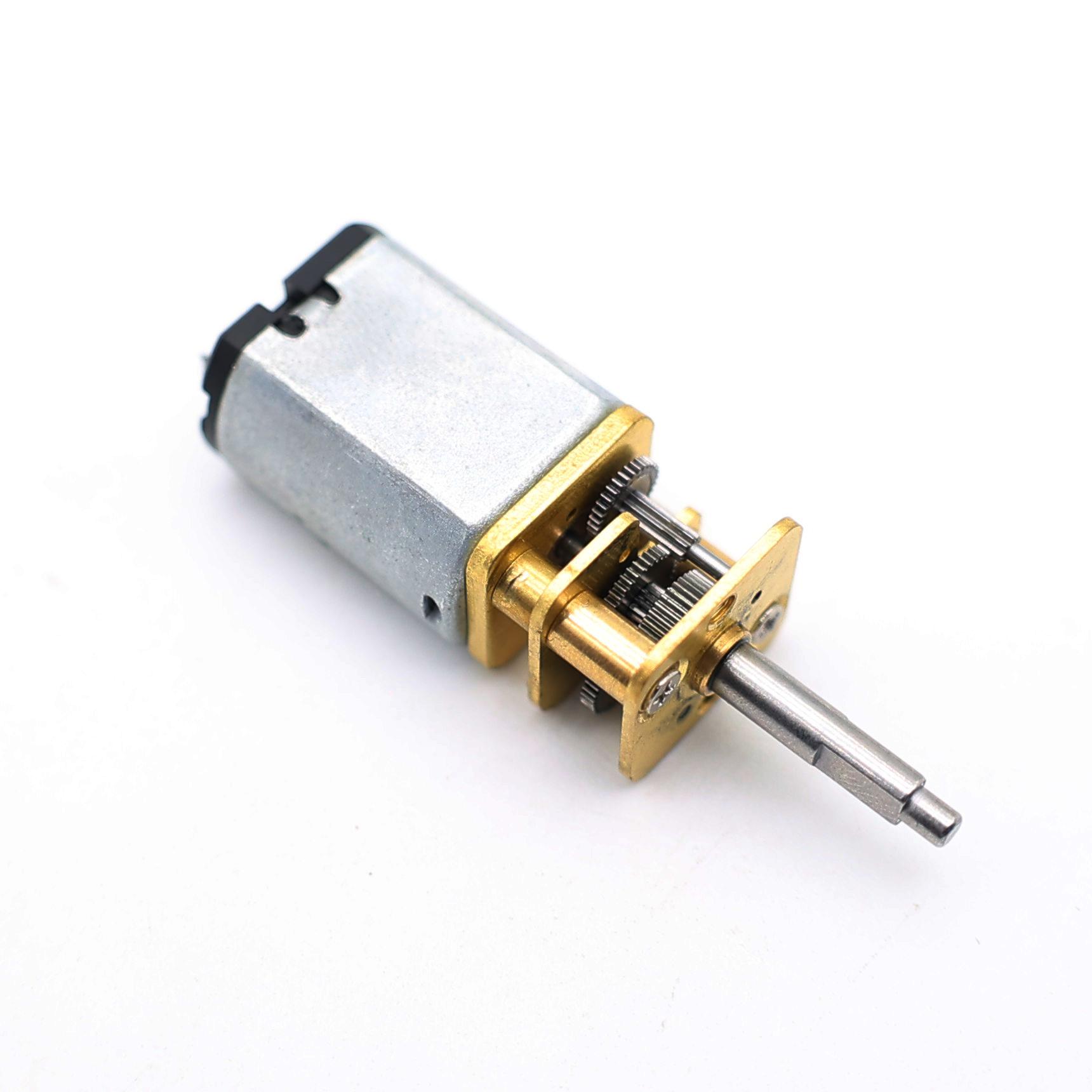

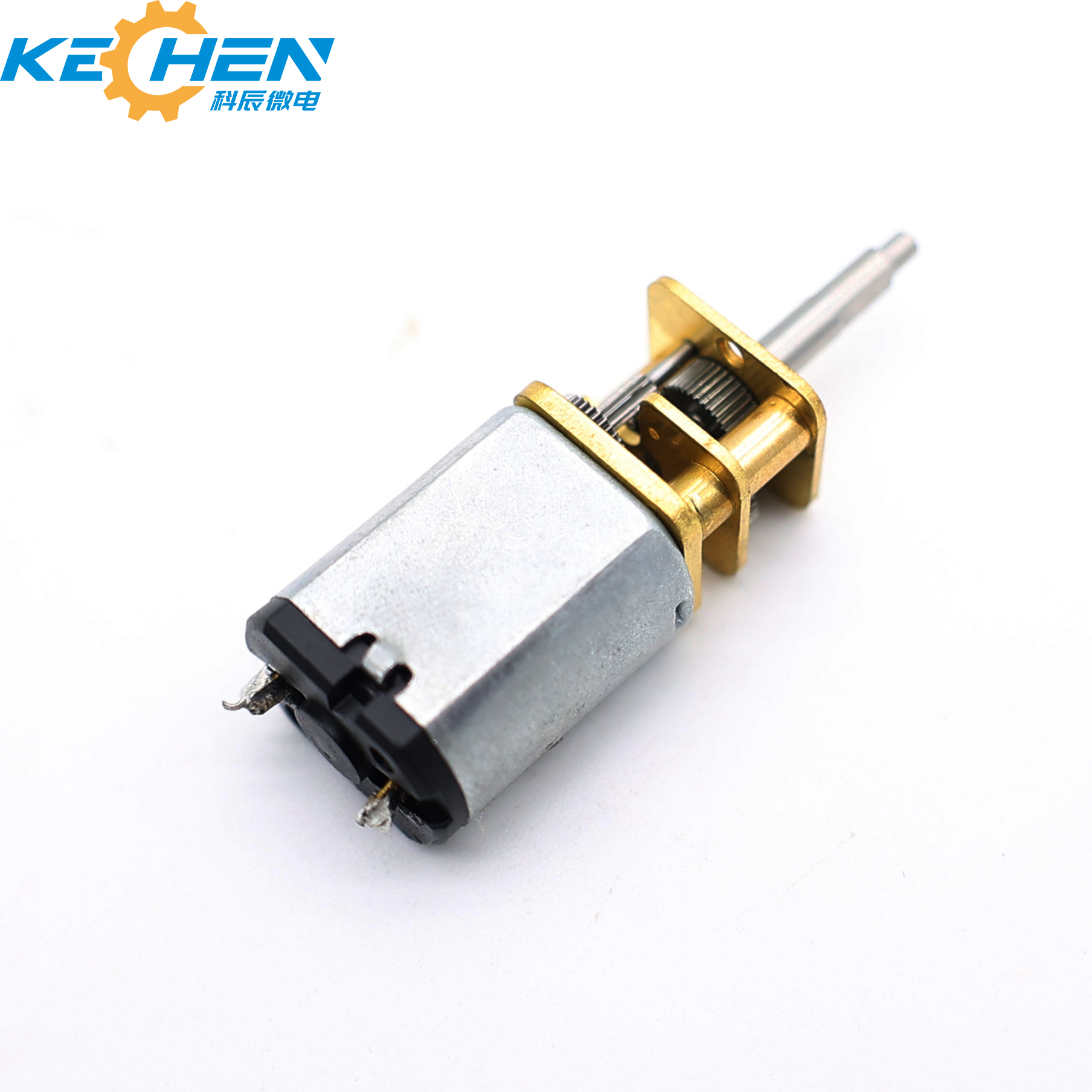

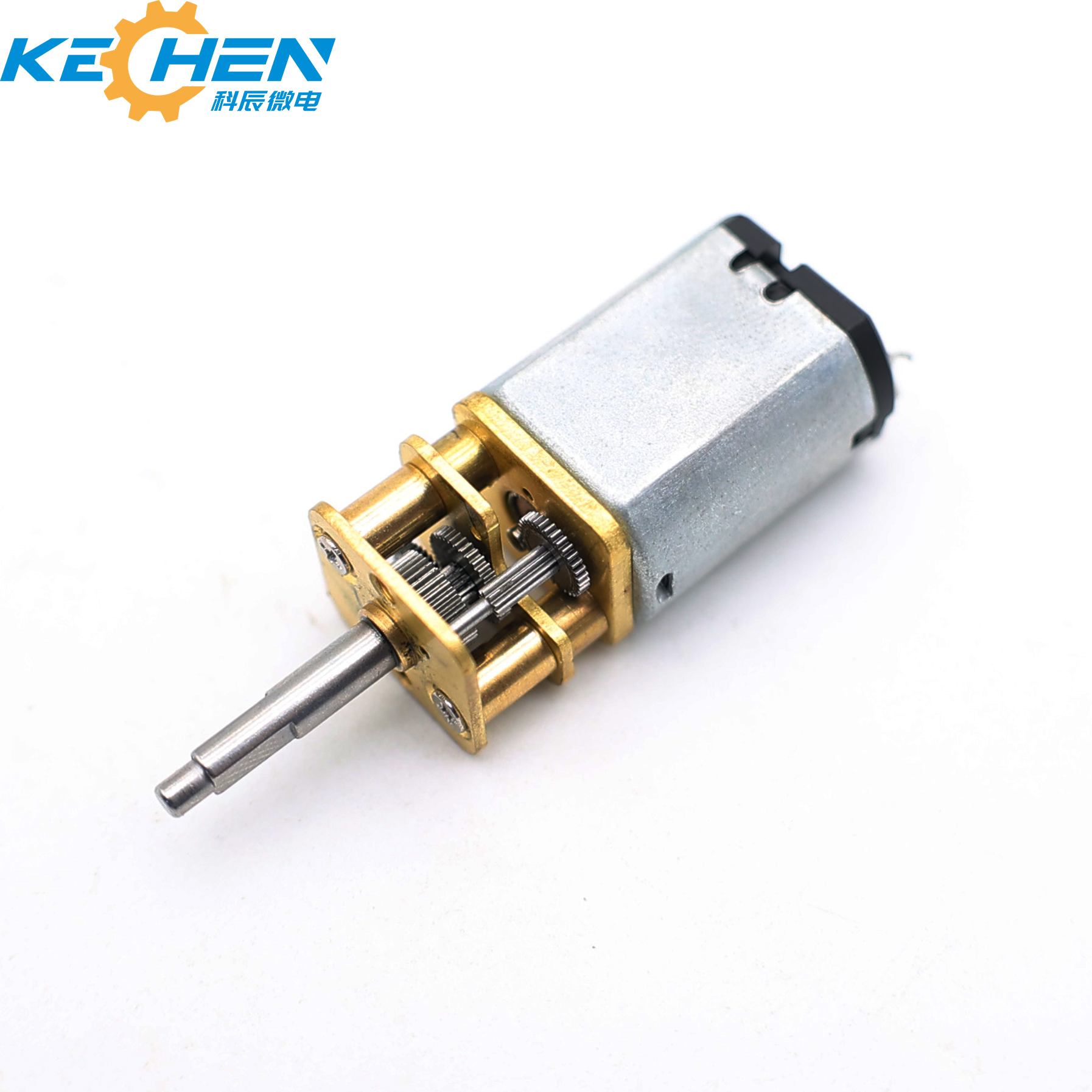

GM13-030 16mm 3V 6V Micro DC Gear Motor Permanent Magnet for Smart Home Electric Bicycle & Home Appliance Use

Products Description

GM13-030 13mm DC Spur Gear Motor

✓Model: GM13-030
✓Gearbox: 13 mm metal spur gear reducer
✓Rated Voltage: DC 3V, 4.5V, 5V, 6V, 9V, 12V, 24V
✓Rated Torque: Max. 2.0Kgf-cm
✓Size: Φ13 * L TBD
✓Shaft: Φ3mm D-cut 0.5mm, M3, M4, custom
✓Encoder: magnetic encoder available
✓Commutation: Carbon brush/Graphite brush/Metal brush
✓Construction: micro Permanent Magnet iron cored dc electric motor
✓MOQ: 500 pcs

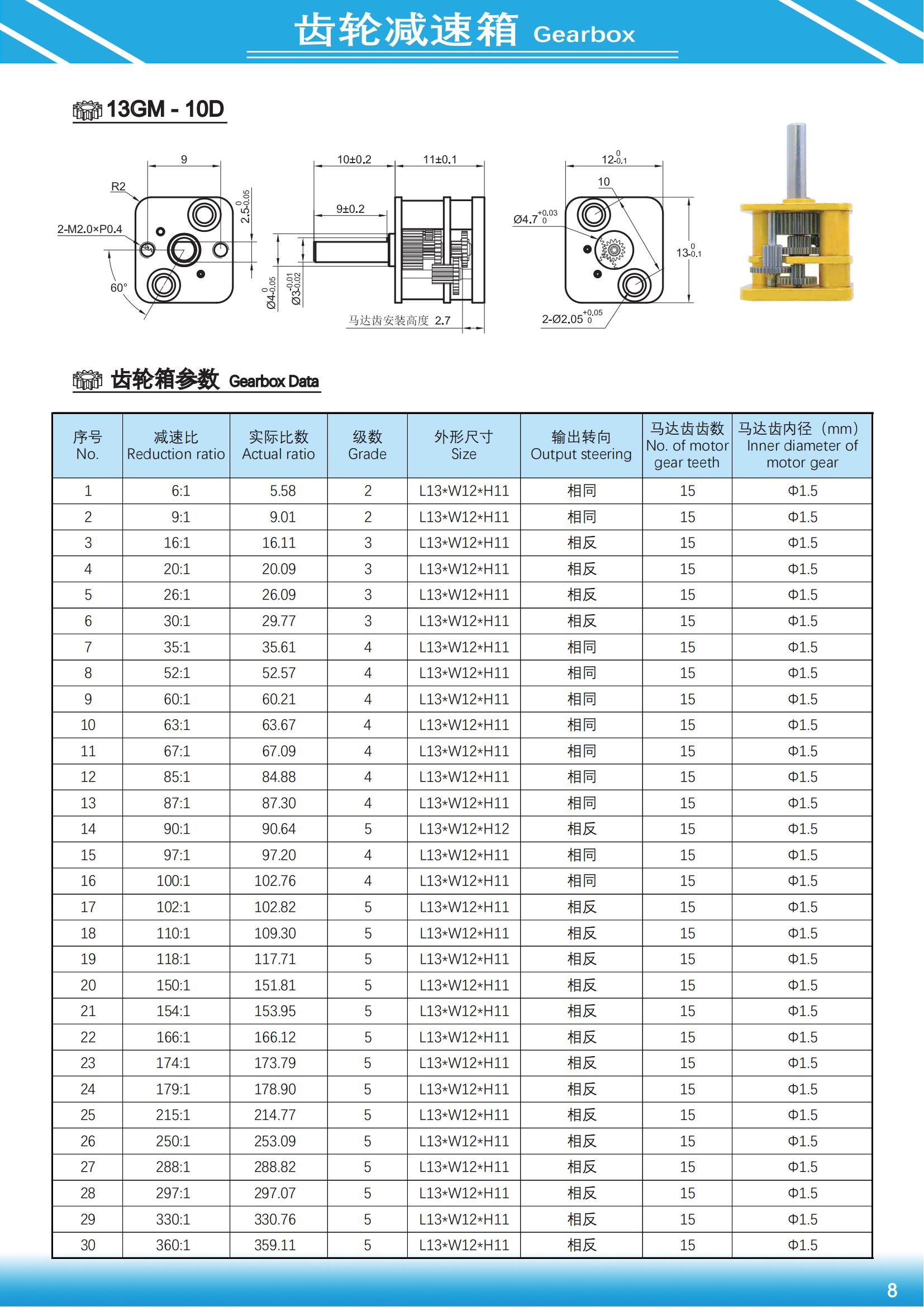

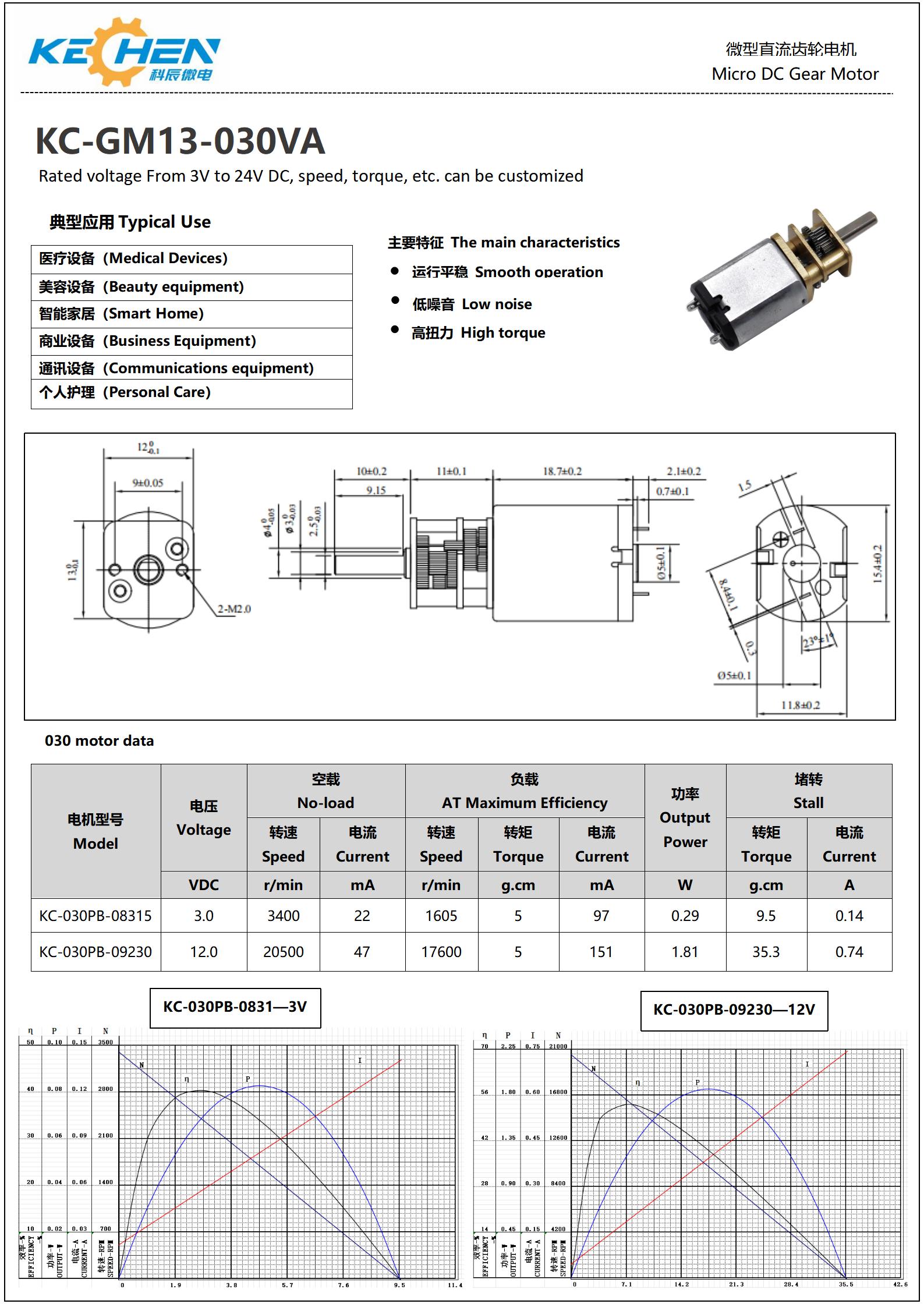

Gearbox with motor Data

GM13-030PB-08315-3.0V
Parameter	Value 1	Value 2	Value 3	Value 4	Value 5	Value 6	Value 7	Value 8	Value 9
Reduction	6	20	52	85	118	170	215	250	297
Length (mm)	11	11	11	11	11	11	11	11	11
No-load speed (rpm)	567	170	65	40	29	20	16	14	11
Rated speed (rpm)	268	80	31	19	14	9	7	6	5
Rated torque (kg.cm)	0.02	0.07	0.16	0.26	0.30	0.43	0.54	0.63	0.74
Stalling Torque (kg.cm)	0.05	0.13	0.30	0.48	0.56	0.81	1.02	1.18	1.41
GM13-030PB-09230-12.0V
Reduction	52	85	118	170	215	250	297	360	1000
Length (mm)	11	11	11	11	11	11	11	11	13.2
No-load speed (rpm)	394	241	174	121	95	82	69	57	21
Rated speed (rpm)	338	207	149	104	82	70	59	49	18
Rated torque (kg.cm)	0.16	0.26	0.30	0.43	0.54	0.63	0.74	0.90	1.5
Stalling Torque (kg.cm)	1.10	1.80	2.09	3.0	3.8	4.42	5.25	6.36	10.6

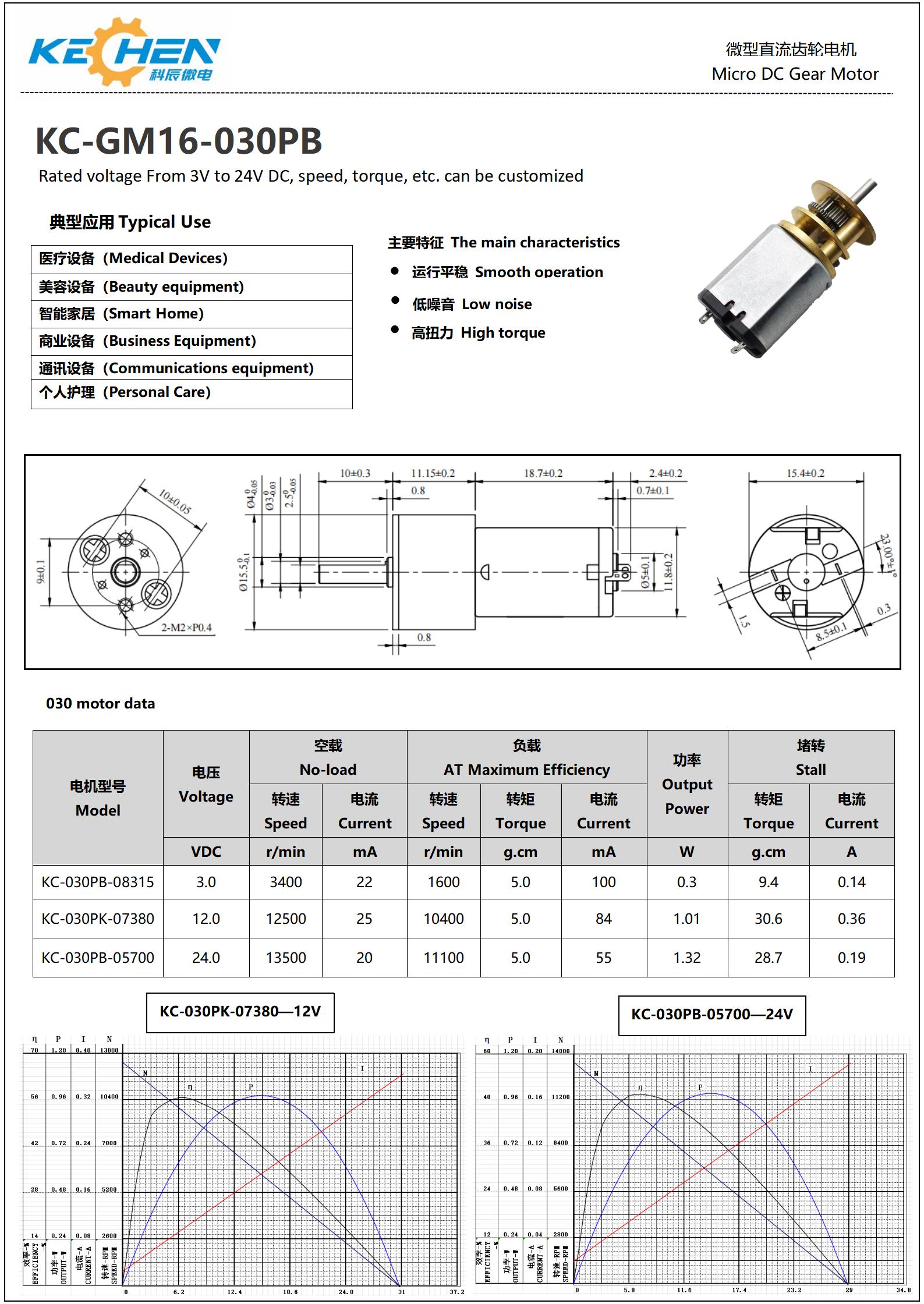

Recommend Products

Motor raw materials

Production Equipment

Profile

Established in August 2009, this high-tech enterprise integrates the research and development, production, and marketing of micro motor series products. The main products include: various precision DC motors, stepper motors, reduction motors, planetary reduction motors, and brushless motors.

These micro motors are widely used in medical equipment, medical detection and analysis, financial security, 5G applications, automotive appliances, intelligent communication, iris technology, AI intelligence, smart grid, smart home, commercial intelligent locks, smart switches, smart medicine cabinets, fresh food cabinets, smart wear, outdoor equipment, intelligent robots, electric tools, beauty tools, and more.

Adhering to the concept of a pioneering and innovative spirit, the company has developed a pragmatic, professional, and efficient team. Equipped with advanced production facilities and efficient management systems, we consistently deliver excellent quality and high-quality services to meet customers' demands, reduce energy consumption, facilitate production, and improve overall efficiency.

Certifications

Application Scenario

Global Market Distribution

Frequently Asked Questions

Q1: What are the primary applications for the GM13-030 DC Spur Gear Motor?

A: The GM13-030 is widely used in medical equipment, financial security devices, intelligent communications, smart home systems (like commercial intelligent locks and smart switches), smart medicine cabinets, wearable tech, robotics, power tools, and beauty appliances.

Q2: What voltage ratings are available for this motor?

A: The motor supports multiple rated voltage options depending on your system requirements, including DC 3V, 4.5V, 5V, 6V, 9V, 12V, and 24V.

Q3: Can the output shaft of the GM13-030 motor be customized?

A: Yes, custom shaft configurations are supported, including Φ3mm D-cut (0.5mm thickness), standard M3 threads, M4 threads, or custom dimensions built to your specific technical drawing.

Q4: Does this gear motor support feedback systems?

A: Yes, a magnetic encoder option is available for applications requiring speed, direction, or positioning feedback.

Q5: What is the maximum torque capability of this 13mm metal spur gear reducer?

A: It can reach a maximum rated torque of 2.0 Kgf-cm. However, stalling and rated torque values will vary depending on the chosen gear reduction ratio and voltage configuration.

Q6: What is the Minimum Order Quantity (MOQ) for bulk orders?

A: The standard Minimum Order Quantity (MOQ) for production runs of the GM13-030 DC Spur Gear Motor is 500 pieces.
