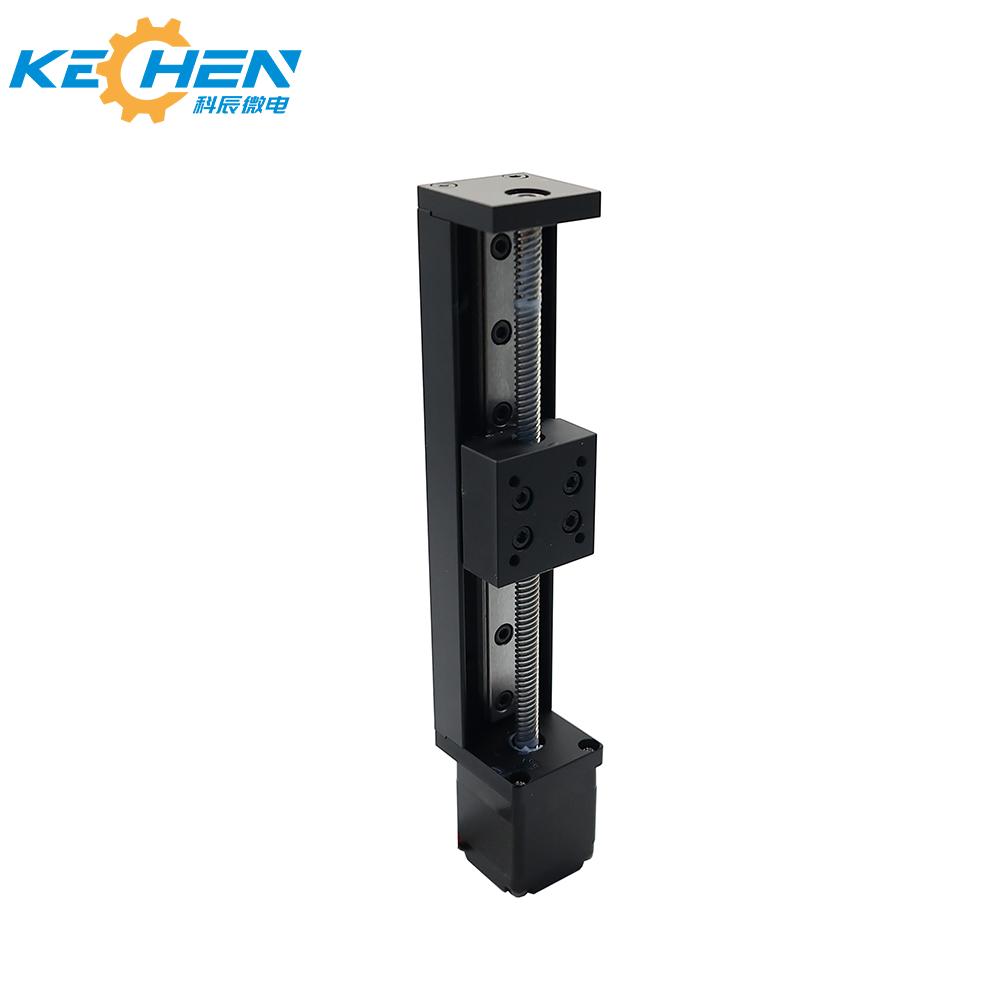

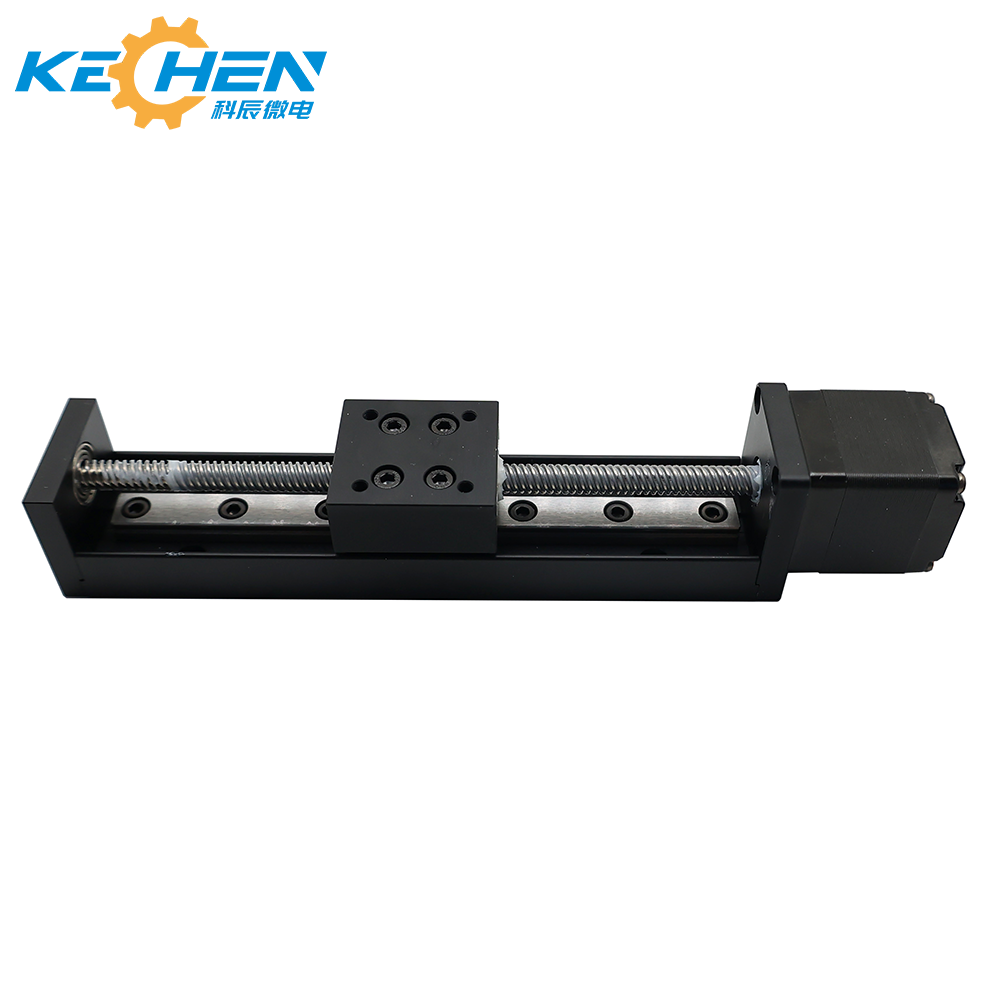

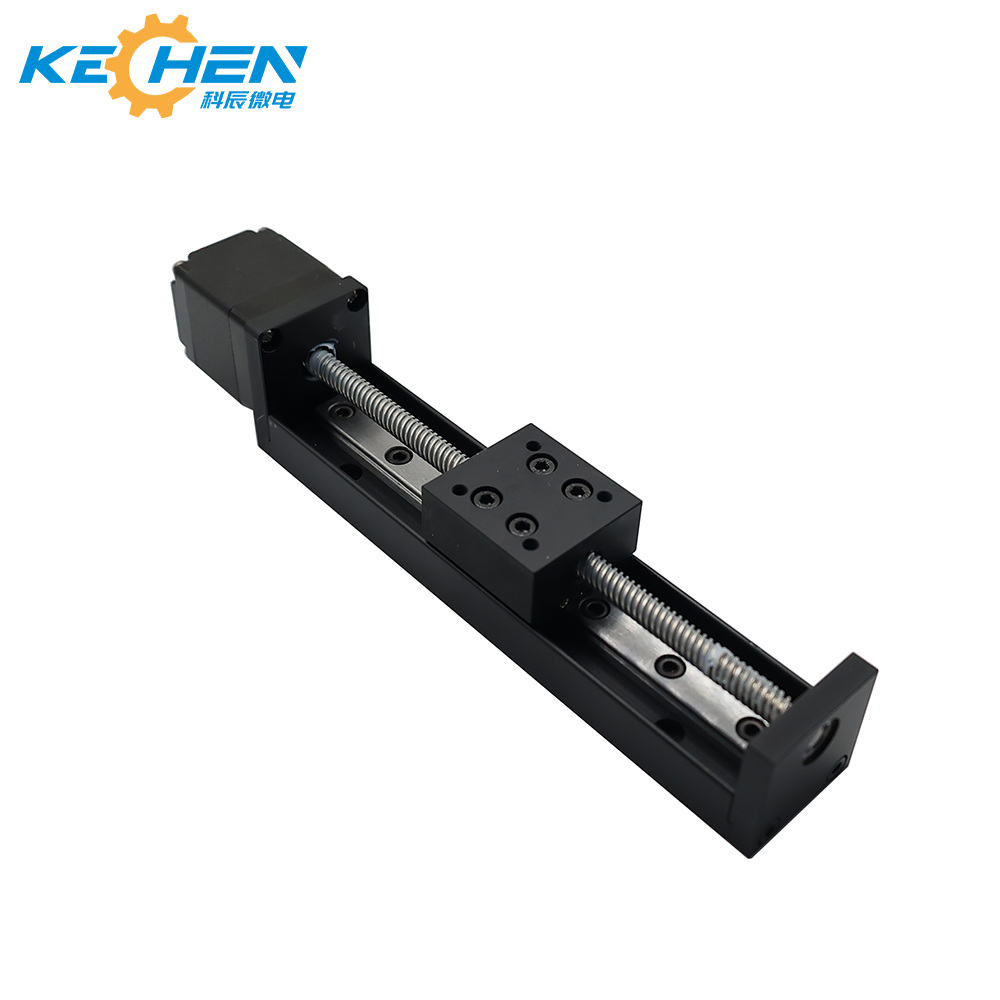

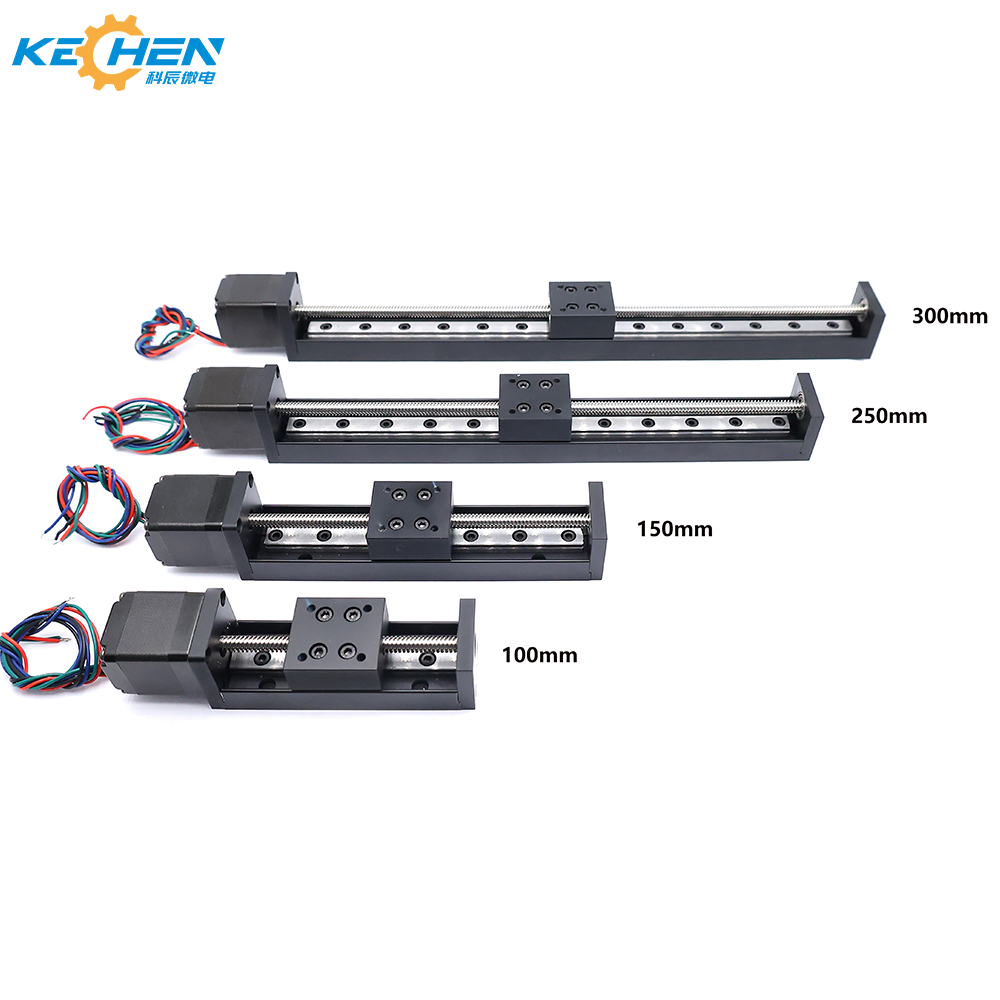

Linear Rail 100mm 150mm 200mm 250mm 300mm Linear Stage Actuator with Square Linear Rails Mini Slide Table NEMA 11 Stepper Motor

Product Description

Products Description
NEMA 11 Linear Stepper Motor
External dimensions 28 mm × 28 mm
Rated voltage 5V / 12V
Motor length 28mm/30mm/34mm/40mm/48mm/54mm/60mm/68mm
Step angle 1.8° / step (200 steps /RPM)
Phases 2 phases
Phase current 0.5 A – 1.0 A / phase
Phase resistance 3.2 Ω – 10 Ω (depending on the winding)
Lead screw material SUS304 / 45# steel
Threaded rod diameter Φ6 mm
Screw length 50–300 mm (customizable)
Nut type POM / brass / stainless steel nuts are available
Maximum thrust 10–120 N (depending on length and lead)
Electric wire JST 4Pin / UL1007
Exercise Linear screw drive / external nut slider structure
Weight 120–260 g (varying with length)

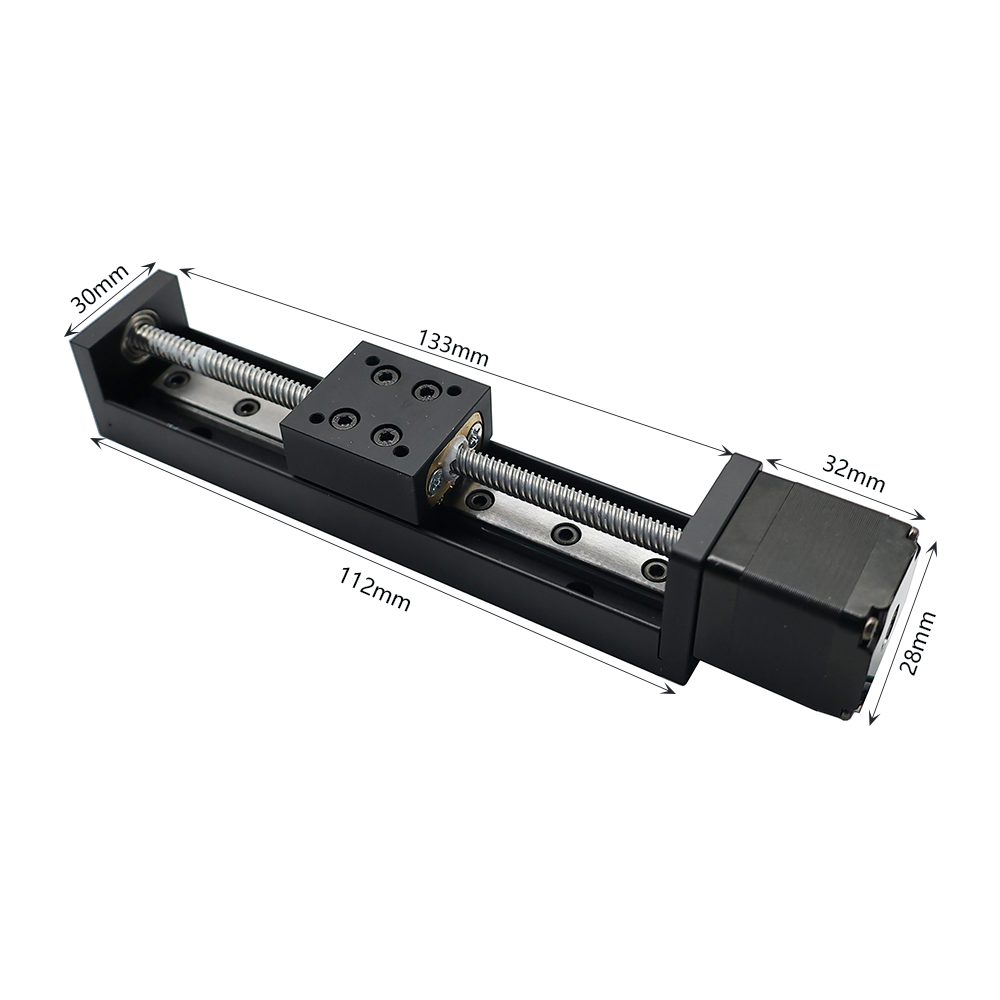

NEMA 11 Linear Stepper Motor Dimension 1
NEMA 11 Linear Stepper Motor Dimension 2
NEMA 11 Linear Stepper Motor Performance Curve
NEMA 11 Linear Stepper Motor Technical Data
Recommend Products
Recommend Products Range
Motor raw materials
High Quality Motor Raw Materials
Production Equipment
Production Equipment 1
Production Equipment 2
Production Equipment 3
Company Profile
Manufacturing Factory Overview
Established in August 2017, we are a high-tech enterprise that integrates the research and development, production, and marketing of micro motor series products. The main products include: various precision DC motors, stepper motors, reduction motors, planetary reduction motors, and brushless motors. Micro motors are widely used in medical equipment, medical detection and analysis, financial security, 5G applications, automotive appliances, intelligent communication, iris technology, AI intelligence, smart grid, smart home, commercial intelligent locks, smart switches, smart medicine cabinets, fresh food cabinets, smart wear, outdoor equipment, intelligent robots, electric tools, beauty tools, etc.
Since our establishment, we have adhered to the concept of "people-oriented, pioneering and innovative spirit". After years of rapid development, we have a group of young and pragmatic, professional and efficient work teams, advanced production facilities, efficient management, excellent quality, and high-quality services to meet customers' needs of continuously improving product levels, reducing energy consumption, facilitating production, and improving efficiency, winning more and more recognition from customers.
Certifications
Product Quality Certifications
Application Scenario
Micro Motor Application Areas
Medical equipment sphygmomanometer, Massaging mattress, Air pump, Urine Analyzer.
Business Machines Intelligent robot, Copiers and Scanners, 3D Printers, Tattoo pen.
Electric powered equipment Electric toothbrush, Electric tool, Electric toy car, Electric curtain.
Smart Home Intelligent window opener, vacuum cleaner, Smart coffee machine, hair drier, Fascia gun, fan, air cleaner, Hair removal device, door lock, Intelligent door lock.
Food and Beverage Hand Blenders, Blenders, Mixers, Coffee Machines, Food Processors, Juicers, Fryers, Ice Makers, Soy Bean Milk Makers.
Robotics Servicing robotics, Food delivery robot, Reception robot, Medical serving robot, AGV & AMR, Conveying robot, Inspection robot.
Global Market Distribution
Global Market Share Map
Global Export Flow
International Shipping and Logistics
Frequently Asked Questions
Q What's your main products?
We currently produce Brushed Dc Motors, Brushed Dc gear Motors, Planetary Dc Gear Motors, Brushless Dc Motors, Stepper motors and Coreless Motors etc. You can check the specifications for above motors on our website and you can email us to recommend needed motors per your specification too.
Q How to select a suitable motor?
If you have motor pictures or drawings to show us, or you have detailed specs like voltage, speed, torque, motor size, working mode of the motor, needed life time and noise level etc, please do not hesitate to let us know, then we can recommend suitable motor per your request accordingly.
Q Do you have customized service for your standard motors?
Yes, we can customize per your request for the voltage, speed, torque and shaft size/shape. If you need additional wires/cables soldered on the terminal or need to add connectors, or capacitors or EMC we can make it too.
Q Do you have individual design service for motors?
Yes, we would like to design motors individually for our customers, but it may need some mold charge and design charge.
Q How do you make sure motor quality?
We have our own inspection procedures: for incoming materials, we have signed sample and drawing to make sure qualified incoming materials; for production process, we have tour inspection in the process and final inspection to make sure qualified products before shipping.
Q What certifications do you have?
We currently have CE, ROSH, ISO13485, IATF16949, and REACH certifications.
