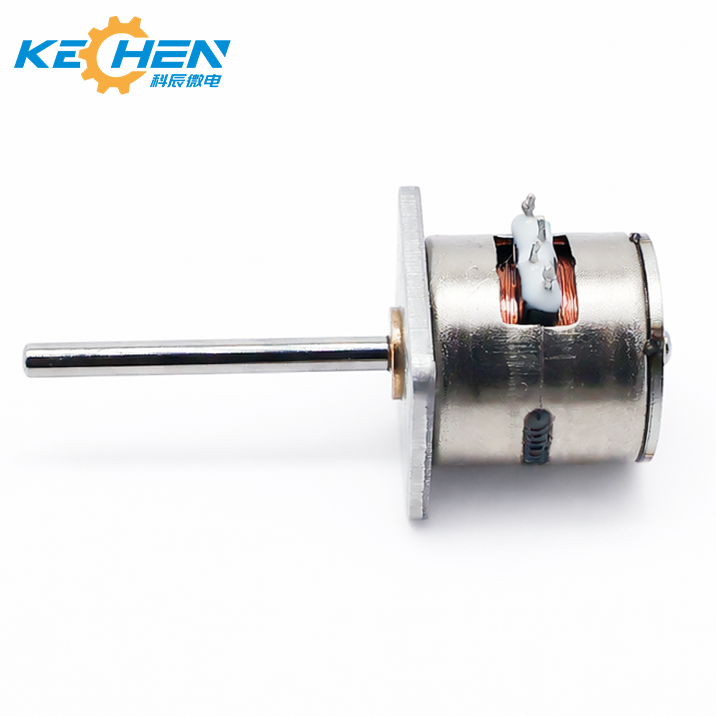

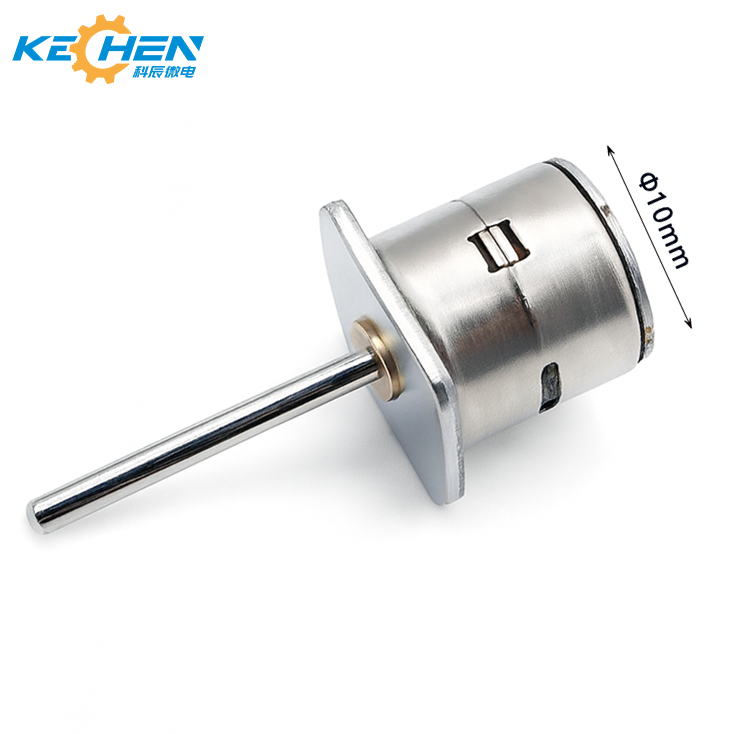

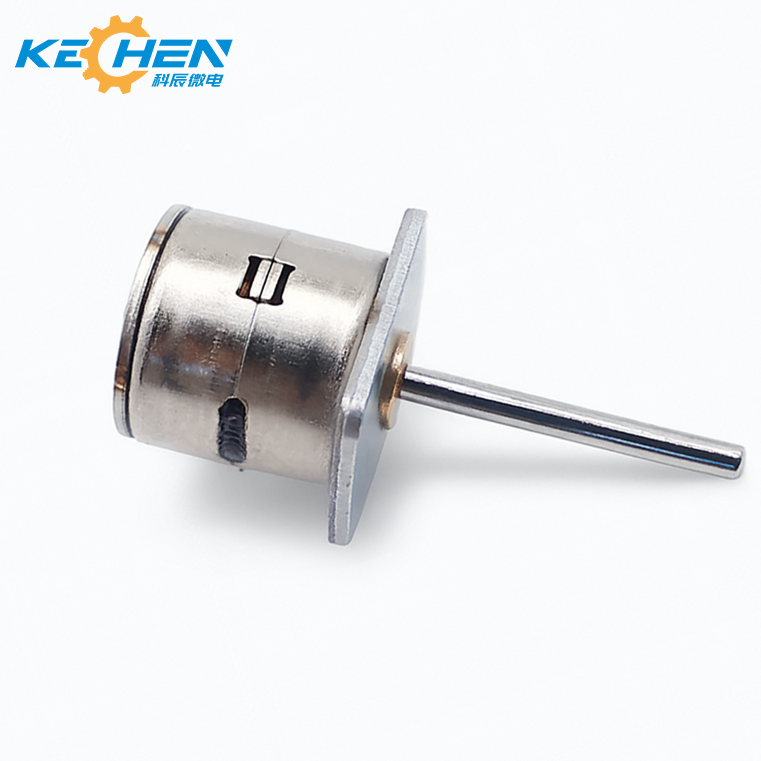

KECHEN MOTOR KC-10BY25 10BY Mini Permanent Magnet 2-Phase Stepper Motor 5V High Precision for Medical Devices ISO Certification

Product Description

Products Description
10mm Stepper Motor - Specifications
Motor Diameter 10 mm
Shaft Diameter 1.0 mm (customizable)
Shaft Length 4–10 mm customizable
Step Angle 18°
Phases 2-phase
Driving Mode Bipolar or Unipolar
Rated Voltage 3.3 V / 5 V / 6 V
Rated Current 80–200 mA per phase
Coil Resistance 10–50 Ω
Holding Torque 5 gf·cm
Pull-in Frequency 200–500 pps
Pull-out Frequency 400–800 pps
Operating Temperature −10 °C to +60 °C
Noise Level <40 dB
Line sequence A+A-B+B-
Weight 5 g

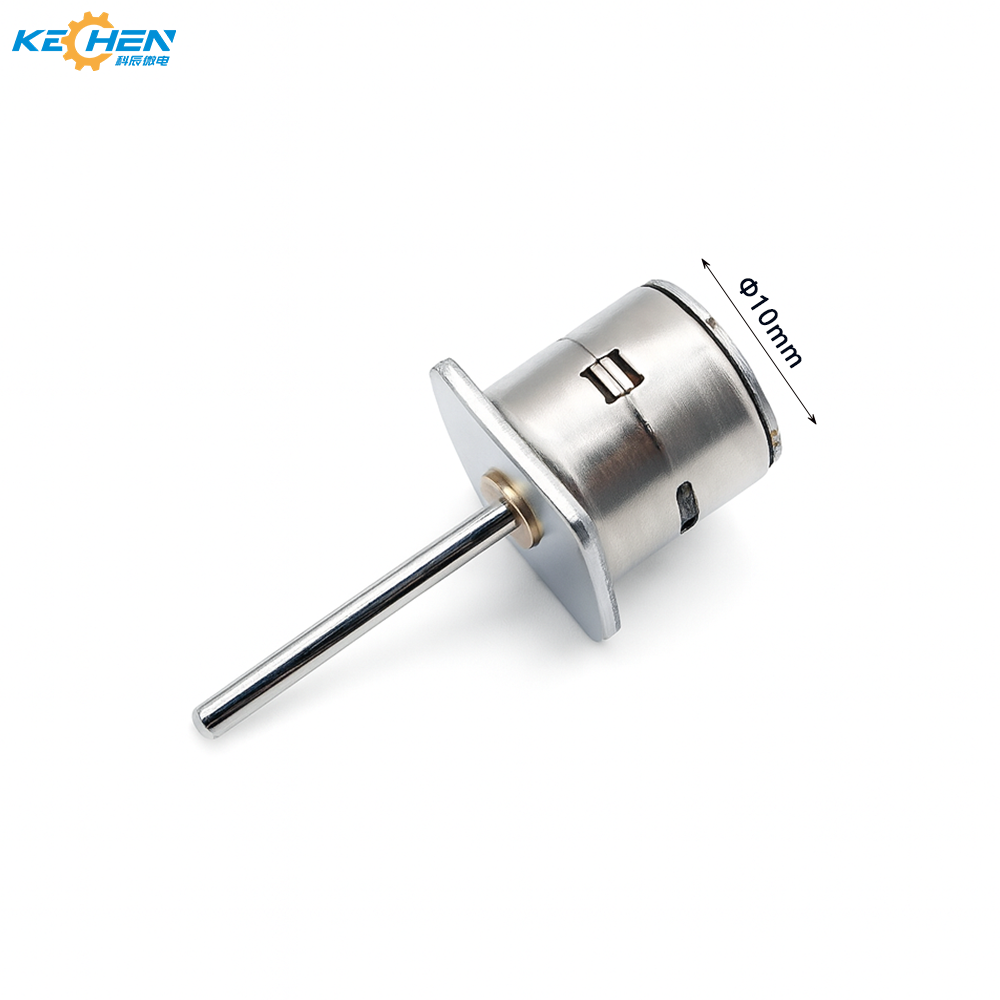

Stepper Motor Feature 1

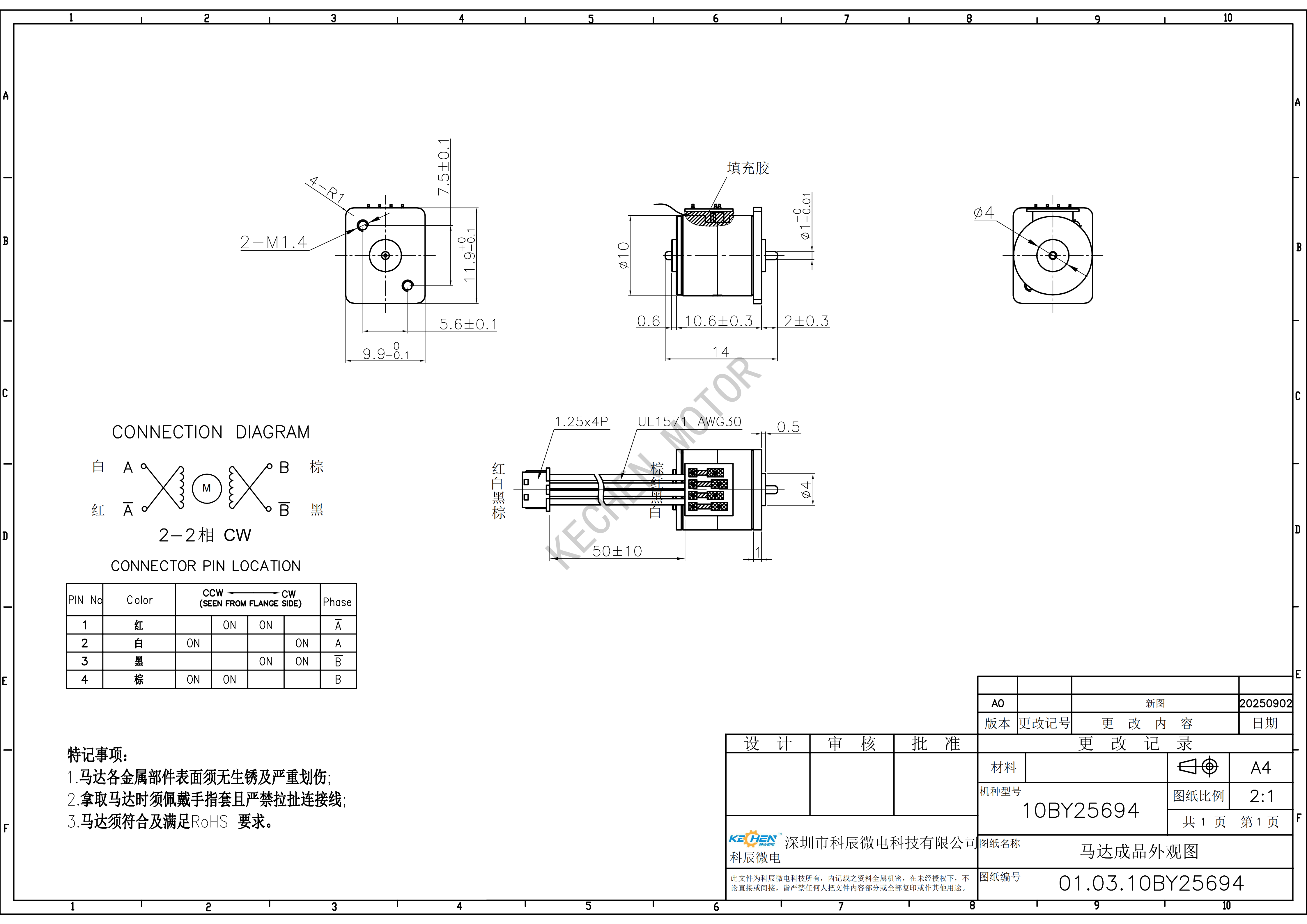

Stepper Motor Feature 2

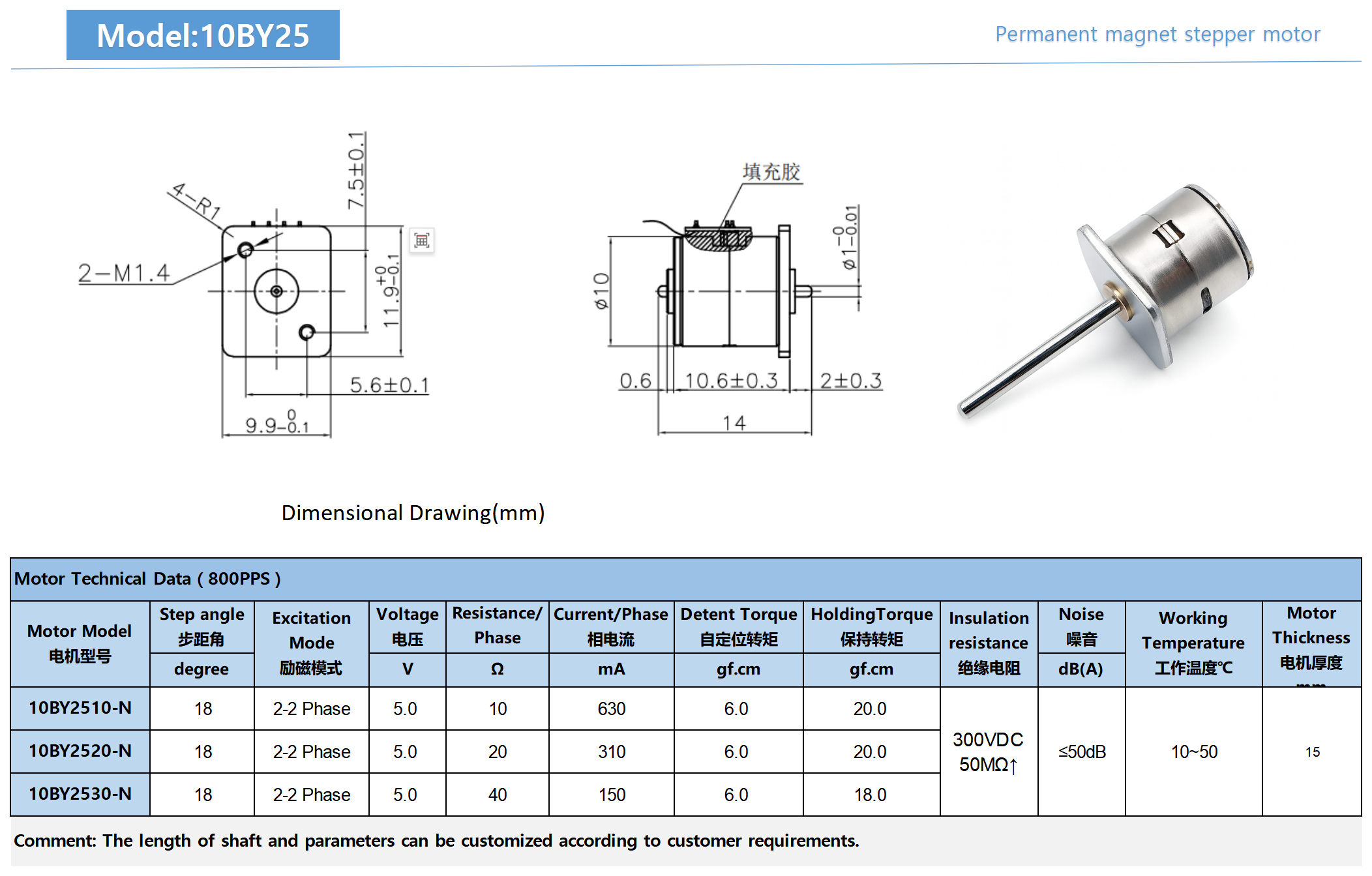

Stepper Motor Feature 3
Recommend Products
Recommend Products
Motor raw materials
Motor raw materials

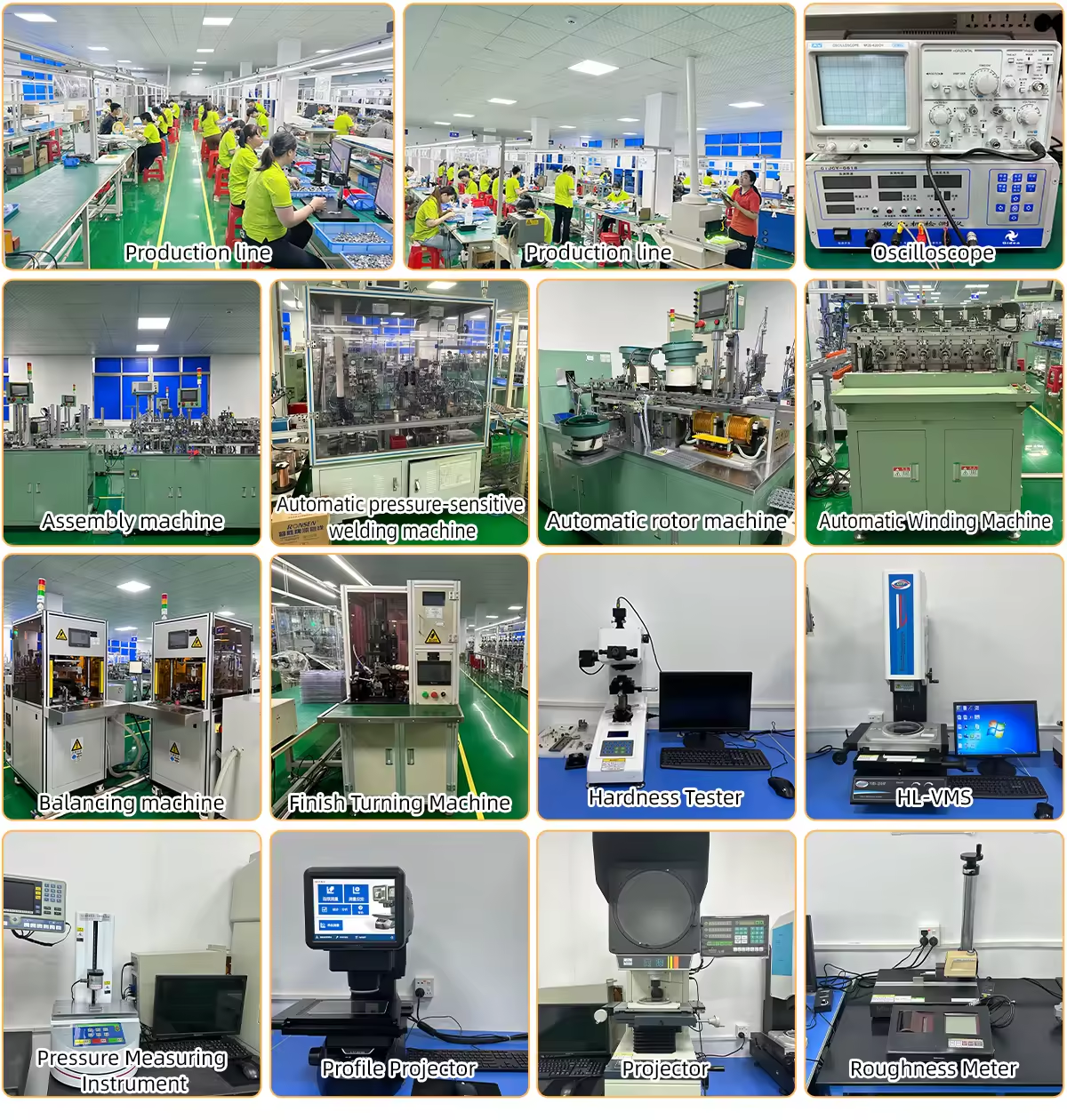

Production Equipment
Production Equipment 1
Production Equipment 2
Production Equipment 3
Certifications
Certifications
Application Scenario
Application Scenario Banner
Medical equipment sphygmomanometer, Massaging mattress, Air pump, Urine Analyzer.
Business Machines Intelligent robot, Copiers and Scanners, 3D Printers, Tattoo pen.
Electric powered equipment Electric toothbrush, Electric tool, Electric toy car, Electric curtain.
Smart Home Intelligent window opener, vacuum cleaner, Smart coffee machine, hair drier, Fascia gun, fan, air cleaner, Hair removal device, door lock, Intelligent door lock.
Food and Beverage Hand Blenders, Blenders, Mixers, Coffee Machines, Food Processors, Juicers, Fryers, Ice Makers, Soy Bean Milk Makers.
Robotics Servicing robotics, Food delivery robot, Reception robot, Medical serving robot, AGV & AMR, Conveying robot, Inspection robot.
Global Market Distribution
Market Distribution Chart
Market Distribution Map
Global Network
FAQ
Q How to select a suitable motor?
If you have motor pictures or drawings to show us, or you have detailed specs like voltage, speed, torque, motor size, working mode of the motor, needed life time and noise level etc, please do not hesitate to let us know, then we can recommend a suitable motor per your request accordingly.
Q Do you have customized service for your standard motors?
Yes, we can customize per your request for the voltage, speed, torque and shaft size/shape. If you need additional wires/cables soldered on the terminal or need to add connectors, or capacitors or EMC we can make it too.
Q Can I have samples for testing first?
Yes, definitely you can. After confirming the needed motor specs, we will quote and provide a proforma invoice for samples. Once we get the payment, we will proceed with samples accordingly.
Q How do you make sure motor quality?
We have our own inspection procedures: for incoming materials, we have signed samples and drawings to make sure qualified incoming materials; for the production process, we have tour inspection in the process and final inspection to make sure qualified products before shipping.
Q What certifications do you have?
We currently have CE, ROHS, ISO13485, IATF16949, and REACH certifications.
Q What's your lead time?
Generally speaking, our regular standard product will need 25-30 days, and a bit longer for customized products. But we are very flexible on the lead time, it will depend on the specific orders.
