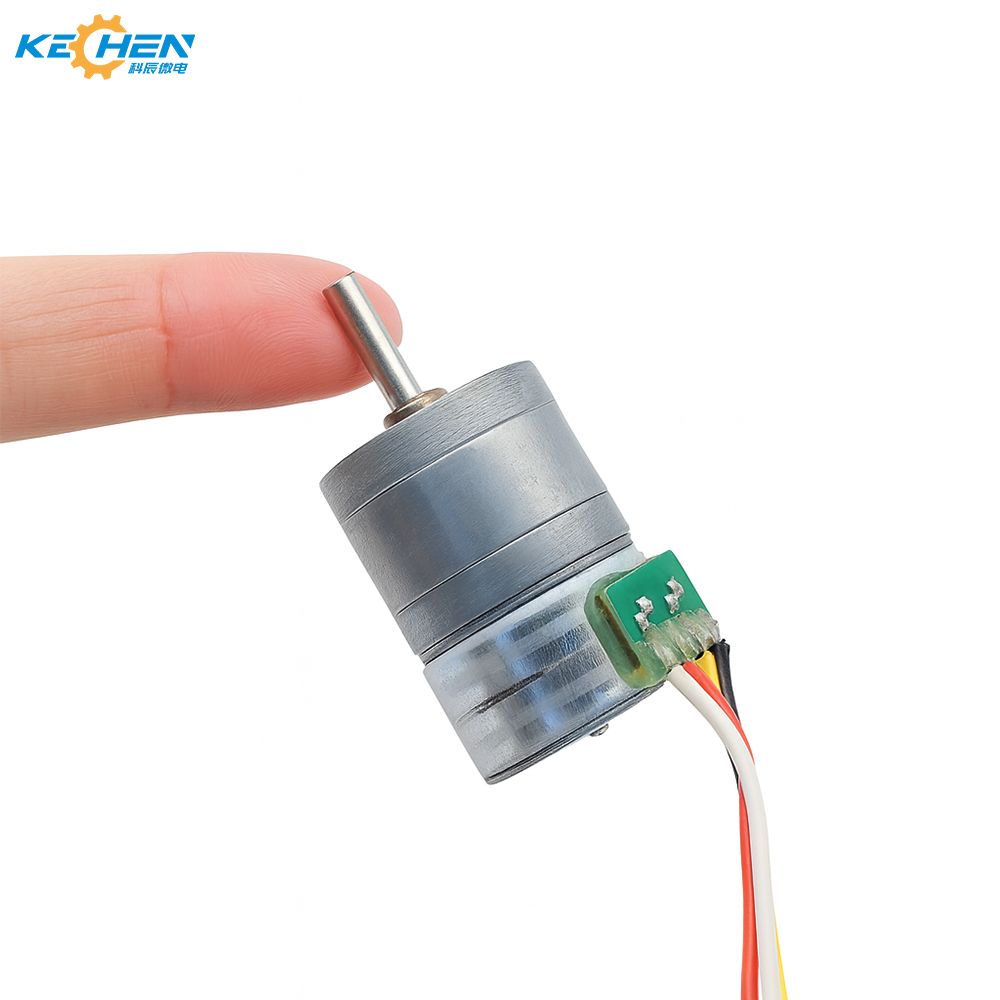

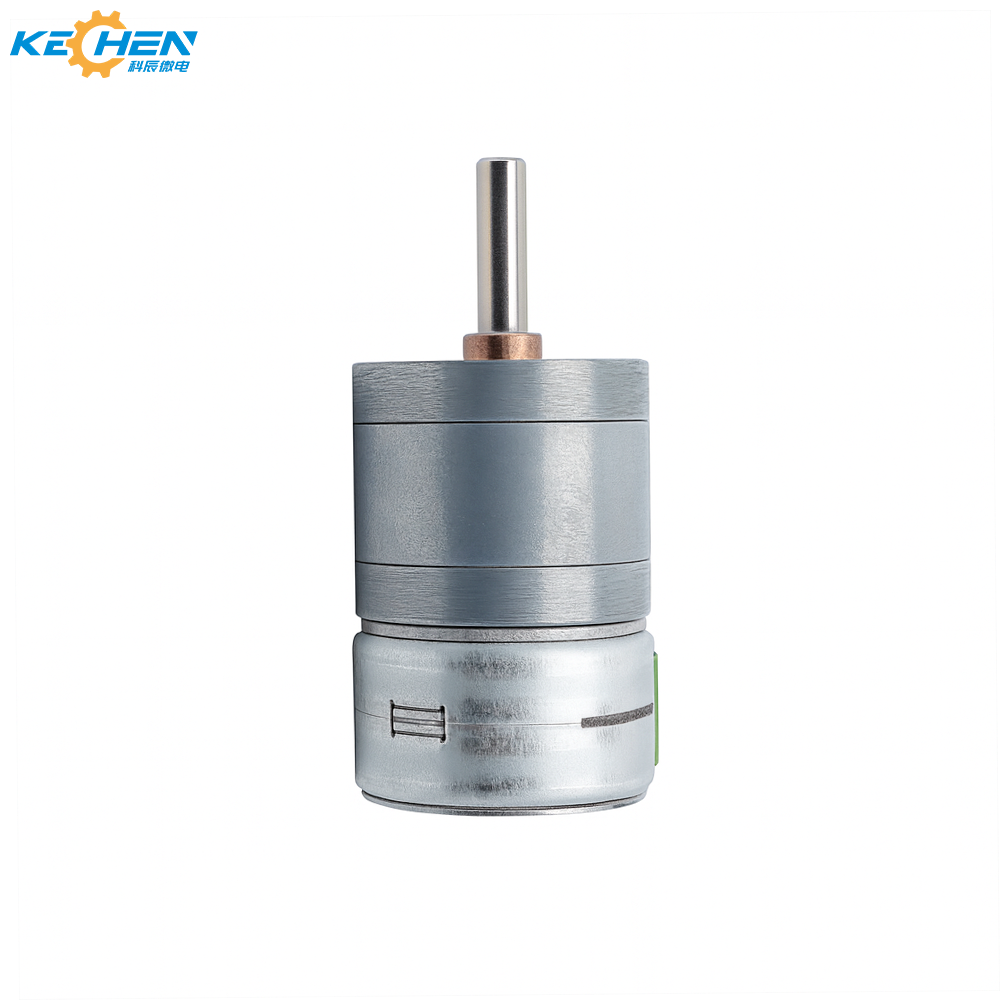

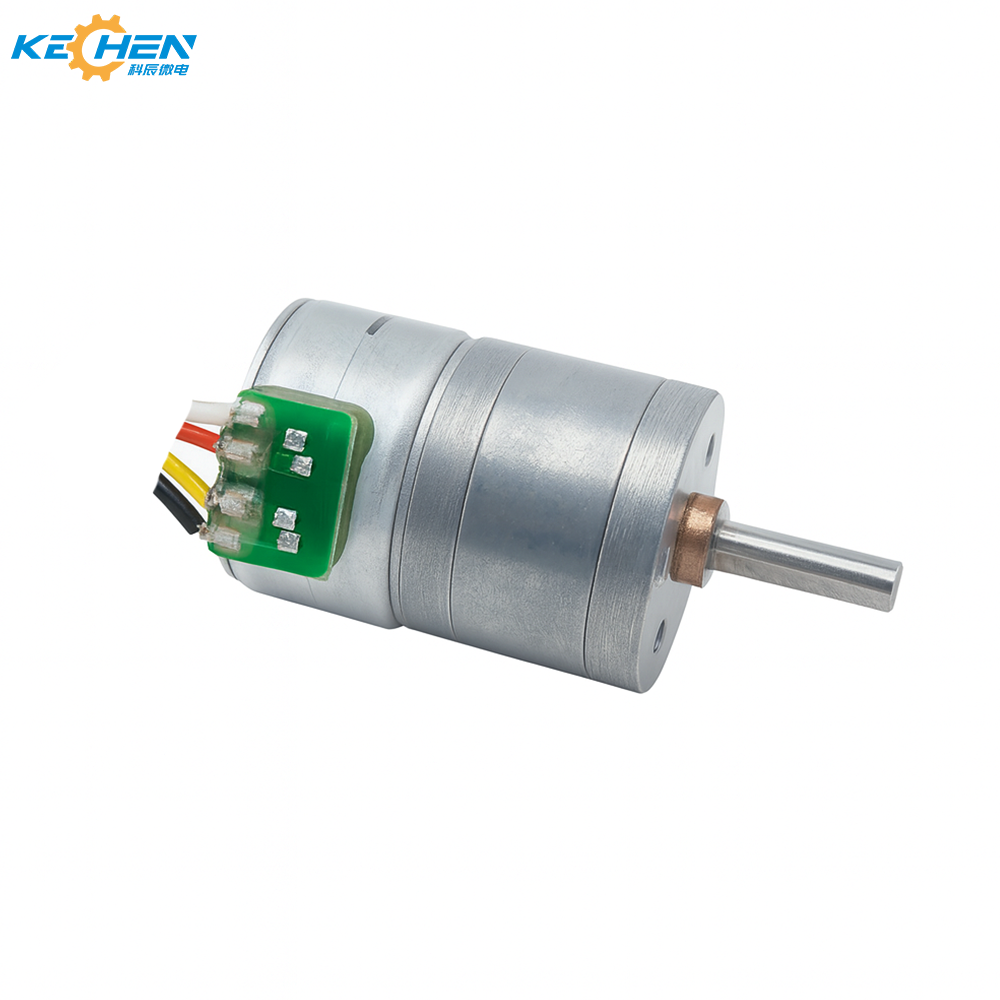

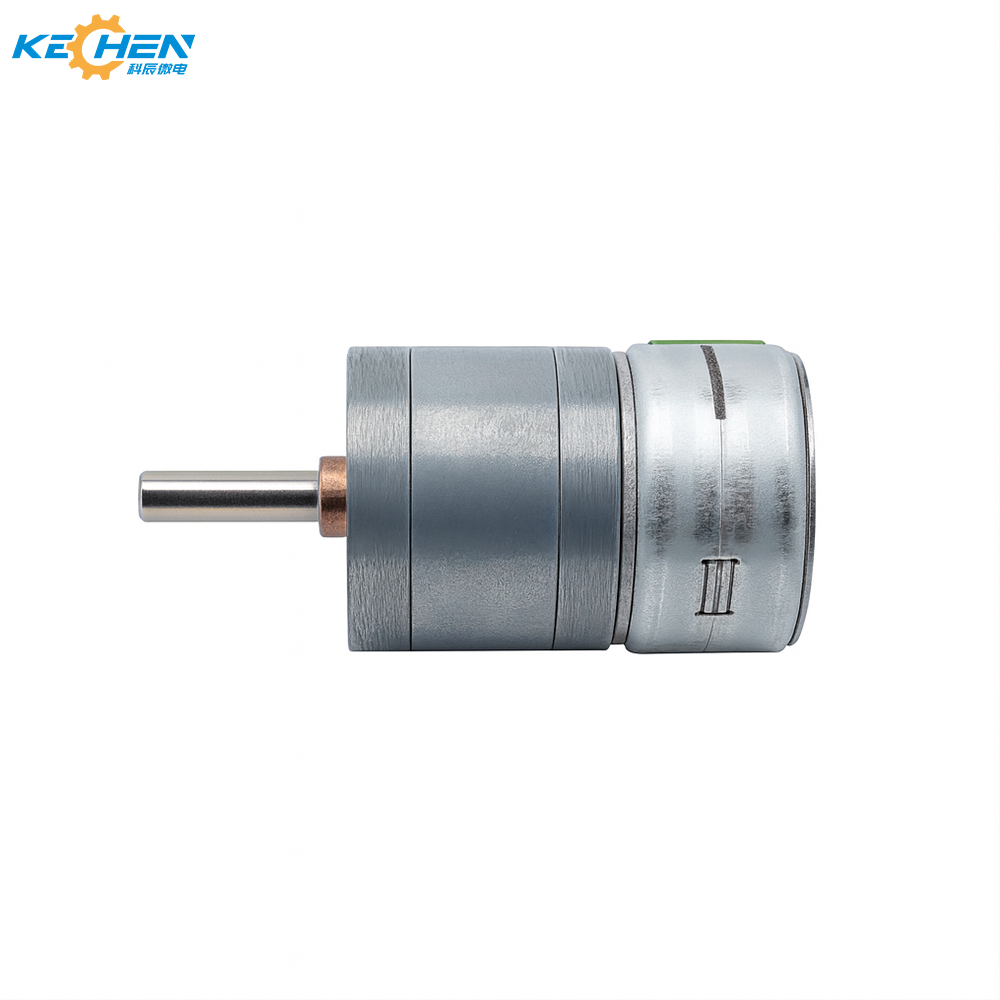

KECHEN MOTOR GM25-25BY 12V DC 2-Phase Permanent Magnet Geared Stepper Motor 4mm Torque 0.5-3kg.cm ISO Certified for Valve

Product Description

Products Description
GM25-25BY Stepper Gear Motor Specifications
Motor type PM stepper gear motor
Motor diameter 25mm
Shaft diameter 4mm
Rated Voltage 5V-12V
Gear ratio 4.4 : 1 / 9.3 : 1 / 15 : 1 / 20 : 1 / 34 : 1 / 44.9 : 1 / 57 : 1 / 74.8 : 1 / 98.8 : 1 / 125 : 1
Phases 2-phase (4-wire/Bipolar)
Step Angle 7.5° / step
Phase Resistance 10 Ω / 20 Ω / 30 Ω / 40 Ω (±10%)
Current per Phase 200-300 mA
Inductance 7.5 mH/phase
Drive Rate / Frequency Range 300 PPS – 1300 PPS
Max response freq 1300 PPS
Max start freq 800 PPS
Applicable temperature -10°C ~ +55°C
Drive mode Bipolar drive
Line sequence A+A-B+B-

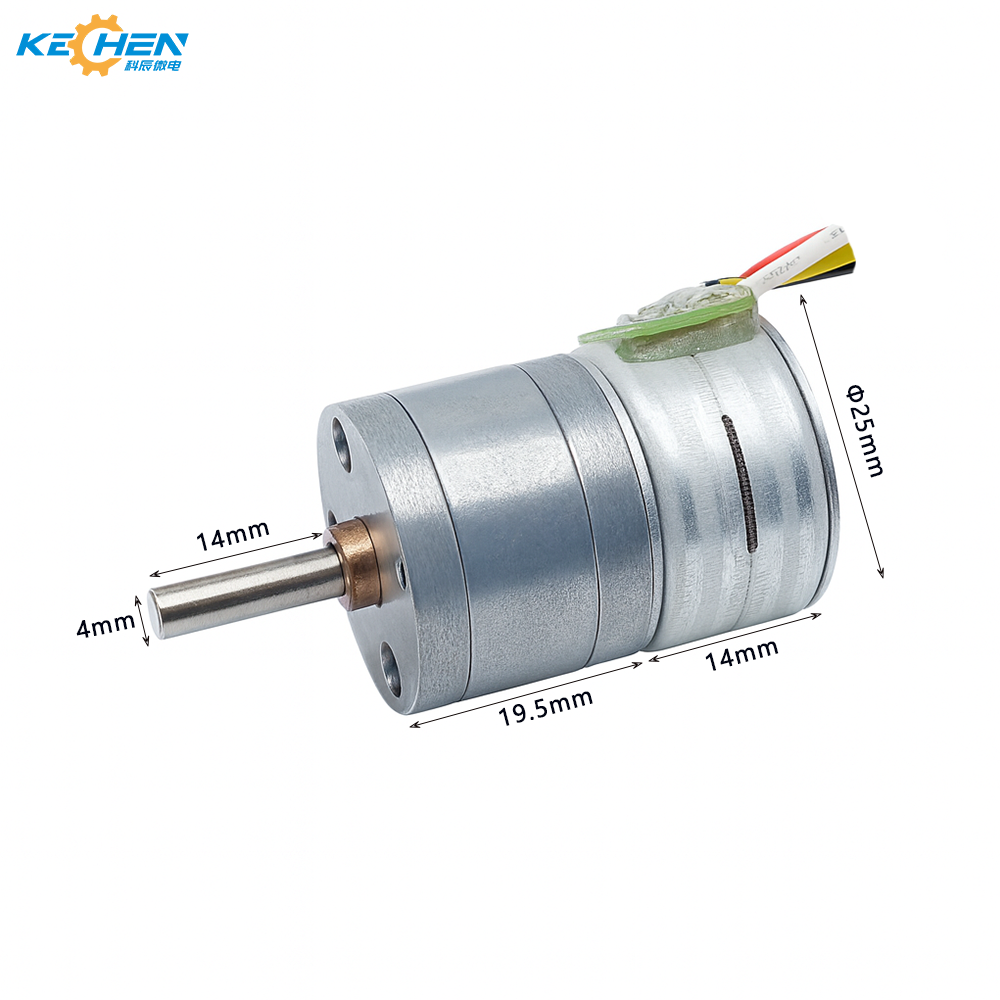

Stepper Gear Motor Specification Sheet

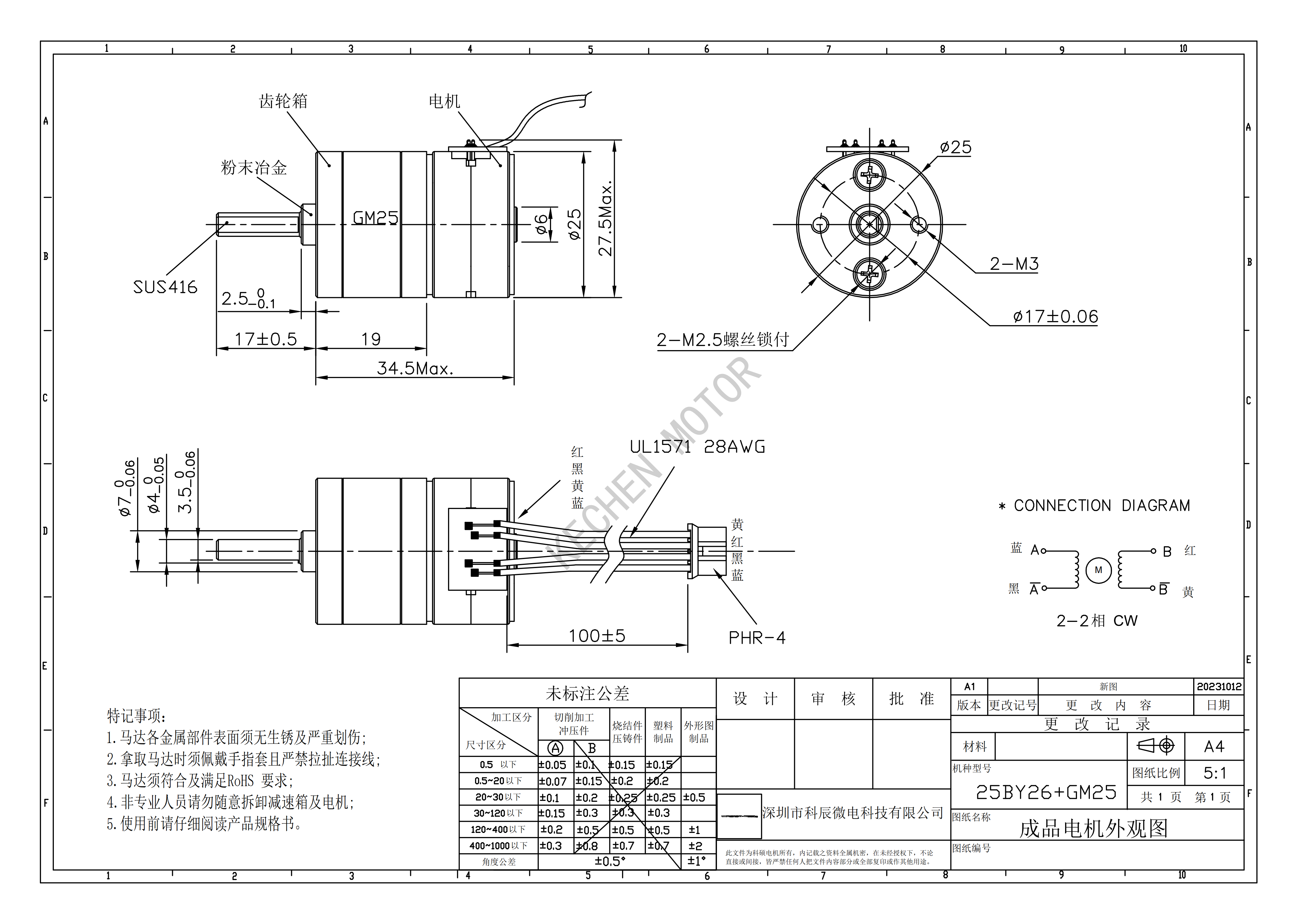

Stepper Gear Motor Mechanical Diagram

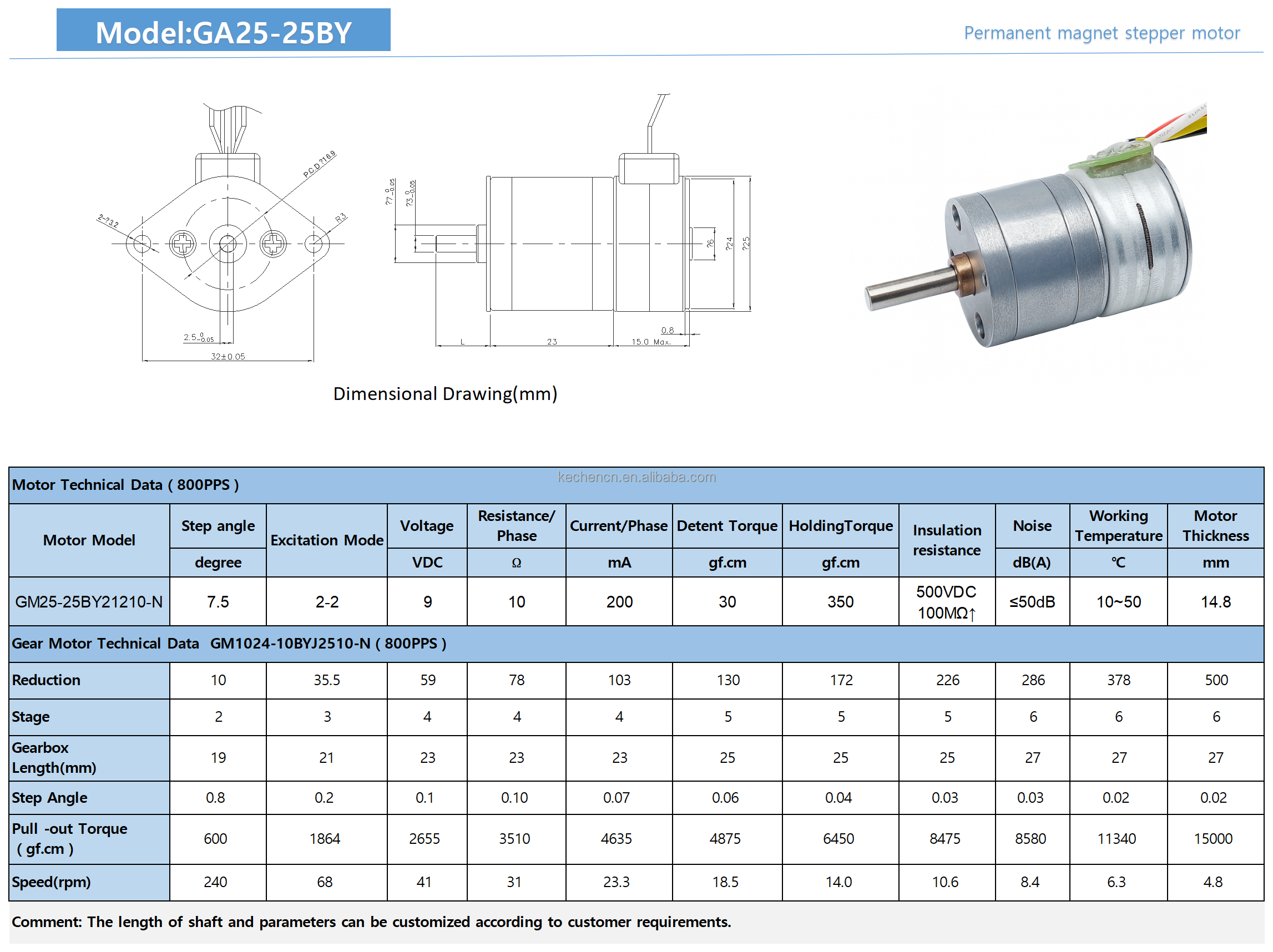

Stepper Gear Motor Performance Curve
Stepper Gear Motor Dimensional Drawing
Recommend Products
Recommended Micro Motor Products
Motor Raw Materials
High Quality Motor Raw Materials
Production Equipment
Advanced Production Equipment 1
Advanced Production Equipment 2
Advanced Production Equipment 3
Company Profile
Office and Facility Overview 1
Office and Facility Overview 2
Office and Facility Overview 3
Established in August 2017, the enterprise integrates the research and development, production, and marketing of micro motor series products. The main products include: various precision DC motors, stepper motors, reduction motors, planetary reduction motors, and brushless motors. Micro motors are widely used in medical equipment, medical detection and analysis, financial security, 5G applications, automotive appliances, intelligent communication, iris technology, AI intelligence, smart grid, smart home, commercial intelligent locks, smart switches, smart medicine cabinets, fresh food cabinets, smart wear, outdoor equipment, intelligent robots, electric tools, beauty tools, etc. Since its establishment, the team has adhered to the concept of "people-oriented, pioneering and innovative spirit". With a young, pragmatic, professional, and efficient work team, advanced production facilities, efficient management, excellent quality, and high-quality services, the enterprise meets customers' needs of continuously improving product levels, reducing energy consumption, facilitating production, and improving efficiency, winning recognition from customers.
Certifications
Industry Quality Certifications
Application Scenario
Micro Motor Application Fields
Medical equipment Sphygmomanometer, Massaging mattress, Air pump, Urine Analyzer.
Business Machines Intelligent robot, Copiers and Scanners, 3D Printers, Tattoo pen.
Electric powered equipment Electric toothbrush, Electric tool, Electric toy car, Electric curtain.
Smart Home Intelligent window opener, vacuum cleaner, Smart coffee machine, hair drier, Fascia gun, fan, air cleaner, Hair removal device, door lock, Intelligent door lock.
Food and Beverage Hand Blenders, Blenders, Mixers, Coffee Machines, Food Processors, Juicers, Fryers, Ice Makers, Soy Bean Milk Makers.
Robotics Servicing robotics, Food delivery robot, Reception robot, Medical serving robot, AGV & AMR, Conveying robot, Inspection robot.
Global Market Distribution
Global Market Share Map
International Sales Distribution
Worldwide Logistics Partnership
Frequently Asked Questions
What's your main products?
We currently produce Brushed DC Motors, Brushed DC Gear Motors, Planetary DC Gear Motors, Brushless DC Motors, Stepper motors and Coreless Motors etc. You can check the specifications for above motors on our website and you can email us to recommend needed motors per your specification too.
How to select a suitable motor?
If you have motor pictures or drawings to show us, or you have detailed specs like voltage, speed, torque, motor size, working mode of the motor, needed life time and noise level etc, please do not hesitate to let us know, then we can recommend suitable motor per your request accordingly.
Do you have customized service for your standard motors?
Yes, we can customize per your request for the voltage, speed, torque and shaft size/shape. If you need additional wires/cables soldered on the terminal or need to add connectors, or capacitors or EMC we can make it too.
Can I have samples for testing first?
Yes, definitely you can. After confirmed the needed motor specs, we will quote and provide a proforma invoice for samples, once we get the payment, we will get a PASS from our account department to proceed samples accordingly.
How do you make sure motor quality?
We have our own inspection procedures: for incoming materials, we have signed sample and drawing to make sure qualified incoming materials; for production process, we have tour inspection in the process and final inspection to make sure qualified products before shipping.
What certifications do you have?
We currently have CE, RoHS, ISO13485, IATF16949, and REACH certifications.
