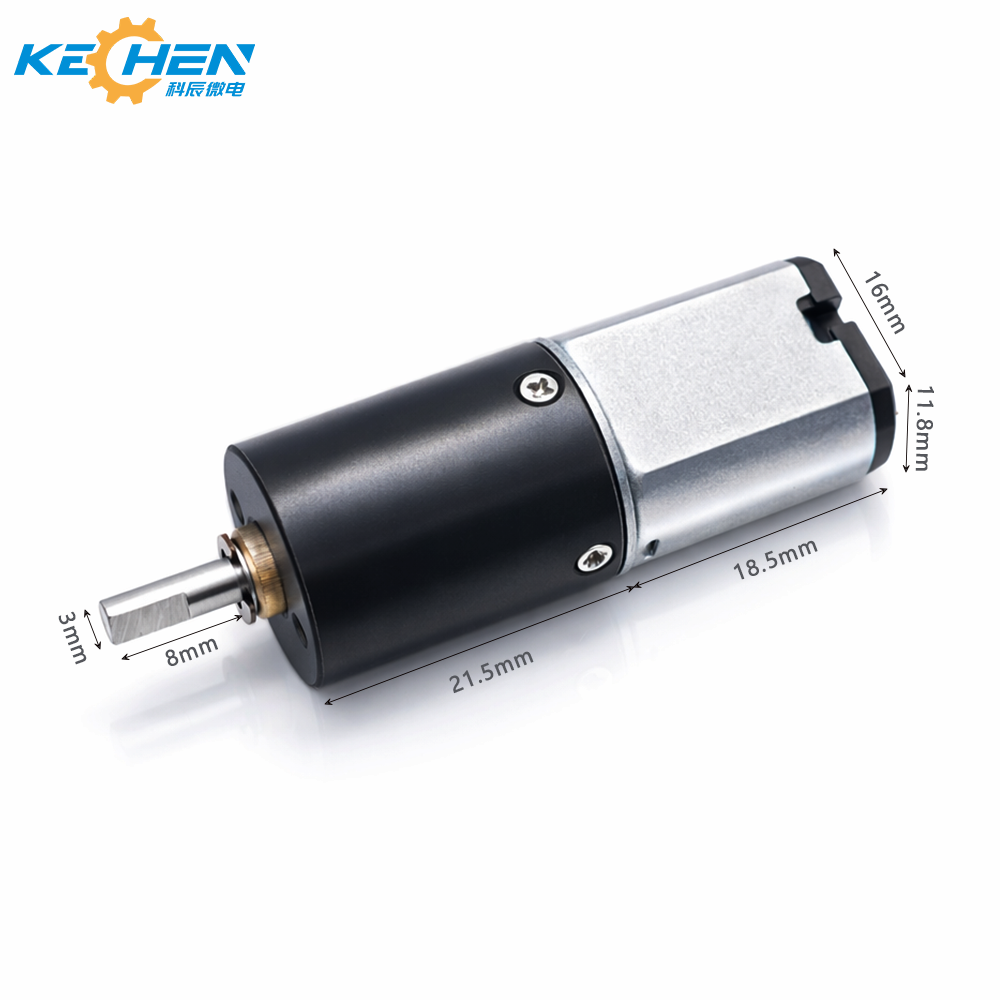

| GMP16-030 Planetary Gear Motor Specifications | |
|---|---|
| Model | GMP16-030 |
| Motor diameter | 15.4mm |
| Rated Voltage | 3V, 5V, 6V, 9V, 12V, 24V |
| Rated Torque | Max. 3.5 Kgf-cm |
| Shaft | Φ3mm D-cut 0.5mm, custom |
| Commutation | Carbon brush/Graphite brush |
| Encoder | 3ppr/7ppr/12ppr |
| No-load speed | 10-2500rpm |
| No-load current | 0.08-0.16A |
| Power | 1.6-1.8W |
| Weight | 35g |
| Certificate | ISO9001/ISO13485/IATF16949/CE/REACH/ROHS |
Smart Locks/Access Control Systems: Used to drive the lock cylinder rotation for automatic locking and unlocking. Pan/Pan Cameras: Used for camera rotation control, enabling smooth, low-noise rotation. Vending Machines/Coin-Operated Machines: Drive latches, gates, or transmission mechanisms. Smart Home Devices: Such as electric curtains, door and window controllers, flip-top mechanisms, etc.
Intelligent Toy Robots: Drive arms, legs, or wheels to achieve motion control. STEM Education Kits: Small drive modules for teaching and experimental platforms. Bionic Structures / Miniature Robotic Arms: Enable precise multi-joint movements and angle control.
Portable Massagers/Vibrators: Achieve vibration by driving an eccentric weight with high torque after deceleration. Automatic Fluid Injection Devices/Medical Pumps: Used for precise, low-flow-rate fluid delivery. Physiotherapy Instruments: Drive rotating massage heads or rollers.
Remote Control Car/Model Airplane Servos: Control rudder or wheel steering. Central Locking/Headlight Adjustment Mechanisms: Enable precise angle adjustment and drive. Small In-Vehicle Mechanisms: Such as folding rearview mirrors, power seat adjustments, etc.
Testing Equipment: Drives miniature probes or transmission gears to achieve positional movement. Dispensing Machines/Inkjet Printers: Precisely control micro-volume delivery and rotation. Optoelectronic Equipment: Controls the rotation of filters, apertures, or reflector assemblies.
| Medical equipment | sphygmomanometer, Massaging mattress, Air pump, Urine Analyzer. |
| Business Machines | Intelligent robot, Copiers and Scanners, 3D Printers, Tattoo pen. |
| Electric powered equipment | Electric toothbrush, Electric tool, Electric toy car, Electric curtain. |
| Smart Home | Intelligent window opener, vacuum cleaner, Smart coffee machine, hair drier, Fascia gun, fan, air cleaner, Hair removal device, door lock, Intelligent door lock. |
| Food and Beverage | Hand Blenders, Blenders, Mixers, Coffee Machines, Food Processors, Juicers, Fryers, Ice Makers, Soy Bean Milk Makers. |
| Robotics | Servicing robotics, Food delivery robot, Reception robot, Medical serving robot, AGV & AMR, Conveying robot, Inspection robot. |
