High Quality Permanent Magnet Brushless Hair Clipper Motor 3.7V 7100RPM 28mm for Home Appliance & Smart Home Use

Product Description

Products Description
28mm inner rotor brushless dc motor (BL2838)
Model BL2838
Shell Stator Size Φ28 * L 38 mm (Φ 1.1 inch * 1.5 inch)
Shaft Φ2.3mm (0.09 inch), screw lead, D shape, etc.
Shaft length Free customization
Rated Output Power 1W - 16W
Rated Voltage DC 3.7V-24V
Rated speed 6800-7300rpm
Rated Torque Up to 95 gf-cm (9.31 mNm)
Driver (Optional) Built-in driver PCB with MCU
Commutation Brushless-PWM drive

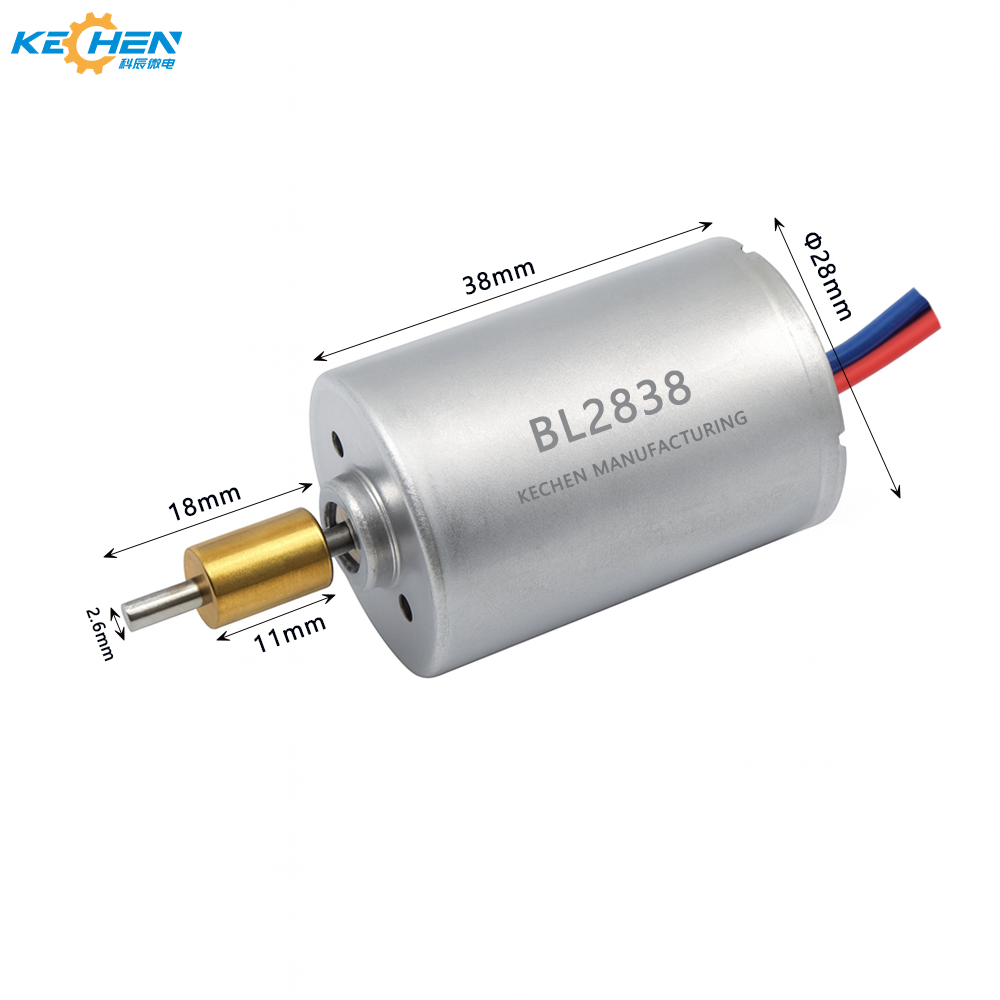

2838 Brushless Motor View 1

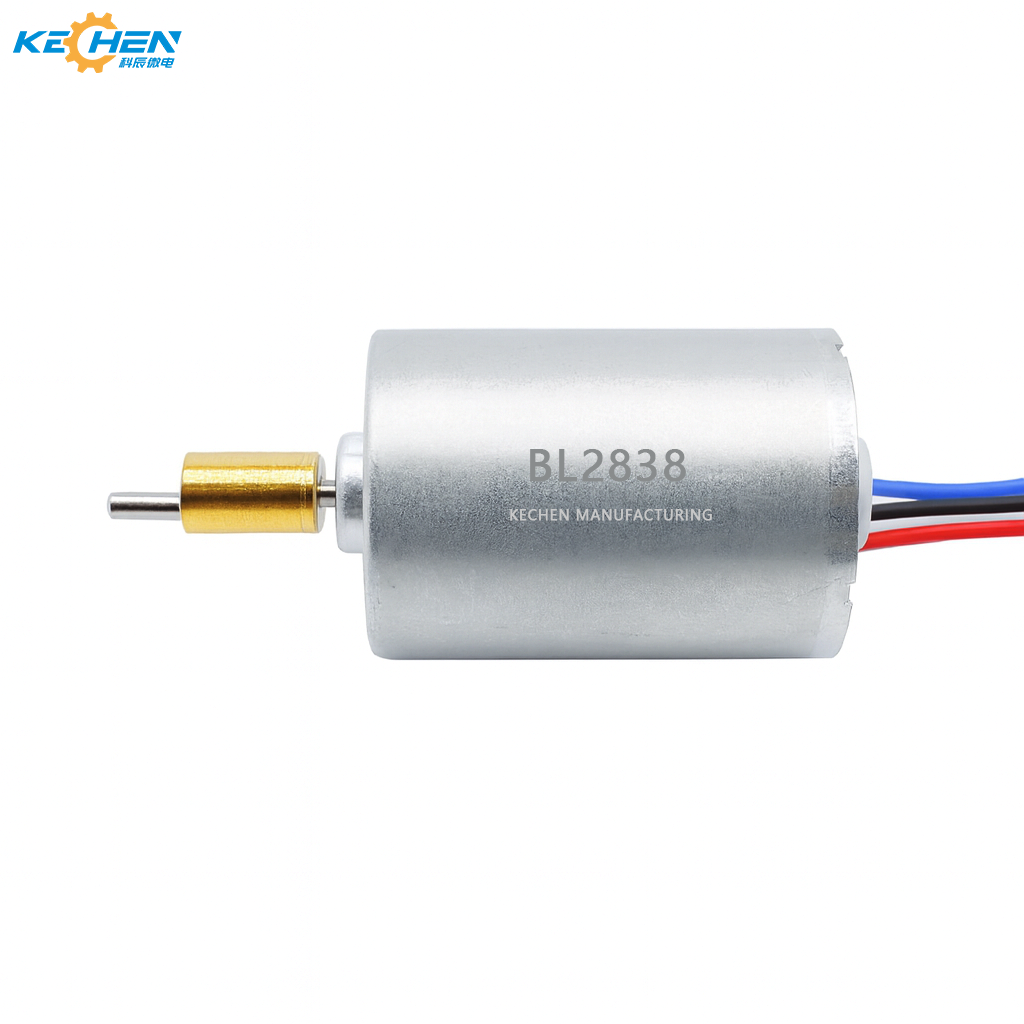

2838 Brushless Motor View 2
2838 Brushless Motor Dimensions
2838 Brushless Motor Applications
Hair Clippers & Grooming
  • High Frequency, High Speed, Powerful Performance
  • Low Noise, Long Lifespan
  • Suitable for professional hair clippers, children's hair clippers, and beauty trimmers
Electric Models & RC Toys
  • RC Boats / RC Cars / RC Airplanes
  • Stable High-Speed Power
  • Supports Continuous High-Load Operation
Small Cleaning Equipment
  • Strong Suction Source (High-Speed Centrifugal Fan)
  • Suitable for keyboard vacuum cleaners and small vacuum cleaners
Medical & Nursing Devices
  • Atomizer Fans
Smart Home Devices
  • Electric Aroma Diffusers
  • Electric Pet Feeders (Internal Fan or Rotating Components)
  • Small Electric Automation Devices
Beauty Instruments
  • Facial Cleansing Devices
  • Massager Vibration Power
  • Stable High-Frequency Vibration Output
Recommend Products
Recommend Products
Motor Raw Materials
Motor Raw Materials
Production Equipment
Production Equipment 1
Production Equipment 2
Production Equipment 3
Certifications
Certifications
Application Scenario
Application Scenario Chart
Medical Equipment Sphygmomanometer, Massaging Mattress, Air Pump, Urine Analyzer.
Business Machines Intelligent Robot, Copiers and Scanners, 3D Printers, Tattoo Pen.
Electric Powered Equipment Electric Toothbrush, Electric Tool, Electric Toy Car, Electric Curtain.
Smart Home Intelligent Window Opener, Vacuum Cleaner, Smart Coffee Machine, Hair Drier, Fascia Gun, Fan, Air Cleaner, Hair Removal Device, Door Lock, Intelligent Door Lock.
Food and Beverage Hand Blenders, Blenders, Mixers, Coffee Machines, Food Processors, Juicers, Fryers, Ice Makers, Soy Bean Milk Makers.
Robotics Servicing Robotics, Food Delivery Robot, Reception Robot, Medical Serving Robot, AGV & AMR, Conveying Robot, Inspection Robot.
Global Market Distribution
Market Distribution 1
Market Distribution 2
Market Distribution 3
FAQ
How to select a suitable motor?
If you have motor pictures or drawings to show us, or you have detailed specs like voltage, speed, torque, motor size, working mode of the motor, needed life time and noise level etc, please do not hesitate to let us know, then we can recommend a suitable motor per your request accordingly.
Do you have customized service for your standard motors?
Yes, we can customize per your request for the voltage, speed, torque and shaft size/shape. If you need additional wires/cables soldered on the terminal or need to add connectors, or capacitors or EMC we can make it too.
Can I have samples for testing first?
Yes, definitely you can. After confirmed the needed motor specs, we will quote and provide a proforma invoice for samples, once we get the payment, we will proceed with samples accordingly.
How do you make sure motor quality?
We have our own inspection procedures: for incoming materials, we have signed sample and drawing to make sure qualified incoming materials; for production process, we have tour inspection in the process and final inspection to make sure qualified products before shipping.
What's your lead time?
Generally speaking, our regular standard product will need 25-30days, a bit longer for customized products. But we are very flexible on the lead time, it will depend on the specific orders.
What certifications do you have?
We currently have CE, ROHS, ISO13485, IATF16949, and REACH certifications.
