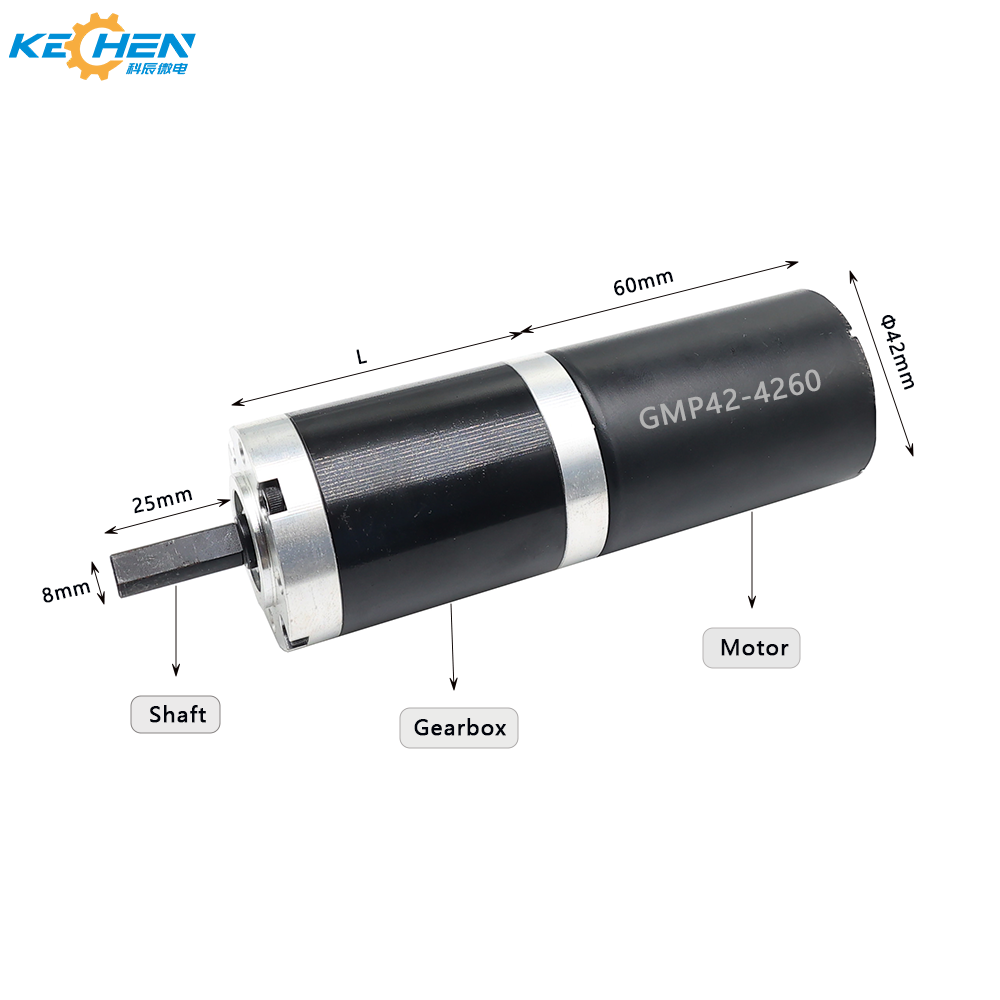

- ⚙️ Motor + gearbox: 42 × 53.5 mm gearbox, 42 × 60 mm motor body
- ⚡ Voltage: 24 V
- 🔄 Reduction ratio: 49:1
- 📈 No-load speed: ~ 160 RPM
- 🔌 No-load current: < 0.5 A
- 💪 Rated torque: 50 kg·cm
- 🚀 Rated speed: 90 RPM
- 🔋 Rated current: < 2.8 A
- 🛑 Stall torque: 60 kg·cm
- ⚠️ Stall current: < 4 A
Our partner manufacturing plant was established in August 2009. It is a high-tech enterprise that integrates the research and development, production, and marketing of micro motor series products. The main products of the facility include: various precision DC motors, stepper motors, reduction motors, planetary reduction motors and brushless motors. Micro motors are widely used in medical equipment, medical detection and analysis, financial security, 5G applications, automotive appliances, intelligent communication, iris technology, AI intelligence, smart grid, smart home, commercial intelligent locks, smart switches, smart medicine cabinets, fresh food cabinets, smart wear, outdoor equipment intelligent robots, electric tools, beauty tools, etc. Over years of rapid development, it has built a group of pragmatic, professional, and efficient teams, advanced production facilities, efficient management, excellent quality, and high-quality services to meet customers' needs of continuously improving product levels, reducing energy consumption, facilitating production, and improving efficiency.
| Category |
Applications |
| Medical Equipment |
Sphygmomanometer, Massaging mattress, Air pump, Urine Analyzer. |
| Business Machines |
Intelligent robot, Copiers and Scanners, 3D Printers, Tattoo pen. |
| Electric Powered Equipment |
Electric toothbrush, Electric tool, Adult erotica products, Electric toy car, Electric curtain. |
| Smart Home |
Intelligent window opener, Vacuum cleaner, Smart coffee machine, Hair drier, Fascia gun, Fan, Air cleaner, Hair removal device, Door lock, Intelligent door lock. |
| Food and Beverage |
Hand Blenders, Blenders, Mixers, Coffee Machines, Food Processors, Juicers, Fryers, Ice Makers, Soy Bean Milk Makers. |
| Robotics |
Servicing robotics, Food delivery robot, Reception robot, Medical serving robot, AGV & AMR, Conveying robot, Inspection robot. |
Q1: What are the main features of the GMP42-4260 gear motor?
A1: The GMP42-4260 is a 24V DC planetary gear motor featuring a 42mm diameter body and 53.5mm gearbox. It provides a rated torque of 50 kg·cm at 90 RPM with a 49:1 reduction ratio, offering high efficiency, compact structure, and reliable power output.
Q2: Can the voltage and reduction ratios be customized for these motors?
A2: Yes, parameters such as operating voltage, reduction ratio, shaft dimensions, rated speed, and output torque can be customized to match specific application requirements.
Q3: In what key industries are micro gear motors typically applied?
A3: Micro gear motors are widely applied in smart home appliances (like automated locks and curtains), medical equipment (such as analyzers and massage devices), business automation (3D printers, scanners), robotics (delivery and service robots), and small food processing tools.
Q4: How do planetary gearboxes compare to spur gearboxes?
A4: Planetary gearboxes provide higher power density, higher torque transmission efficiency, and better load distribution across multiple gear tracks in a compact space compared to standard spur gearboxes.
Q5: What measures are taken to guarantee product quality?
A5: Strict raw material inspections, automated precision production lines, advanced testing equipment, and international certifications guarantee high consistency, long service life, and optimal motor performance.
