Products Description

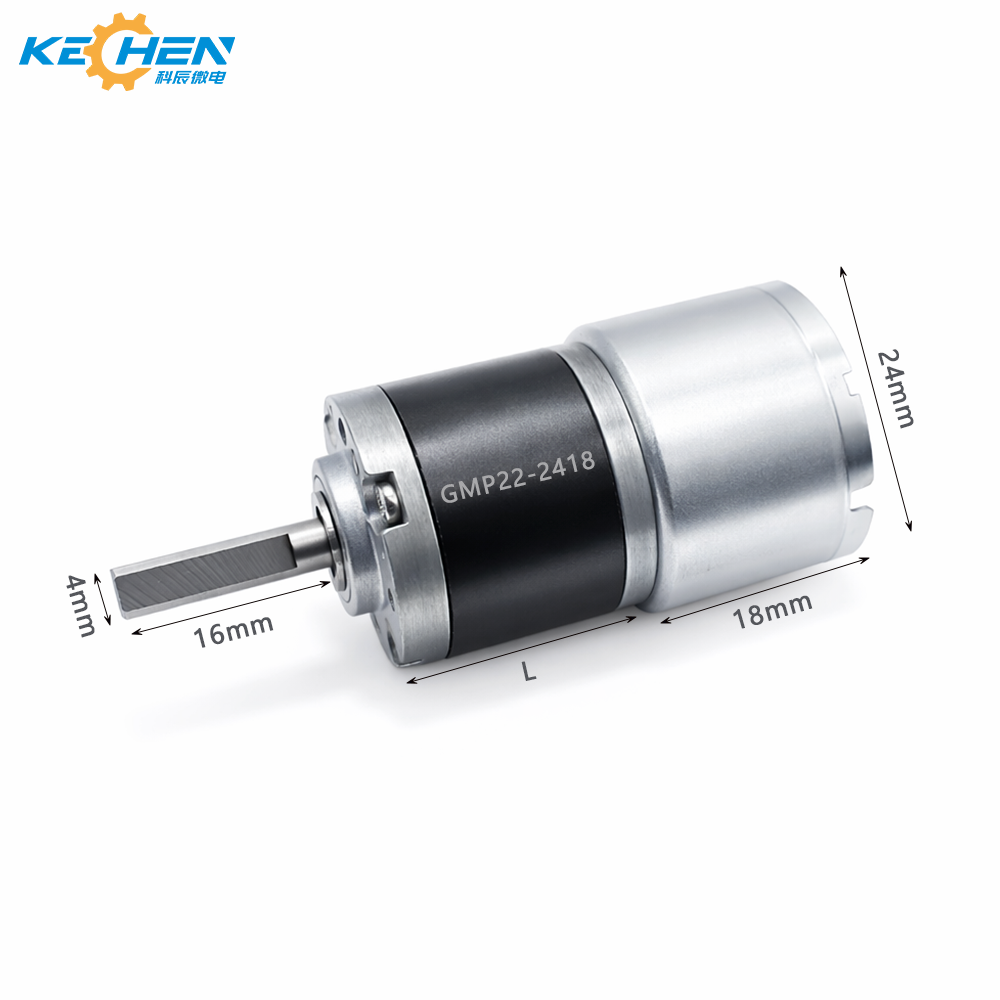

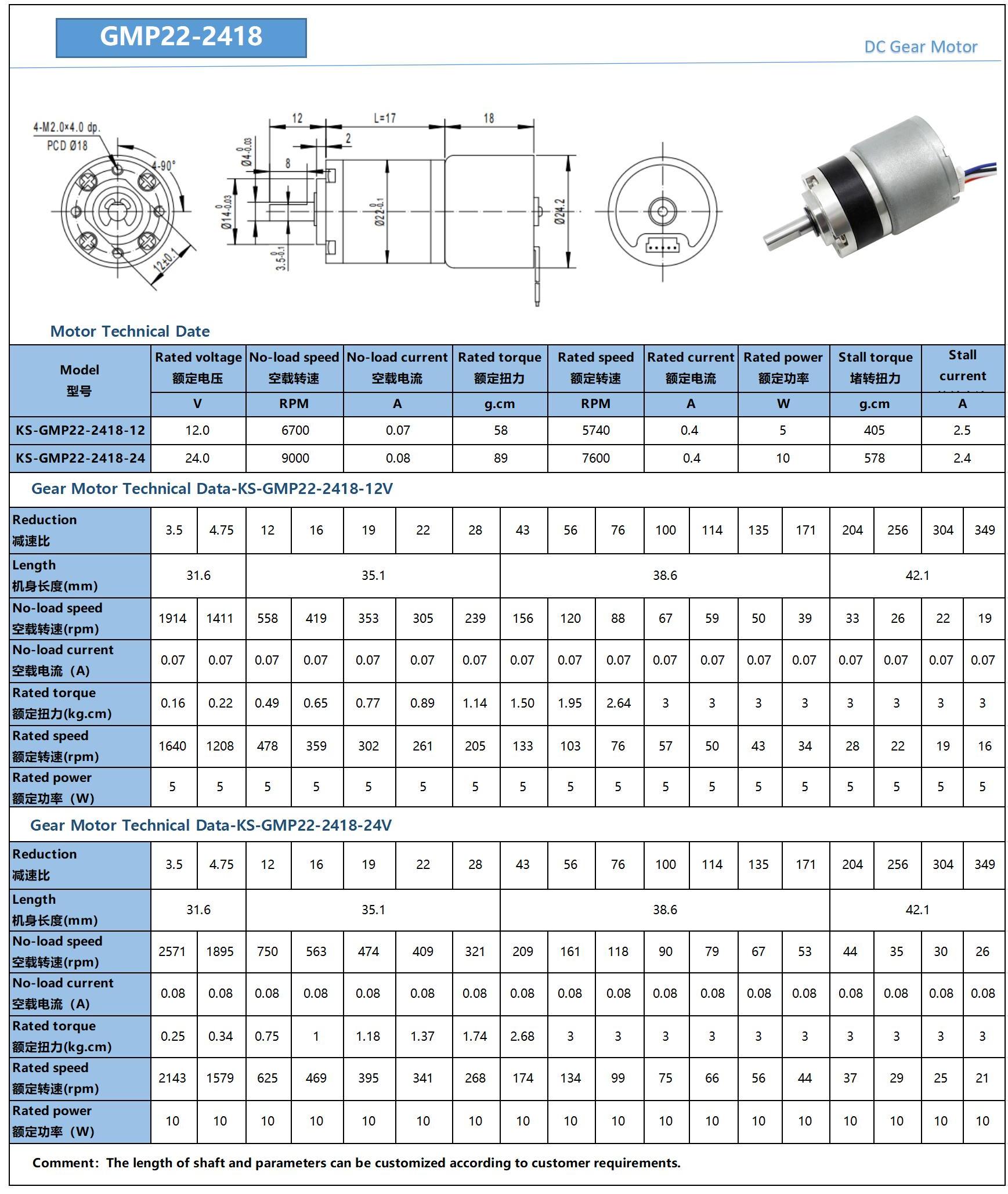

| GMP22-2418 Planetary Gear Motor Specifications |
| Model |
GMP22-2418 |
| Type |
DC Planetary Gear Motor (brushless) |
| Gearbox |
Multi-stage planetary reduction |
| Gearbox Diameter |
22 mm |
| Motor Diameter |
24 mm |
| Rated Voltage |
12 V–24 V DC |
| Efficiency |
70 % (typical for small planetary gear motors) |
| Output Shaft Type |
D-cut shaft (4 mm ) |
| Rated Torque |
0.05–0.29 N·m |
| Rated Speed |
20–1900 rpm |
| Current |
180–230 mA |
| reduction ratios |
1:16, 1:64, 1:107, 1:224, 1:304, 1:361, 1:428.7, 1:1024 |
| Certificate |
ISO9001, ISO13485, CE, IATF16949, RoHS compliance |
| Encoder |
3ppr-1024ppr |
Recommend Products
Motor raw materials
Production Equipment
Company Profile
The company was established in August 2017. It is a high-tech enterprise that integrates the research and development, production, and marketing of micro motor series products. The main products of the company include: various precision DC motors, stepper motors, reduction motors, planetary reduction motors brushless motors. Micro motors are widely used in medical equipment, medical detection and analysis, financial security, 5G applications, automotive appliances, intelligent communication, iris technology, AI intelligence, smart grid, smart home, commercial intelligent locks, smart switches, smart medicine cabinets, fresh food cabinets, smart wear, outdoor equipment intelligent robots, electric tools, beauty tools, etc. Since its establishment, it has adhered to the concept of "people-oriented, pioneering and innovative spirit". After eleven years of rapid development, it has a group of young and pragmatic, professional and efficient work teams, advanced production facilities, efficient management, excellent quality, and high-quality services to meet customers' needs of continuously improving product levels, reducing energy consumption, facilitating production, and improving efficiency, winning more and more recognition from customers.
Certifications
Application Scenario
Global Market Distribution
FAQ
What's your main products?
We currently produce Brushed Dc Motors, Brushed Dc gear Motors, Planetary Dc Gear Motors, Brushless Dc Motors, Stepper motors and Coreless Motors etc. You can check the specifications for above motors on our website and you can contact us to recommend needed motors per your specification too.
How to select a suitable motor?
If you have motor pictures or drawings to show us, or you have detailed specs like voltage, speed, torque, motor size, working mode of the motor, needed life time and noise level etc, please do not hesitate to let us know, then we can recommend suitable motor per your request accordingly.
Do you have customized service for your standard motors?
Yes, we can customize per your request for the voltage, speed, torque and shaft size/shape. If you need additional wires/cables soldered on the terminal or need to add connectors, or capacitors or EMC we can make it too.
Do you have individual design service for motors?
Yes, we would like to design motors individually for our customers, but it may need some mold charge and design charge.
Can I have samples for testing first?
Yes, definitely you can. After confirmed the needed motor specs, we will quote and provide a proforma invoice for samples, once we get the payment, we will get a PASS from our account department to proceed samples accordingly.
How do you make sure motor quality?
We have our own inspection procedures: for incoming materials, we have signed sample and drawing to make sure qualified incoming materials; for production process, we have tour inspection in the process and final inspection to make sure qualified products before shipping.
