Axon Motor
1 / 5
| Motor Technical Date | |||||||||
|---|---|---|---|---|---|---|---|---|---|
| Model | Voltage (VDC) | No-load | At Maximum Efficiency | Output Power (W) | Stall | ||||
| Speed (r/min) | Current (mA) | Speed (r/min) | Torque (g.cm) | Current (mA) | Torque (g.cm) | Current (A) | |||
| 370-12560 | 8.0 | 2400 | 15 | 1970 | 16 | 69 | 0.55 | 90 | 0.32 |
| 370-18260 | 12.0 | 7900 | 50 | 6820 | 32.7 | 320 | 3.84 | 240 | 2.0 |
| 370-10800 | 24.0 | 5100 | 15 | 4310 | 26.3 | 82 | 1.97 | 170 | 0.45 |
| Gear Motor Technical Data - GM4632-370-18260 | ||||||||
|---|---|---|---|---|---|---|---|---|
| Reduction | 37.3 | 150 | 250 | 324 | 600 | 972 | 1700 | 2900 |
| Length(mm) | 46 | 46 | 46 | 46 | 46 | 46 | 46 | 46 |
| No-load speed(rpm) | 211.8 | 52.6 | 31.6 | 24.4 | 13.2 | 8.1 | 4.7 | 2.7 |
| Rated speed(rpm) | 182.8 | 45.4 | 27.3 | 21.1 | 11.4 | 7.0 | 4.0 | 2.5 |
| Rated torque(kg.cm) | 0.73 | 2.9 | 4.9 | 6.4 | 10.0 | 10.0 | 10.0 | 10.0 |
| Stall Torque (kg.cm) | 5.37 | 15 | 15 | 15 | 15 | 15 | 15 | 15 |
| Gear Motor Technical Data - GM4632-370-10800 | ||||||||
|---|---|---|---|---|---|---|---|---|
| Reduction | 37.3 | 150 | 250 | 324 | 600 | 972 | 1700 | 2900 |
| Length(mm) | 46 | 46 | 46 | 46 | 46 | 46 | 46 | 46 |
| No-load speed(rpm) | 136.7 | 34.0 | 20.4 | 15.7 | 8.5 | 5.3 | 3.0 | 2.0 |
| Rated speed(rpm) | 115.6 | 29.0 | 17.2 | 13.3 | 7.0 | 4.4 | 2.5 | 2.0 |
| Rated torque(kg.cm) | 0.59 | 2.73 | 3.95 | 5.11 | 9.47 | 10.0 | 10.0 | 10.0 |
| Stall Torque (kg.cm) | 3.8 | 15 | 15 | 15 | 15 | 15 | 15 | 15 |
| Category | Detailed Application Scope |
|---|---|
| Medical equipment | sphygmomanometer, Massaging mattress, Air pump, Urine Analyzer. |
| Business Machines | Intelligent robot, Copiers and Scanners, 3D Printers, Tattoo pen. |
| Electric powered equipment | Electric toothbrush, Electric tool, Electric toy car, Electric curtain. |
| Smart Home | Intelligent window opener, vacuum cleaner, Smart coffee machine, hair drier, Fascia gun, fan, air cleaner, Hair removal device, door lock, Intelligent door lock. |
| Food and Beverage | Hand Blenders, Blenders, Mixers, Coffee Machines, Food Processors, Juicers, Fryers, Ice Makers, Soy Bean Milk Makers. |
| Robotics | Servicing robotics, Food delivery robot, Reception robot, Medical serving robot, AGV & AMR, Conveying robot, Inspection robot. |

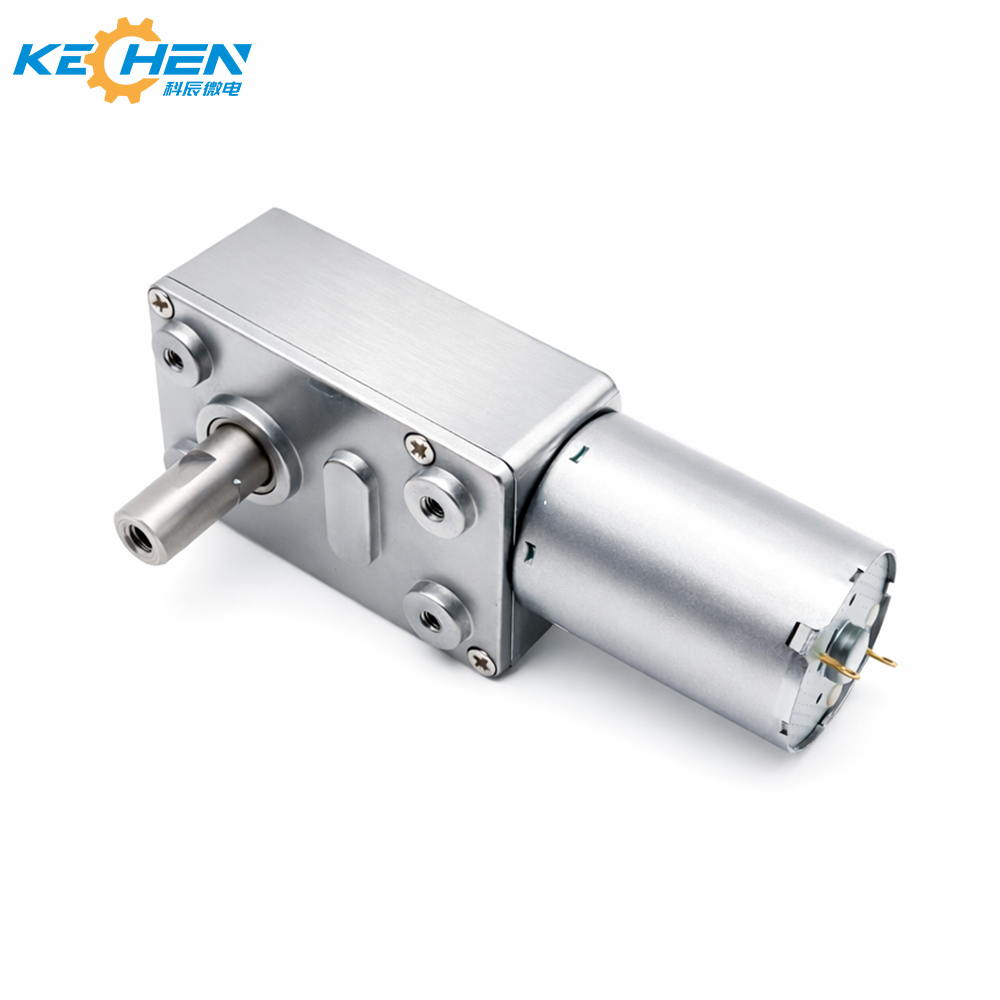

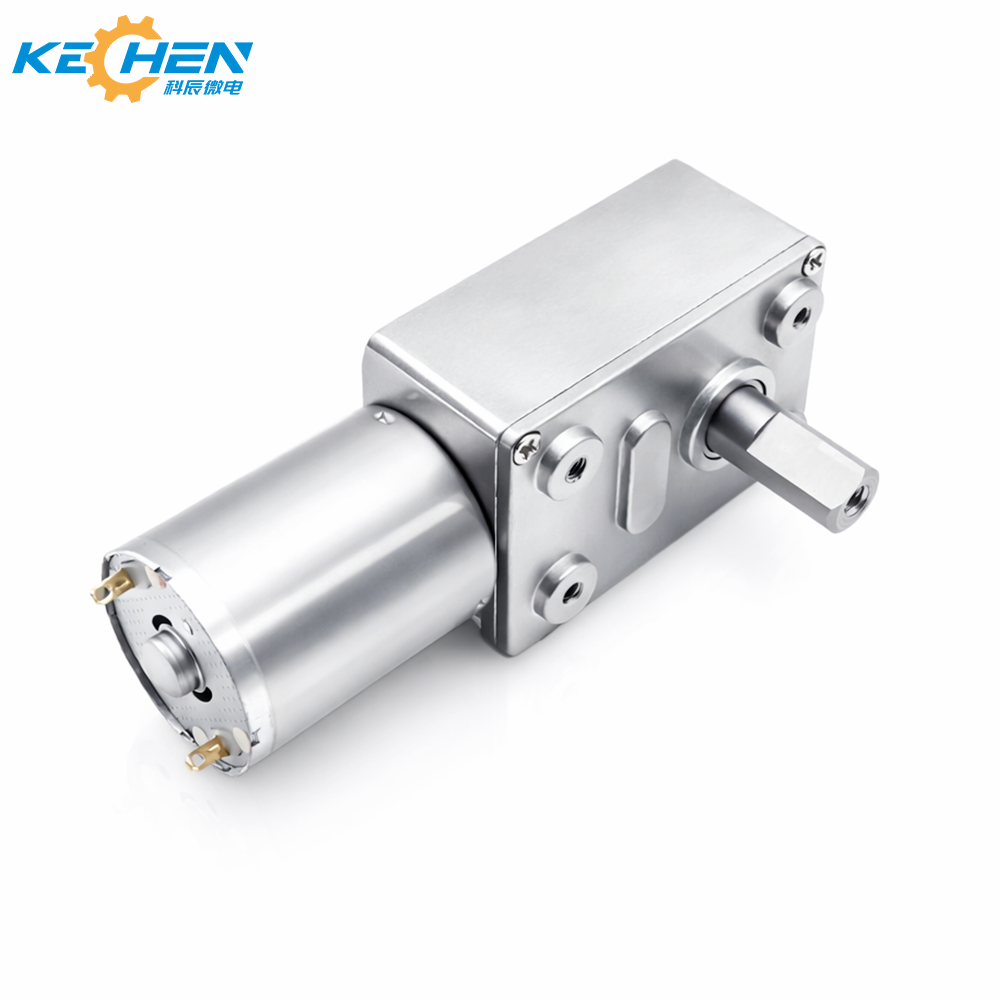

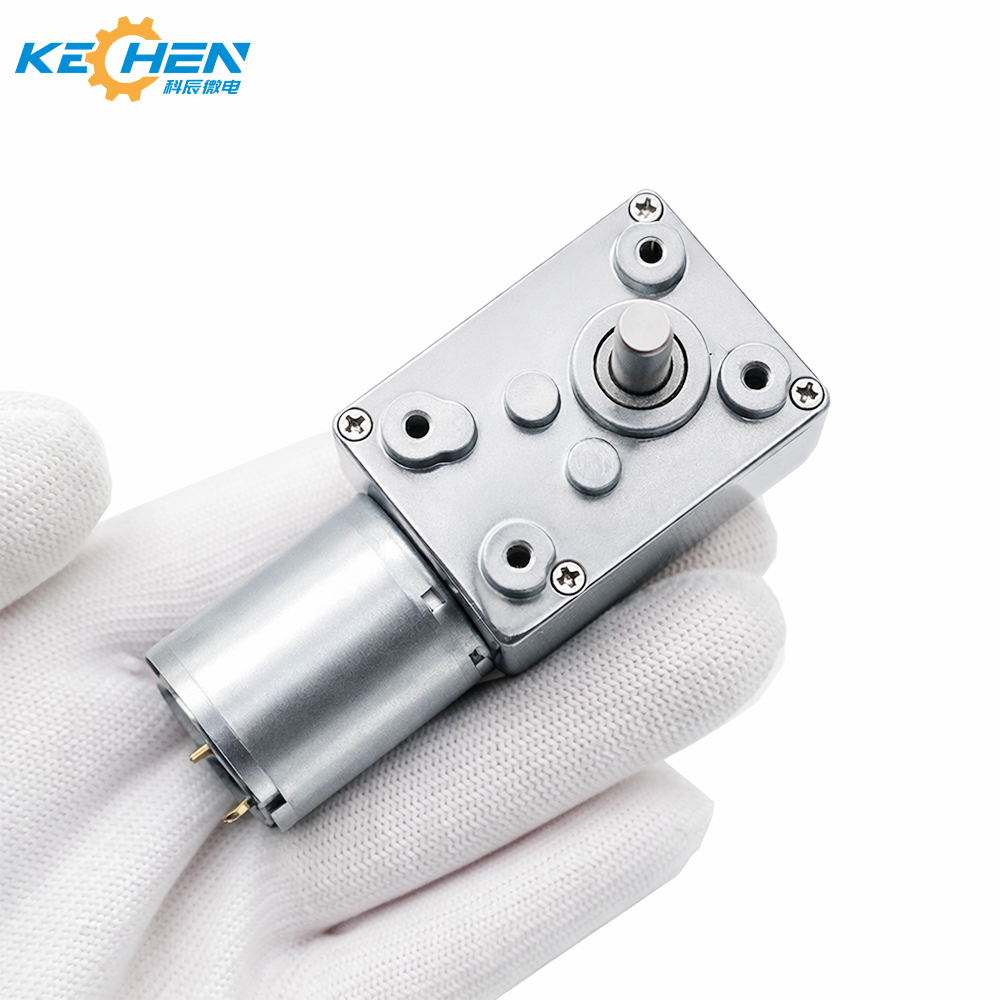

A: The GM4632-370 is a small square worm gearbox carbon brush DC motor. It features a robust metal worm gear reducer, a high-torque output of up to 50 Kgf-cm, and a right-angle drive configuration suitable for space-constrained applications.

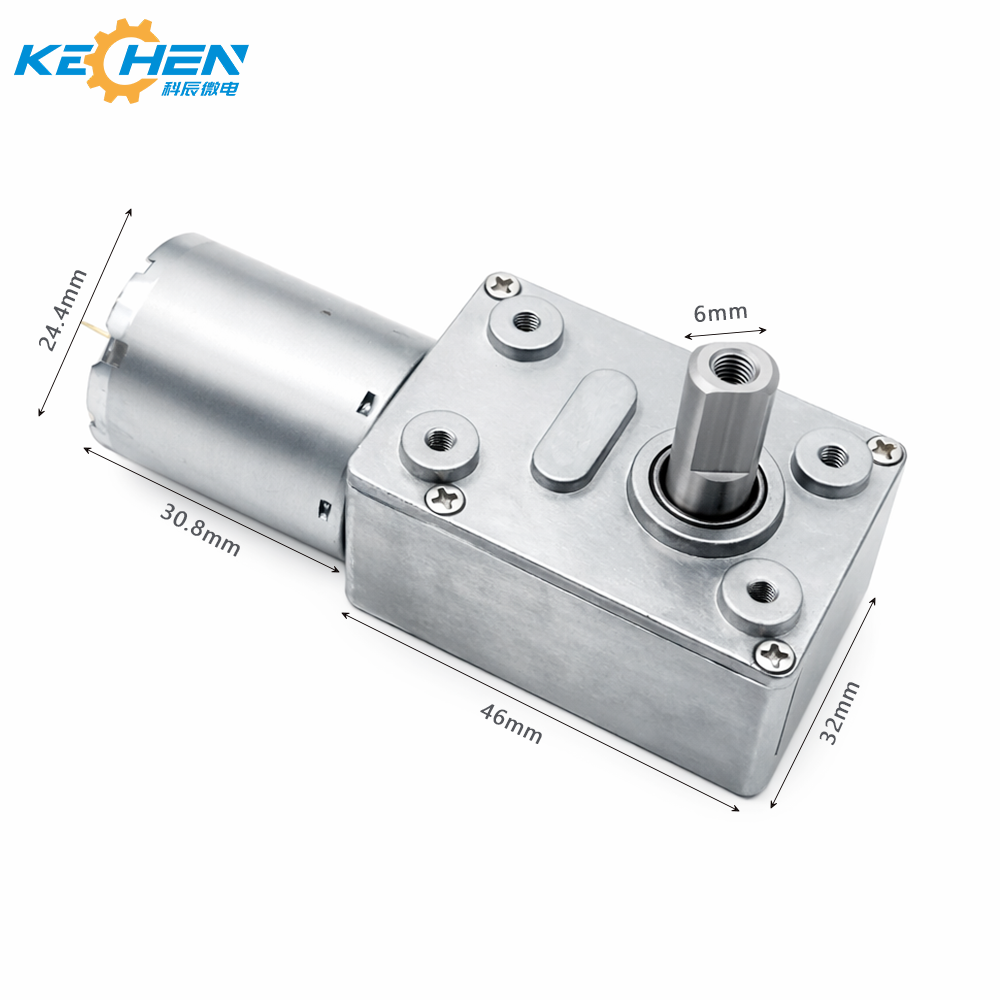

A: The motor supports rated voltages of DC 6V, 9V, 12V, and 24V. Standard output shaft is Φ6mm right-angle, which can be custom-made. It also supports optional configurations like magnetic or optical encoders.
A: They are widely applied in medical equipment (air pumps, urine analyzers), business machines (3D printers, scanners), smart home devices (intelligent door locks, window openers), food & beverage machines, and robotics (AGV, AMR, and service robots).
A: Yes, it can be integrated with either a magnetic encoder or an optical encoder to provide feedback for precise positioning, speed measurement, and motion control.
A: The standard Minimum Order Quantity (MOQ) for the GM4632-370 worm gearbox DC motor series is 100 pieces.
