3530 35mm Brush DC Permanent Magnet Gear Motor 12V 150rpm 37mm Spur Gear High Torque Metal Gearbox for Smart Devices

Product Description

Products Description
GM37-3530 DC geared motor specifications
Motor type Micro DC geared motor
Motor diameter 34.5mm
Gearbox diameter 37mm
Gear material of the reduction gear Powder metallurgy gears/steel gears
Rated voltages 12V DC/24V DC
Gear reduction ratios 6:1, 10:1, 19:1, 30:1, 44:1, 56:1, 90:1, 131:1, 169:1, 270:1, 506:1, 810:1
Rated torque 0.5-25kg.cm
Rated speed 3-950rpm
Shaft Φ6mm D-cut 0.5mm, custom
Suitable Applications Smart home, automation, robotics, vending machine
Weight 200 g

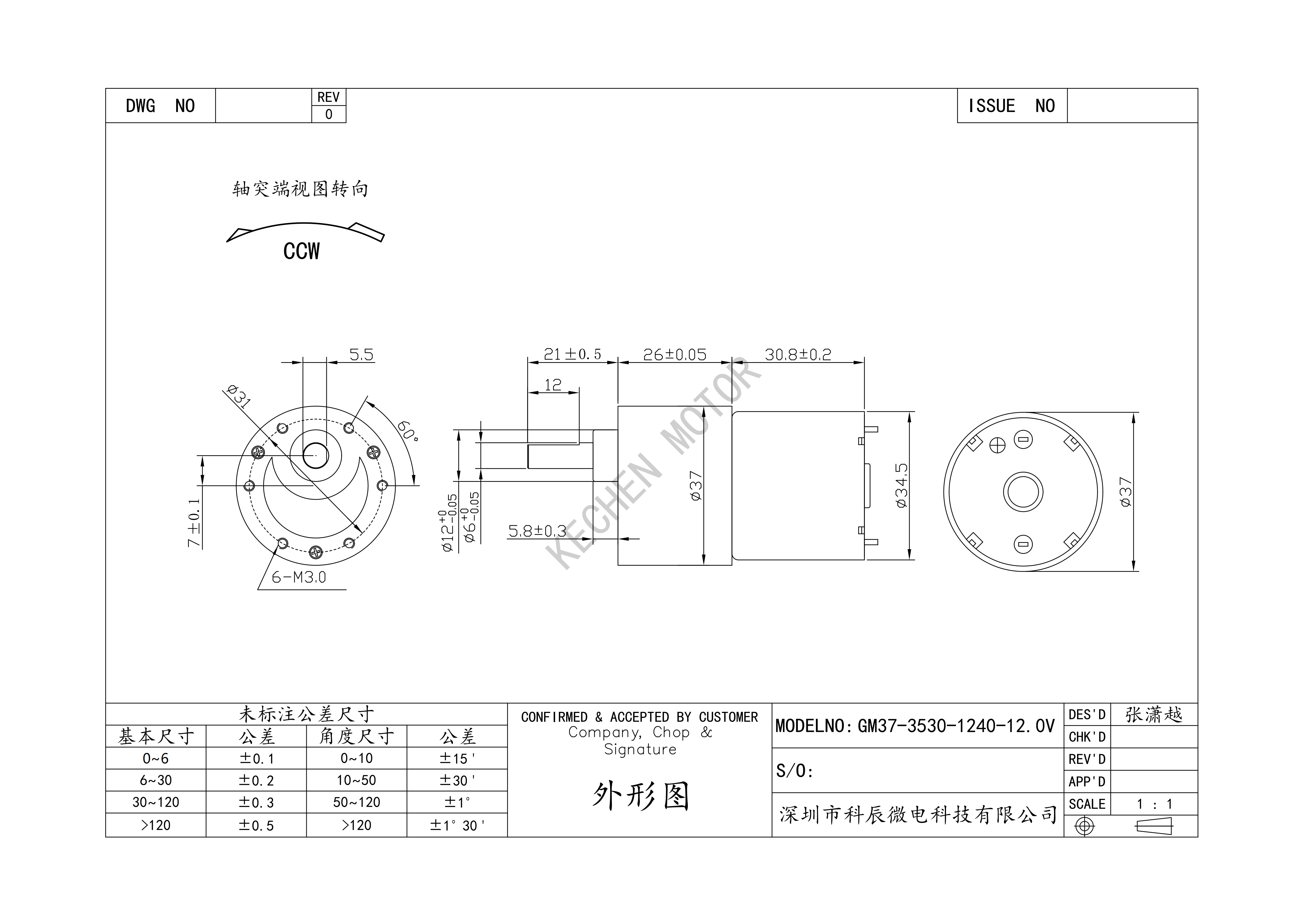

Motor Dimension Drawing 1

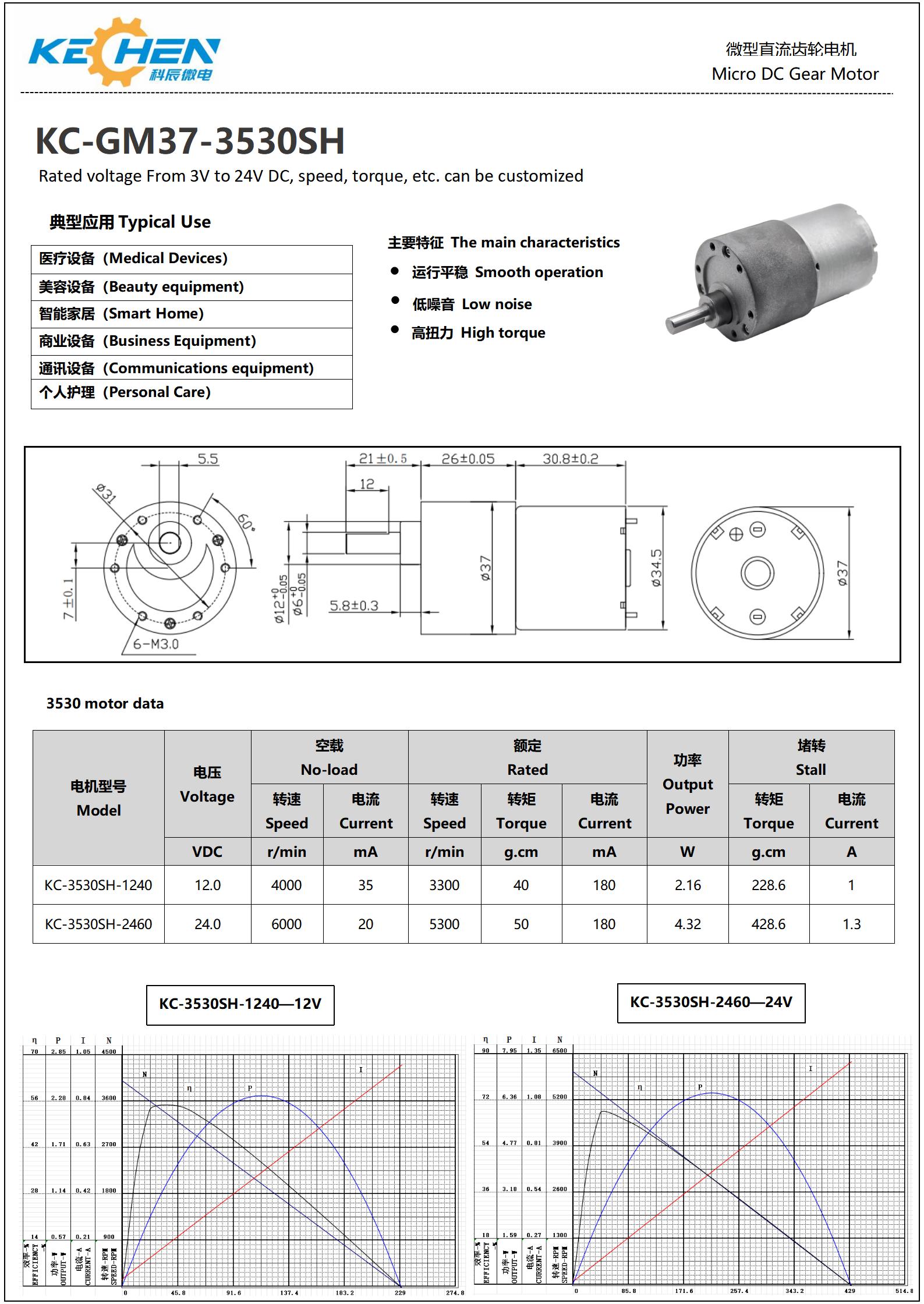

Motor Performance Curve

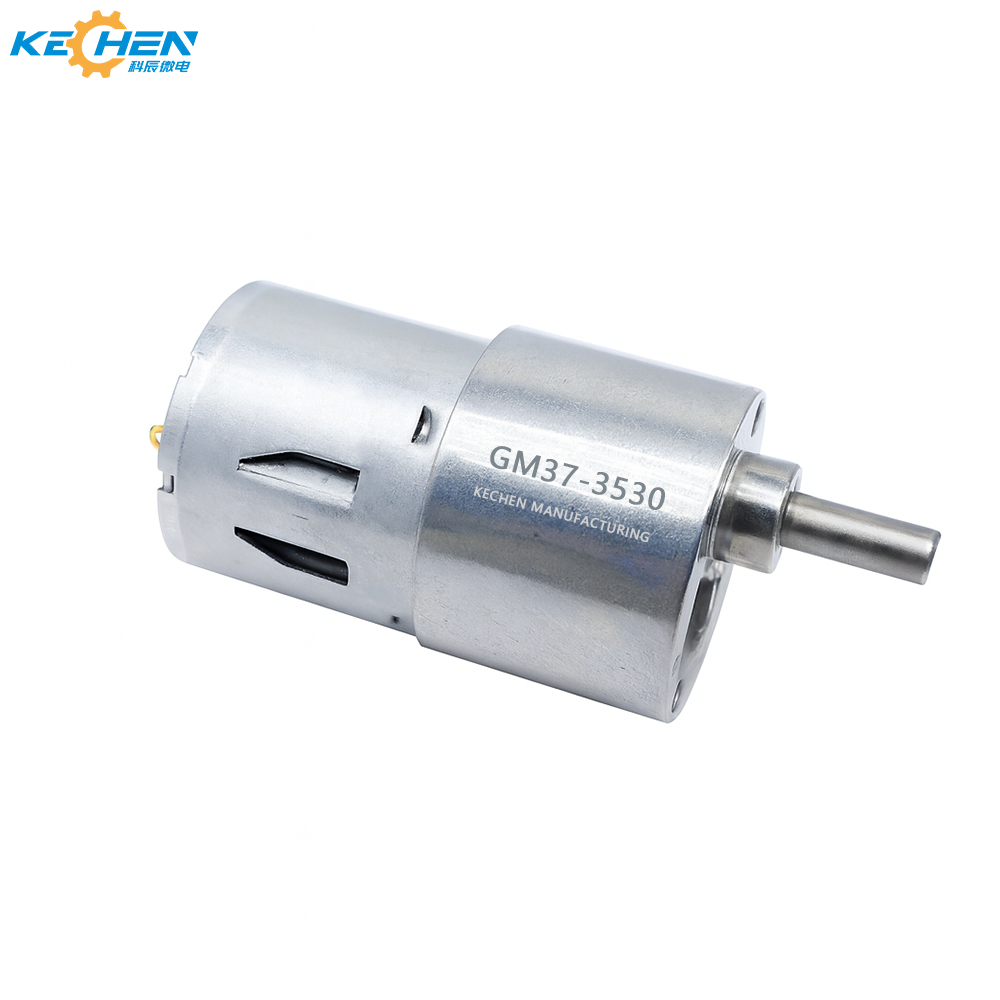

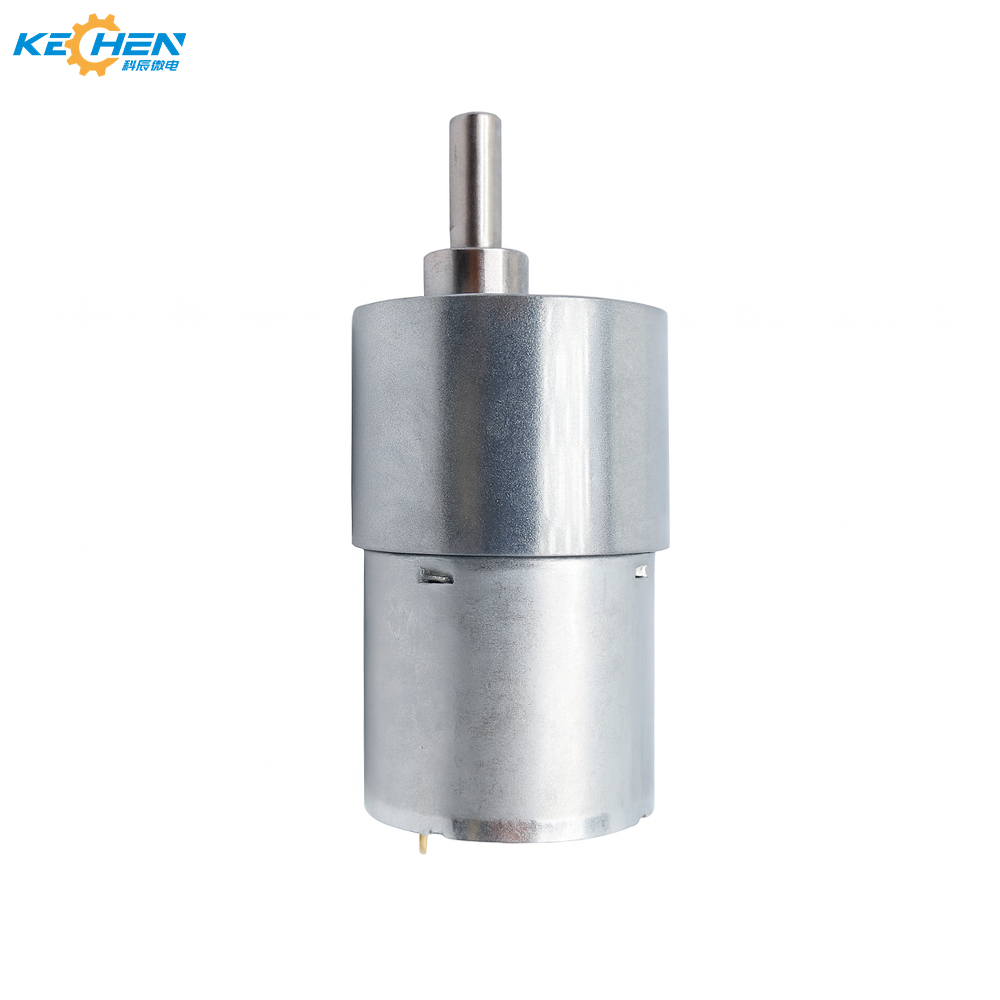

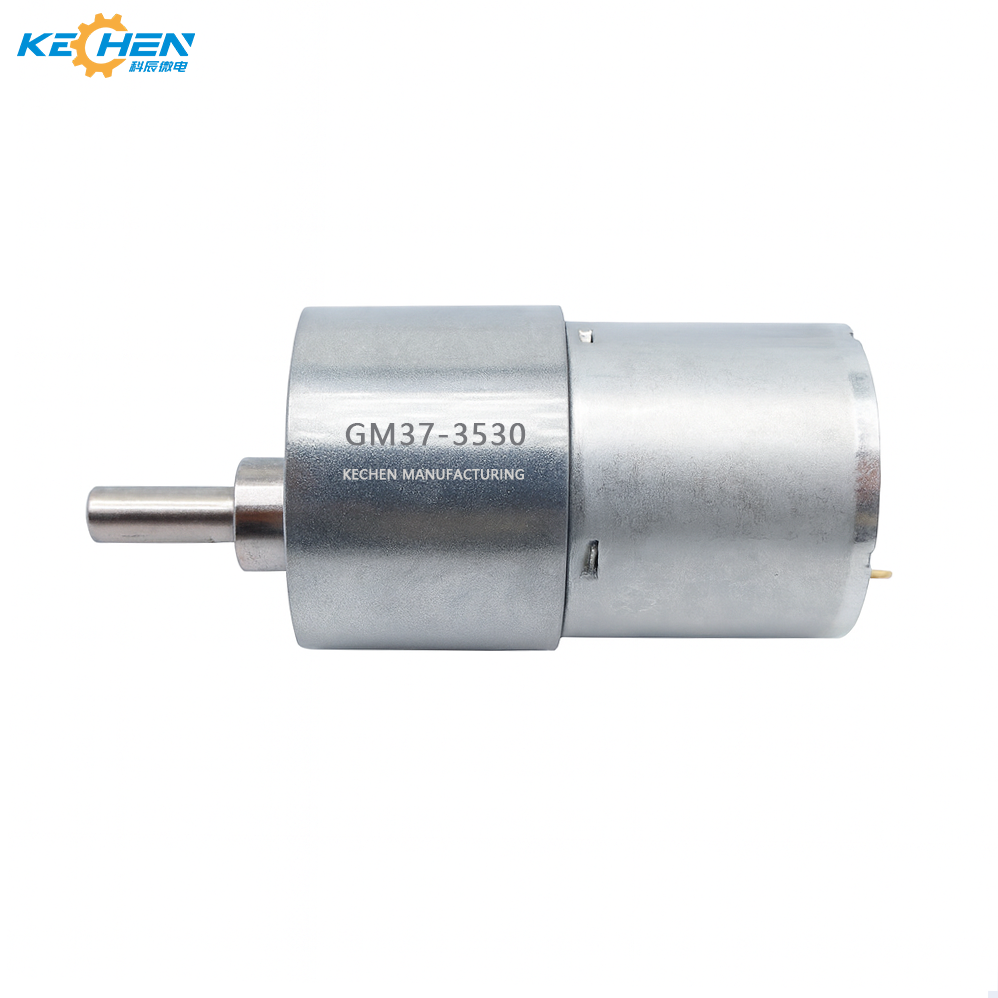

Motor Product View
Gearbox with motor data
GM37-3530SH-1240-12.0V
Reduction 10 30 50 102 150 210 306 450 506
Length(mm) 17.5 21 23.5 26 26 26 28.5 28.5 28.5
No-load speed(rpm) 400 133 80 39 27 19 13 9 8
Rated speed(rpm) 330 110 66 32 22 16 11 7 7
Rated torque(kg.cm) 0.32 0.84 1.2 2.04 3.0 4.2 4.9 7.2 8.1
Stalling Torque (kg.cm) 1.83 4.8 6.86 11.66 17.14 24.00 27.98 41.14 46.26
GM37-3530SH-2460-24.0V
Reduction 50 102 150 210 306 450 506 630 810
Length(mm) 23.5 26 26 26 28.5 28.5 28.5 28.5 28.5
No-load speed(rpm) 120 59 40 29 20 13 12 10 7
Rated speed(rpm) 106 52 35 25 17 12 10 8 7
Rated torque(kg.cm) 1.5 2.04 3.75 5.25 6.12 9.0 10.12 12.6 16.2
Stalling Torque (kg.cm) 12.86 17.49 32.14 45 52.46 77.14 86.74 108 138.9

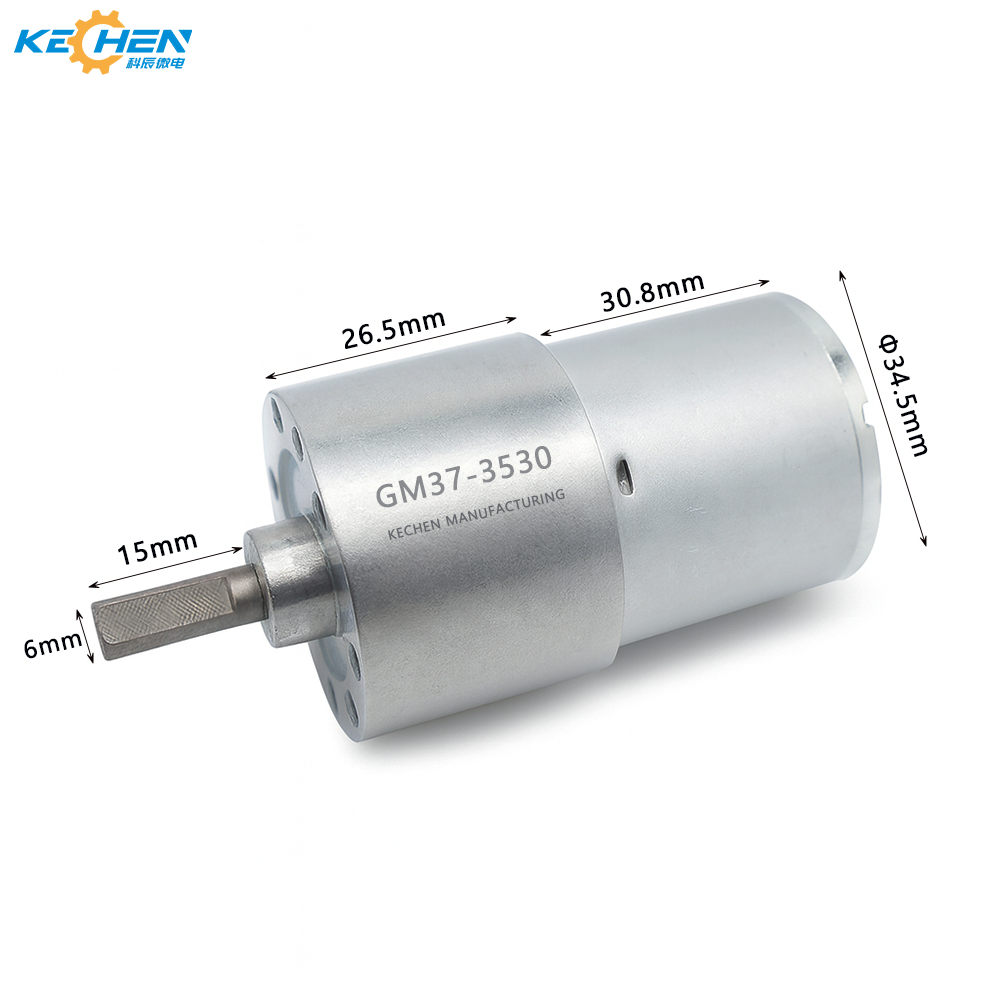

Motor Dimension Details

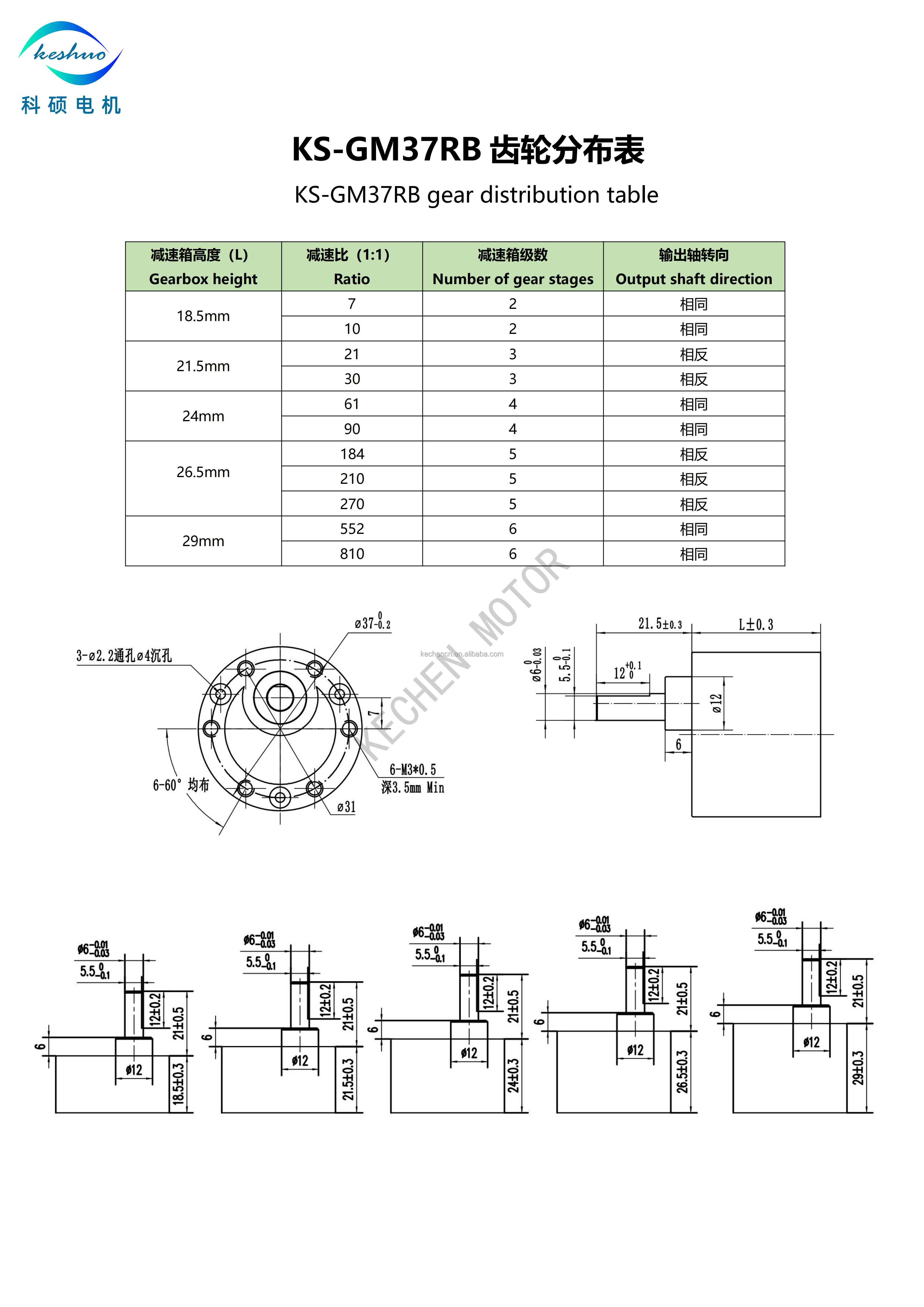

Motor Shaft Design Details
Recommend Products
Recommend Products Lineup
Motor raw materials
High Quality Motor Raw Materials
Production Equipment
Advanced Production Equipment 1
Advanced Production Equipment 2
Advanced Production Equipment 3
Company Profile
Manufacturing Plant Overview
The factory was established in August 2017. It is a high-tech enterprise that integrates the research and development, production, and marketing of micro motor series products. The main products include: various precision DC motors, stepper motors, reduction motors, planetary reduction motors, and brushless motors. Micro motors are widely used in medical equipment, medical detection and analysis, financial security, 5G applications, automotive appliances, intelligent communication, iris technology, AI intelligence, smart grid, smart home, commercial intelligent locks, smart switches, smart medicine cabinets, fresh food cabinets, smart wear, outdoor equipment, intelligent robots, electric tools, beauty tools, etc.
Since its establishment, it has adhered to the concept of "people-oriented, pioneering and innovative spirit". After eleven years of rapid development, it has a group of young and pragmatic, professional and efficient work teams, advanced production facilities, efficient management, excellent quality, and high-quality services to meet customers' needs of continuously improving product levels, reducing energy consumption, facilitating production, and improving efficiency, winning more and more recognition from customers.
Certifications
Quality Control Certifications
Application Scenario
Motor Application Scenarios
Global Market Distribution
Global Market Map
Global Customer Network
Frequently Asked Questions
How to select a suitable motor?
If you have motor pictures or drawings to show us, or you have detailed specs like voltage, speed, torque, motor size, working mode of the motor, needed lifetime, and noise level etc, please do not hesitate to let us know, then we can recommend a suitable motor per your request accordingly.
Do you have customized service for your standard motors?
Yes, we can customize per your request for the voltage, speed, torque, and shaft size/shape. If you need additional wires/cables soldered on the terminal or need to add connectors, or capacitors, or EMC, we can make it too.
Do you have individual design service for motors?
Yes, we would like to design motors individually for our customers, but it may need some mold charge and design charge.
Can I have samples for testing first?
Yes, definitely you can. After confirming the needed motor specs, we will quote and provide a proforma invoice for samples. Once we get the payment, we will proceed with samples accordingly.
How do you make sure motor quality?
We have our own inspection procedures: for incoming materials, we have signed samples and drawings to make sure qualified incoming materials; for the production process, we have tour inspection in the process and final inspection to make sure qualified products before shipping.
What certifications do you have?
We currently have CE, ROHS, ISO13485, IATF16949, and REACH certifications.
