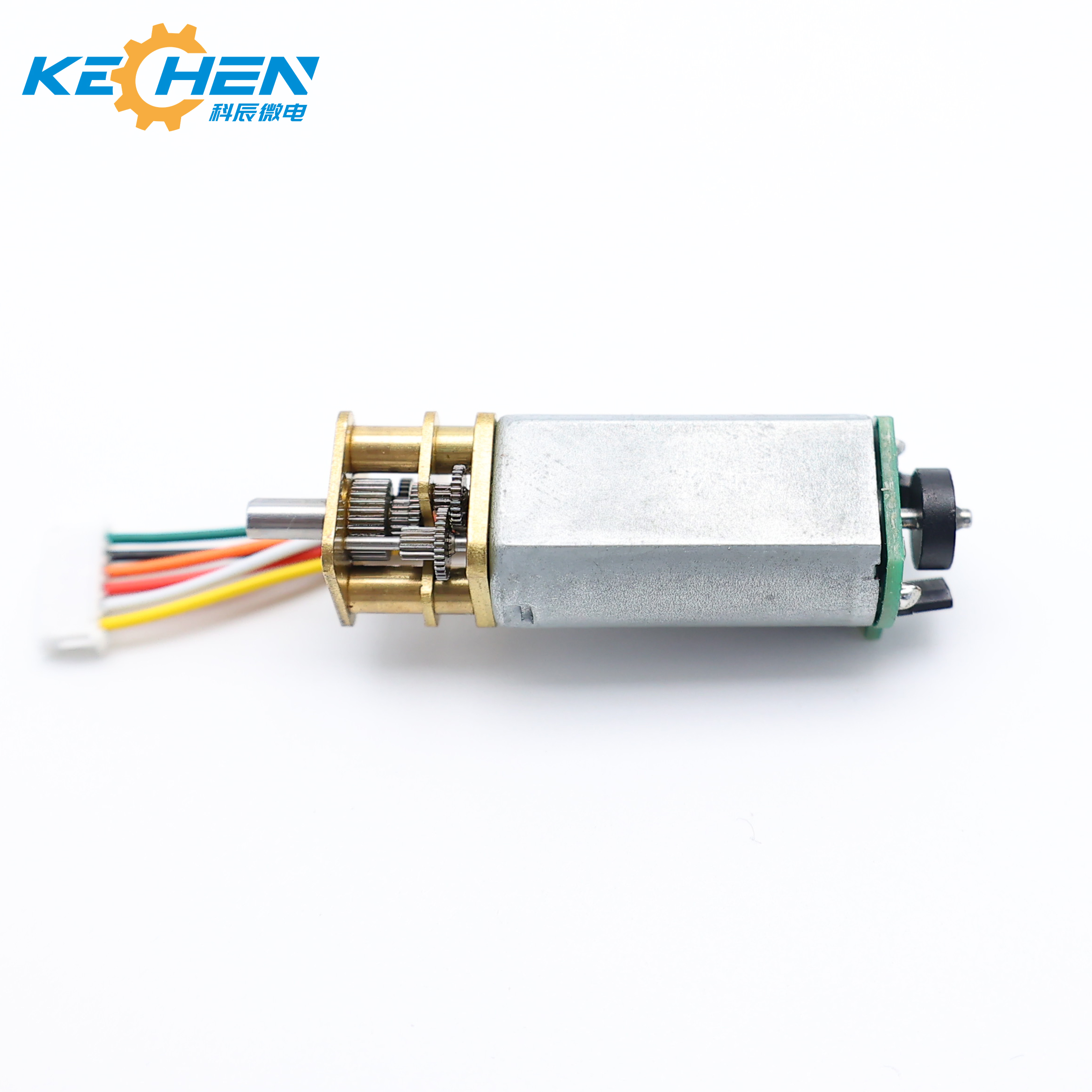

12V DC Geared Motor Encoder Permanent Magnet Construction for Smart Circuit Breaker Tripping Home Appliances Electric Bicycles

Product Description

Products Description
GM13-050 13mm DC Spur Gear Motor
GM13-050 13mm DC Spur Gear Motor
  • Model: GM13-050
  • Gearbox: 13 mm metal spur gear reducer
  • Rated Voltage: DC 3V, 4.5V, 5V, 6v, 9v, 12v, 24v
  • Rated Torque: Max. 2.3Kgf-cm
  • Size: Φ13 * L TBD
  • Shaft: Φ3mm D-cut 0.5mm, M3, M4, custom
  • Encoder: Magnetic encoder available
  • Commutation: Carbon brush / Graphite brush / Metal brush
  • Construction: Micro Permanent Magnet iron cored DC electric motor
  • MOQ: 500 pcs

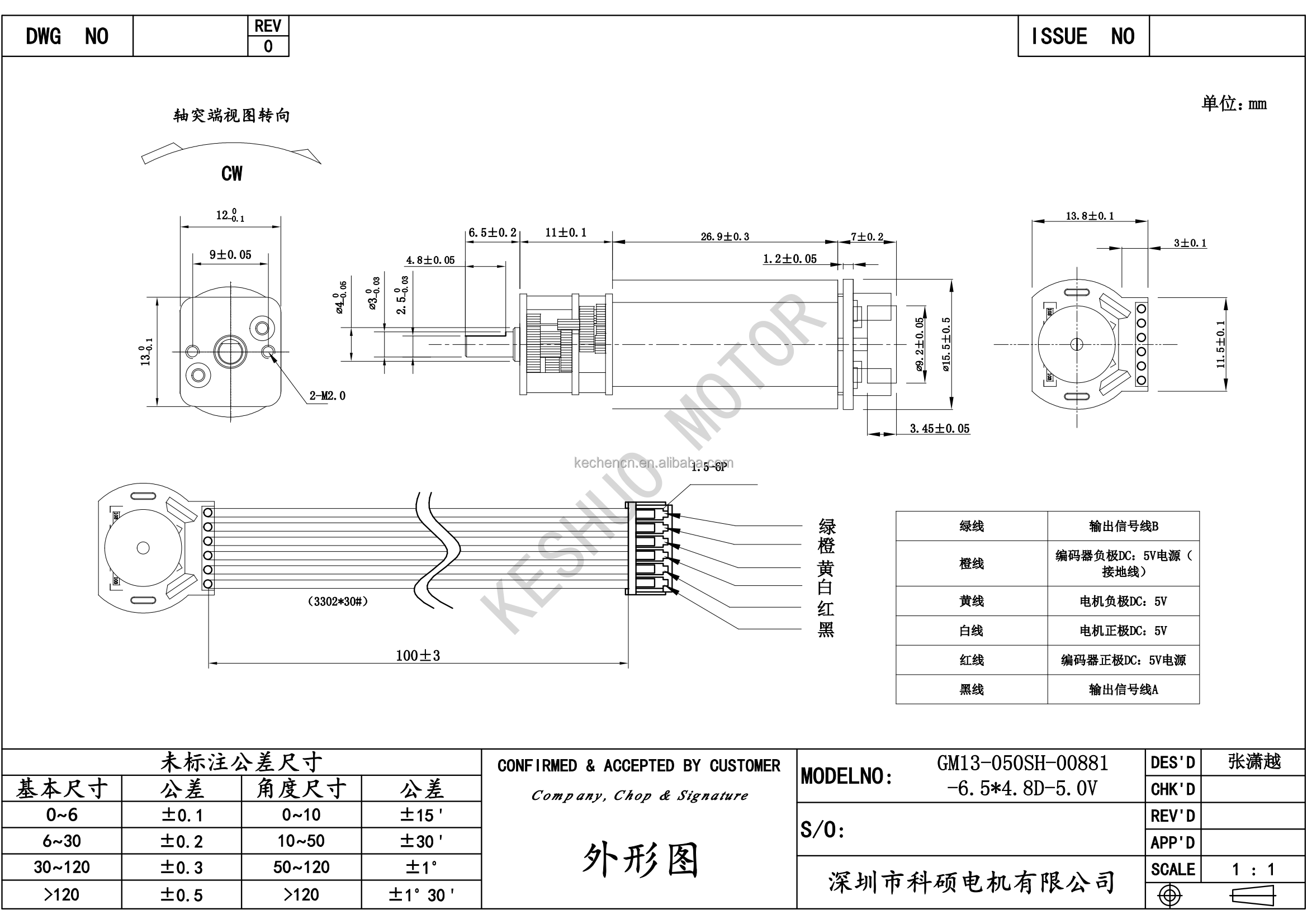

Motor Dimension Chart

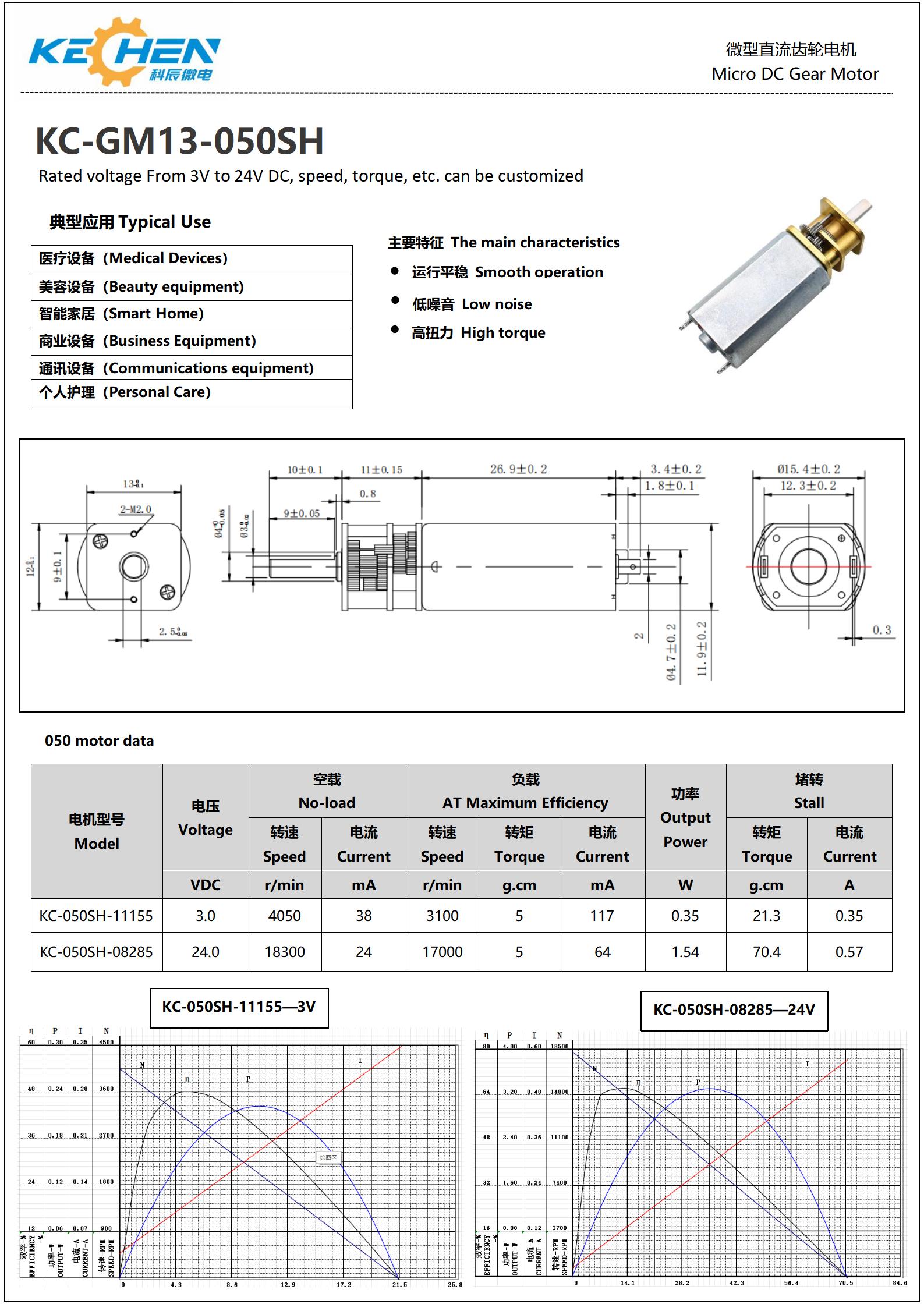

Technical Specifications Chart
Gearbox with motor Data
GM13-050SH-11155-3V
Reduction 6 20 52 85 118 170 215 250 297
Length(mm) 11 11 11 11 11 11 11 11 11
No-load speed(rpm) 675 203 78 48 34 24 19 16 14
Rated speed(rpm) 517 155 60 36 26 18 14 12 10
Rated torque(kg.cm) 0.02 0.07 0.16 0.26 0.30 0.43 0.54 0.63 0.74
Stalling Torque (kg.cm) 0.10 0.30 0.67 1.09 1.26 1.81 2.29 2.66 3.17
GM13-050SH-08285-24V
Reduction 52 85 118 170 215 250 297 360 1000
Length(mm) 11 11 11 11 11 11 11 11 13.2
No-load speed(rpm) 352 215 155 108 85 73 62 51 18
Rated speed(rpm) 327 200 144 100 79 68 57 47 17
Rated torque(kg.cm) 0.16 0.26 0.30 0.43 0.54 0.63 0.74 0.90 1.50
Stalling Torque (kg.cm) 2.20 3.59 4.15 5.98 7.57 8.80 10.45 12.67 21.12

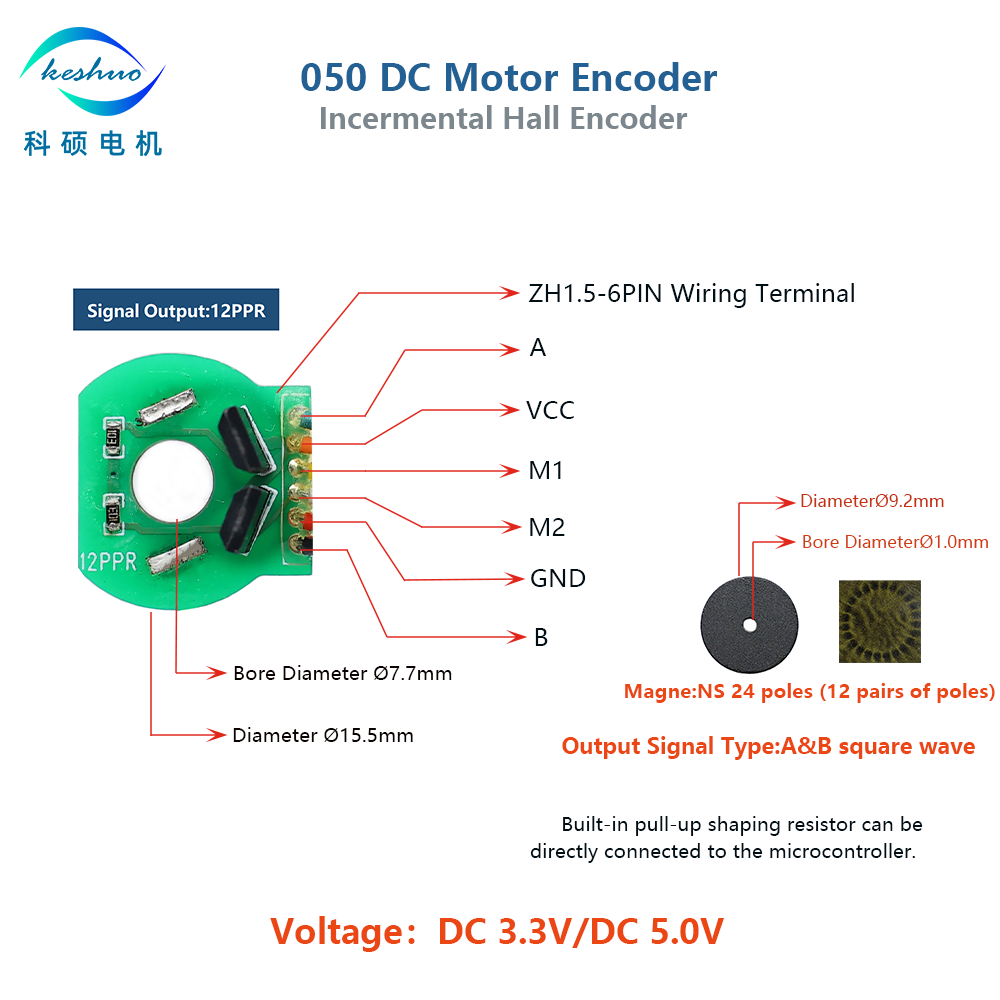

Performance Curves
Recommend Products

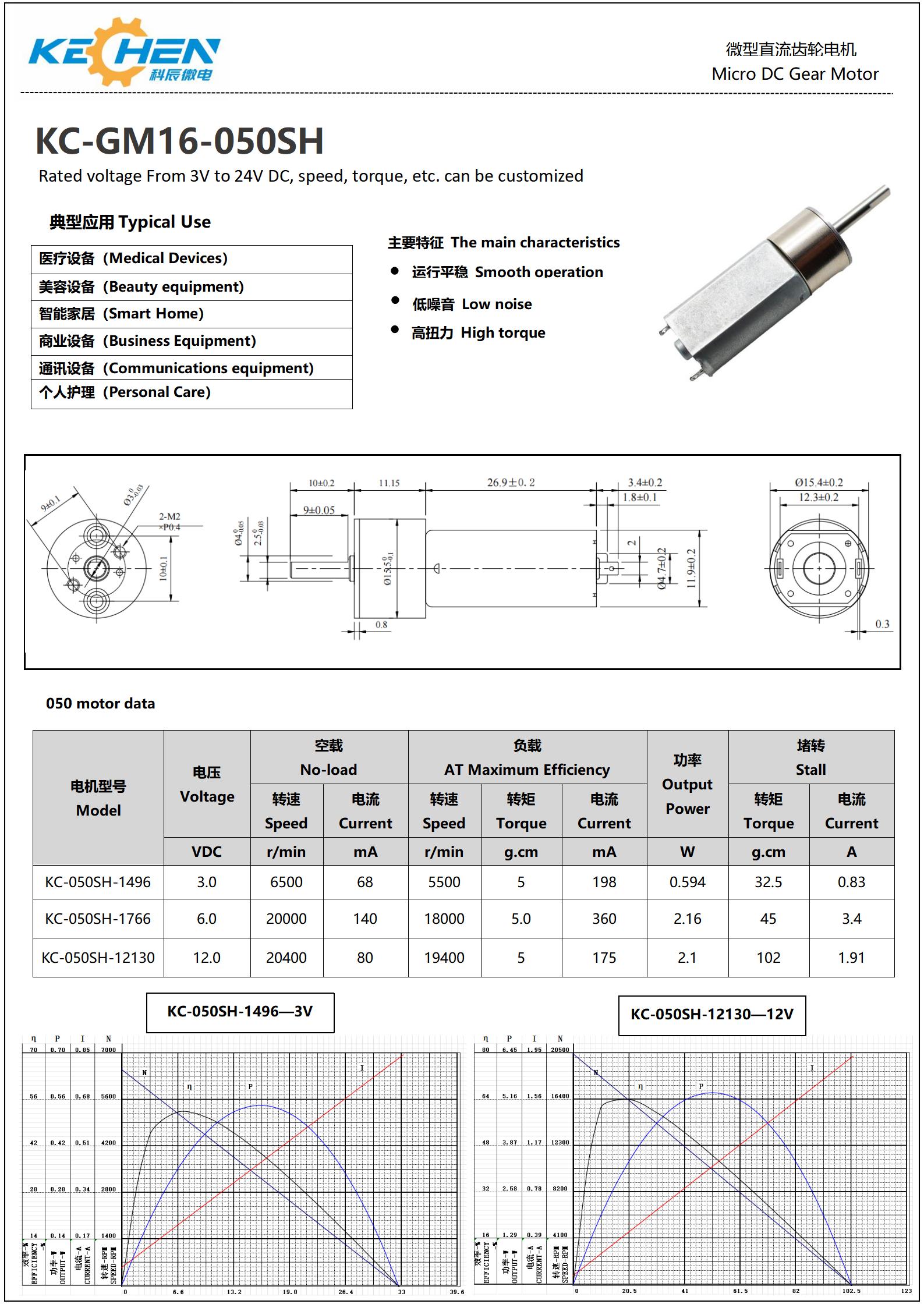

Recommended Motor Option 1
Recommended Motor Option 2
Recommended Motor Option 3
Motor raw materials
High Quality Raw Materials Overview
Production Equipment
Advanced Equipment 1
Advanced Equipment 2
Advanced Equipment 3
Company Profile
Manufacturing Facility Overview
Established in August 2009, this high-tech enterprise integrates the research and development, production, and marketing of micro motor series products. The main products include: various precision DC motors, stepper motors, reduction motors, planetary reduction motors, and brushless motors.

Micro motors are widely used in medical equipment, medical detection and analysis, financial security, 5G applications, automotive appliances, intelligent communication, iris technology, AI intelligence, smart grid, smart home, commercial intelligent locks, smart switches, smart medicine cabinets, fresh food cabinets, smart wear, outdoor equipment, intelligent robots, electric tools, beauty tools, etc.

Since its establishment, it has adhered to the concept of "people-oriented, pioneering and innovative spirit". With a group of young, pragmatic, professional, and efficient work teams, advanced production facilities, efficient management, excellent quality, and high-quality services, the enterprise meets customers' needs of continuously improving product levels, reducing energy consumption, facilitating production, and improving efficiency, winning more and more recognition from customers.
Certifications
Industry Certifications Display
Application Scenario
Application Scenarios Display
Global Market Distribution
Global Market Map 1
Global Market Map 2
Frequently Asked Questions
Q1: What are the main applications of the GM13-050 DC spur gear motor?
A1: The GM13-050 motor is widely applied in medical equipment, smart home systems, commercial intelligent locks, smart switches, intelligent robots, financial security devices, and outdoor automation tools.
Q2: Can the shaft size and type of the GM13-050 motor be customized?
A2: Yes, customization is available. Standard options include Φ3mm D-cut (0.5mm), M3, and M4 threads, but other specific configurations can be manufactured based on customer requirements.
Q3: What voltage ranges does the GM13-050 motor support?
A3: The motor supports multiple rated DC voltages including 3V, 4.5V, 5V, 6V, 9V, 12V, and 24V. Custom voltage adjustments can also be engineered.
Q4: Does this gear motor support feedback systems like encoders?
A4: Yes, magnetic encoders are optional and can be integrated into the GM13-050 series for precise control and feedback.
Q5: What type of commutation is available for this motor?
A5: We offer different commutation options depending on application demands: Carbon brush, Graphite brush, and Metal brush structures.
Q6: What is the minimum order quantity (MOQ) for production?
A6: The standard minimum order quantity (MOQ) for the GM13-050 series is 500 pieces per order.
