12mm N20 5V 12V 150rpm High Torque Brush Planetary Gear DC Motor Low Speed Mini Metal Gearbox Flange Mount Smart Home Appliance

Product Description

Products Description

GMP12-N20 Planetary Gear Motor Specifications
Rated voltage 3 V / 6 V / 9 V / 12 V DC
Output torque 0.02 N·m ~ 0.3 N·m
Reduction ratio 10:1, 20:1, 30:1, 50:1, 100:1...... 1000:1
Shaft diameter Φ3mm
Output speed 10-2000rpm
Typical applications Smart door locks, medical devices, miniature valves, smart home devices
Noise < 40 dB
Encoder 3ppr/7ppr/12ppr
Certificate ISO9001/IFAT16949/ISO13485/CE/REACH/RoHS

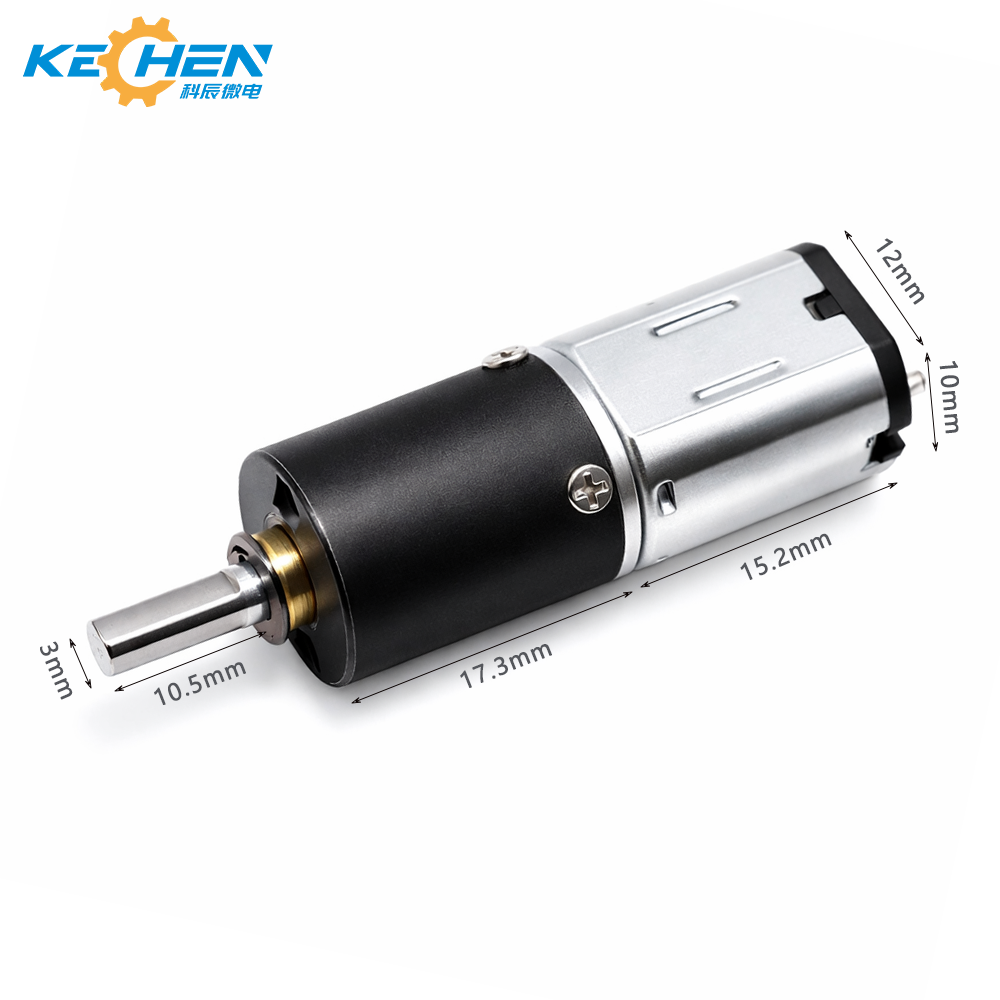

Motor Dimension Drawing

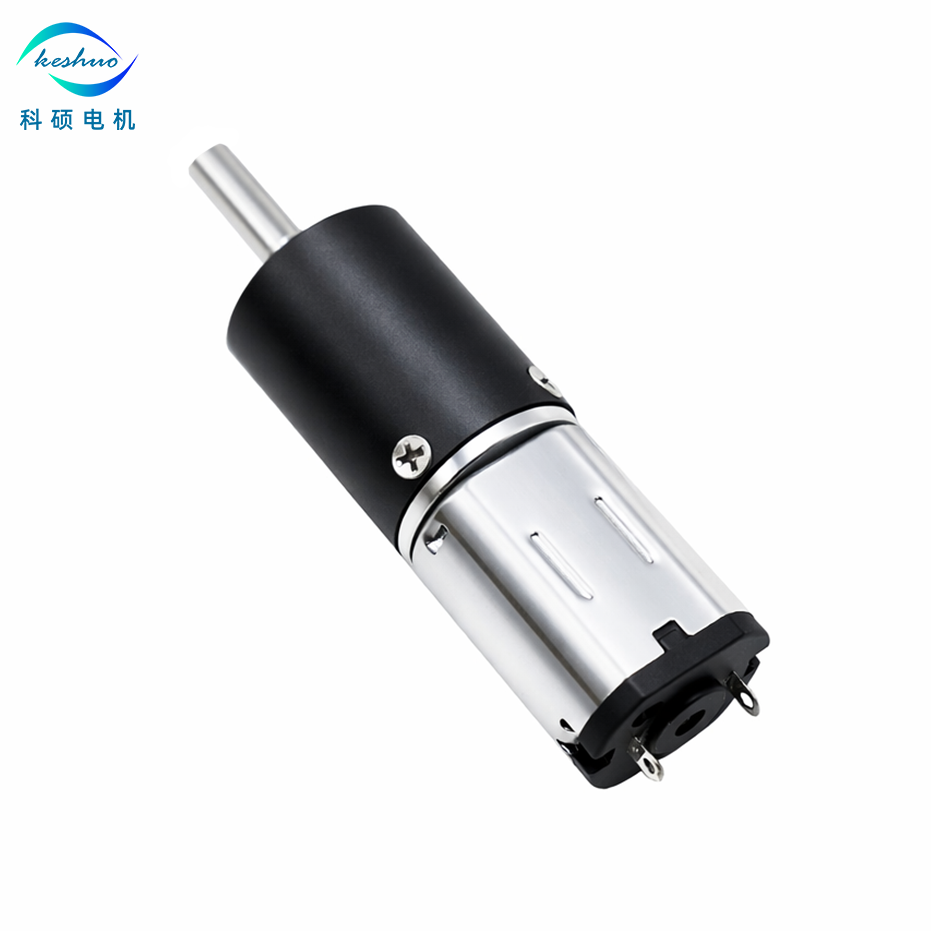

Planetary Gear Motor View 1
Planetary Gear Motor View 2

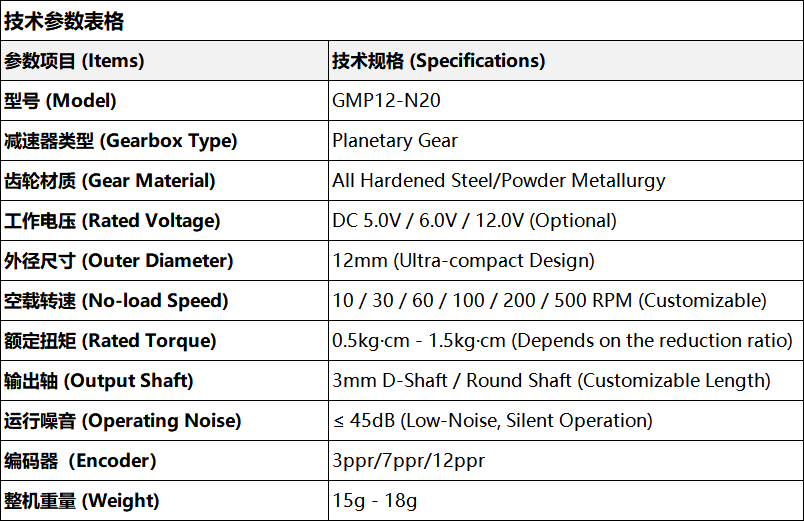

Technical Specifications Chart
Performance Curve Diagram

Recommend Products

Recommended Motor Type A
Recommended Motor Type B

Motor Raw Materials

Raw Materials Breakdown

Production Equipment

Manufacturing Machine 1
Manufacturing Machine 2
Quality Testing Station

Company Profile

Office and Workshop Environment
Corporate Team and Facility
Assembly Line View

Certifications

Industry Certifications Portfolio

Application Scenario

Application Overview Diagram
Application Category Typical Devices & Appliances
Medical equipment sphygmomanometer, Massaging mattress, Air pump, Urine Analyzer.
Business Machines Intelligent robot, Copiers and Scanners, 3D Printers, Tattoo pen.
Electric powered equipment Electric toothbrush, Electric tool, Electric toy car, Electric curtain.
Smart Home Intelligent window opener, vacuum cleaner, Smart coffee machine, hair drier, Fascia gun, fan, air cleaner, Hair removal device, door lock, Intelligent door lock.
Food and Beverage Hand Blenders, Blenders, Mixers, Coffee Machines, Food Processors, Juicers, Fryers, Ice Makers, Soy Bean Milk Makers.
Robotics Servicing robotics, Food delivery robot, Reception robot, Medical serving robot, AGV & AMR, Conveying robot, Inspection robot.

Global Market Distribution

Global Market Map
Distribution Chart
Market Share Graph

FAQ

Q What's your main products?
We currently produce Brushed Dc Motors, Brushed Dc gear Motors, Planetary Dc Gear Motors, Brushless Dc Motors, Stepper motors and Coreless Motors etc. You can check the specifications for above motors on our website and you can email us to recommend needed motors per your specification too.
Q How to select a suitable motor?
If you have motor pictures or drawings to show us, or you have detailed specs like voltage, speed, torque, motor size, working mode of the motor, needed life time and noise level etc, please do not hesitate to let us know, then we can recommend suitable motor per your request accordingly.
Q Do you have customized service for your standard motors?
Yes, we can customize per your request for the voltage, speed, torque and shaft size/shape. If you need additional wires/cables soldered on the terminal or need to add connectors, or capacitors or EMC we can make it too.
Q Can I have samples for testing first?
Yes, definitely you can. After confirmed the needed motor specs, we will quote and provide a proforma invoice for samples, once we get the payment, we will get a PASS from our account department to proceed samples accordingly.
Q How do you make sure motor quality?
We have our own inspection procedures: for incoming materials, we have signed sample and drawing to make sure qualified incoming materials; for production process, we have tour inspection in the process and final inspection to make sure qualified products before shipping.
Q What certifications do you have?
We currently have CE, RoHS, ISO13485, IATF16949 and REACH certifications.
