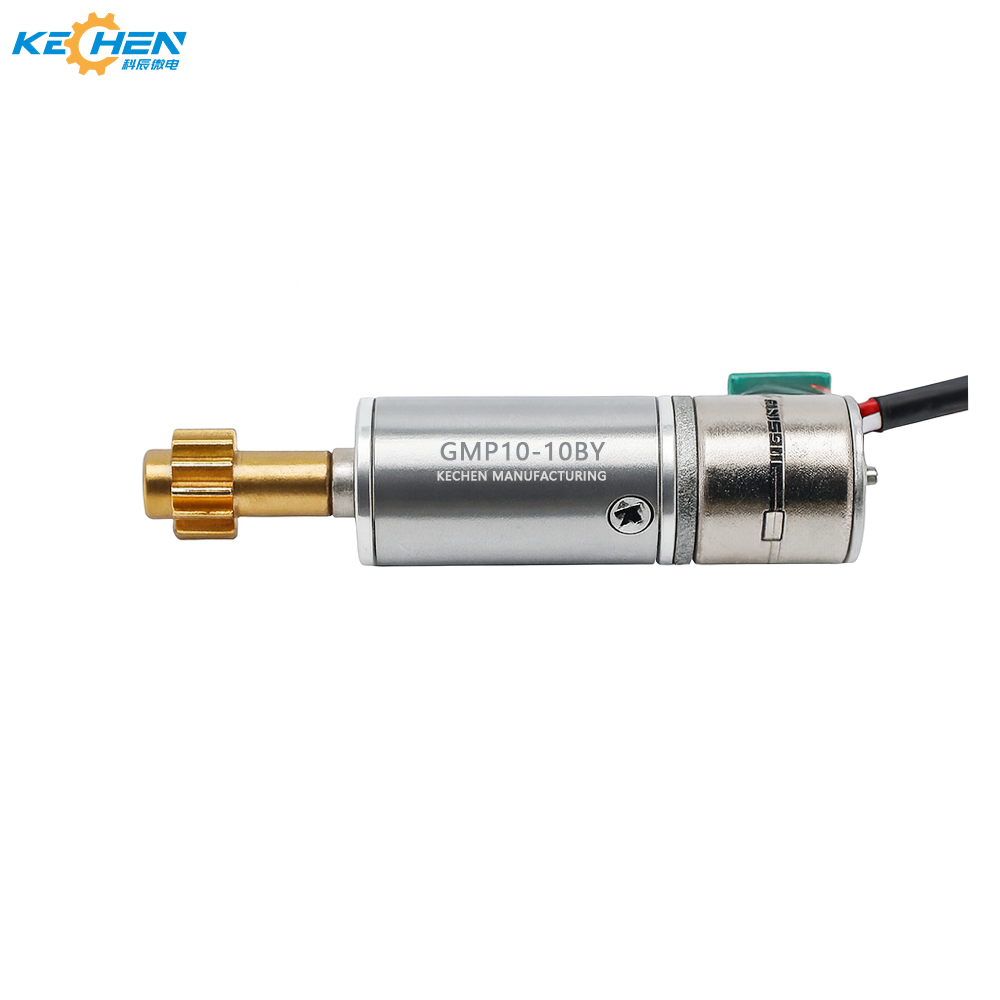

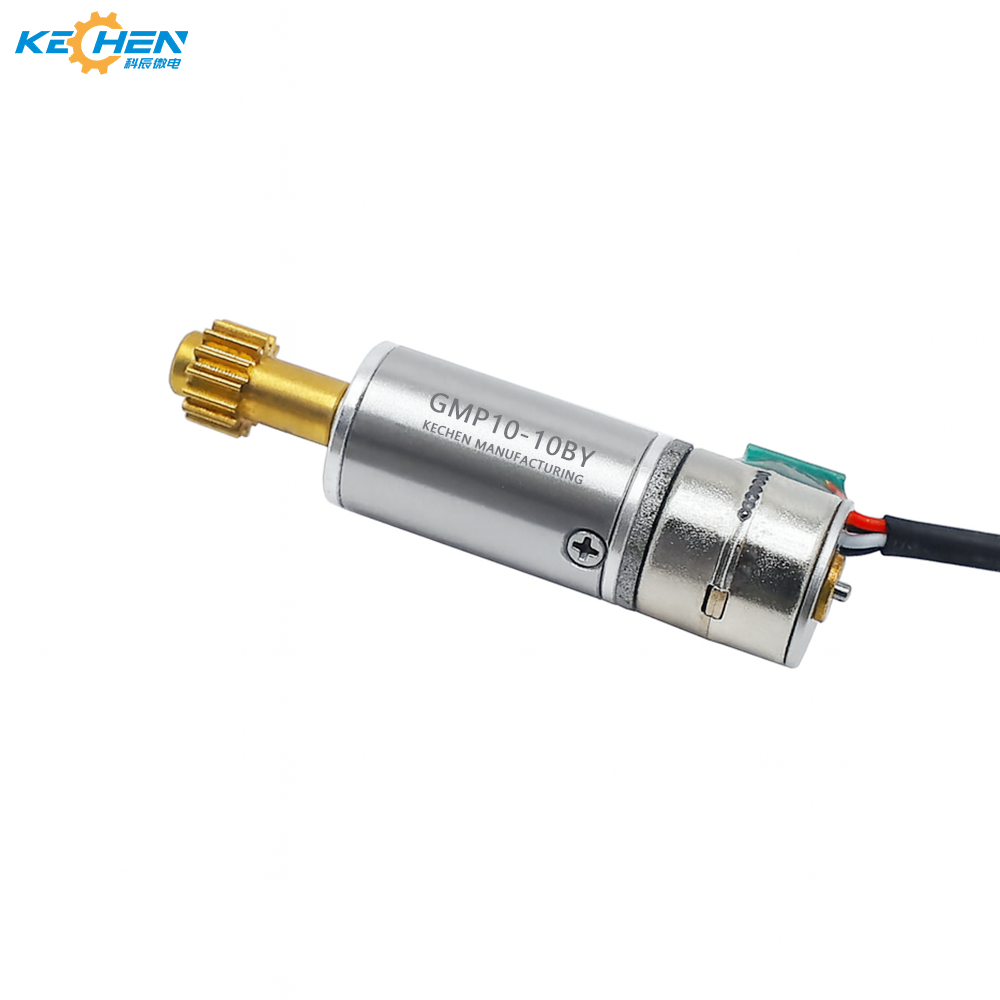

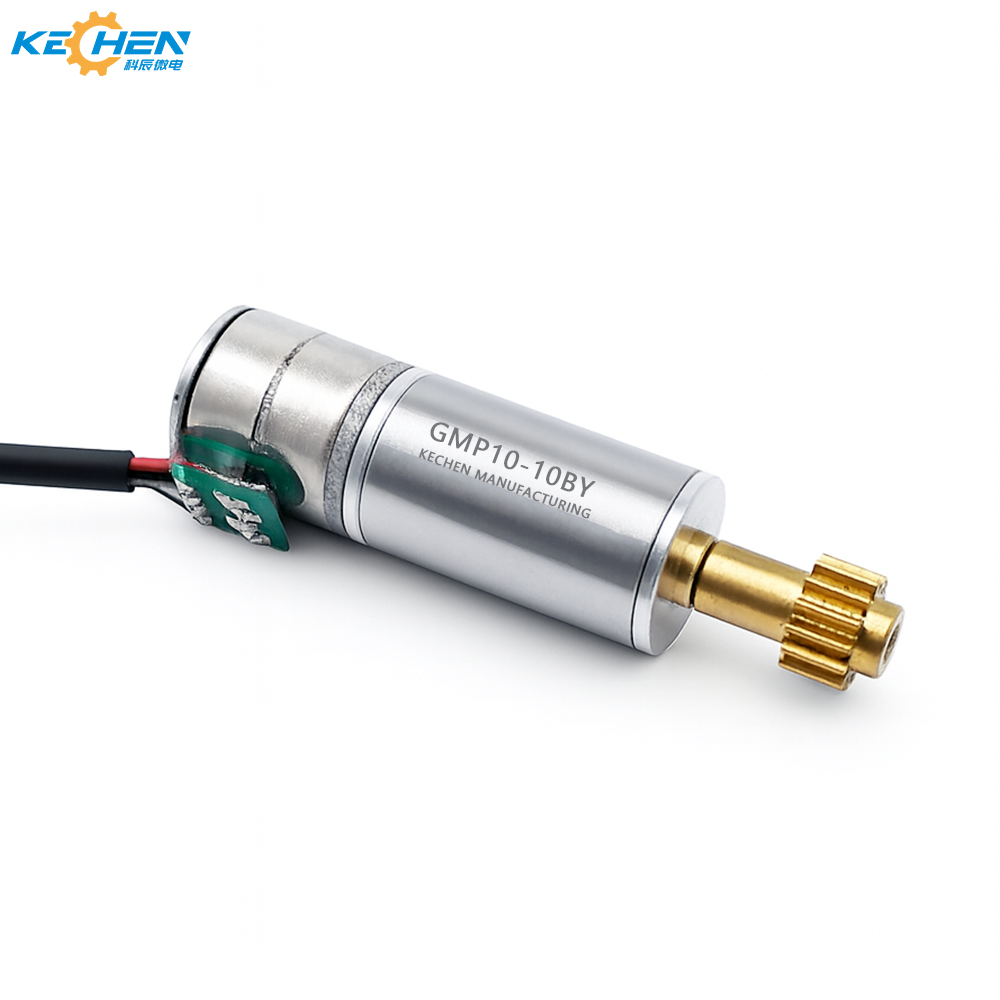

10mm 5v Stepper Motor 18 Degrees Step Angle 10ohm Planetary Gear Stepper Motor for Precise Instrument Mini Gear Motor

Product Description

Products Description

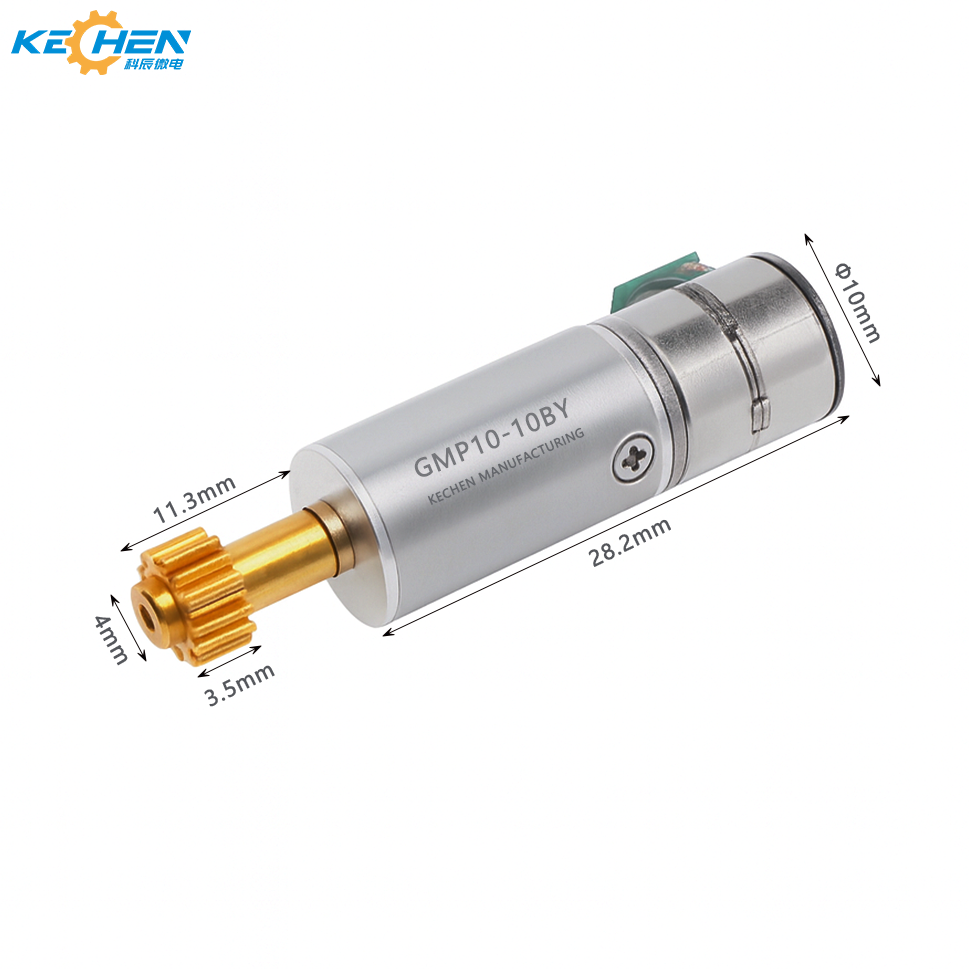

10mm planetary gear stepper motor specifications
Motor Model GMP10-10BY
Outer diameter Ø10 mm
Reduction ratio 16:1, 64:1, 256:1, 1024:1, etc.
Rated voltage 5 V DC
Resistance 10 Ω
Rated current 270 mA
Step angle 18°/step
Shaft diameter Ø2 mm
Rated output torque 50 g·cm
Line sequence A+A-B+B-
Motor Drawing 1

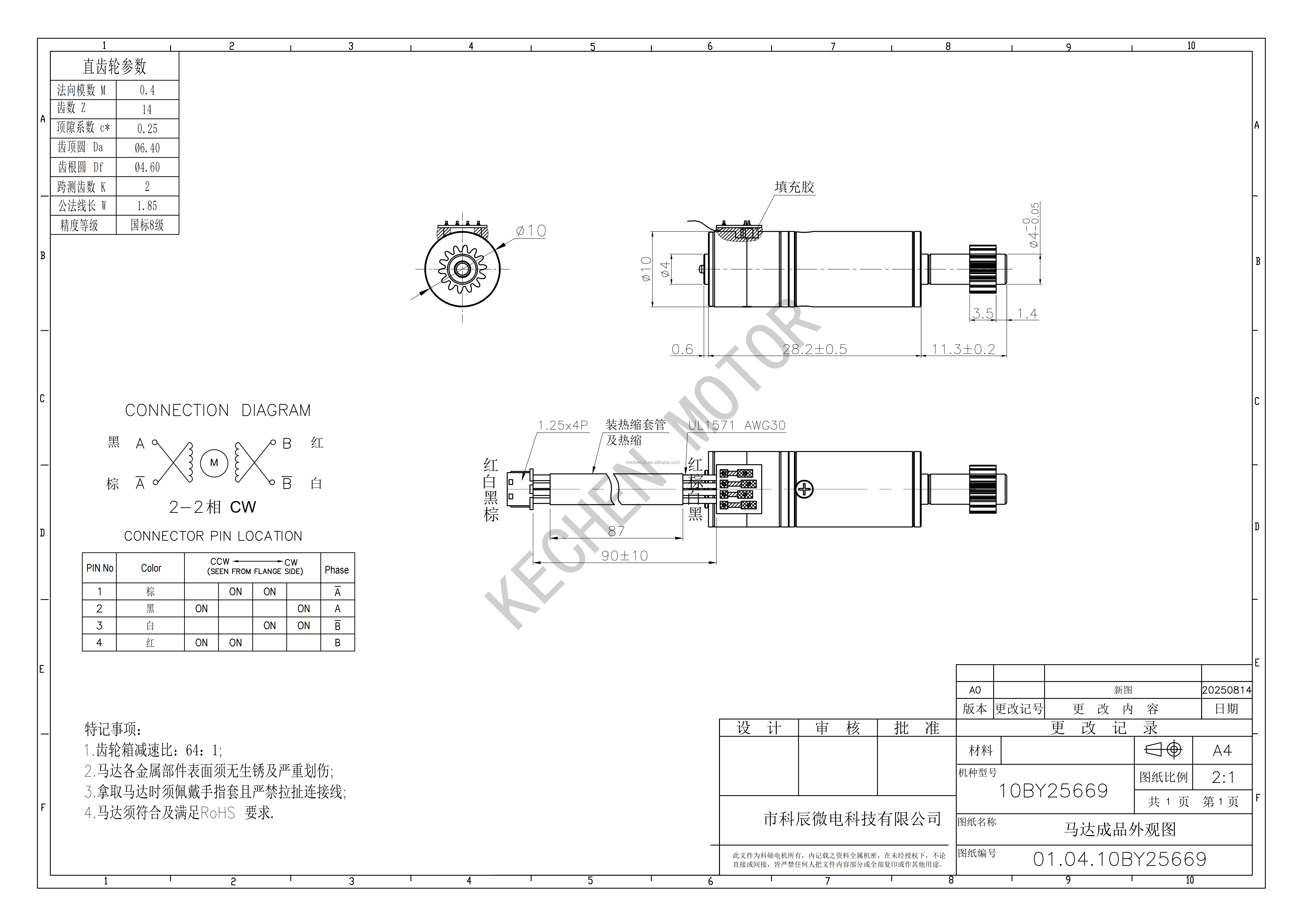

Motor Drawing 2
Motor Drawing 3
Medical and Health Equipment (Core Applications)
Suitable for small medical devices requiring high precision and controllable speed:
  • Insulin Injection Pumps
  • Micro-infusion Pumps / Peristaltic Pumps
  • Miniature Drives for Blood Glucose Meters
  • Nebulizer Valve Control
  • Automatic Pill Dispensing for Smart Pill Cartridges
  • Internal Adjustment Mechanisms for Small Medical Imaging Equipment
  • Laboratory Analyzers (Reagent Chamber Rotation, Sample Tray Positioning)
Precision Instruments and Control Equipment
  • Encoder Adjustment Mechanism
  • Miniature Valve Positioner
  • Internal Drive Components of Gas Analyzer
  • Miniature Robotic Arm Joints (Small Robots)
  • Internal Structure Adjustment of Electron Microscope
