Axon Motor
1 / 5

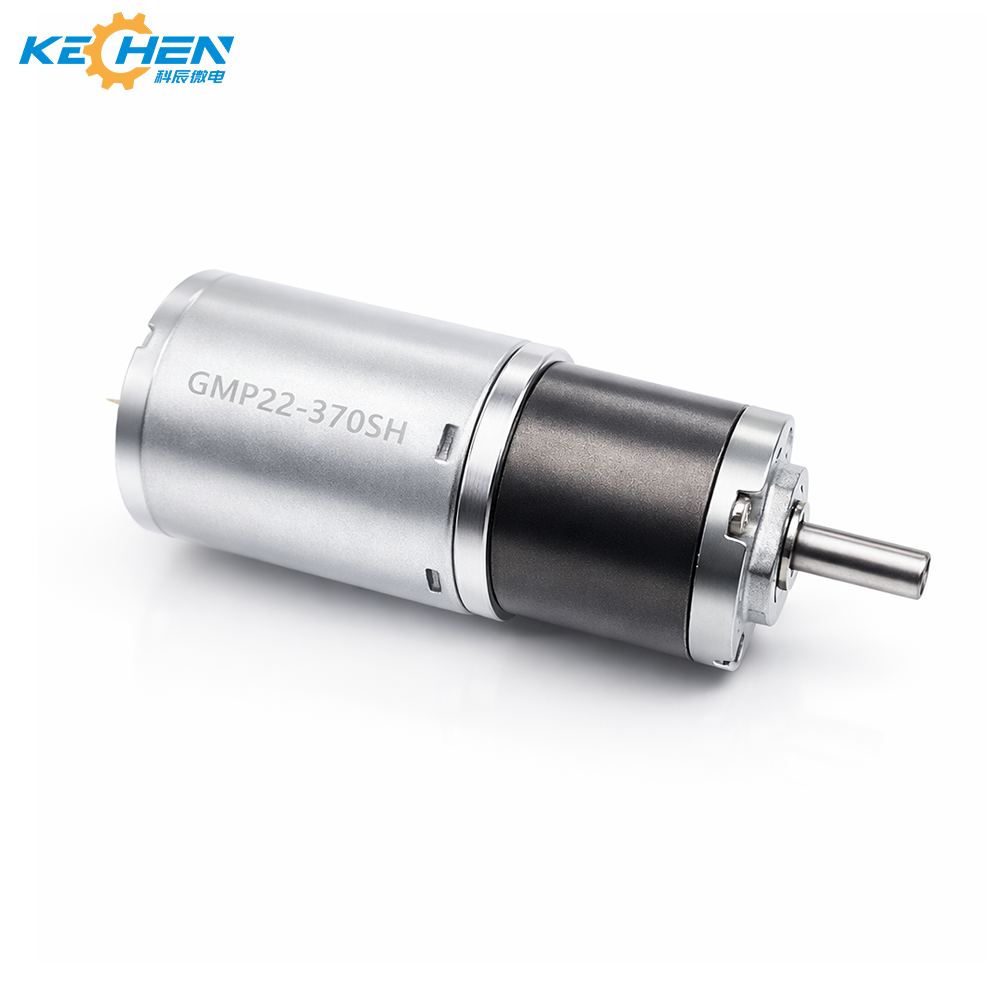

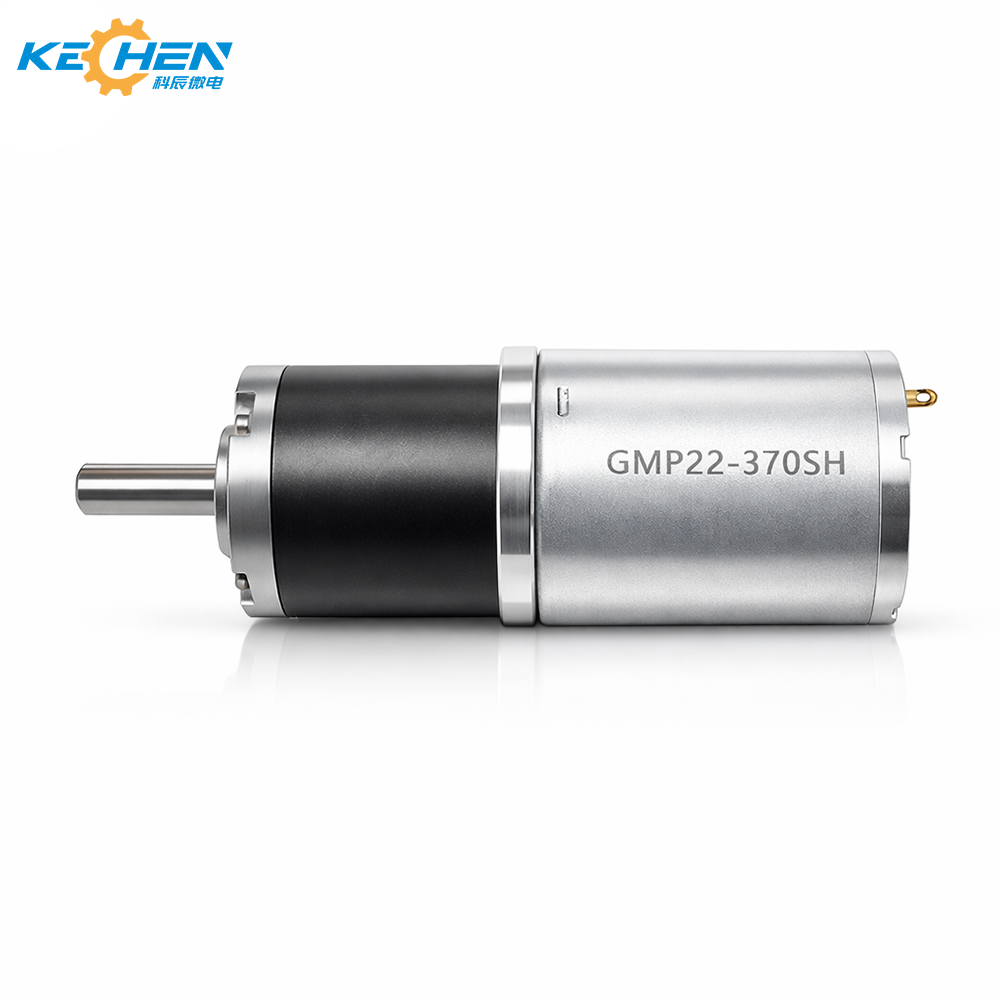

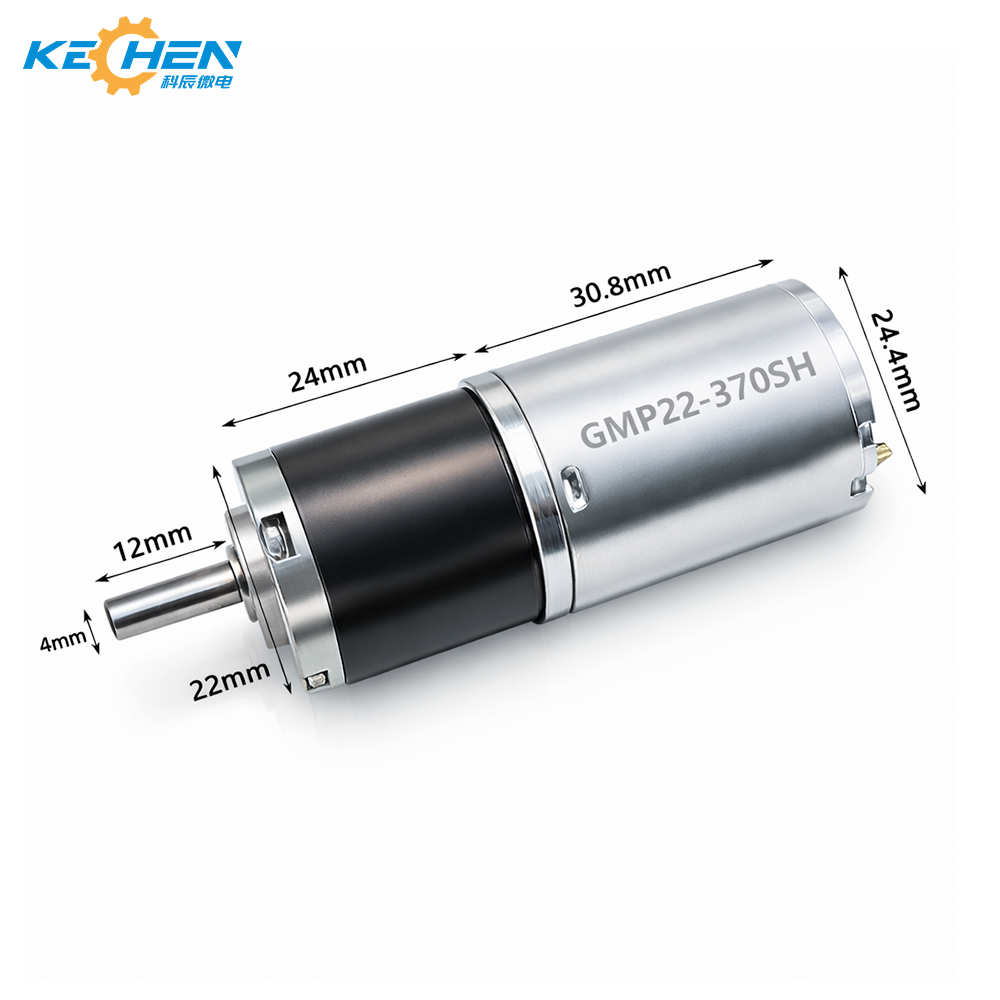

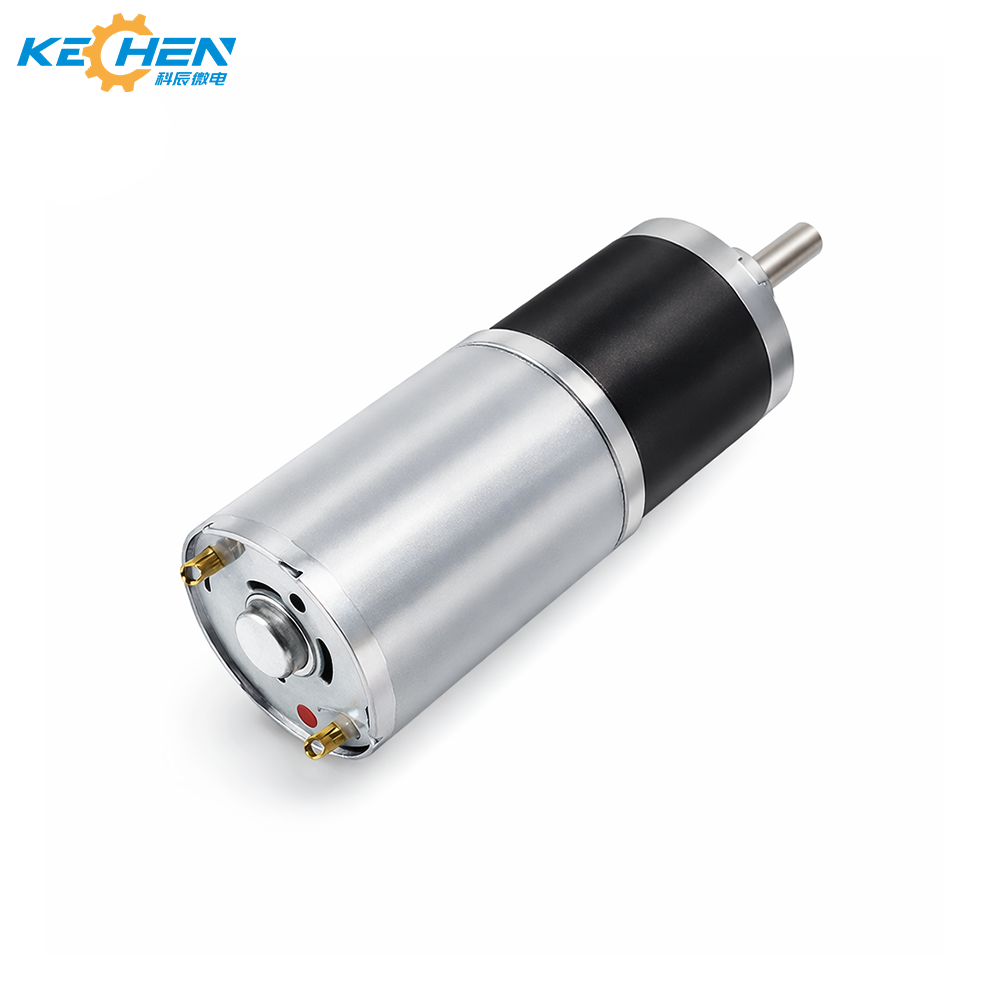

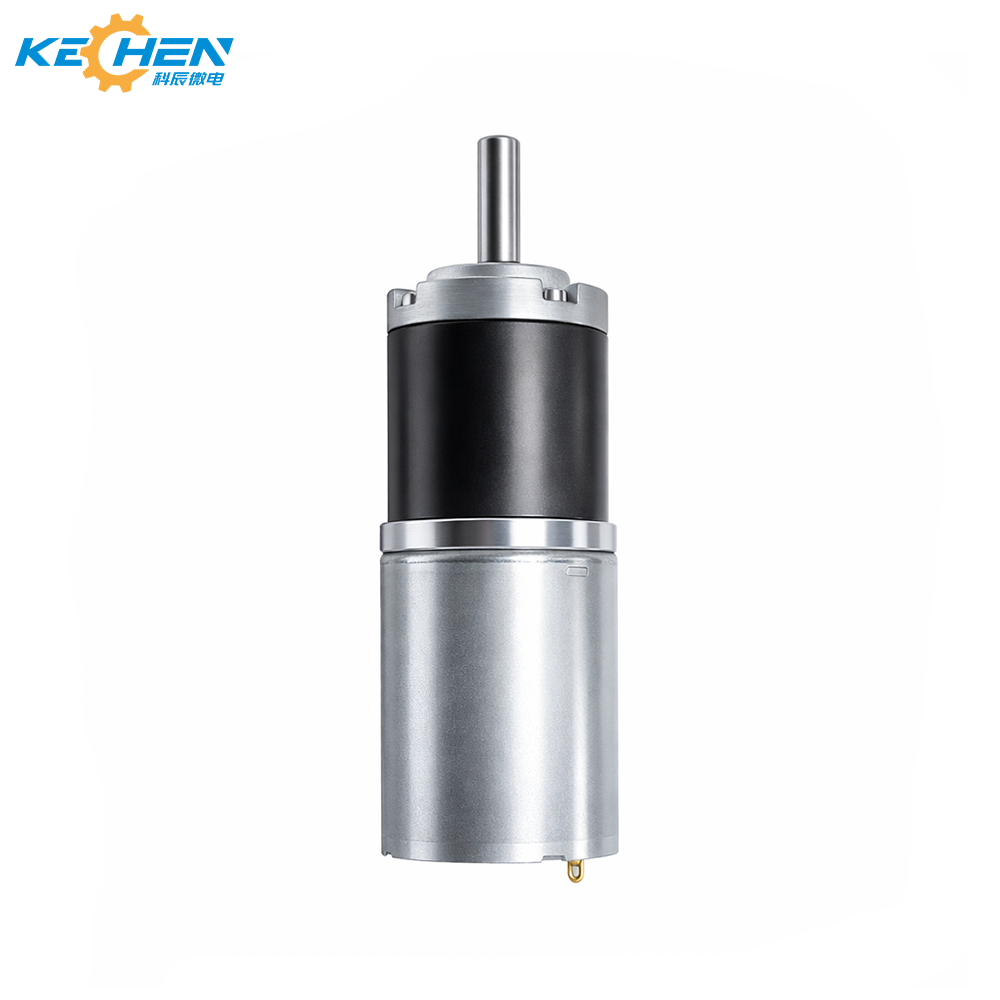

A 370 planetary gear motor combines a 370-size brushed DC motor with a planetary (epicyclic) gearbox, providing high torque, compact size, and good efficiency. These motors are widely used in robotics, smart devices, and automation equipment.
| Parameter | Value Range |
|---|---|
| Motor Type | Brushed DC Motor |
| Model | 370 |
| Rated Voltage | 6 V – 12 V |
| No-Load Speed (motor) | 4000 – 12000 rpm |
| Stall Torque (motor) | 50 – 150 g·cm |
| Output Shaft Diameter | 4 mm (typical) |
| Gearbox Diameter | 22-24 mm Gearbox |
| Type | Planetary |
| Gear Ratio | Output Speed (12 V) | Output Torque |
|---|---|---|
| 1:10 | 400 – 1,000 rpm | 0.5 – 1 kg·cm |
| 1:30 | 150 – 300 rpm | 2 – 4 kg·cm |
| 1:50 | 80 – 200 rpm | 4 – 6 kg·cm |
| 1:100 | 40 – 100 rpm | 6 – 10 kg·cm |
| 1:300+ | 10 – 40 rpm | 15 kg·cm or more |
(Note: Actual performance depends on manufacturer and gearbox design.)
The enterprise was established in August 2009. It is a high-tech enterprise that integrates the research and development, production, and marketing of micro motor series products. The main products include: various precision DC motors, stepper motors, reduction motors, planetary reduction motors, and brushless motors.
Micro motors are widely used in medical equipment, medical detection and analysis, financial security, 5G applications, automotive appliances, intelligent communication, iris technology, AI intelligence, smart grid, smart home, commercial intelligent locks, smart switches, smart medicine cabinets, fresh food cabinets, smart wear, outdoor equipment, intelligent robots, electric tools, beauty tools, and more.
Since its establishment, the enterprise has adhered to the concept of "people-oriented, pioneering and innovative spirit". After eleven years of rapid development, it has built a group of young and pragmatic, professional and efficient work teams, advanced production facilities, efficient management, excellent quality, and high-quality services to meet customers' needs of continuously improving product levels, reducing energy consumption, facilitating production, and improving efficiency.
| Category | Applications |
|---|---|
| Medical equipment | sphygmomanometer, Massaging mattress, Air pump, Urine Analyzer. |
| Business Machines | Intelligent robot, Copiers and Scanners, 3D Printers, Tattoo pen. |
| Electric powered equipment | Electric toothbrush, Electric tool, Electric toy car, Electric curtain. |
| Smart Home | Intelligent window opener, vacuum cleaner, Smart coffee machine, hair drier, Fascia gun, fan, air cleaner, Hair removal device, door lock, Intelligent door lock. |
| Food and Beverage | Hand Blenders, Blenders, Mixers, Coffee Machines, Food Processors, Juicers, Fryers, Ice Makers, Soy Bean Milk Makers. |
| Robotics | Servicing robotics, Food delivery robot, Reception robot, Medical serving robot, AGV & AMR, Conveying robot, Inspection robot. |
