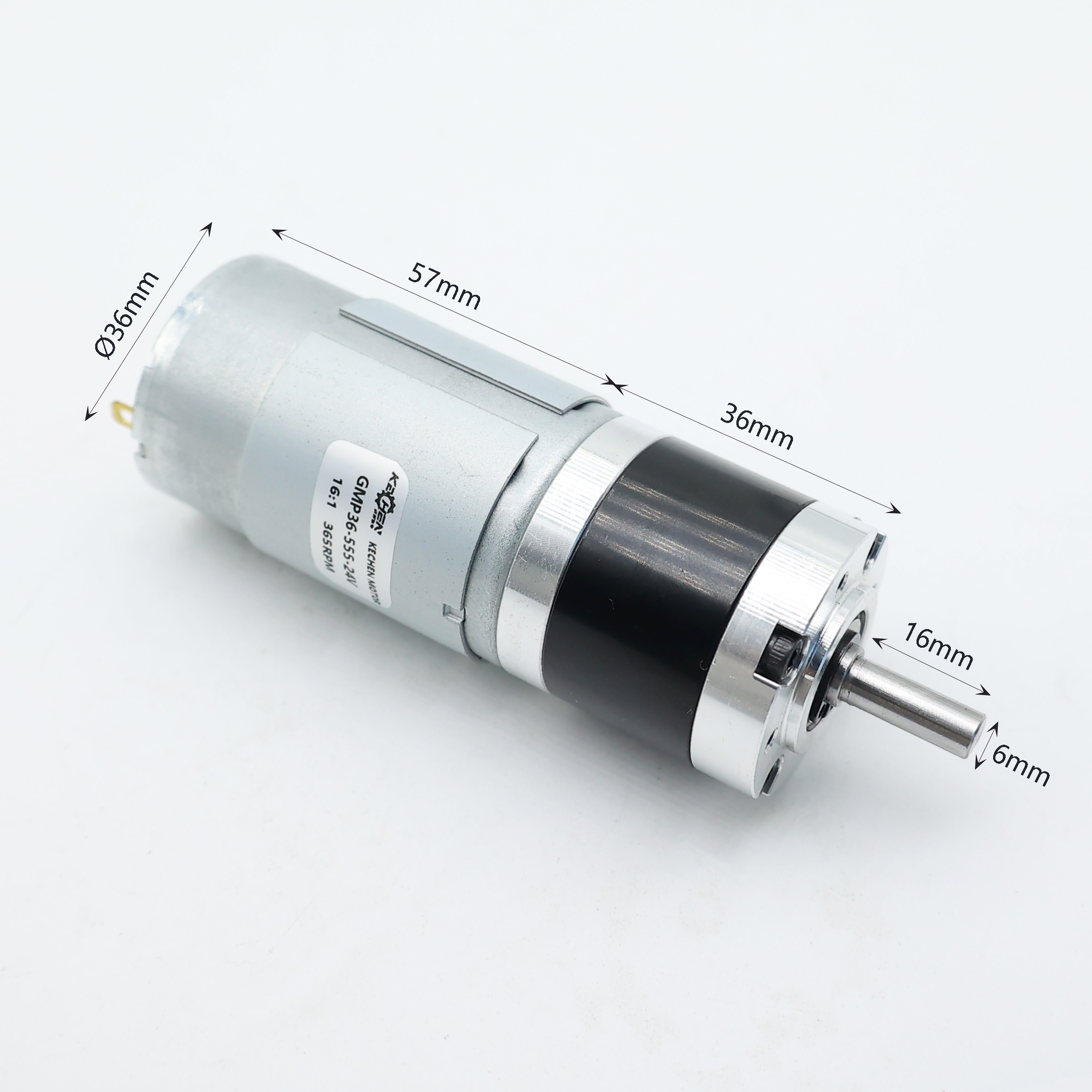

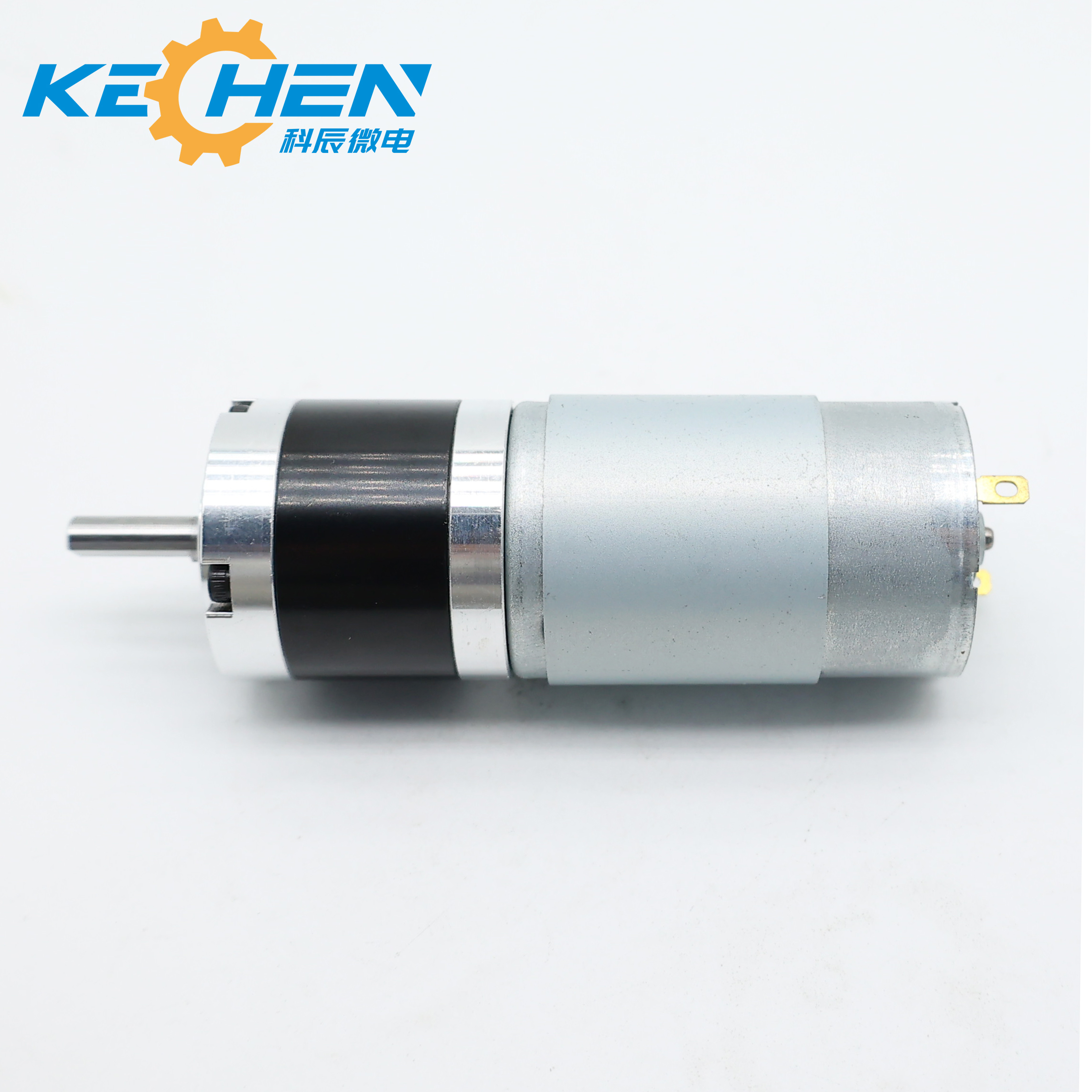

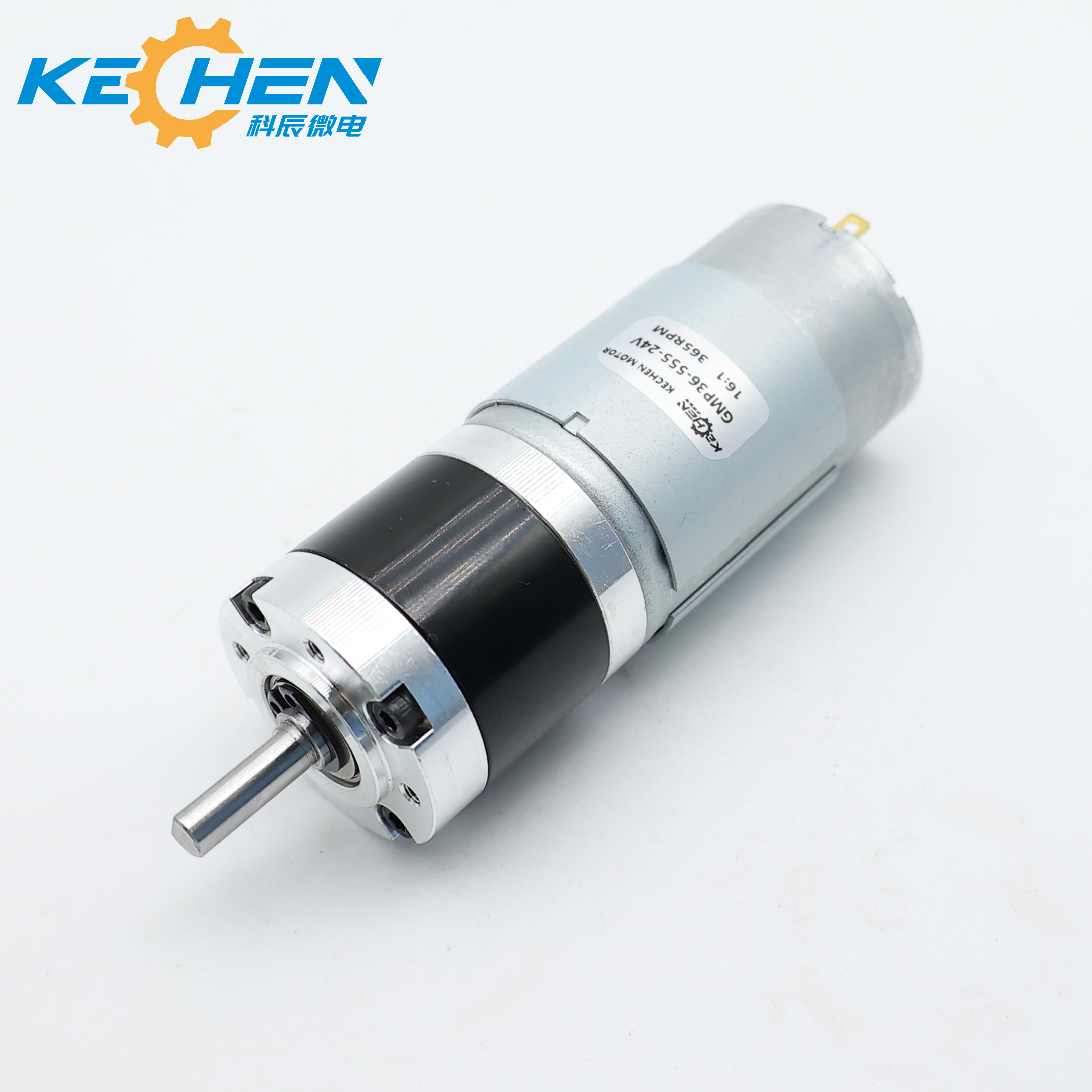

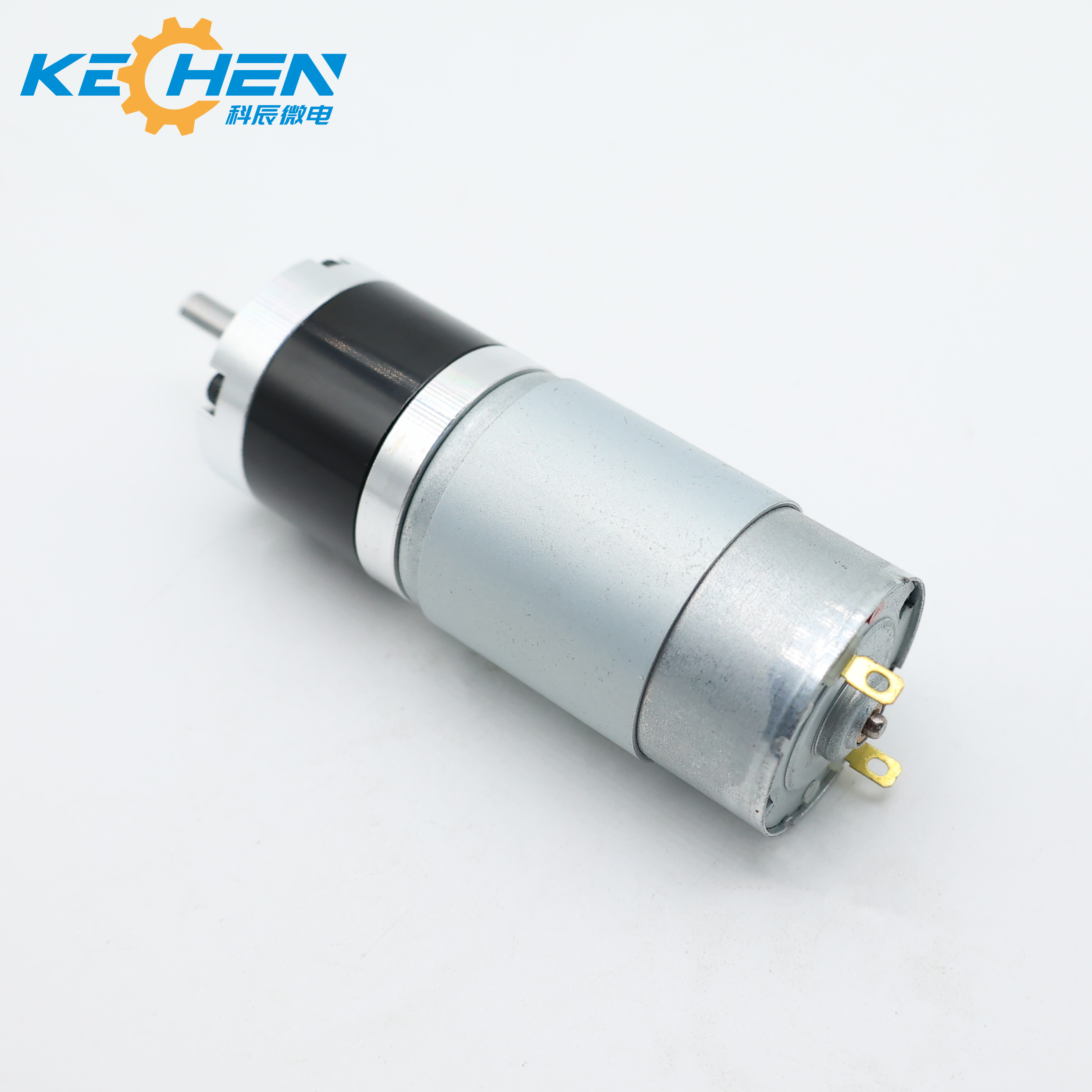

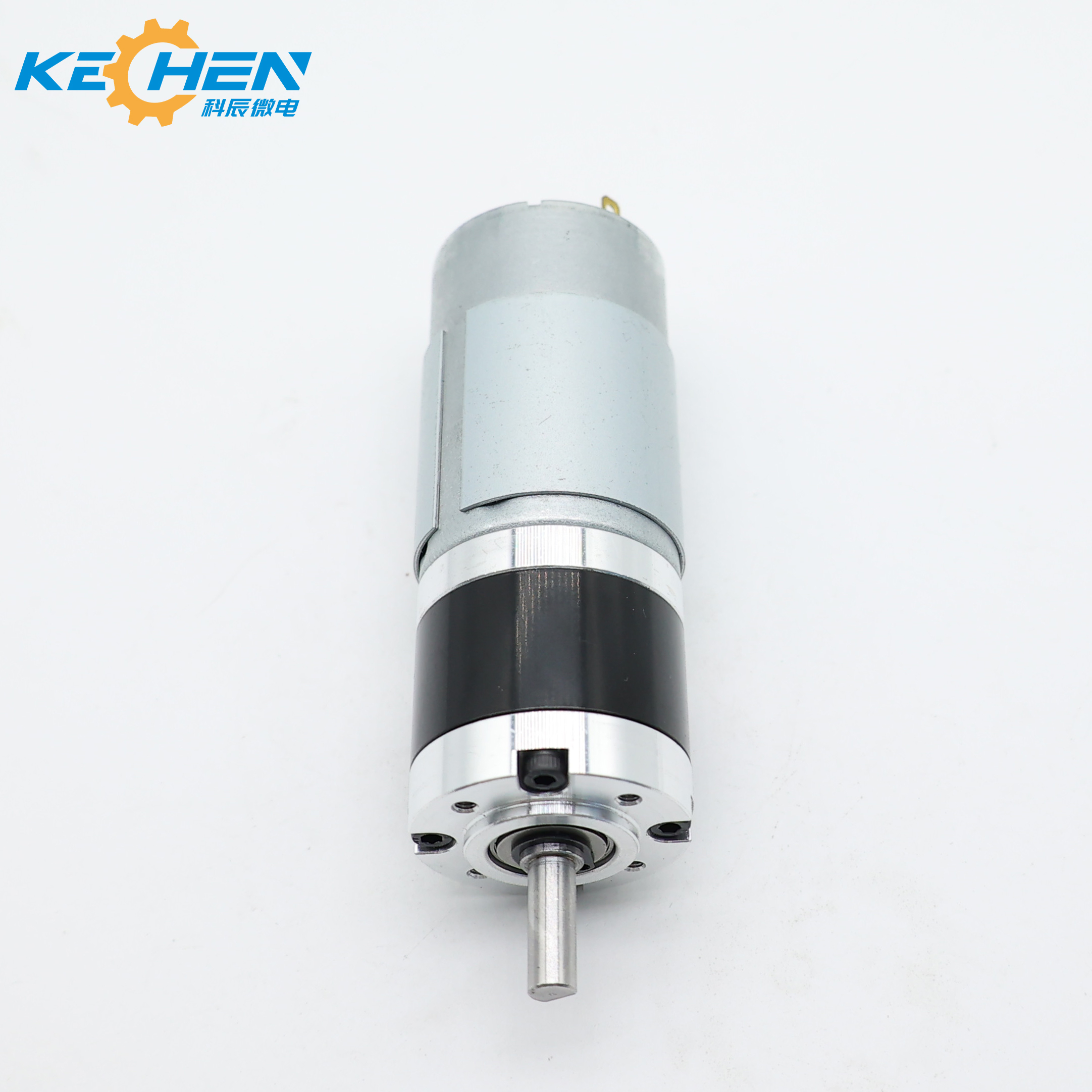

GMP36-555 36mm Planetary Gear DC 24V Motor High Torque 12V Brush Commutation Permanent Magnet for Robot Boat Medical Office Use

Product Description

Products Description
Planetary Gear Motor

36mm mini epicyclic (planetary) gear motor

  • Model: GMP36-555
  • Gearbox: Metal planetary gear reducer
  • Rated Voltage: DC 6V, 9V, 12V, 24V, 36V
  • Rated Torque: Max. 120 Kgf-cm
  • Size: Φ36 * L TBD
  • Shaft: Concentric driveshaft, Φ8mm D-cut 1mm, custom
  • Commutation: Carbon brush / Graphite brush
  • Construction: Permanent Magnet
  • Encoder: Magnetic / optical encoder
  • MOQ: 500 pcs

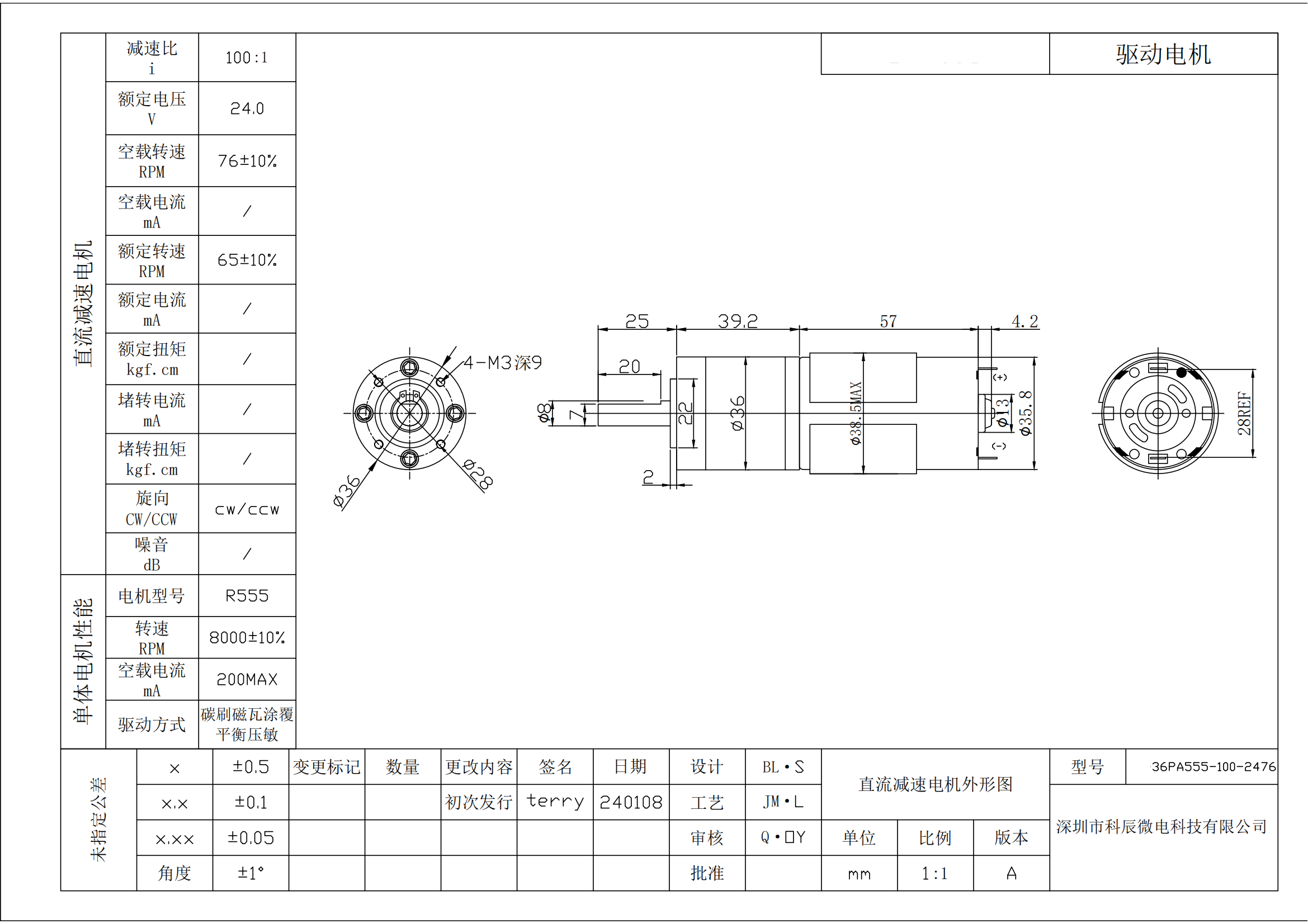

Motor Dimension Details

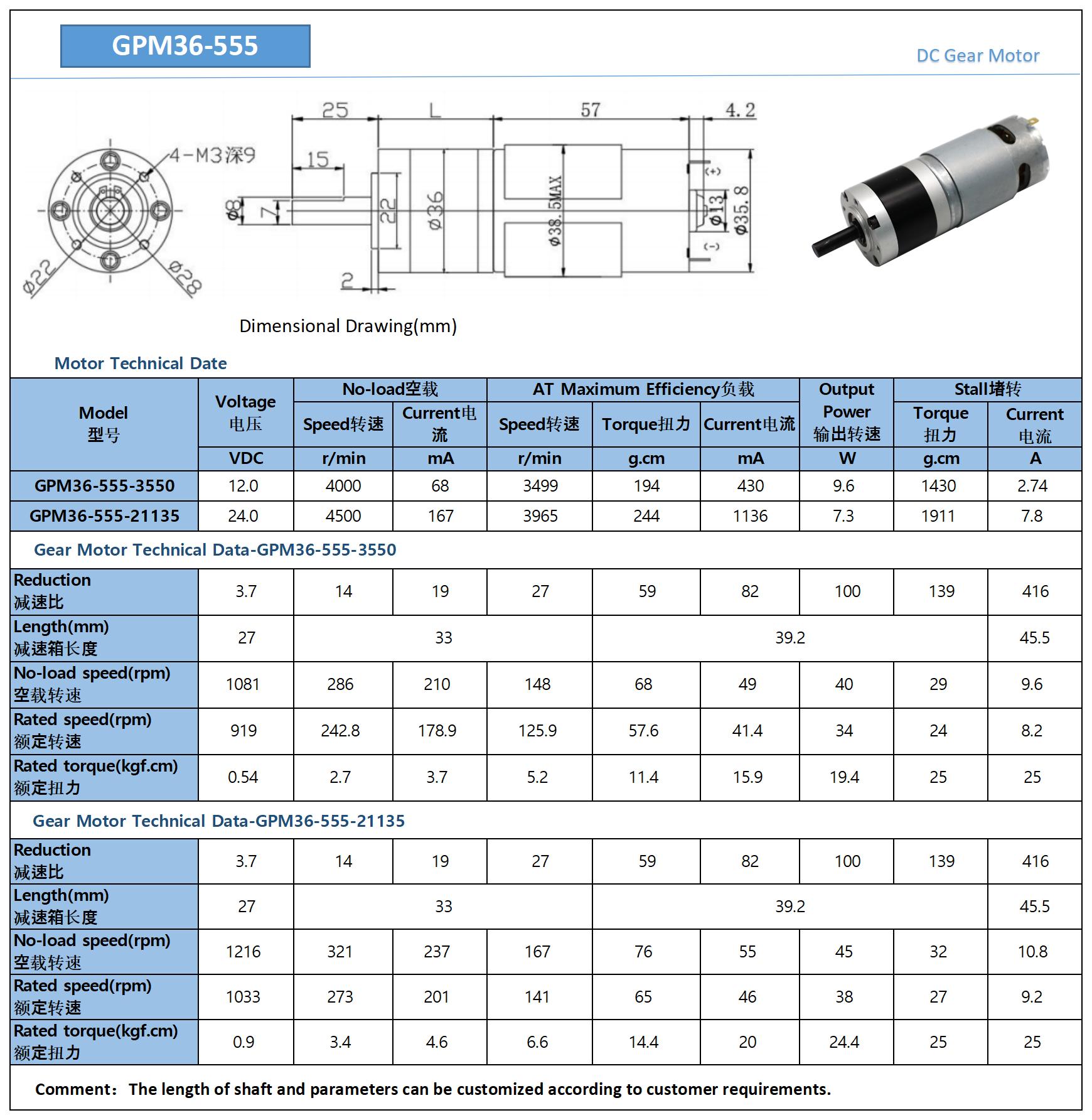

Motor Performance Curves
Recommend Products
Recommend Product 1
Recommend Product 2
Motor raw materials
Motor Raw Materials Diagram
Production Equipment
Equipment 1
Equipment 2
Equipment 3
Profile
Established in August 2009, this high-tech enterprise integrates the research and development, production, and marketing of micro motor series products. The main products include: various precision DC motors, stepper motors, reduction motors, planetary reduction motors, and brushless motors. Micro motors are widely used in medical equipment, medical detection and analysis, financial security, 5G applications, automotive appliances, intelligent communication, iris technology, AI intelligence, smart grid, smart home, commercial intelligent locks, smart switches, smart medicine cabinets, fresh food cabinets, smart wear, outdoor equipment, intelligent robots, electric tools, beauty tools, etc.
Since its establishment, it has adhered to the concept of "people-oriented, pioneering and innovative spirit". After eleven years of rapid development, it has a group of young and pragmatic, professional and efficient work teams, advanced production facilities, efficient management, excellent quality, and high-quality services to meet customers' needs of continuously improving product levels, reducing energy consumption, facilitating production, and improving efficiency, winning more and more recognition from customers.
Factory Environment
Certifications
Quality Certifications
Application Scenario
Application Overview
Medical equipment sphygmomanometer, Massaging mattress, Air pump, Urine Analyzer.
Business Machines Intelligent robot, Copiers and Scanners, 3D Printers, Tattoo pen.
Electric powered equipment Electric toothbrush, Electric tool, Electric toy car, Electric curtain.
Smart Home Intelligent window opener, vacuum cleaner, Smart coffee machine, hair drier, Fascia gun, fan, air cleaner, Hair removal device, door lock, Intelligent door lock.
Food and Beverage Hand Blenders, Blenders, Mixers, Coffee Machines, Food Processors, Juicers, Fryers, Ice Makers, Soy Bean Milk Makers.
Robotics Servicing robotics, Food delivery robot, Reception robot, Medical serving robot, AGV & AMR, Conveying robot, Inspection robot.
Global Market Distribution
Market Distribution Chart 1
Market Distribution Chart 2
Global Business Flow
Frequently Asked Questions (FAQ)
What are the advantages of using a planetary gear motor?
Planetary gear motors offer high torque transmission efficiency, compact design, high stability, and a lower backlash compared to traditional spur gear motors, making them ideal for precision machinery.
Can the output shaft design and dimensions be customized?
Yes, we support customization for the concentric driveshaft configuration, including D-cut dimensions, overall shaft length, keyways, or specific threading requirements.
What types of motor encoders are supported?
We can equip the planetary gear motors with either magnetic or optical encoders, providing accurate speed and position feedback based on your control system requirements.
What is the Minimum Order Quantity (MOQ) for custom orders?
Our standard Minimum Order Quantity (MOQ) for the GMP36-555 series and other custom micro planetary gear motors is 500 pieces.
What rated voltage options are available for the planetary motor?
We offer multiple rated voltage configurations, including DC 6V, 9V, 12V, 24V, and 36V, to suit a wide range of power source and application environments.
What materials are used in the planetary gearbox?
The gearbox utilizes high-precision metal planetary gear reducers to ensure durability, high wear resistance, and long operational lifespan under maximum rated torque.
