22mm Planetary Gear Motor 12V 24V High Torque DC Gear Motor 30rpm 50rpm 200rpm 300rpm for Robot Vacuum

Product Description

Products Description
GMP22-180 Planetary Gear Motor Specifications
Model GMP22-180
Motor type Planetary Gear Motor
Brush Type Metal Brushed Or Carbon Brushed
Gearbox diameter 22mm
Motor diameter 20.4mm
Speed 10rpm - 2500rpm
Output torque 0.1~0.6 N·m
Reduction ratio 16:1 / 64:1 / 84:1 / 107:1 / 224:1 / 304:1 / 361:1 / 428.7:1 / 1024:1
Current 70–350 mA
Efficiency 65%–85%
shaft diameter 4.0 mm—D-shaft (Customized shaft type according to requirements)
Encoder 1-1024ppr

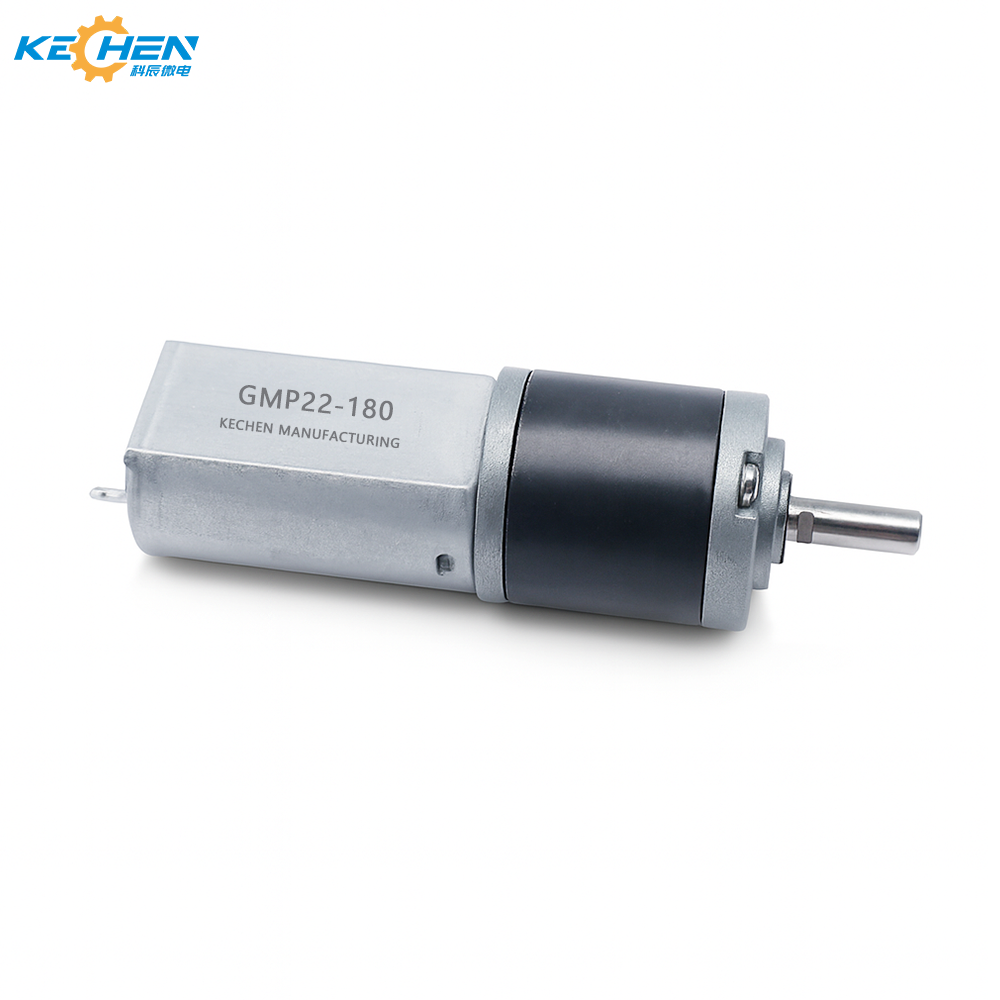

Planetary Gear Motor View 1

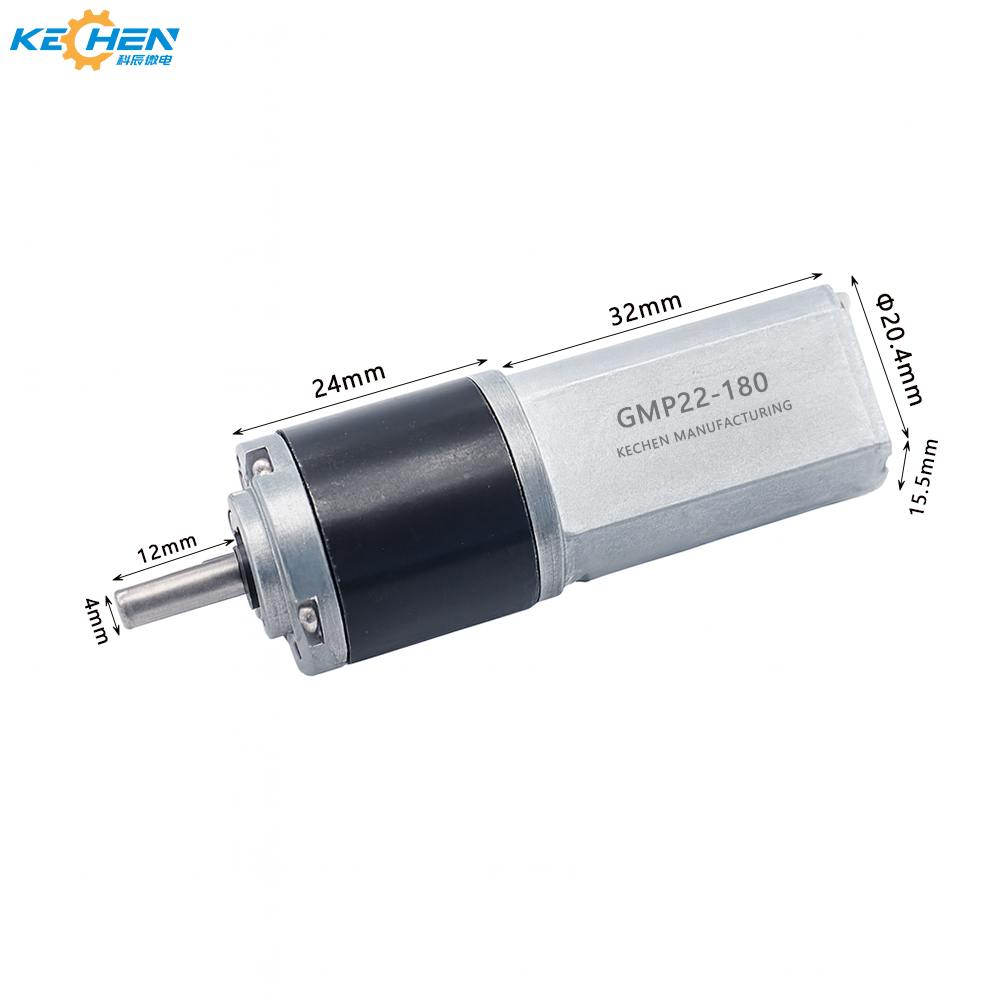

Planetary Gear Motor View 2

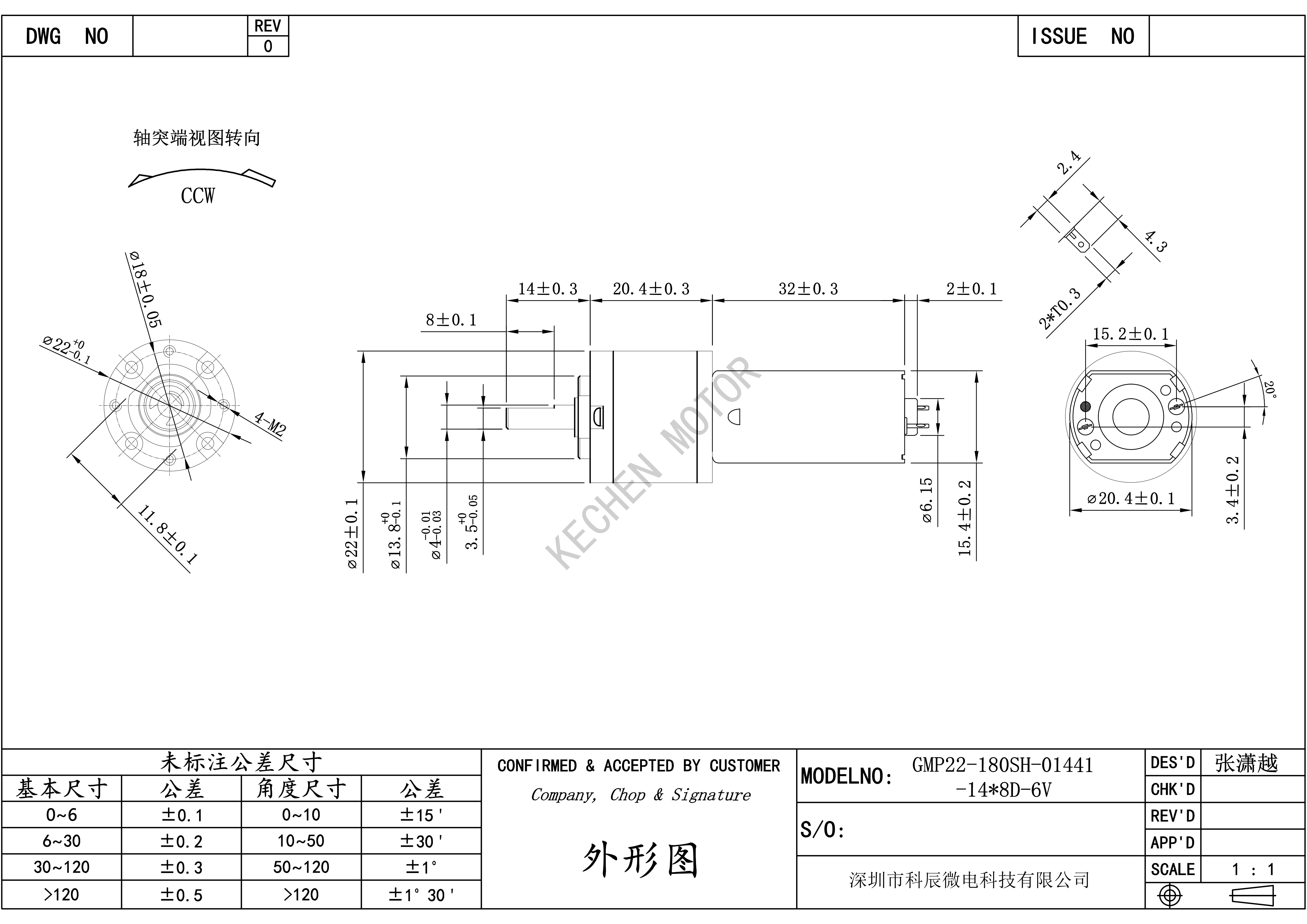

Planetary Gear Motor Technical Drawing
Smart Home Devices
  • Smart Door Lock Drives
  • Automatic Curtain/Blind Systems
  • Smart Water/Gas Valve Controllers
  • Automatic Pet Feeders, Electric Cat Litter Boxes
Vending & Commercial
  • Coffee Machine Extraction Mechanisms
  • Automatic Beverage Machine Push Rods
  • Vending Machine Feeding Mechanisms
  • Automatic Soap & Disinfectant Dispensers
Medical & Portable
  • Handheld Medical Instruments (Scanning/Injection)
  • Portable Testing Instrument Drives
  • Medical Delivery Mechanisms & Small Pumps
Automotive & Instruments
  • Central Locking Drives
  • Air Vent Angle Adjustment Mechanisms
  • Small Measuring Instrument Actuators
Recommend Products
Recommend Product 1
Recommend Product 2
Motor Raw Materials
Motor Raw Materials Breakdown

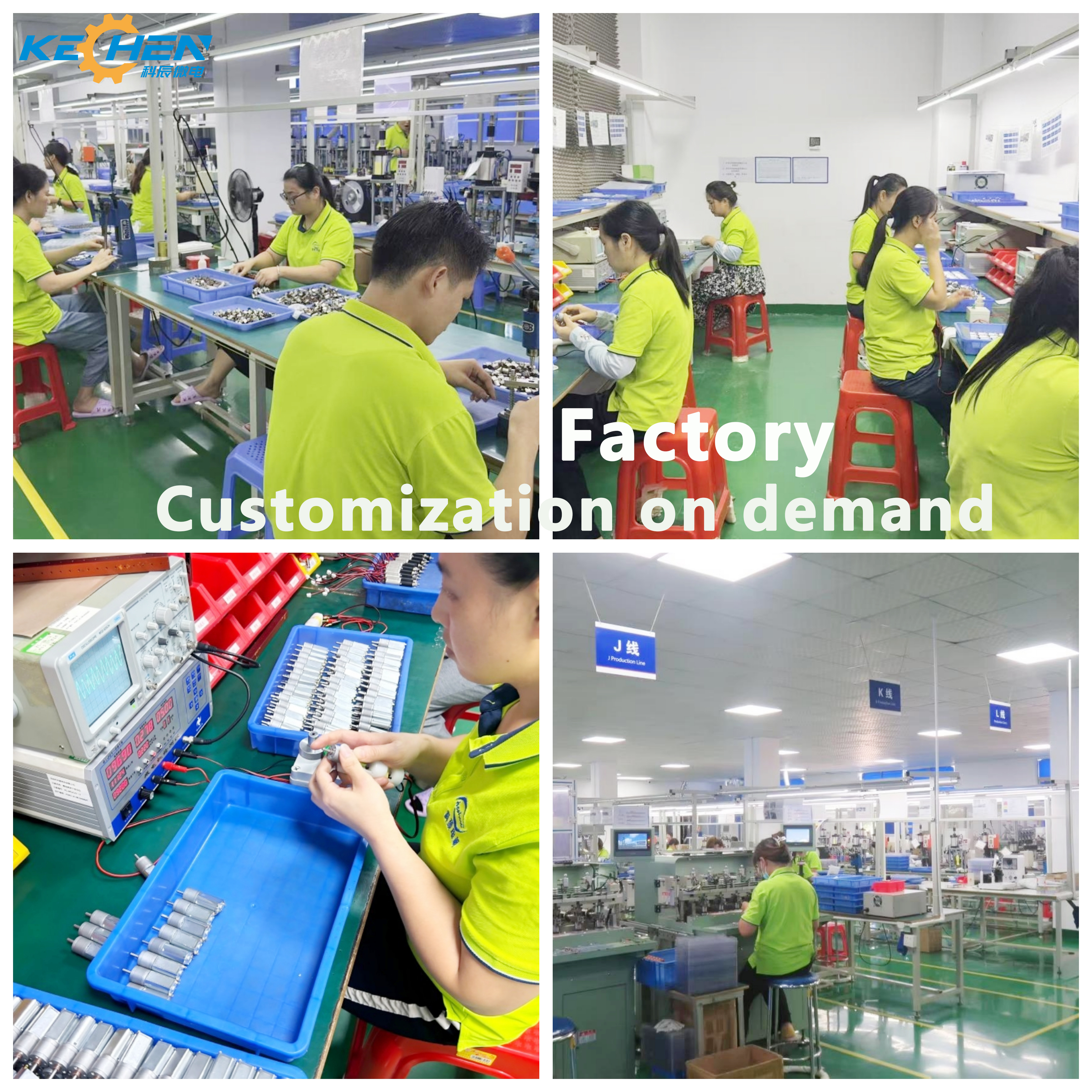

Production Equipment
Production Equipment 1
Production Equipment 2
Production Equipment 3
Certifications
Quality Certifications
Application Scenario
Application Scenarios Overview
Application Fields Details & Devices
Medical equipment sphygmomanometer, Massaging mattress, Air pump, Urine Analyzer.
Business Machines Intelligent robot, Copiers and Scanners, 3D Printers, Tattoo pen.
Electric powered equipment Electric toothbrush, Electric tool, Electric toy car, Electric curtain.
Smart Home Intelligent window opener, vacuum cleaner, Smart coffee machine, hair drier, Fascia gun, fan, air cleaner, Hair removal device, door lock, Intelligent door lock.
Food and Beverage Hand Blenders, Blenders, Mixers, Coffee Machines, Food Processors, Juicers, Fryers, Ice Makers, Soy Bean Milk Makers.
Robotics Servicing robotics, Food delivery robot, Reception robot, Medical serving robot, AGV & AMR, Conveying robot, Inspection robot.
Global Market Distribution
Global Market Map 1
Global Market Map 2
Global Market Map 3
FAQ
Q: How to select a suitable motor?
A: If you have motor pictures or drawings to show us, or you have detailed specs like voltage, speed, torque, motor size, working mode of the motor, needed lifetime, and noise level etc, please do not hesitate to let us know, then we can recommend a suitable motor per your request accordingly.
Q: Do you have customized service for your standard motors?
A: Yes, we can customize per your request for the voltage, speed, torque, and shaft size/shape. If you need additional wires/cables soldered on the terminal or need to add connectors, capacitors, or EMC, we can make it too.
Q: Do you have individual design service for motors?
A: Yes, we would like to design motors individually for our customers, but it may need some mold charge and design charge.
Q: Can I have samples for testing first?
A: Yes, definitely you can. After confirming the needed motor specs, we will quote and provide a proforma invoice for samples. Once we get the payment, we will proceed with the samples accordingly.
Q: How do you make sure motor quality?
A: We have our own inspection procedures: for incoming materials, we check signed samples and drawings to ensure quality; during the production process, we conduct tour inspections and final inspections to ensure qualified products before shipping.
Q: What certifications do you have?
A: We currently hold CE, RoHS, ISO13485, IATF16949, and REACH certifications.
