22mm 180 Planetary Gear Motor 12V 24V High Torque DC Gear Motor 20rpm 60rpm 280rpm 350rpm 450rpm for Robot Vacuum

Product Description

Products Description

Planetary Gear Motor Specifications
GMP22-180 Planetary Gear Motor Specifications
Model GMP22-180
Motor type Planetary Gear Motor
Brush Type Metal Brushed Or Carbon Brushed
Gearbox diameter 22mm
Motor diameter 20.4mm
Speed 10rpm - 2500rpm
Output torque 0.1~0.6 N·m
Reduction ratio 16:1/64:1/84:1/ 107:1/224:1/ 304:1/361:1/428.7:1/1024:1
Current 70–350 mA
Efficiency 65%–85%
shaft diameter 4.0 mm—D-shaft (Customized shaft type according to requirements)
Encoder 1-1024ppr

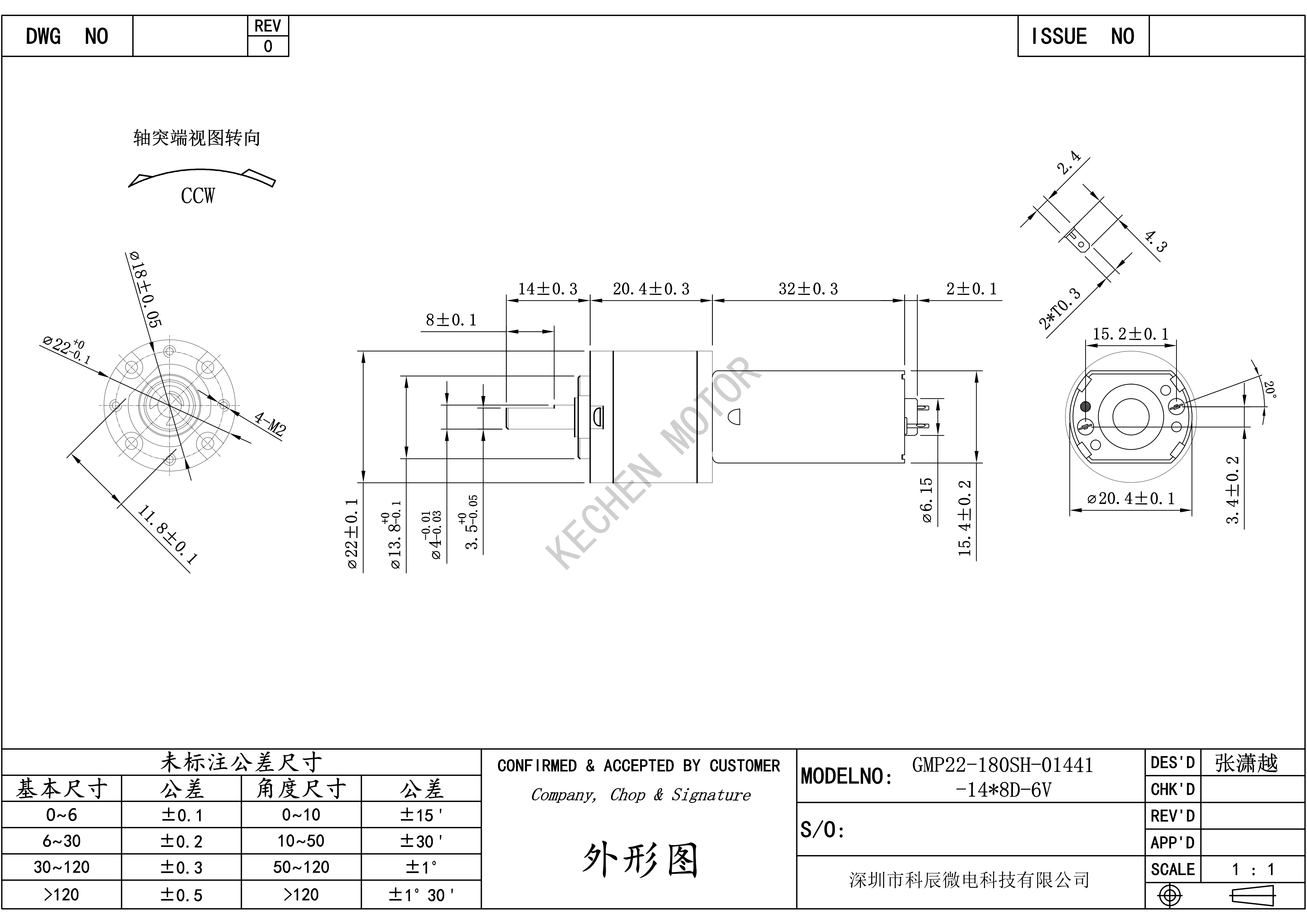

Planetary Gear Motor Dimension Drawing

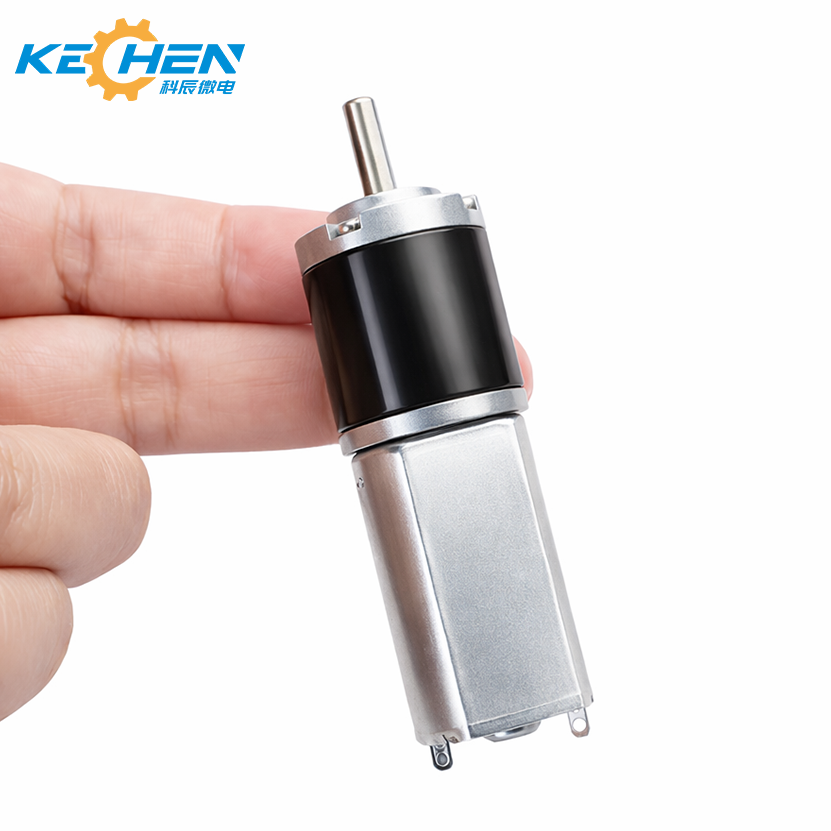

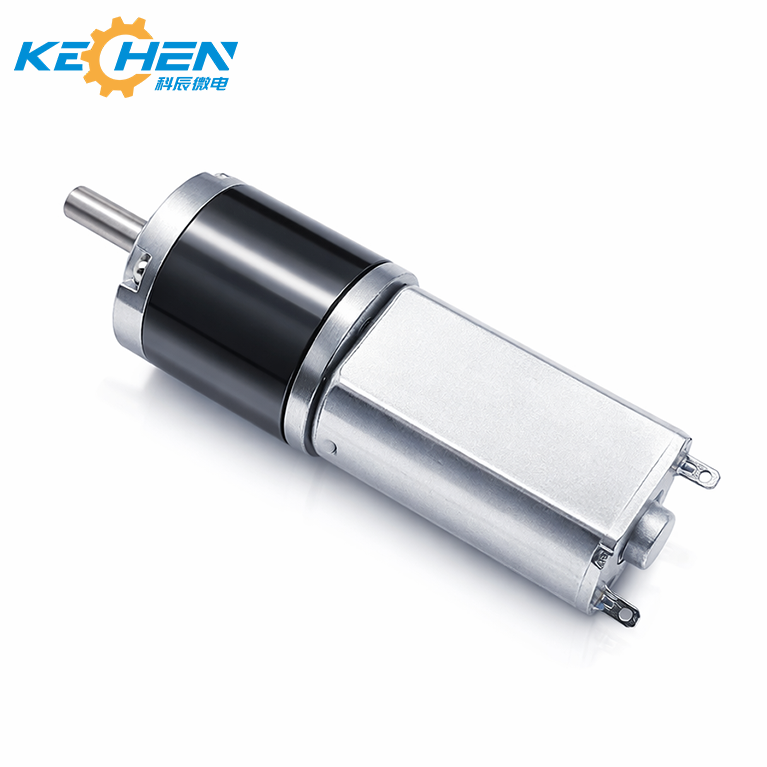

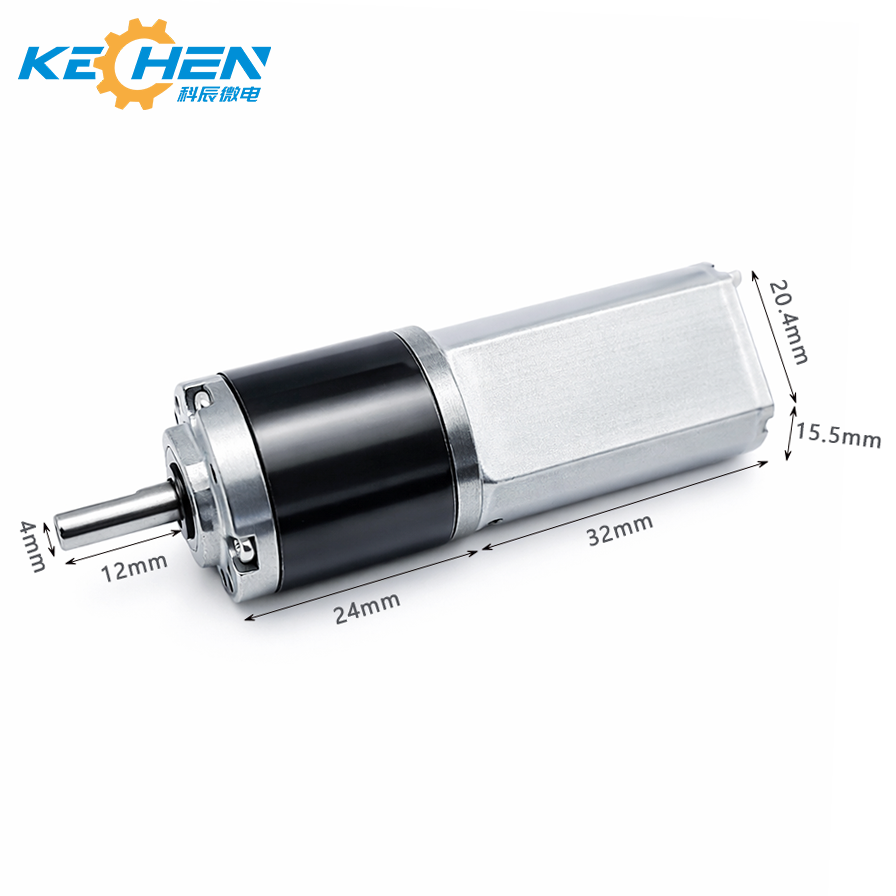

Planetary Gear Motor Details

Application Areas

Smart Home Devices

Smart Door Lock Drives, Automatic Curtain/Blind Systems, Smart Water/Gas Valve Controllers, Automatic Pet Feeders, Electric Cat Litter Boxes

Vending and Commercial Equipment

Coffee Machine Extraction Mechanisms, Automatic Beverage Machine Push Rods/Transmissions, Small Food Vending Machine Feeding Mechanisms, Automatic Soap Dispensers, Disinfectant Dispensers

Medical and Portable Devices

Handheld Medical Instruments (Scanning Pens, Injection Devices), Portable Testing Instrument Drives, Medical Delivery Mechanisms, Small Pump Drives

Automotive and Instrument Systems

Central Locking Drives, Air Vent Angle Adjustment Mechanisms, Small Measuring Instrument Actuators

Recommend Products

Recommended Motor Product 1
Recommended Motor Product 2

Motor raw materials

Motor Raw Materials Details

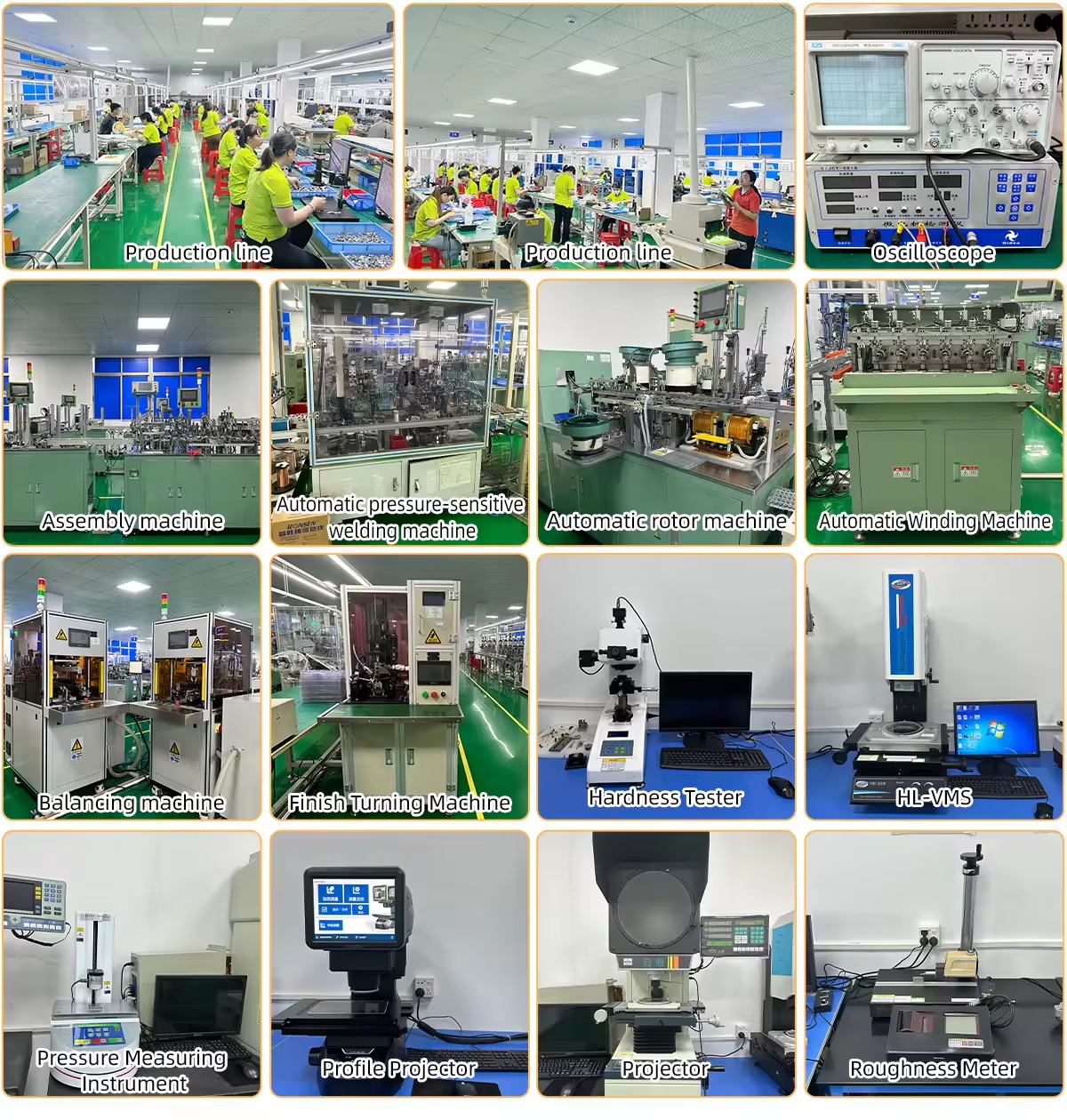

Production Equipment

Production Equipment 1
Production Equipment 2
Production Equipment 3

Company Profile

Factory Office Area
Factory Production Line
R&D Lab
Established in August 2017, the enterprise integrates the research and development, production, and marketing of micro motor series products. The main products include: various precision DC motors, stepper motors, reduction motors, planetary reduction motors, and brushless motors. Micro motors are widely used in medical equipment, medical detection and analysis, financial security, 5G applications, automotive appliances, intelligent communication, iris technology, AI intelligence, smart grid, smart home, commercial intelligent locks, smart switches, smart medicine cabinets, fresh food cabinets, smart wear, outdoor equipment, intelligent robots, electric tools, beauty tools, etc. Since its establishment, it has adhered to the concept of "people-oriented, pioneering and innovative spirit". With years of rapid development, it has a group of young and pragmatic, professional and efficient work teams, advanced production facilities, efficient management, excellent quality, and high-quality services to meet customers' needs of continuously improving product levels, reducing energy consumption, facilitating production, and improving efficiency, winning more and more recognition from customers.

Certifications

Product Quality Certifications

Application Scenario

Motor Application Scenarios
Medical equipment sphygmomanometer, Massaging mattress, Air pump, Urine Analyzer.
Business Machines Intelligent robot, Copiers and Scanners, 3D Printers, Tattoo pen.
Electric powered equipment Electric toothbrush, Electric tool, Electric toy car, Electric curtain.
Smart Home Intelligent window opener, vacuum cleaner, Smart coffee machine, hair drier, Fascia gun, fan, air cleaner, Hair removal device, door lock, Intelligent door lock.
Food and Beverage Hand Blenders, Blenders, Mixers, Coffee Machines, Food Processors, Juicers, Fryers, Ice Makers, Soy Bean Milk Makers.
Robotics Servicing robotics, Food delivery robot, Reception robot, Medical serving robot, AGV & AMR, Conveying robot, Inspection robot.

Global Market Distribution

Global Market Map
Market Distribution Chart
Global Partner Network

FAQ

Q: What's your main products?
A: We currently produce Brushed Dc Motors, Brushed Dc gear Motors, Planetary Dc Gear Motors, Brushless Dc Motors, Stepper motors and Coreless Motors etc. You can check the specifications for above motors on our website and you can email us to recommend needed motors per your specification too.
Q: How to select a suitable motor?
A: If you have motor pictures or drawings to show us, or you have detailed specs like voltage, speed, torque, motor size, working mode of the motor, needed life time and noise level etc, please do not hesitate to let us know, then we can recommend suitable motor per your request accordingly.
Q: Do you have customized service for your standard motors?
A: Yes, we can customize per your request for the voltage, speed, torque and shaft size/shape. If you need additional wires/cables soldered on the terminal or need to add connectors, or capacitors or EMC we can make it too.
Q: How do you make sure motor quality?
A: We have our own inspection procedures: for incoming materials, we have signed sample and drawing to make sure qualified incoming materials; for production process, we have tour inspection in the process and final inspection to make sure qualified products before shipping.
Q: What's your lead time?
A: Generally speaking, our regular standard product will need 25-30days, a bit longer for customized products. But we are very flexible on the lead time, it will depend on the specific orders.
Q: What certifications do you have?
A: We currently have CE, ROHS, ISO13485, IATF16949, REACH certifications.
