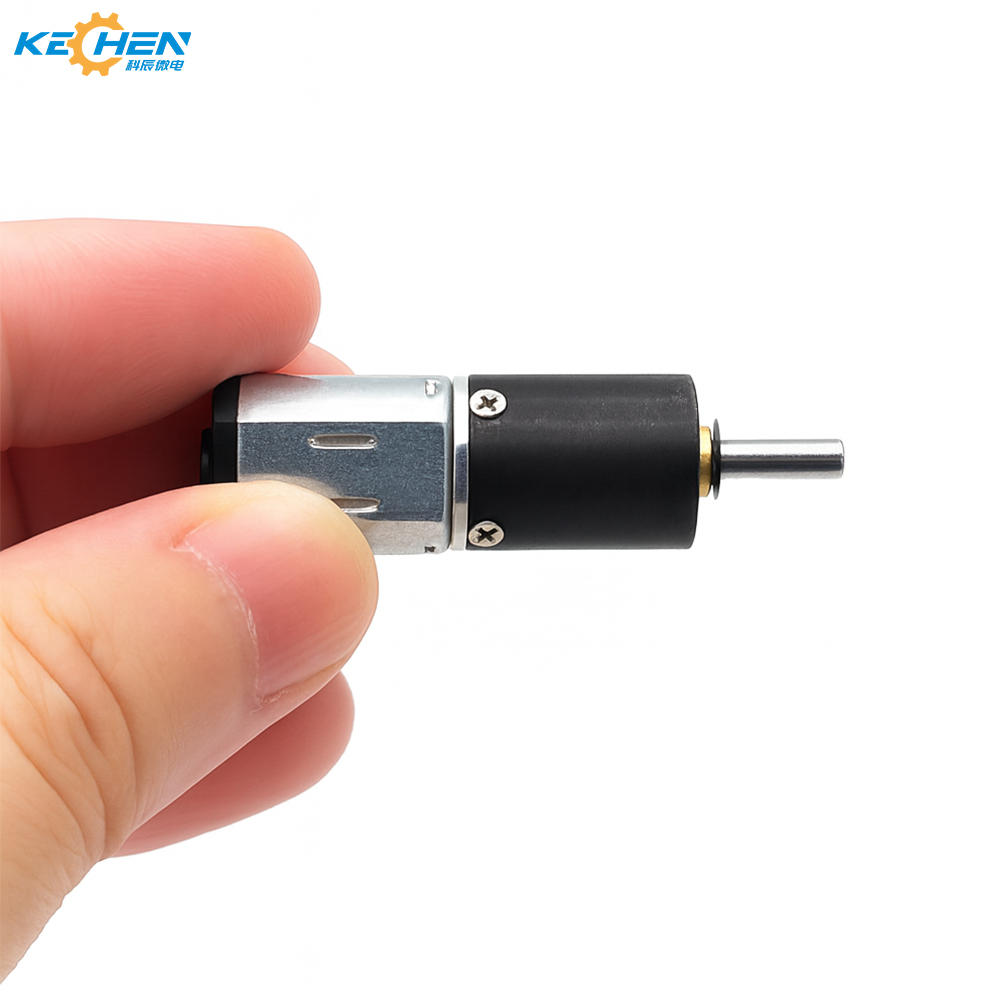

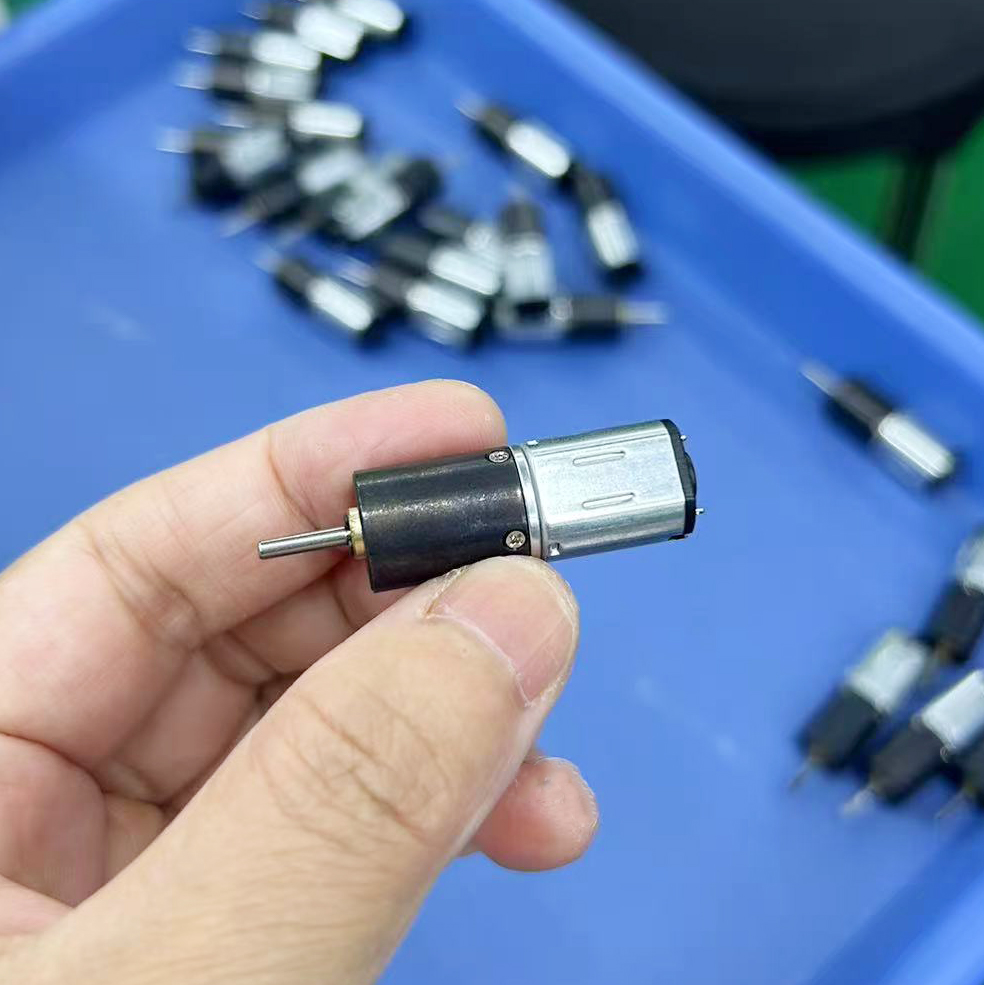

12mm N20 Micro Planetary Gear DC Motor 200rpm High Torque Low Noise Mini Gearbox Motor for Smart Lock Robot Medical Device

Product Description

Products Description

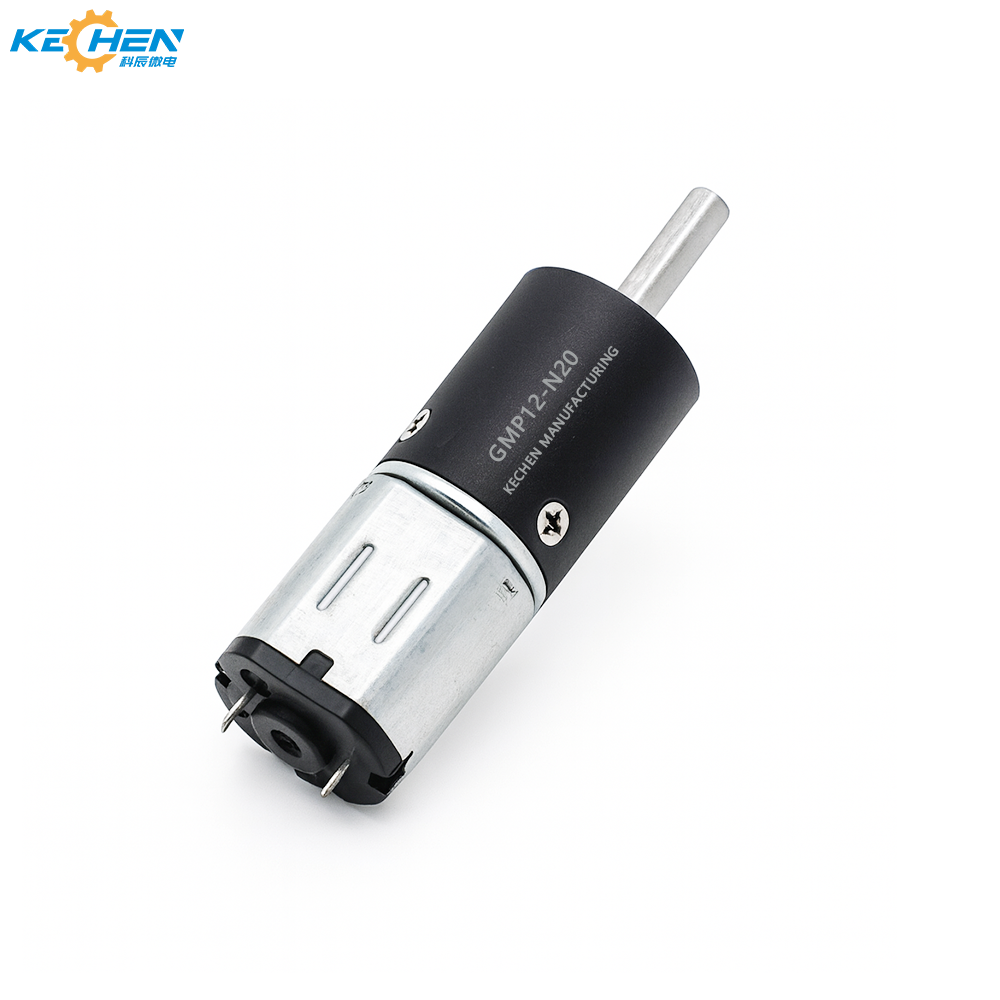

GMP12-N20 Planetary Gear Motor Specifications
Rated voltage 3 V / 6 V / 9 V / 12 V DC
Output torque 0.02 N·m ~ 0.3 N·m
Reduction ratio 10:1, 20:1, 30:1, 50:1, 100:1... 1000:1
Shaft diameter Φ3mm
Output speed 10-2000rpm
Typical applications Smart door locks, medical devices, miniature valves, smart home devices
Noise < 40 dB
Encoder 3ppr/7ppr/12ppr
Certificate ISO9001/IFAT16949/ISO13485/CE/REACH/RoHS

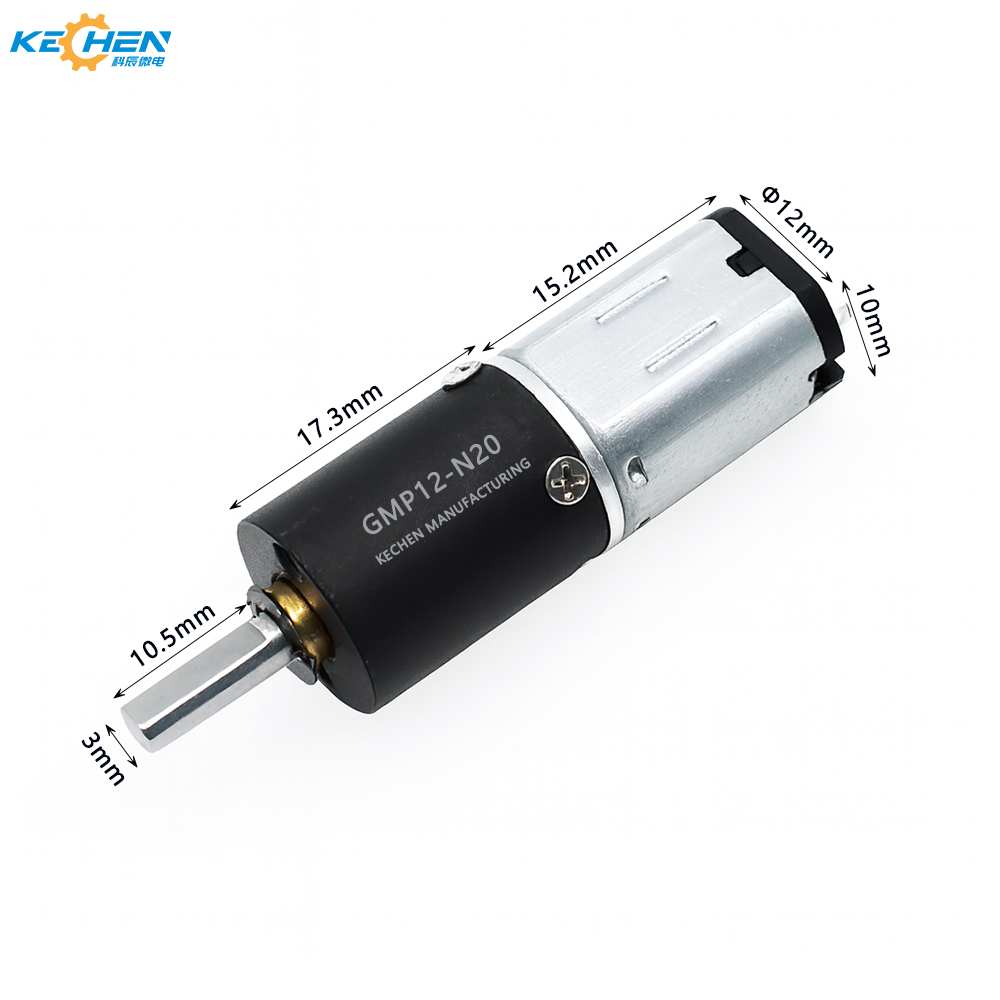

Planetary Gear Motor Outline Drawing
Planetary Gear Motor Structure Diagram
Planetary Gear Motor Performance Chart
Planetary Gear Motor Dynamic Curve

Recommend Products

Recommended Planetary Motor Option 1
Recommended Planetary Motor Option 2

Motor Raw Materials

High Quality Motor Raw Materials

Production Equipment

Automated Motor Assembly Line
Precision Testing Machinery
Motor Production Factory Floor

Certifications

ISO9001 CE RoHS Certifications Map

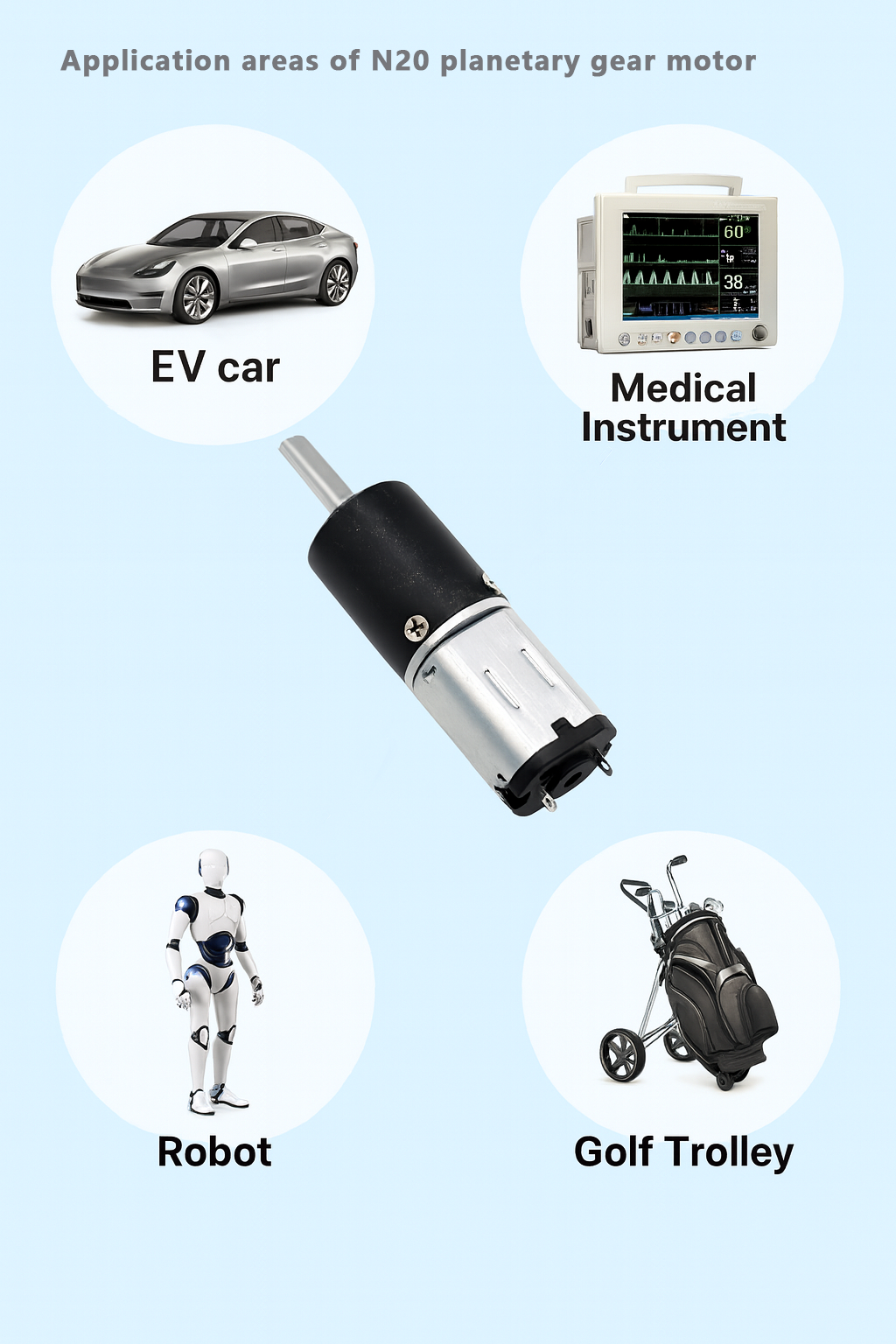

Application Scenario

Motor Application Fields Overview
Medical equipment sphygmomanometer, Massaging mattress, Air pump, Urine Analyzer.
Business Machines Intelligent robot, Copiers and Scanners, 3D Printers, Tattoo pen.
Electric powered equipment Electric toothbrush, Electric tool, Electric toy car, Electric curtain.
Smart Home Intelligent window opener, vacuum cleaner, Smart coffee machine, hair drier, Fascia gun, fan, air cleaner, Hair removal device, door lock, Intelligent door lock.
Food and Beverage Hand Blenders, Blenders, Mixers, Coffee Machines, Food Processors, Juicers, Fryers, Ice Makers, Soy Bean Milk Makers.
Robotics Servicing robotics, Food delivery robot, Reception robot, Medical serving robot, AGV & AMR, Conveying robot, Inspection robot.

Global Market Distribution

Global Market Share Map 1
Global Market Share Map 2
Global Shipping and Logistics

Frequently Asked Questions

Q How to select a suitable motor?
If you have motor pictures or drawings to show us, or you have detailed specs like voltage, speed, torque, motor size, working mode of the motor, needed life time and noise level etc, please do not hesitate to let us know, then we can recommend suitable motor per your request accordingly.
Q Do you have customized service for your standard motors?
Yes, we can customize per your request for the voltage, speed, torque and shaft size/shape. If you need additional wires/cables soldered on the terminal or need to add connectors, or capacitors or EMC we can make it too.
Q Do you have individual design service for motors?
Yes, we would like to design motors individually for our customers, but it may need some mold charge and design charge.
Q Can I have samples for testing first?
Yes, definitely you can. After confirmed the needed motor specs, we will quote and provide a proforma invoice for samples, once we get the payment, we will proceed with the samples accordingly.
Q How do you make sure motor quality?
We have our own inspection procedures: for incoming materials, we have signed sample and drawing to make sure qualified incoming materials; for production process, we have tour inspection in the process and final inspection to make sure qualified products before shipping.
Q What's your lead time?
Generally speaking, our regular standard product will need 25-30days, a bit longer for customized products. But we are very flexible on the lead time, it will depend on the specific orders.
