Product Description

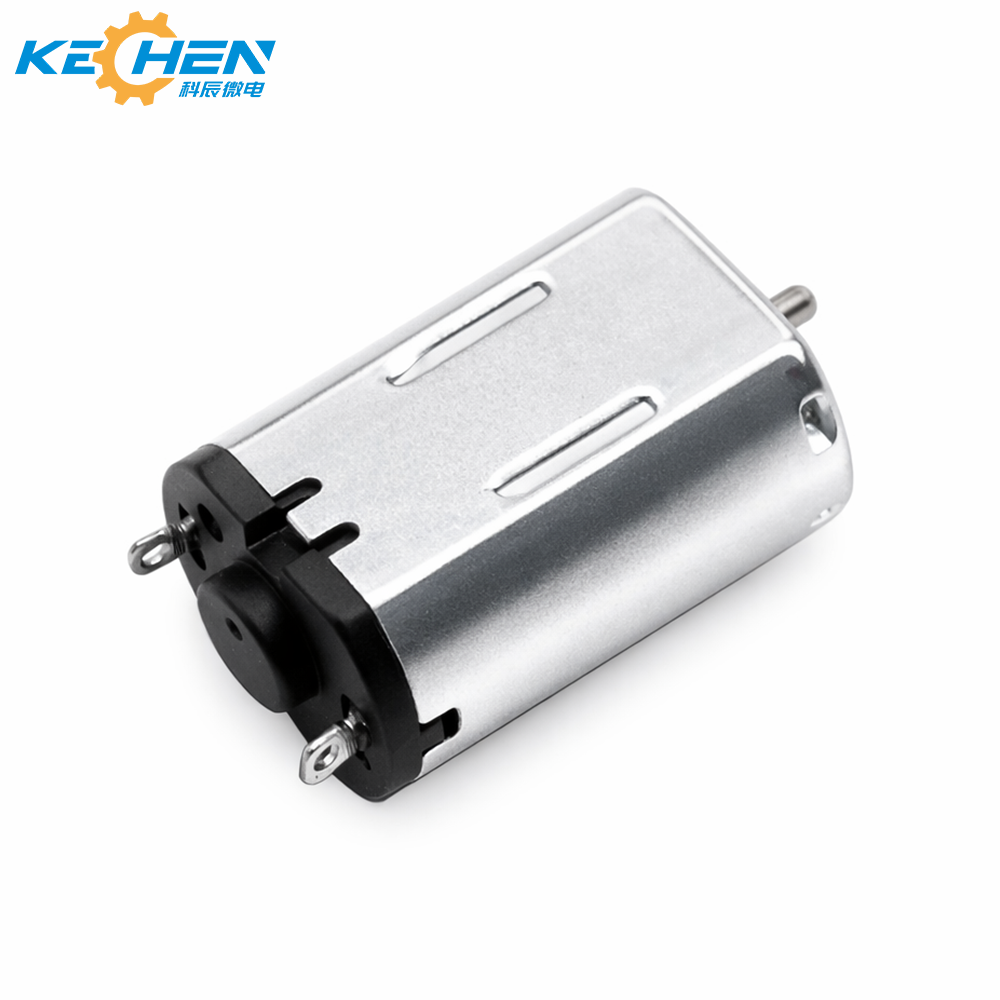

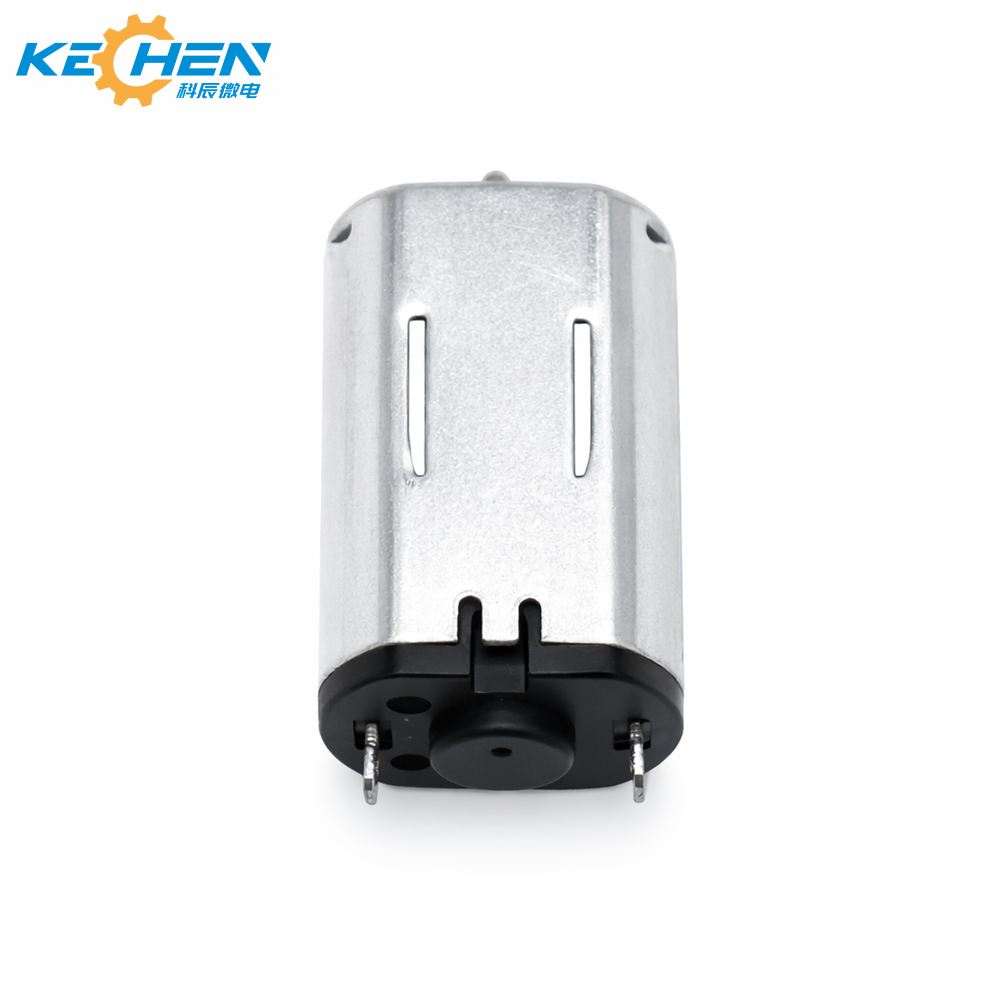

M20VA Brushed Micro DC Motor

M20VA Brushed Micro DC Motor

  • Model NumberKC-M20VA

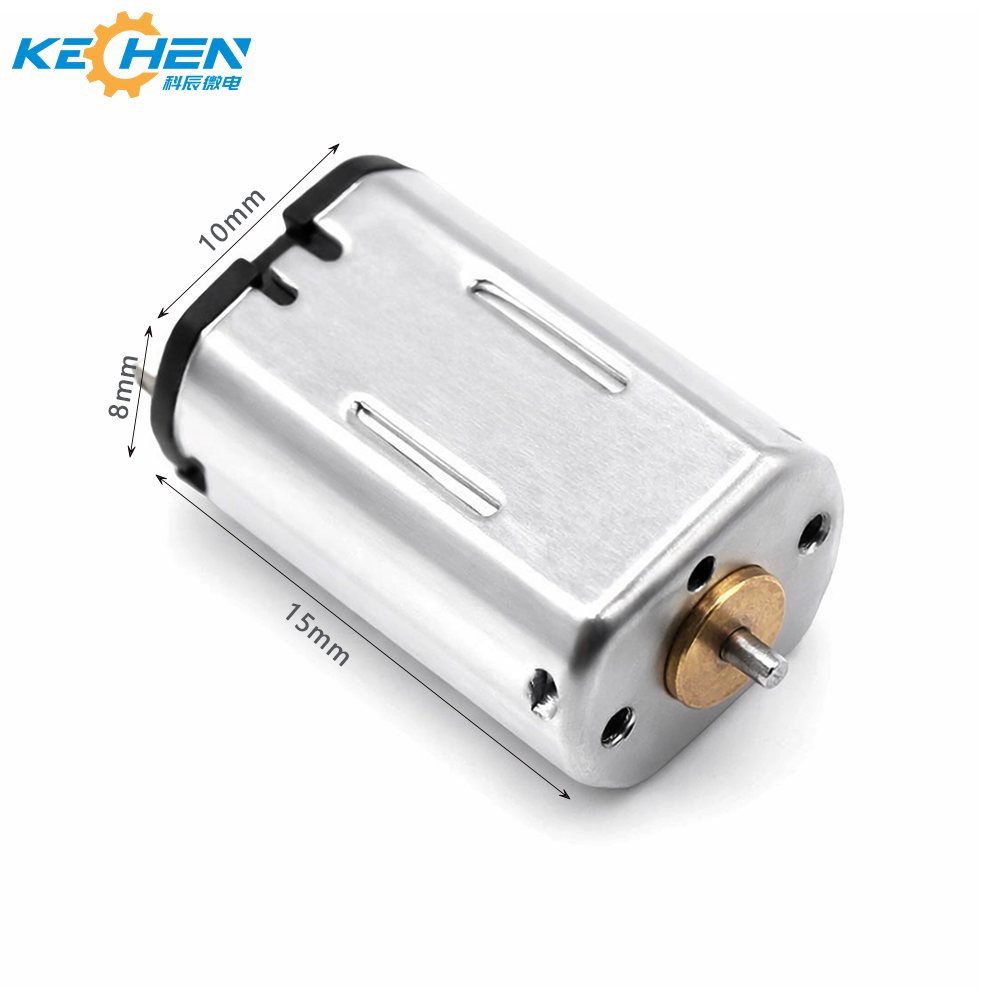

  • Shell Stator SizeΦ10 * L 15 mm (Φ 0.394 inch * 0.59 inch)
  • Shaft SpecΦ1.0mm (0.0393inch), D shape, etc.
  • Shaft LengthFree customization
  • Rated Output PowerUp to 1W
  • Rated VoltageDC 1.5V - 12V
  • Rated TorqueUp to 2gf·cm (0.196 mN·m)
  • ConstructionPermanent Magnet
  • CommutationMetal/Carbon brush
  • RotationClockwise/counter-clockwise (CW&CCW)

Products Description

Products Description

Recommend Products

Recommend Product 1
Recommend Product 2

Motor Raw Materials

Motor raw materials

Production Equipment

Production Equipment 1
Production Equipment 2
Production Equipment 3

Business Profile

Established in August 2009, this high-tech enterprise integrates the research and development, production, and marketing of micro motor series products. The main products include: various precision DC motors, stepper motors, reduction motors, planetary reduction motors, and brushless motors.
Micro motors are widely used in medical equipment, medical detection and analysis, financial security, 5G applications, automotive appliances, intelligent communication, iris technology, AI intelligence, smart grid, smart home, commercial intelligent locks, smart switches, smart medicine cabinets, fresh food cabinets, smart wear, outdoor equipment, intelligent robots, electric tools, beauty tools, etc.
Since its establishment, it has adhered to the concept of "people-oriented, pioneering and innovative spirit". After eleven years of rapid development, it has a group of young and pragmatic, professional and efficient work teams, advanced production facilities, efficient management, excellent quality, and high-quality services to meet customers' needs of continuously improving product levels, reducing energy consumption, facilitating production, and improving efficiency, winning more and more recognition from customers.
Enterprise Showcase

Certifications

Certifications

Application Scenario

Application Scenario
Category Detailed Applications
Medical Equipment sphygmomanometer, Massaging mattress, Air pump, Urine Analyzer.
Business Machines intelligent robot, Copiers and Scanners, 3D Printers, Tattoo pen.
Electric Powered Equipment Electric toothbrush, Electric tool, adult erotica products, Electric toy car, Electric curtain.
Smart Home Intelligent window opener, vacuum cleaner, Smart coffee machine, hair drier, Fascia gun, fan, air cleaner, Hair removal device, door lock, Intelligent door lock.
Food and Beverage Hand Blenders, Blenders, Mixers, Coffee Machines, Food Processors, Juicers, Fryers, Ice Makers, Soy Bean Milk Makers.
Robotics Servicing robotics, Food delivery robot, Reception robot, Medical serving robot, AGV & AMR, Conveying robot, Inspection robot.

Global Market Distribution

Global Market 1
Global Market 2
Global Market 3

Frequently Asked Questions (FAQ)

1. What is the rated voltage range for the M20VA Brushed Micro DC Motor?
The M20VA Brushed Micro DC Motor supports a customizable rated voltage range from DC 1.5V to 12V, making it highly versatile for various low-power applications.
2. Can the motor shaft be customized?
Yes, we provide free customization for the shaft length and design, including options like D-shape shafts, round shafts, or other specific geometries to match your project specifications.
3. What kinds of commutation options do you offer for this motor?
The M20VA motor is built with permanent magnet construction and supports both metal brush and carbon brush commutation options depending on your durability and performance needs.
4. What are the main applications of these micro DC motors?
These motors are widely used in smart home appliances (like intelligent door locks and vacuums), medical equipment (such as sphygmomanometers), personal care products, robotics, business machines, and electric tools.
5. What other types of motors do you manufacture?
In addition to brushed micro DC motors, we offer stepper motors, reduction motors, planetary reduction motors, and brushless motors, tailored for high-precision applications.
