Small Permanent Magnet Linear Stepper Motor 15mm 77mm Travel Rail Medical Devices Automation Equipment DC 5V 2-Phase 1.5kg.cm

Product Description

Products Description
15BY-77 Linear Stepper Motor Specifications
Motor type Permanent-Magnet Linear Stepper
Motor diameter 15mm
Travel guide length 77mm
Phase bipolar / 2-phase
Step Angle 18° / step
Rated Voltage 5V/12V DC
Rated Power 4.6 W
Rated Current 600 mA
Lead Screw (Lead screw pitch) 0.5 mm (“Pitch M3 * P0.5”)
With slider plastic slider
Holding torque 900 g·cm /1000 PPS
Thrust / Pull-out > 700 g.cm
Line sequence A+A-B+B-
Terminal model 1.25/1.5/2.0/2.54

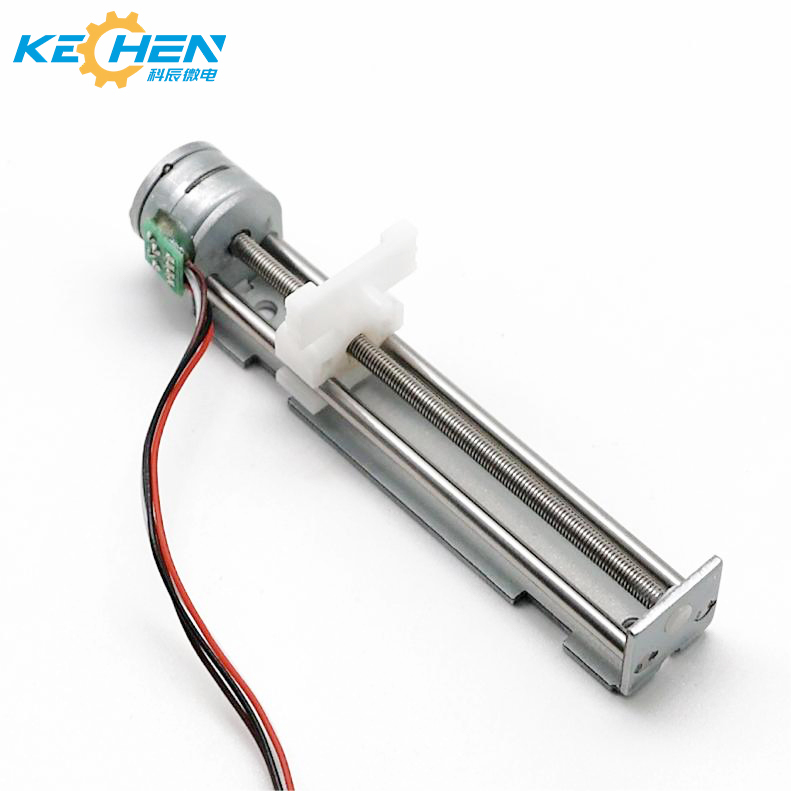

Product Image 1

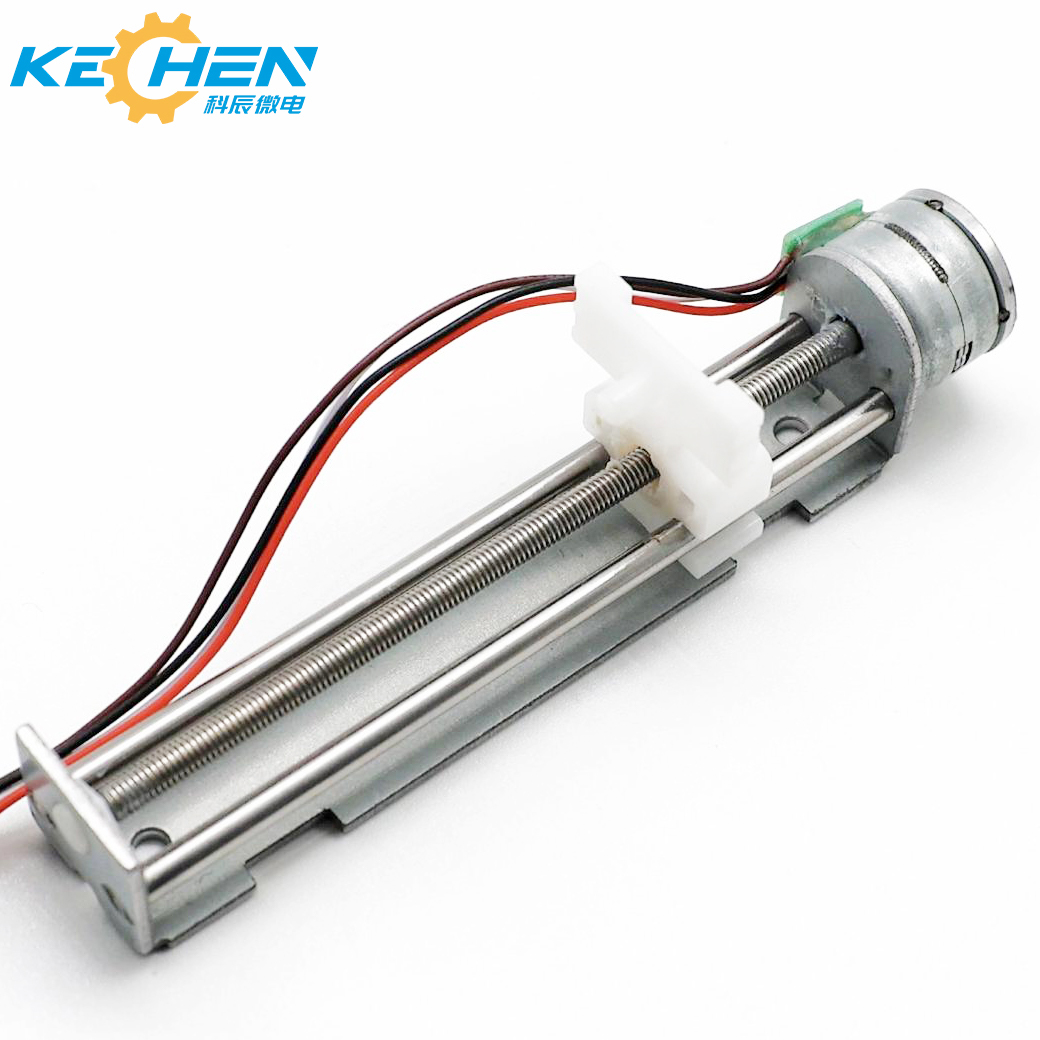

Product Image 2

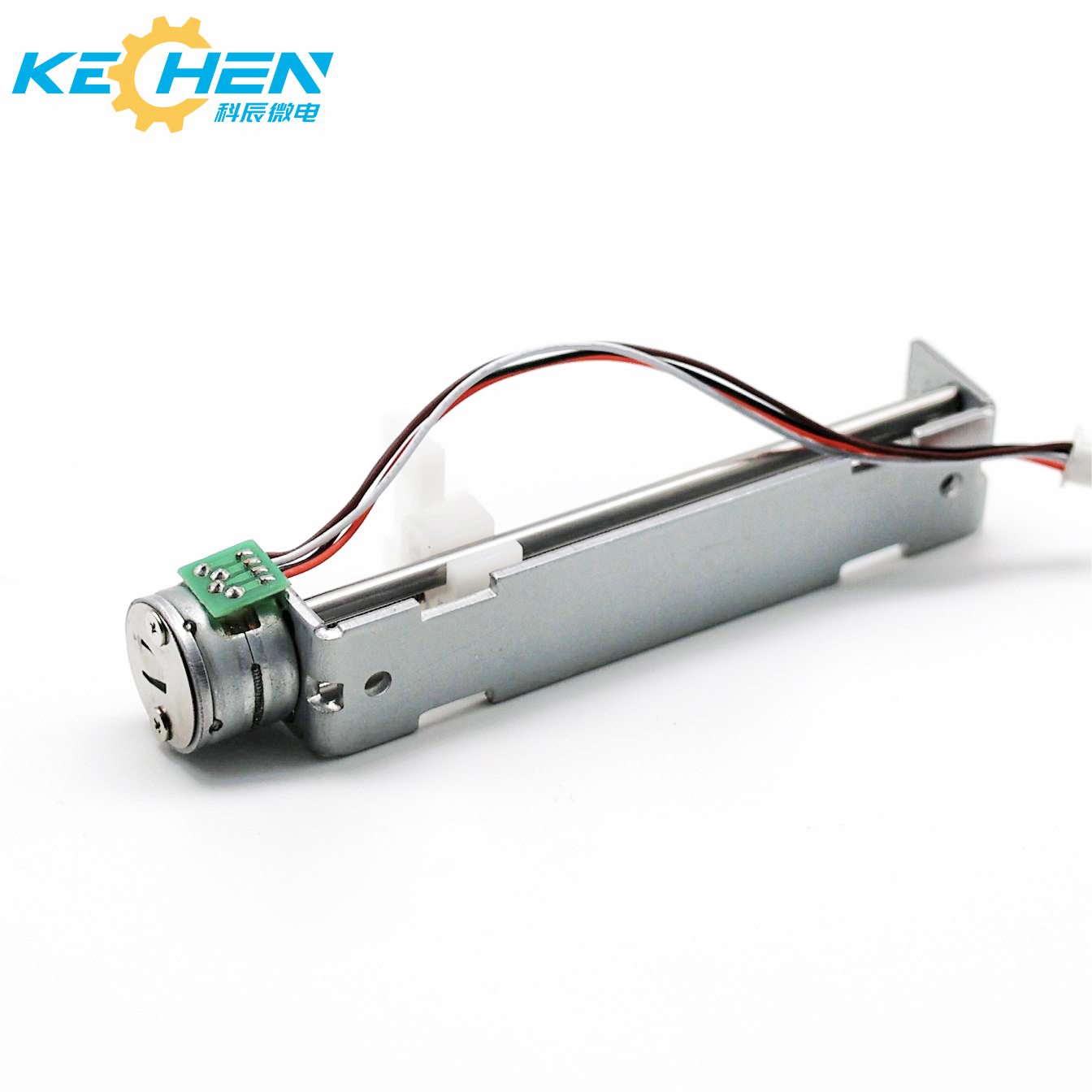

Product Image 3

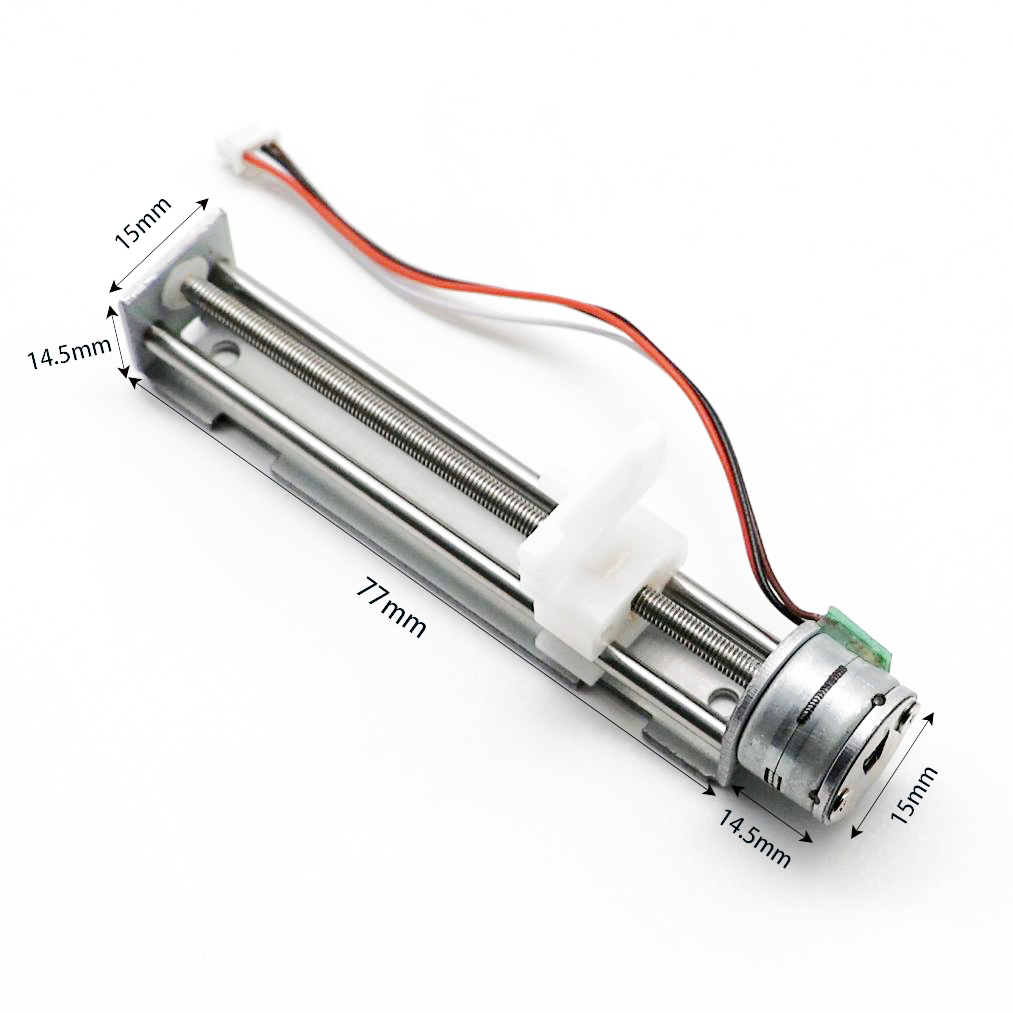

Product Image 4
Recommend Products

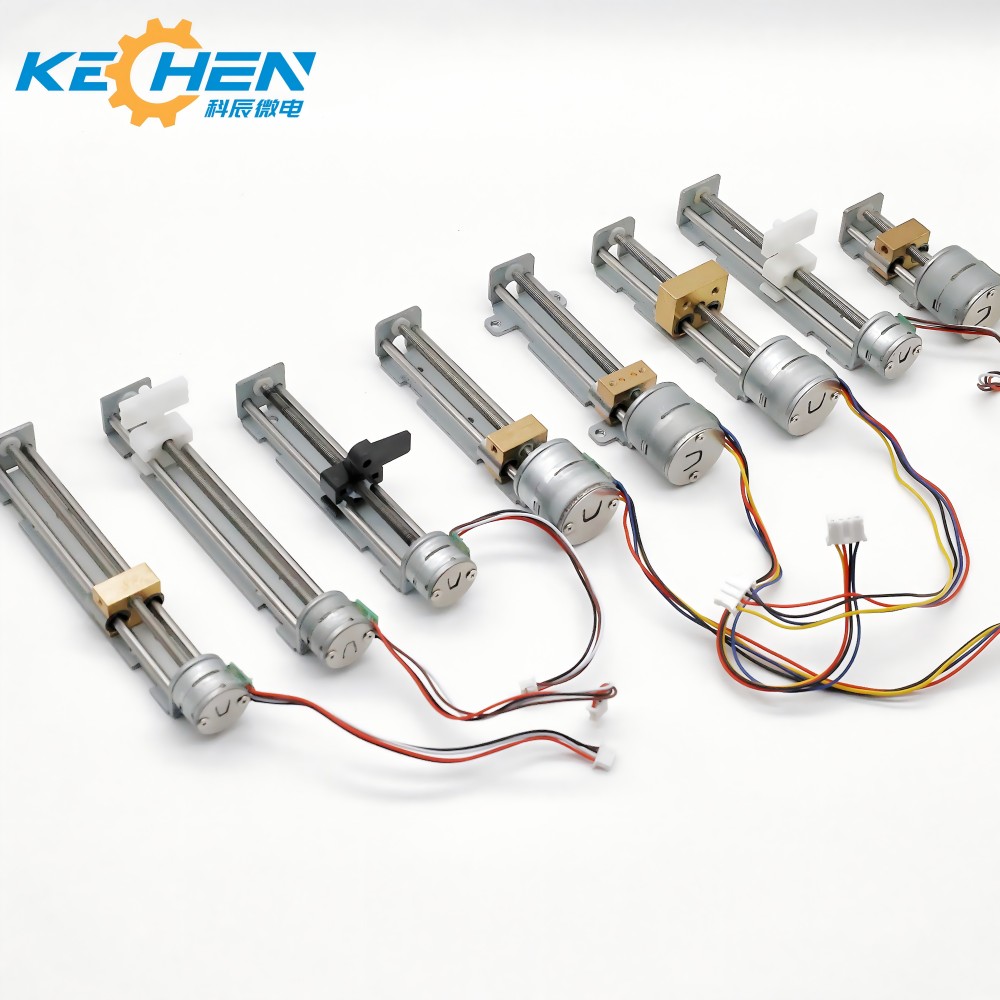

Recommend Product 1
Recommend Product 2
Motor raw materials
Motor Raw Materials
Production Equipment
Production Equipment 1
Production Equipment 2
Production Equipment 3
Company Profile
Company Facility
Established in August 2017, we are a high-tech enterprise that integrates the research and development, production, and marketing of micro motor series products. The main products include: various precision DC motors, stepper motors, reduction motors, planetary reduction motors, and brushless motors. Micro motors are widely used in medical equipment, medical detection and analysis, financial security, 5G applications, automotive appliances, intelligent communication, iris technology, AI intelligence, smart grid, smart home, commercial intelligent locks, smart switches, smart medicine cabinets, fresh food cabinets, smart wear, outdoor equipment, intelligent robots, electric tools, beauty tools, etc. Since our establishment, we have adhered to the concept of "people-oriented, pioneering and innovative spirit". After eleven years of rapid development, we have a group of young and pragmatic, professional and efficient work teams, advanced production facilities, efficient management, excellent quality, and high-quality services to meet customers' needs of continuously improving product levels, reducing energy consumption, facilitating production, and improving efficiency, winning more and more recognition from customers.
Certifications
Product Certifications
Application Scenario
Application Scenario
Global Market Distribution
Global Market Map
Market Distribution Chart
FAQ
What's your main products?
We currently produce Brushed Dc Motors, Brushed Dc gear Motors, Planetary Dc Gear Motors, Brushless Dc Motors, Stepper motors and Coreless Motors etc. You can check the specifications for above motors on our website and you can email us to recommend needed motors per your specification too.
How to select a suitable motor?
If you have motor pictures or drawings to show us, or you have detailed specs like voltage, speed, torque, motor size, working mode of the motor, needed life time and noise level etc, please do not hesitate to let us know, then we can recommend suitable motor per your request accordingly.
Do you have customized service for your standard motors?
Yes, we can customize per your request for the voltage, speed, torque and shaft size/shape. If you need additional wires/cables soldered on the terminal or need to add connectors, or capacitors or EMC we can make it too.
How do you make sure motor quality?
We have our own inspection procedures: for incoming materials, we have signed sample and drawing to make sure qualified incoming materials; for production process, we have tour inspection in the process and final inspection to make sure qualified products before shipping.
What's your lead time?
Generally speaking, our regular standard product will need 25-30days, a bit longer for customized products. But we are very flexible on the lead time, it will depend on the specific orders.
What certifications do you have?
We currently have CE, ROSH, ISO13485, IATF16949, and REACH certifications.
