[email protected]
Home > DC Motor > RF-370 High Power DC Deceleration Motor Speed Adjustable 6V 12V 24V 6000RPM 8500RPM Long Life Time for Home Appliances 12V Speed
RF-370 High Power DC Deceleration Motor Speed Adjustable 6V 12V 24V 6000RPM 8500RPM Long Life Time for Home Appliances 12V Speed
RF-370 High Power DC Deceleration Motor Speed Adjustable 6V 12V 24V 6000RPM 8500RPM Long Life Time for Home Appliances 12V Speed
RF-370 High Power DC Deceleration Motor Speed Adjustable 6V 12V 24V 6000RPM 8500RPM Long Life Time for Home Appliances 12V Speed
RF-370 High Power DC Deceleration Motor Speed Adjustable 6V 12V 24V 6000RPM 8500RPM Long Life Time for Home Appliances 12V Speed
RF-370 High Power DC Deceleration Motor Speed Adjustable 6V 12V 24V 6000RPM 8500RPM Long Life Time for Home Appliances 12V Speed
1 / 5
RF-370 High Power DC Deceleration Motor Speed Adjustable 6V 12V 24V 6000RPM 8500RPM Long Life Time for Home Appliances 12V Speed
RF-370 High Power DC Deceleration Motor Speed Adjustable 6V 12V 24V 6000RPM 8500RPM Long Life Time for Home Appliances 12V Speed
RF-370 High Power DC Deceleration Motor Speed Adjustable 6V 12V 24V 6000RPM 8500RPM Long Life Time for Home Appliances 12V Speed
RF-370 High Power DC Deceleration Motor Speed Adjustable 6V 12V 24V 6000RPM 8500RPM Long Life Time for Home Appliances 12V Speed
RF-370 High Power DC Deceleration Motor Speed Adjustable 6V 12V 24V 6000RPM 8500RPM Long Life Time for Home Appliances 12V Speed

RF-370 High Power DC Deceleration Motor Speed Adjustable 6V 12V 24V 6000RPM 8500RPM Long Life Time for Home Appliances 12V Speed

Send Inquiry

Product Description

Products Description

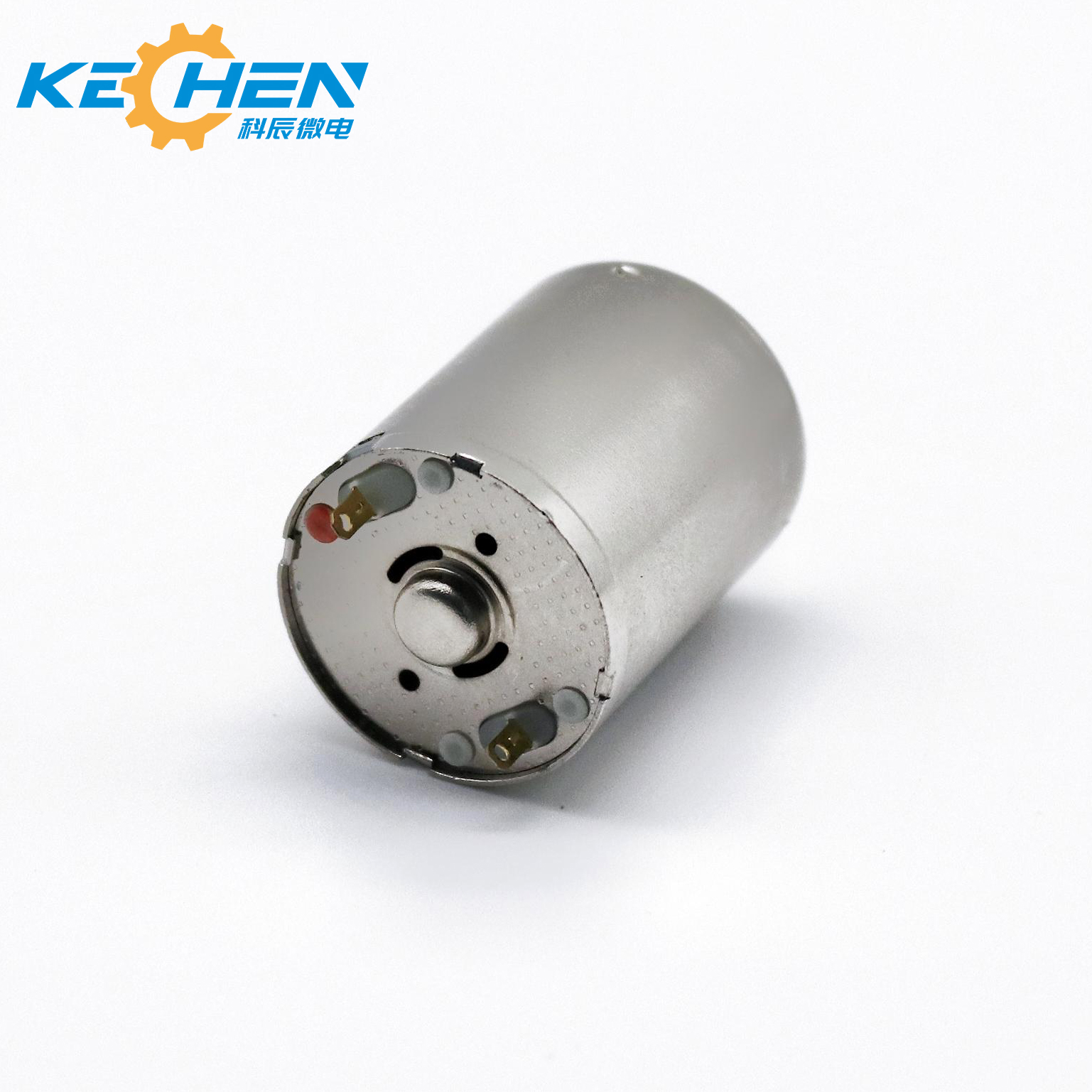

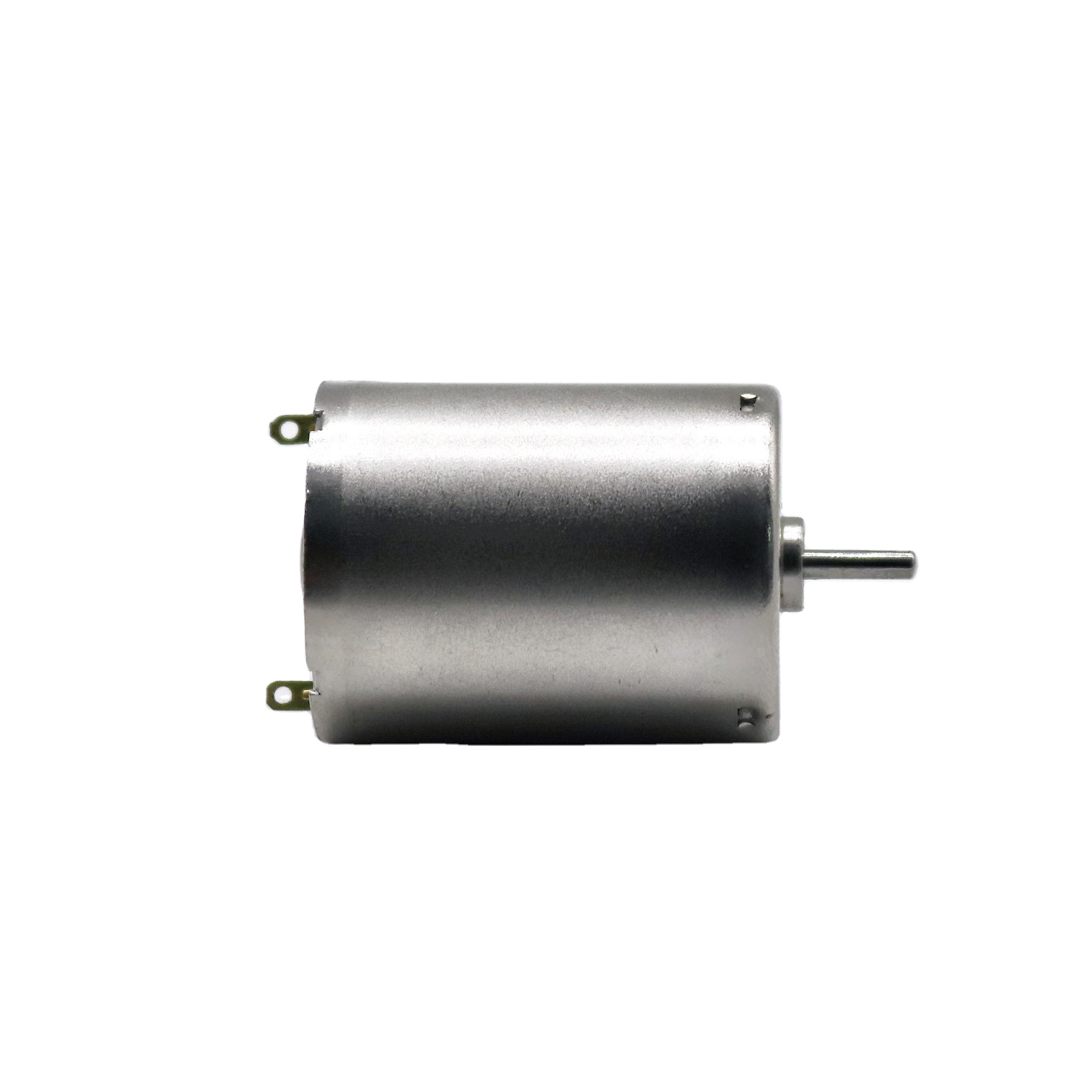

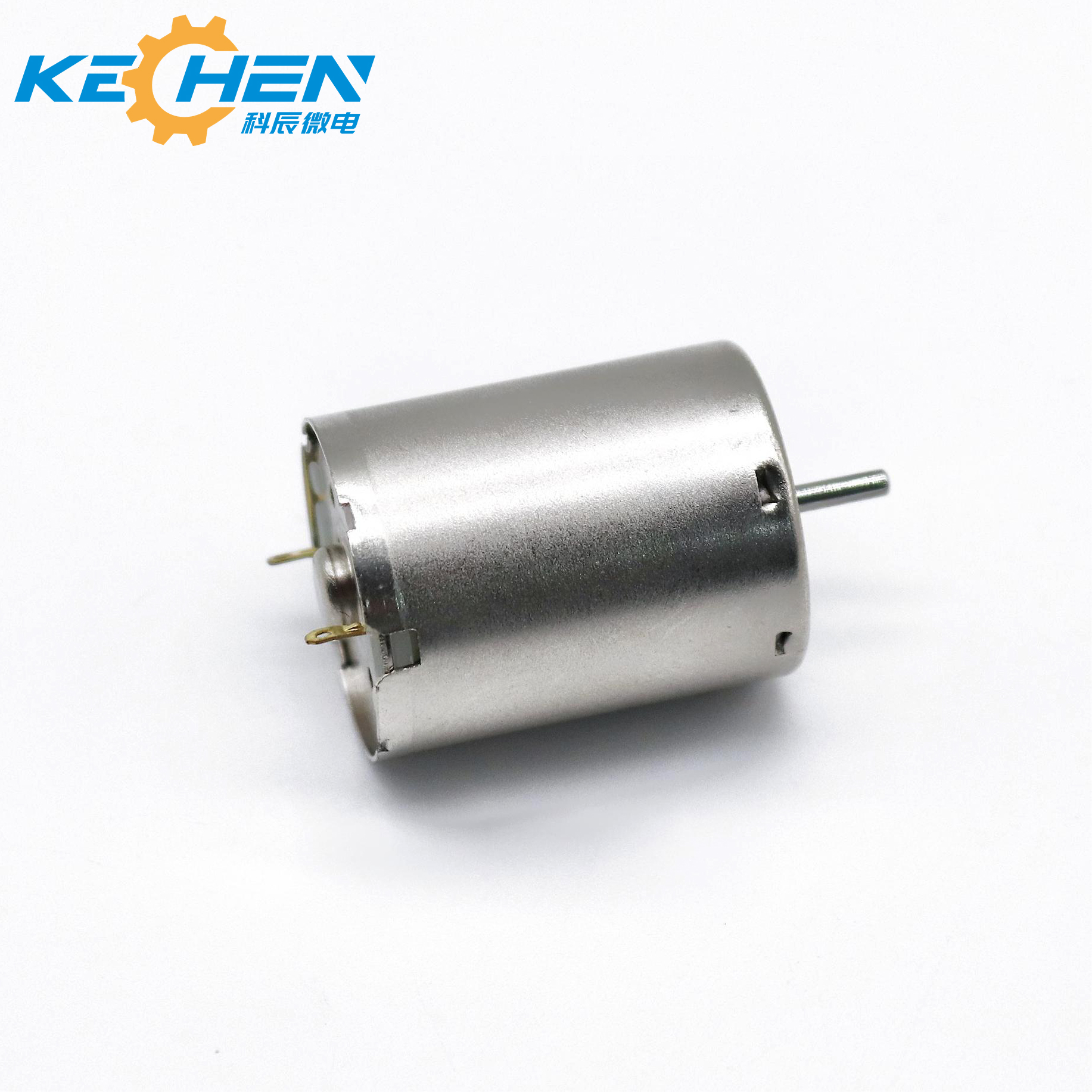

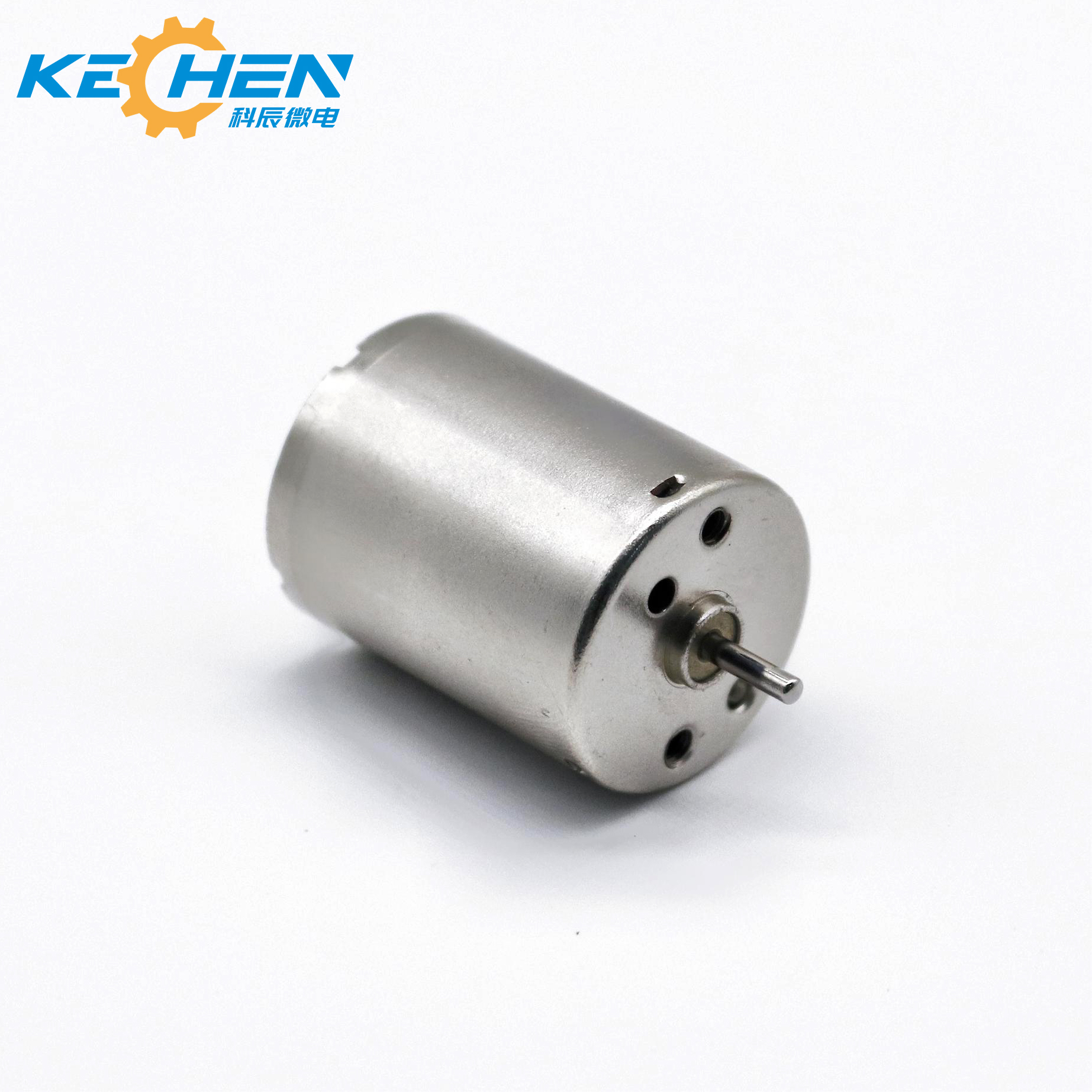

KC-370 Brushed micro dc motor
Main features:
  • Model: KC-370SH
  • Output power: 0.3~24W

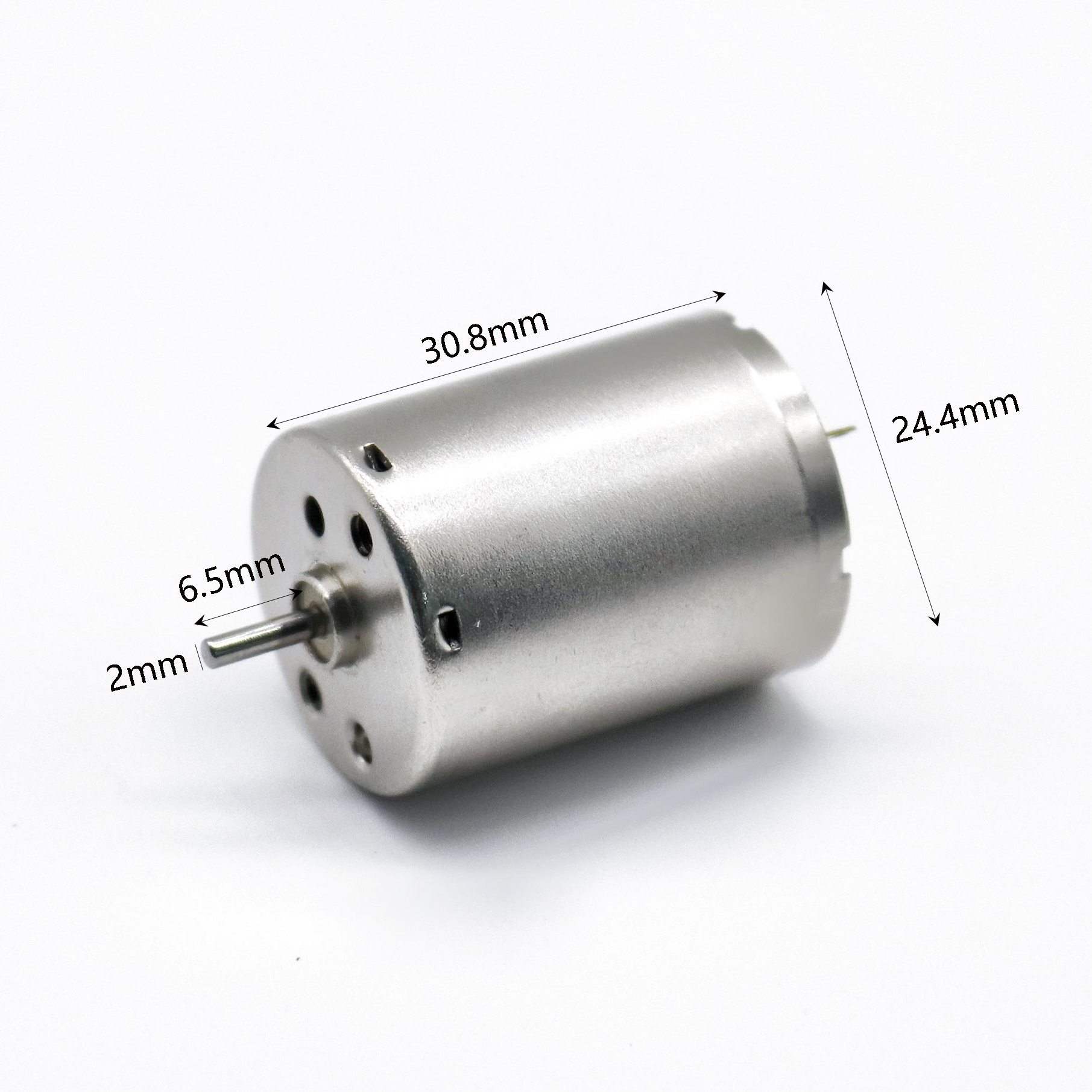

  • Size: Φ24.4×30.8mm
  • Voltage: DC 3V 5V 6V 8.4V 12V 24V
  • No-load speed: 5400, 6100 RPM
  • No-load current: 0.028, 0.06A
  • Maximum efficiency torque: 25.77 g.cm
  • Maximum efficiency power: 1.4W
  • Quality: High quality
  • Motor Type: Permanent Magnet brush motor
  • Certifications: ROHS/CE/IATF16949/ISO 13485/ISO 9001
KC-370 Brushed micro dc motor
KC-370 Specification details
Recommend Products
Recommend Product 1
Recommend Product 2
Motor raw materials
Motor raw materials
Production Equipment
Production Equipment 1
Production Equipment 2
Production Equipment 3
Certifications
Certifications Quality Standard
Application Scenario
Application Scenario Overview
Medical equipment sphygmomanometer, Massaging mattress, Air pump, Urine Analyzer.
Business Machines Intelligent robot, Copiers and Scanners, 3D Printers, Tattoo pen.
Electric powered equipment Electric toothbrush, Electric tool, Electric toy car, Electric curtain.
Smart Home Intelligent window opener, vacuum cleaner, Smart coffee machine, hair drier, Fascia gun, fan, air cleaner, Hair removal device, door lock, Intelligent door lock.
Food and Beverage Hand Blenders, Blenders, Mixers, Coffee Machines, Food Processors, Juicers, Fryers, Ice Makers, Soy Bean Milk Makers.
Robotics Servicing robotics, Food delivery robot, Reception robot, Medical serving robot, AGV & AMR, Conveying robot, Inspection robot.
Global Market Distribution
Global Market Map
Market Distribution Chart
Frequently Asked Questions
Q1: What is the voltage range support for the KC-370SH micro DC motor?
The KC-370SH motor operates across multiple DC voltage settings, specifically DC 3V, 5V, 6V, 8.4V, 12V, and 24V, allowing flexibility for diverse application requirements.
Q2: What are the dimensions and size of the KC-370 motor?
The motor has a compact form factor with a diameter (Φ) of 24.4mm and a length of 30.8mm, making it ideal for devices with limited internal space.
Q3: Which international quality standards do these motors conform to?
The micro motors are built to high standards and hold certifications including ROHS, CE, IATF16949, ISO 13485, and ISO 9001, ensuring global compliance and reliable performance.
Q4: Can these motors be used in smart home appliances?
Yes, these motors are widely integrated into smart home devices such as vacuum cleaners, intelligent door locks, window openers, smart coffee machines, fans, and fascia guns.
Q5: What are the no-load speed capabilities of the KC-370SH motor?
Under no-load conditions, the motor reaches speeds of 5400 RPM and 6100 RPM with low no-load current draws of 0.028A and 0.06A, optimized for efficiency.
Q6: What is the output power and maximum efficiency torque?
The motor has an output power range of 0.3W to 24W. At maximum efficiency, it achieves a torque of 25.77 g.cm and a power of 1.4W.
