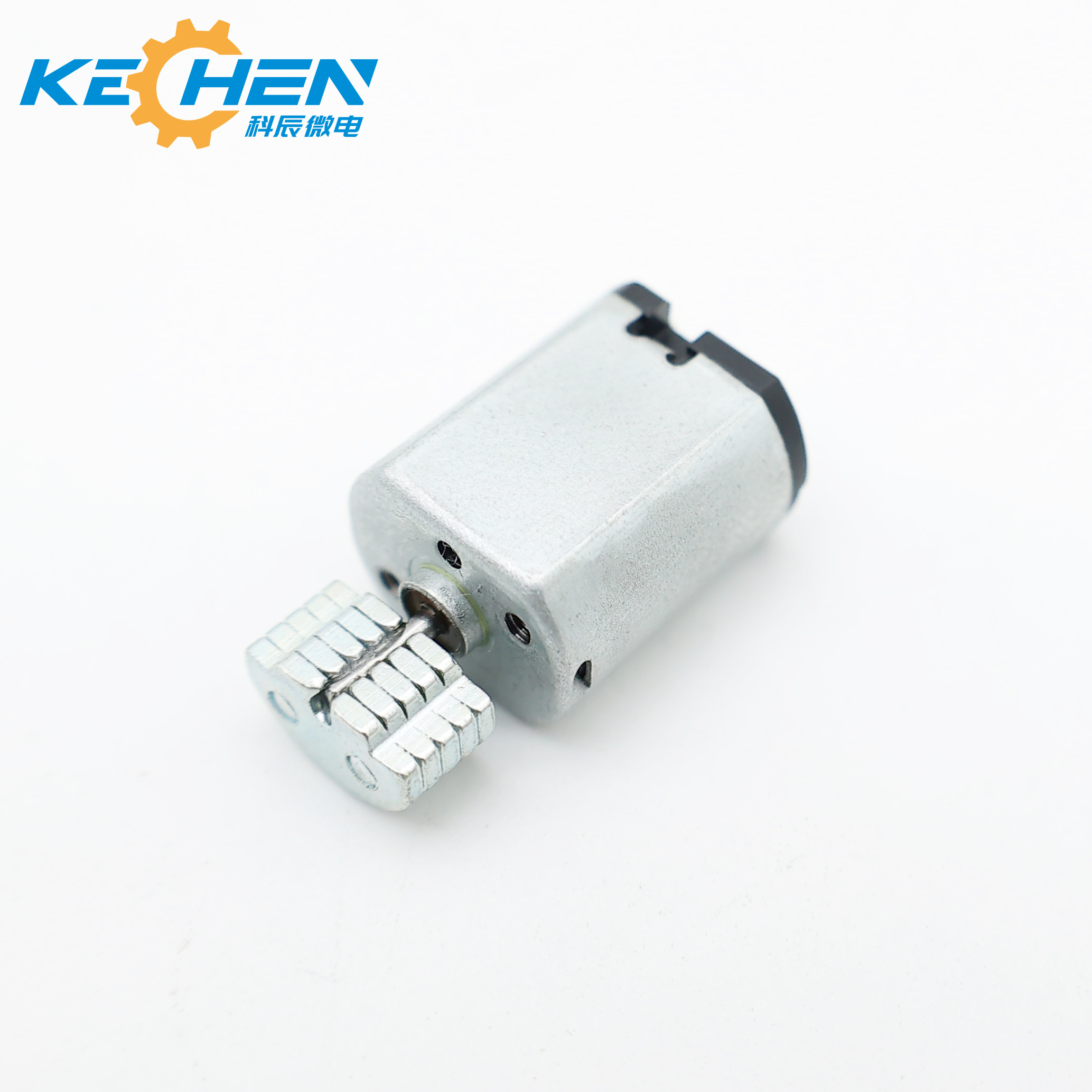

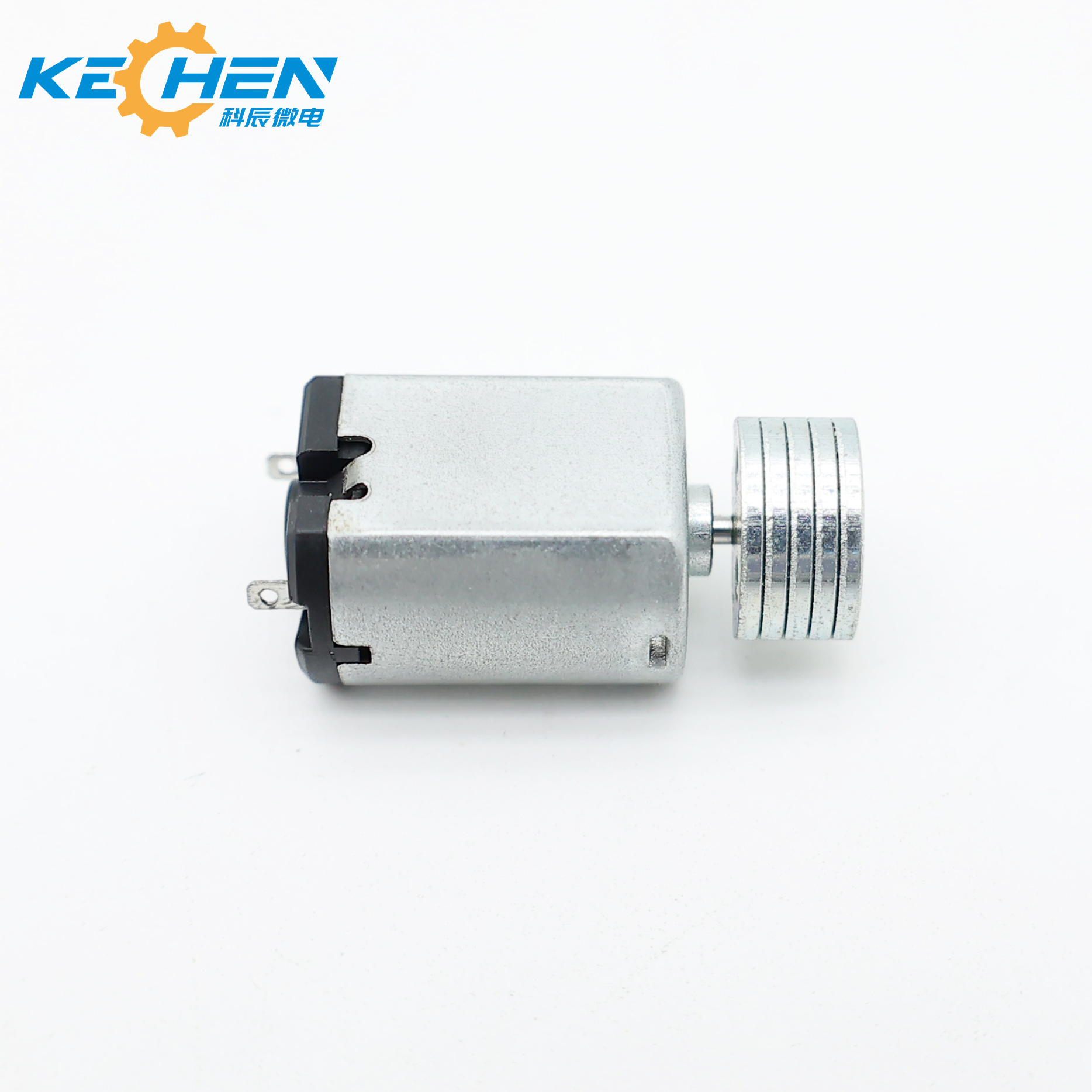

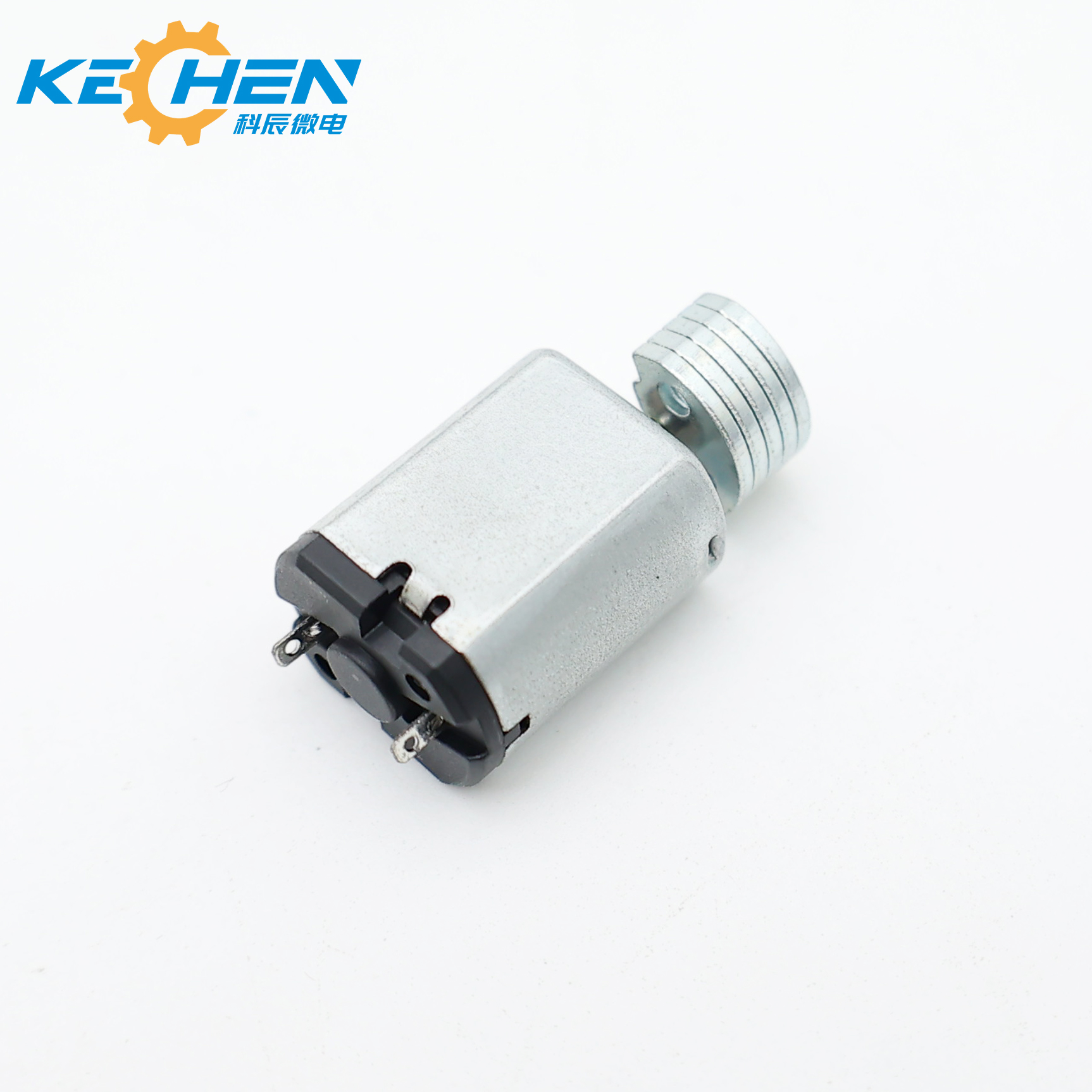

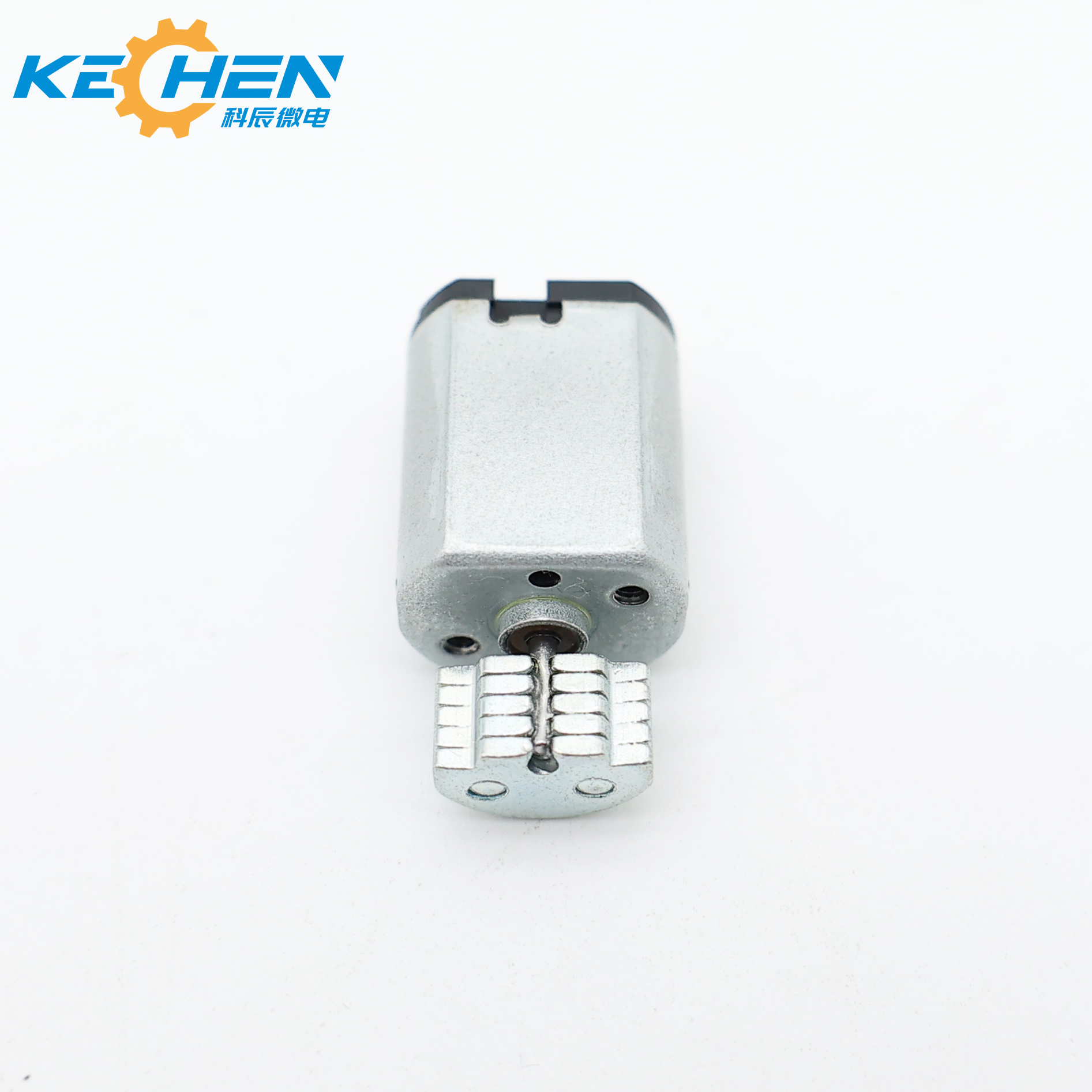

KECHEN MOTOR KC-030PA 16mm Diameter 9V 030 Micro DC Vibration Motor with RoHS Certificate for Massager/Beauty Instrument

Product Description

Products Description

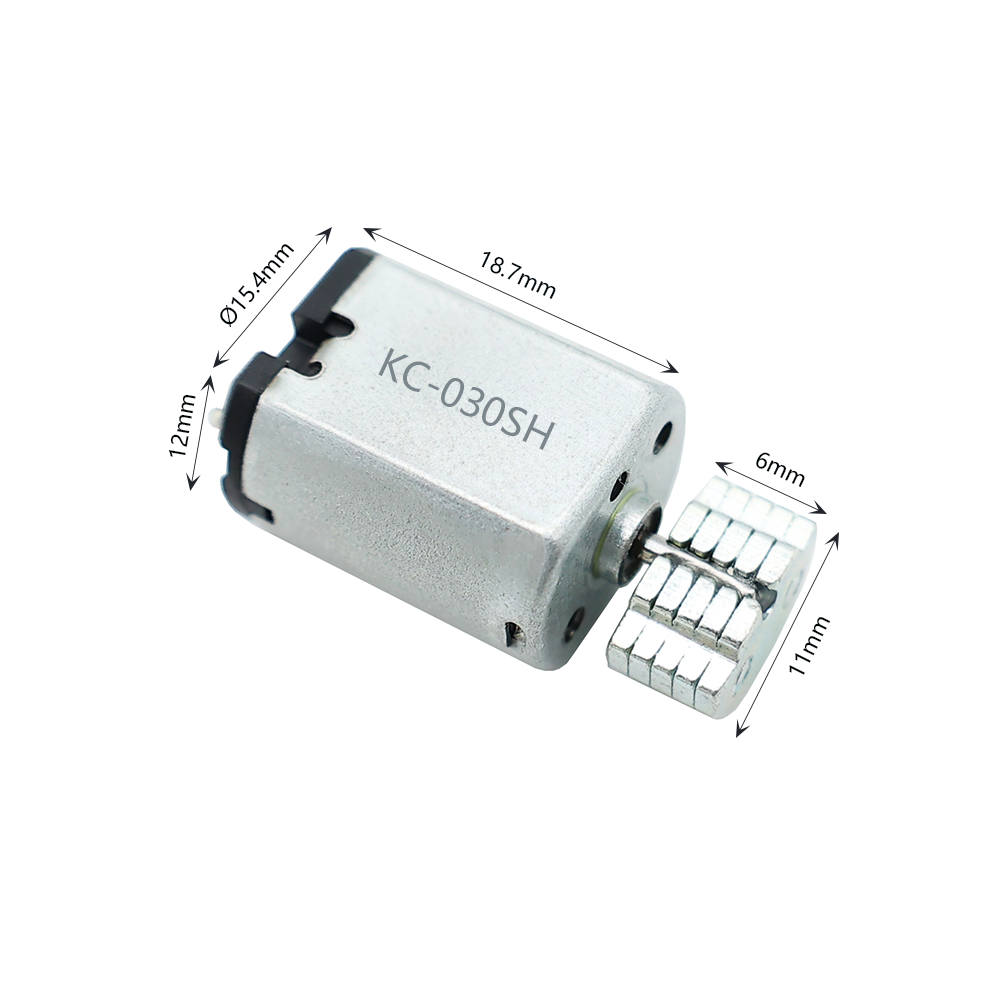

030 Carbon Brushed Micro DC Motor
030 Carbon Brushed Micro DC Motor
  • Model: KC-030PA
  • Motor Type: Brushed DC Motor
  • Voltage Range: 1.5V-12VDC
  • Speed: 2500rpm-35000rpm
  • Torque: 2g.cm-15g.cm
  • Shaft OD: Φ1.5mm
  • Rotation Direction: CW / CCW
  • Bearing: Bushing
  • Typical Application: RC toys, electric lock, smart home electronics, E-toothbrush, Massager, beauty instrument

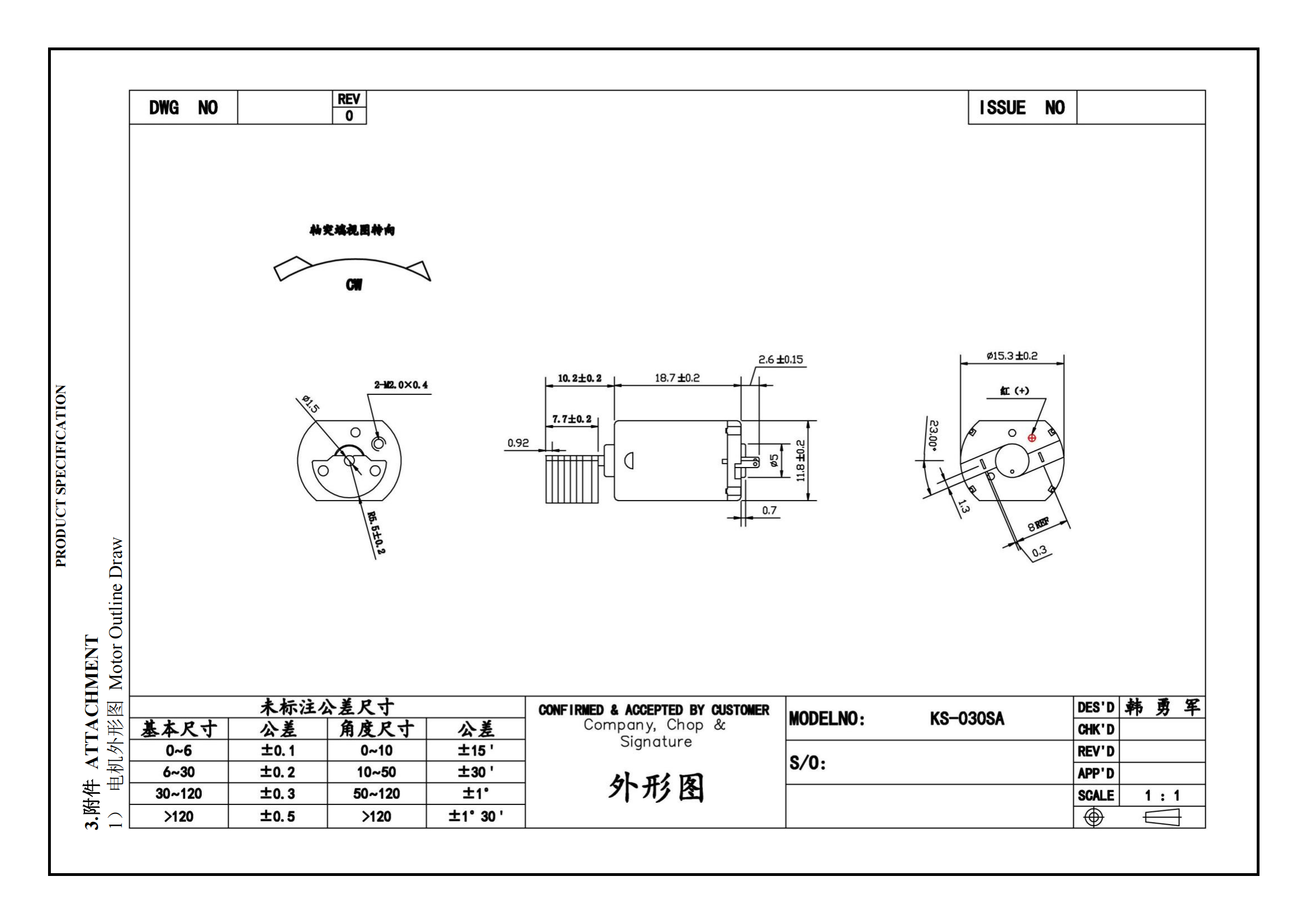

Motor Dimension Details

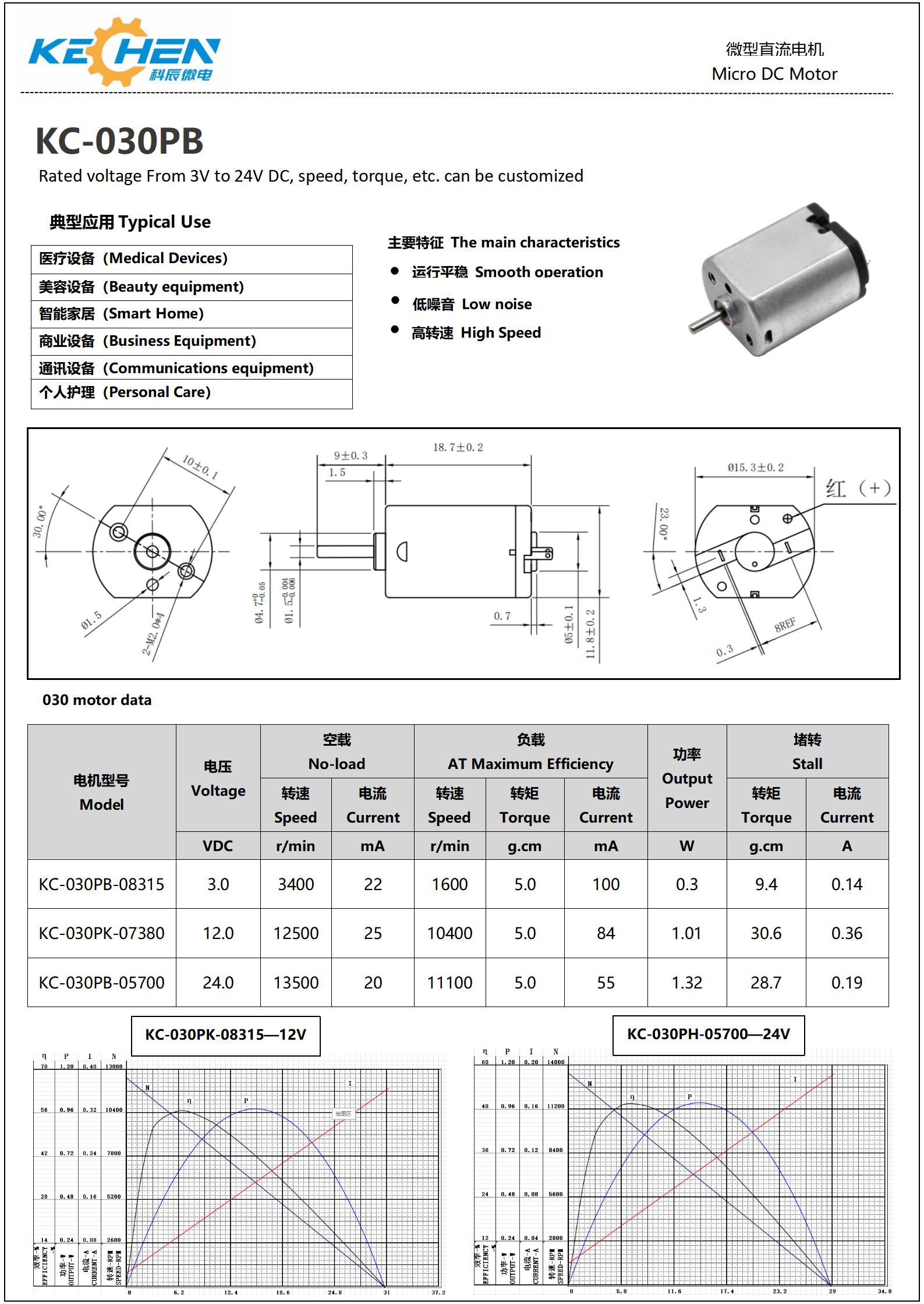

Motor Specifications Sheet
Recommend Products
Recommended Product 1
Recommended Product 2
Motor raw materials
Motor Raw Materials Breakdown
Production Equipment
Production Equipment 1
Production Equipment 2
Production Equipment 3
Enterprise Profile
Manufacturing Facility Overview
Established in August 2009, this high-tech enterprise integrates the research and development, production, and marketing of micro motor series products. The main products include: various precision DC motors, stepper motors, reduction motors, planetary reduction motors, and brushless motors. Micro motors are widely used in medical equipment, medical detection and analysis, financial security, 5G applications, automotive appliances, intelligent communication, iris technology, AI intelligence, smart grid, smart home, commercial intelligent locks, smart switches, smart medicine cabinets, fresh food cabinets, smart wear, outdoor equipment intelligent robots, electric tools, beauty tools, etc. Since its establishment, it has adhered to the concept of "people-oriented, pioneering and innovative spirit". After eleven years of rapid development, it has a group of young and pragmatic, professional and efficient work teams, advanced production facilities, efficient management, excellent quality, and high-quality services to meet customers' needs of continuously improving product levels, reducing energy consumption, facilitating production, and improving efficiency, winning more and more recognition from customers.
Certifications
Quality Certifications
Application Scenario
Application Scenarios
Application Field Specific Uses & Devices
Medical equipment Sphygmomanometer, Massaging mattress, Air pump, Urine Analyzer.
Business Machines Intelligent robot, Copiers and Scanners, 3D Printers, Tattoo pen.
Electric powered equipment Electric toothbrush, Electric tool, Adult products, Electric toy car, Electric curtain.
Smart Home Intelligent window opener, Vacuum cleaner, Smart coffee machine, Hair drier, Fascia gun, Fan, Air cleaner, Hair removal device, Door lock, Intelligent door lock.
Food and Beverage Hand Blenders, Blenders, Mixers, Coffee Machines, Food Processors, Juicers, Fryers, Ice Makers, Soy Bean Milk Makers.
Robotics Servicing robotics, Food delivery robot, Reception robot, Medical serving robot, AGV & AMR, Conveying robot, Inspection robot.
Global Market Distribution
Global Market Map
Market Distribution Chart 1
Market Distribution Chart 2
Frequently Asked Questions

1. What are the main features of the 030 Carbon Brushed Micro DC Motor?

This micro DC motor operates within a voltage range of 1.5V-12VDC, delivering speeds from 2,500rpm to 35,000rpm, and torque from 2g.cm to 15g.cm. It features CW/CCW rotation options and reliable bushing bearings, making it suitable for compact, high-performance applications.

2. What are the typical applications for these micro motors?

Micro motors are widely applied across various fields, including medical equipment (sphygmomanometers, urine analyzers), business machines (3D printers, copiers), smart home devices (intelligent locks, vacuum cleaners), food processors, and various service and automated robotics.

3. What types of motors do you develop and manufacture?

The product line includes an array of precision micro motors, such as carbon brushed DC motors, stepper motors, reduction motors, planetary gear motors, and high-efficiency brushless motors tailored for diverse operational specifications.

4. Do these micro motors meet global quality standards?

Yes. The manufacturing processes and materials comply with strict quality guidelines, backed by relevant international enterprise certifications. This ensures stable performance, energy efficiency, and safety for global market applications.

5. Can the voltage and speed parameters of these motors be customized?

Yes, specifications such as operating voltage, rated speed, torque outputs, and shaft dimensions can typically be configured to suit specific product designs and functional requirements. Please contact our engineering department for technical evaluation.
