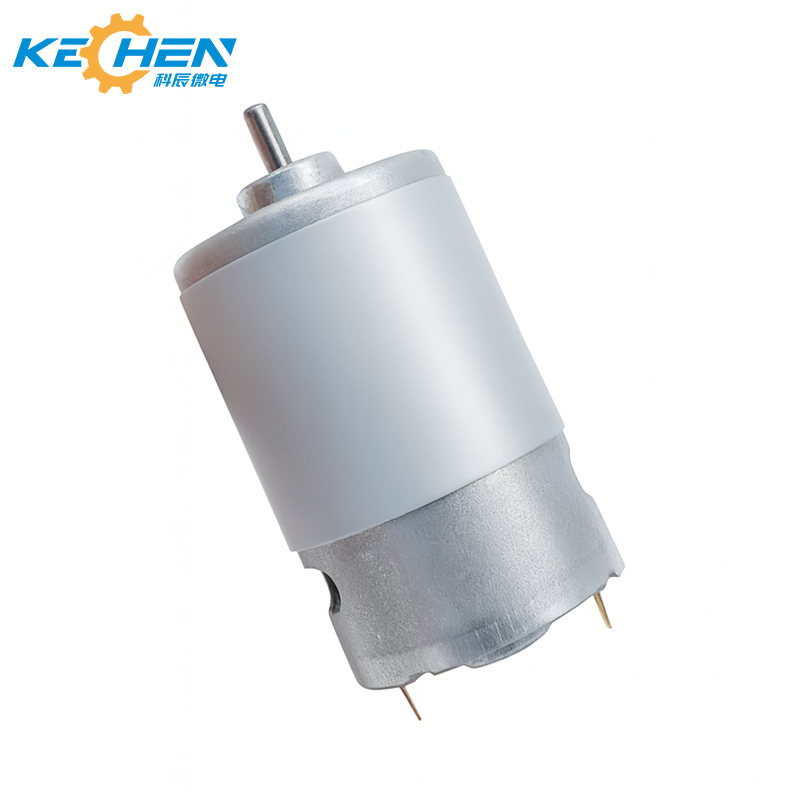

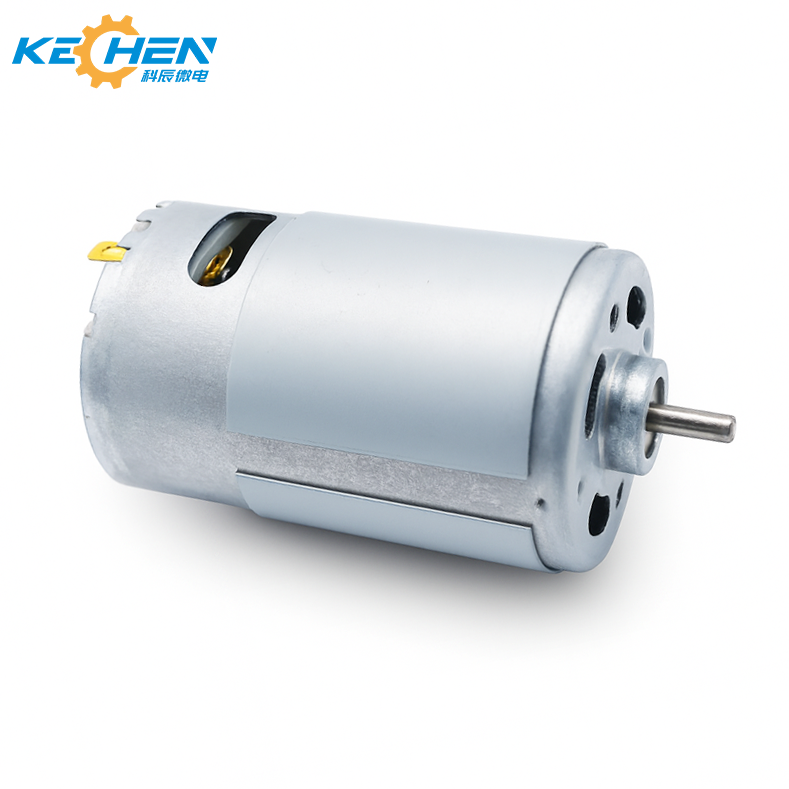

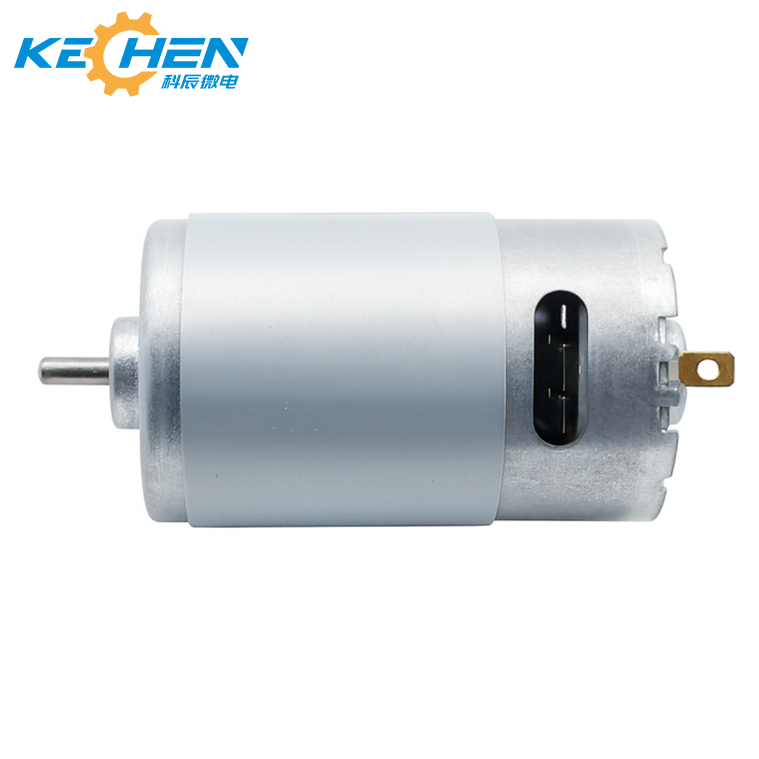

36mm Electric Motor KC-555 Permanent Magnet Micro DC 12V 22000 RPM for Various Cordless Electric Hand Drills and Home Appliances

Product Description

Products Description

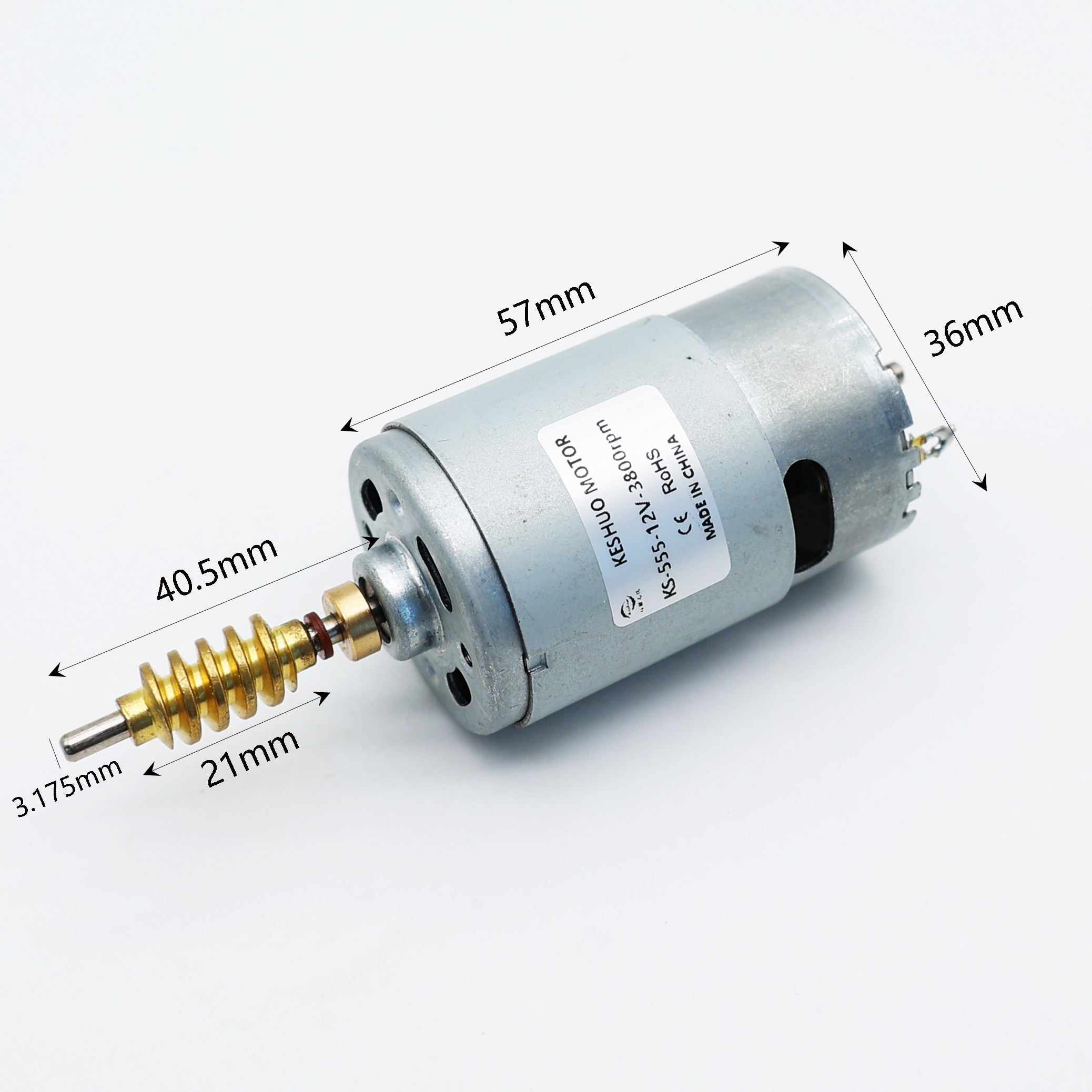

RS-555 Small DC Motor
RS-555 Small DC Motor
  • Model: KC-555 dc motor

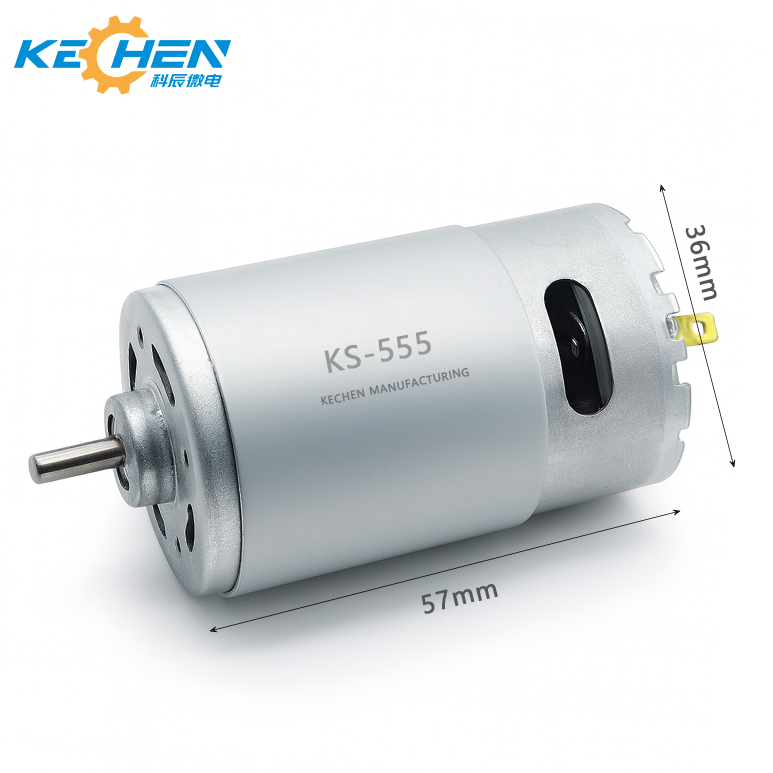

  • Motor Dimensions: Diameter 35.8 * 57mm
  • Shaft Diameter: 3.175mm
  • Voltage Range: 3.6 ~ 24 VDC
  • No-load Speed: 3000 ~ 25000 rpm
  • ROHS compliance
  • Mounting Holes: 2-M3.0*0.5, PCD Φ 25 mm
  • Customization: Shaft length and shape can be customized as required
  • Power: Customizable up to 50W
  • Gearbox Integration: Compatible with 32/36mm planetary gearbox and 37mm spur gearbox
  • Double Shaft Option: Supports magnetic encoder integration (2ppr, 7ppr, 11ppr)
Model Voltage Start Voltage No-load Starting Torque Stall
Speed Current Speed Current
V V r/min mA Kg.cm r/min A
KC-555PH-4560 12.0 0.7 7597 337 2.7 7039 1.7
KC-555PH-2968 24.0 0.9 6989 229 2.8 6055 1.8

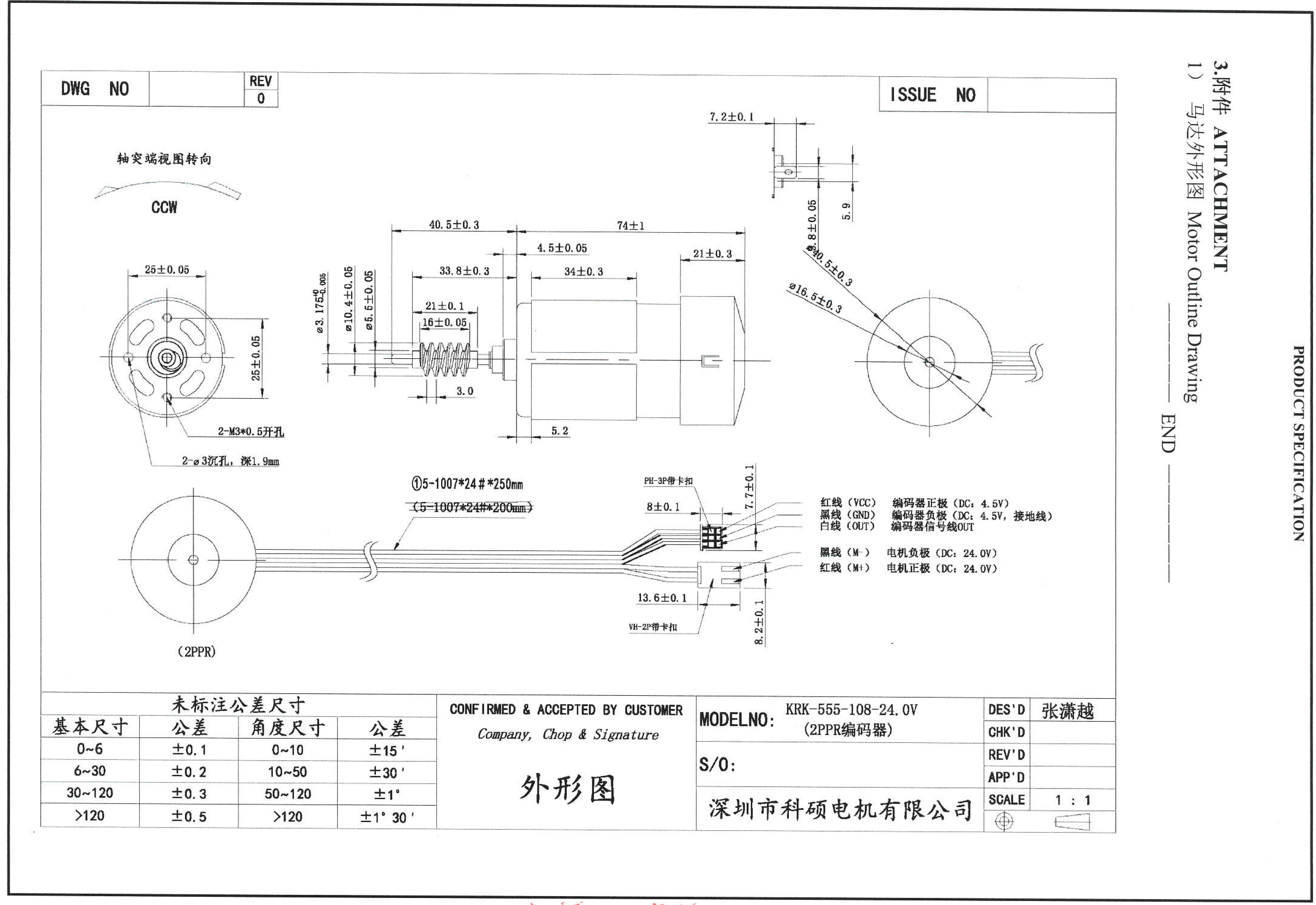

Technical Drawing 1
Technical Drawing 2

Recommend Products

Recommend Product 1
Recommend Product 2

Motor Raw Materials

Motor raw materials

Production Equipment

Production Equipment 1
Production Equipment 2
Production Equipment 3

Company Profile

Enterprise Profile Overview
Established in August 2009, this is a high-tech enterprise that integrates the research and development, production, and marketing of micro motor series products. The main products include: various precision DC motors, stepper motors, reduction motors, planetary reduction motors, and brushless motors. Micro motors are widely used in medical equipment, medical detection and analysis, financial security, 5G applications, automotive appliances, intelligent communication, iris technology, AI intelligence, smart grid, smart home, commercial intelligent locks, smart switches, smart medicine cabinets, fresh food cabinets, smart wear, outdoor equipment, intelligent robots, electric tools, beauty tools, etc. Since its establishment, the enterprise has adhered to the concept of "people-oriented, pioneering and innovative spirit". After eleven years of rapid development, it has built a group of young, pragmatic, professional, and efficient work teams, supported by advanced production facilities, efficient management, excellent quality, and high-quality services to meet customers' needs for continuously improving product levels, reducing energy consumption, facilitating production, and improving efficiency, winning recognition from global customers.

Certifications

Certifications Quality Assurance

Application Scenario

Application Scenarios

Global Market Distribution

Global Market Map
Global Sales Distribution Chart
Global Trade Operations

Frequently Asked Questions

What is the voltage range for the RS-555 DC motor?

The operating voltage of the KC-555 DC motor ranges from 3.6V to 24V DC, allowing it to adapt to various power supply standards.

Can the motor shaft design be customized?

Yes, both the shaft length and shape (e.g., round, D-cut, or threaded) can be customized according to your specific machinery configuration.

Is the RS-555 motor compatible with gearboxes?

Absolutely. The motor is structured to easily integrate with 32mm/36mm planetary gearboxes as well as 37mm spur gearboxes for applications requiring increased torque.

Can we add an encoder to this DC motor?

Yes, we can produce a double shaft configuration optimized for magnetic encoders, supporting 2ppr, 7ppr, and 11ppr signals.

What industries commonly use these micro motors?

They are highly popular in medical equipment, smart home systems, smart commercial locks, robotic drives, financial security terminals, and professional electric tools.

Are these micro motors compliant with environmental regulations?

Yes, all products comply with RoHS standards, ensuring they meet global environmental safety requirements.
