Axon Motor
1 / 5

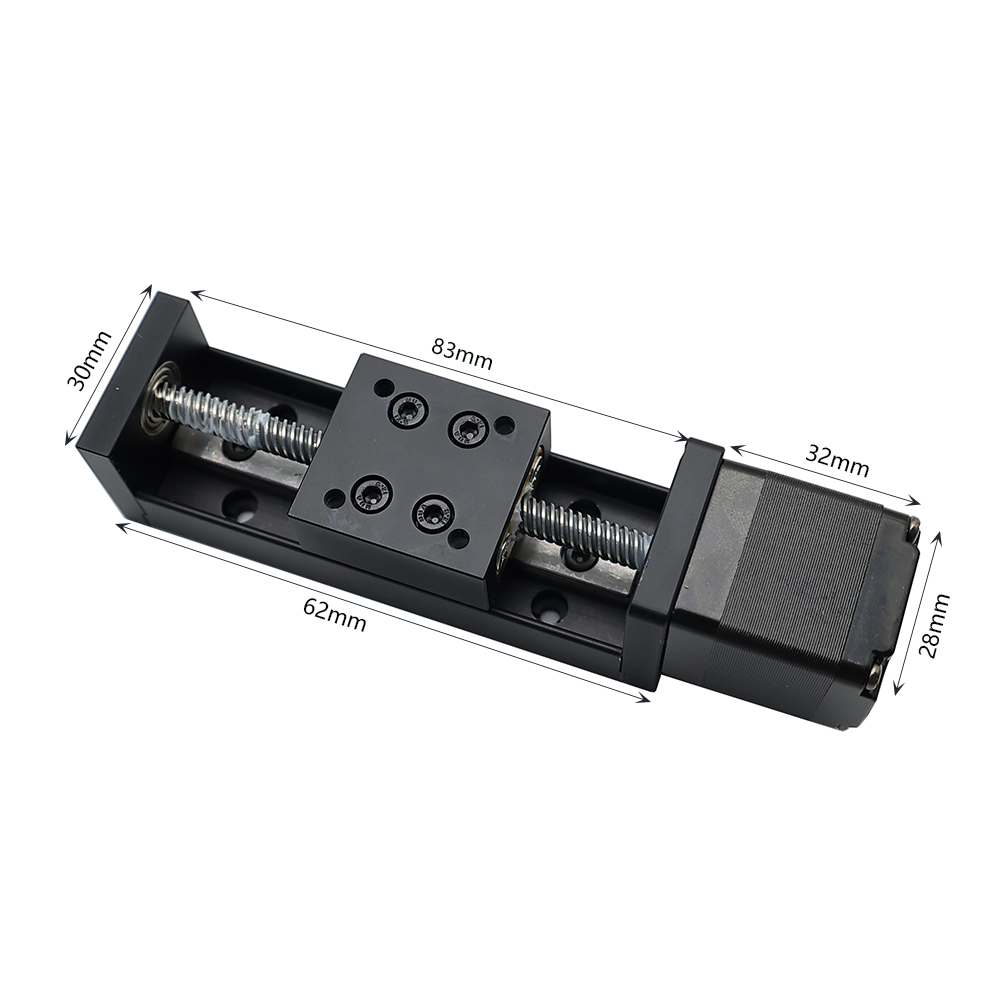

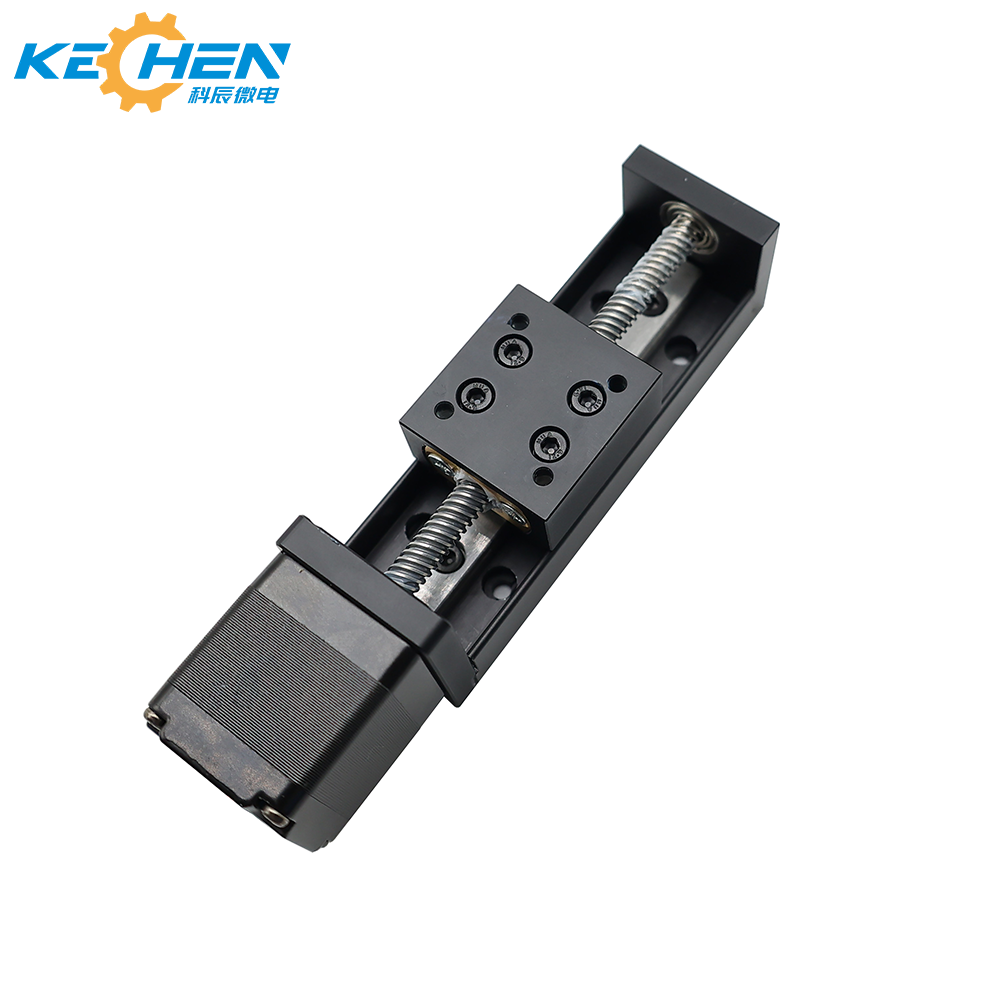

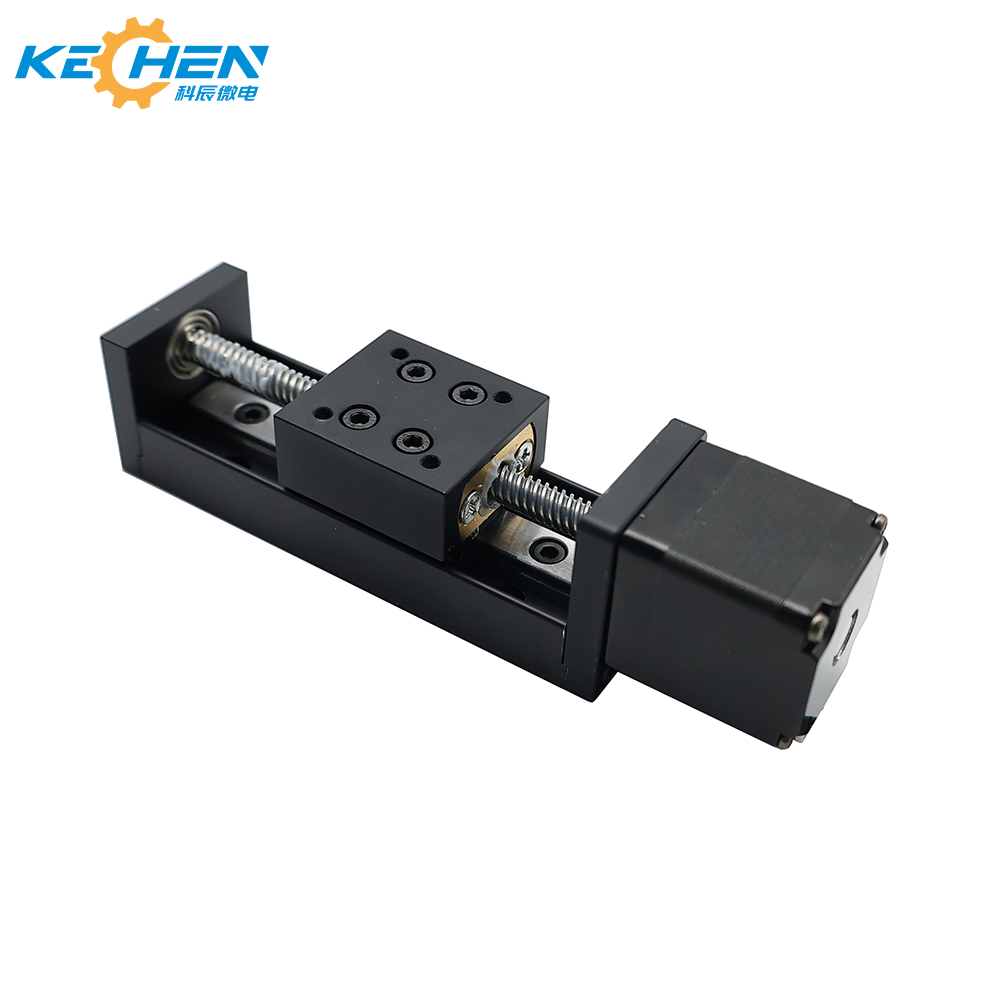

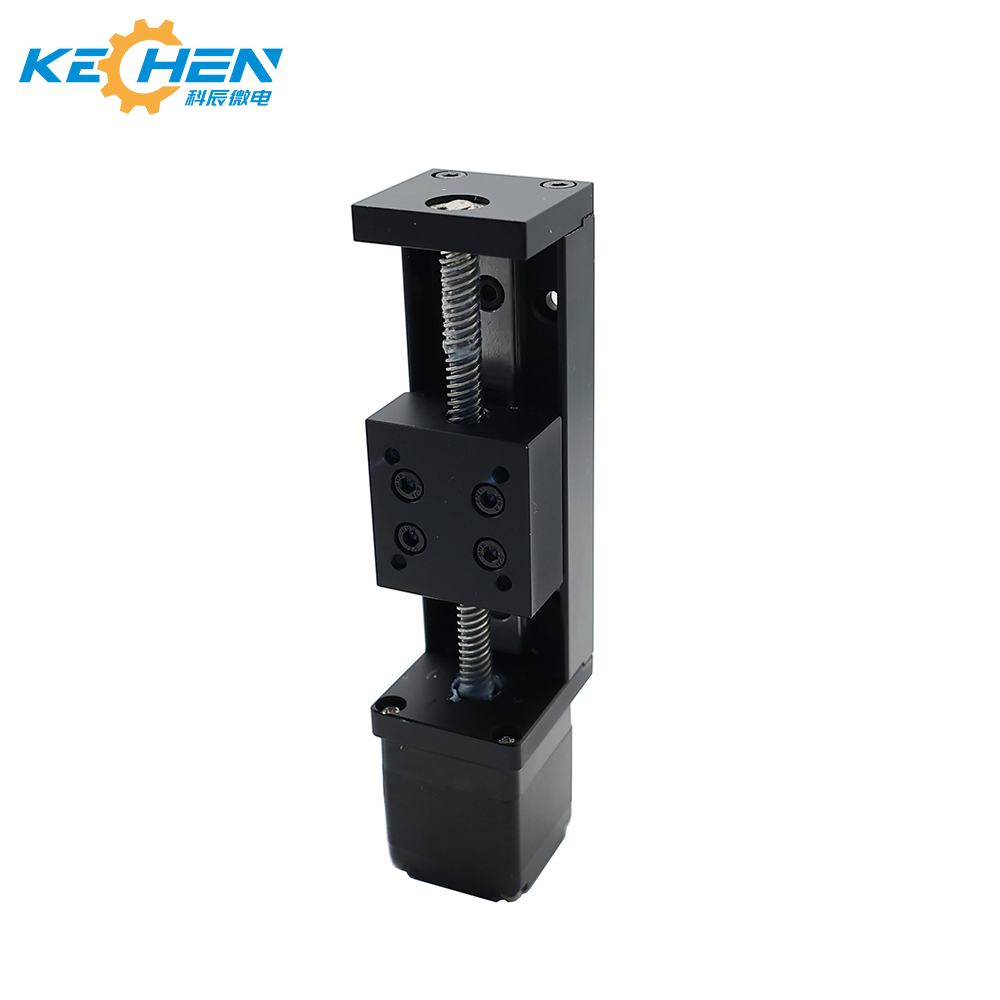

| NEMA 11 Linear Stepper Motor | |
| External dimensions | 28 mm × 28 mm |
| Rated voltage | 5V / 12V |
| Motor length | 28mm/30mm/34mm/40mm/48mm/54mm/60mm/68mm |
| Step angle | 1.8° / step (200 steps /RPM) |
| Phases | 2 phases |
| Phase current | 0.5 A – 1.0 A / phase |
| Phase resistance | 3.2 Ω – 10 Ω (depending on the winding) |
| Lead screw material | SUS304 / 45# steel |
| Threaded rod diameter | Φ6 mm |

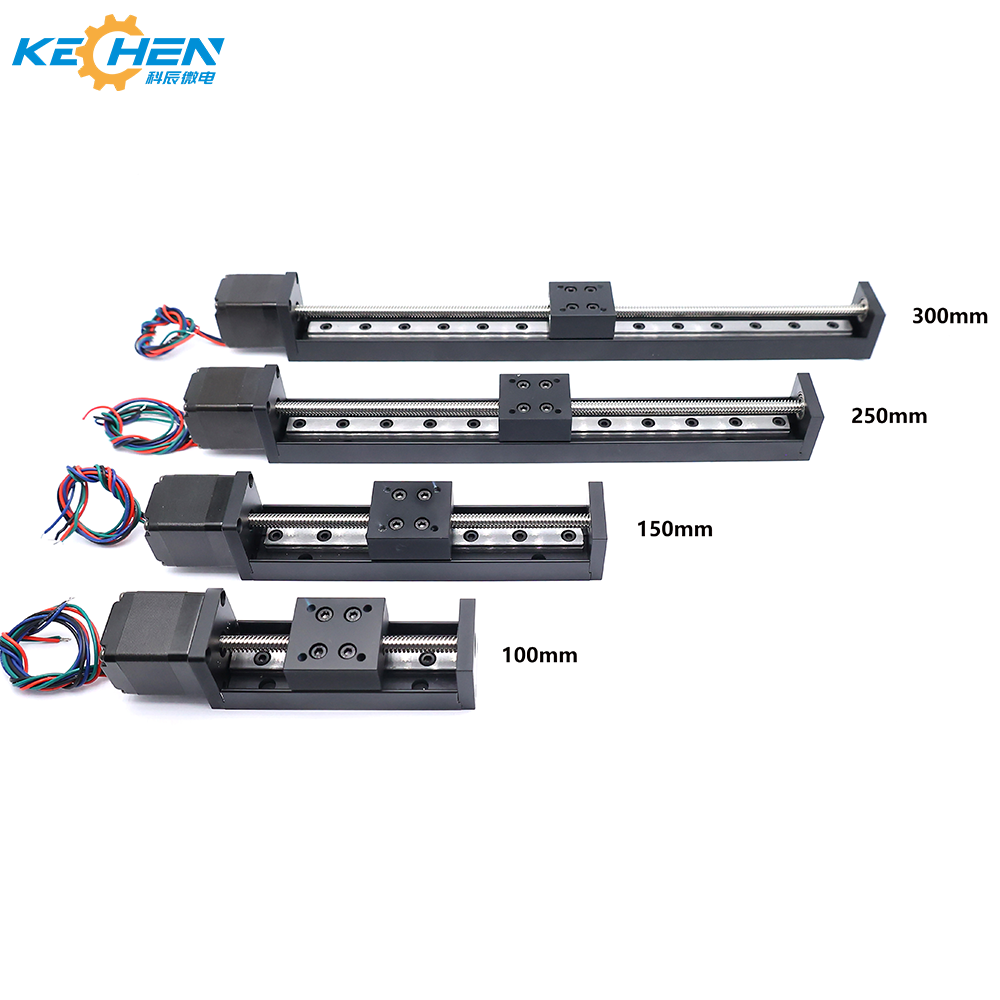

| Screw length | 50–300 mm (customizable) |
| Nut type | POM / brass / stainless steel nuts are available |
| Maximum thrust | 10–120 N (depending on length and lead) |
| Electric wire | JST 4Pin / UL1007 |
| Exercise | Linear screw drive / external nut slider structure |
| Weight | 120–260 g (varying with length) |
Established in August 2017, this is a high-tech enterprise that integrates the research and development, production, and marketing of micro motor series products. The main products include: various precision DC motors, stepper motors, reduction motors, planetary reduction motors, and brushless motors.
Micro motors are widely used in medical equipment, medical detection and analysis, financial security, 5G applications, automotive appliances, intelligent communication, iris technology, AI intelligence, smart grid, smart home, commercial intelligent locks, smart switches, smart medicine cabinets, fresh food cabinets, smart wear, outdoor equipment intelligent robots, electric tools, beauty tools, etc.
Since its establishment, it has adhered to the concept of "people-oriented, pioneering and innovative spirit". After eleven years of rapid development, it has a group of young and pragmatic, professional and efficient work teams, advanced production facilities, efficient management, excellent quality, and high-quality services to meet customers' needs of continuously improving product levels, reducing energy consumption, facilitating production, and improving efficiency, winning more and more recognition from customers.
| Medical equipment | sphygmomanometer, Massaging mattress, Air pump, Urine Analyzer. |
| Business Machines | Intelligent robot, Copiers and Scanners, 3D Printers, Tattoo pen. |
| Electric powered equipment | Electric toothbrush, Electric tool, Electric toy car, Electric curtain. |
| Smart Home | Intelligent window opener, vacuum cleaner, Smart coffee machine, hair drier, Fascia gun, fan, air cleaner, Hair removal device, door lock, Intelligent door lock. |
| Food and Beverage | Hand Blenders, Blenders, Mixers, Coffee Machines, Food Processors, Juicers, Fryers, Ice Makers, Soy Bean Milk Makers. |
| Robotics | Servicing robotics, Food delivery robot, Reception robot, Medical serving robot, AGV & AMR, Conveying robot, Inspection robot. |
