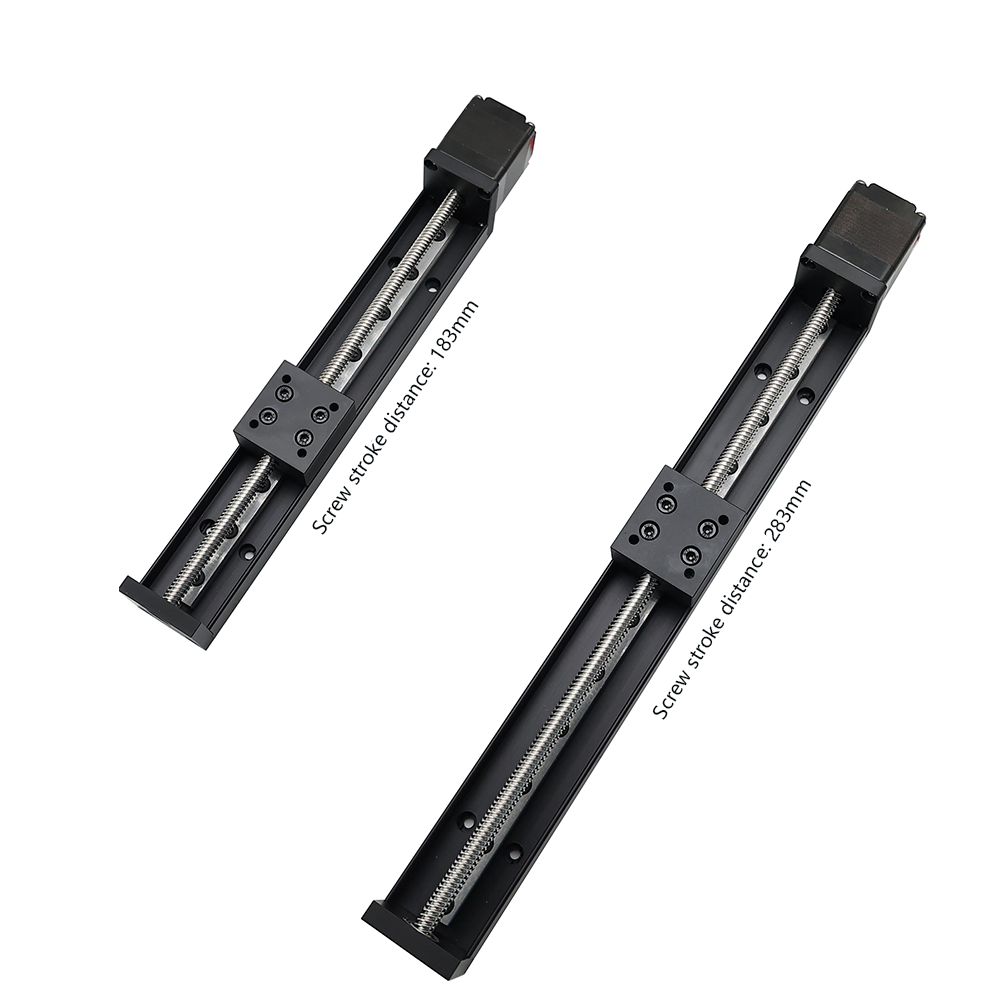

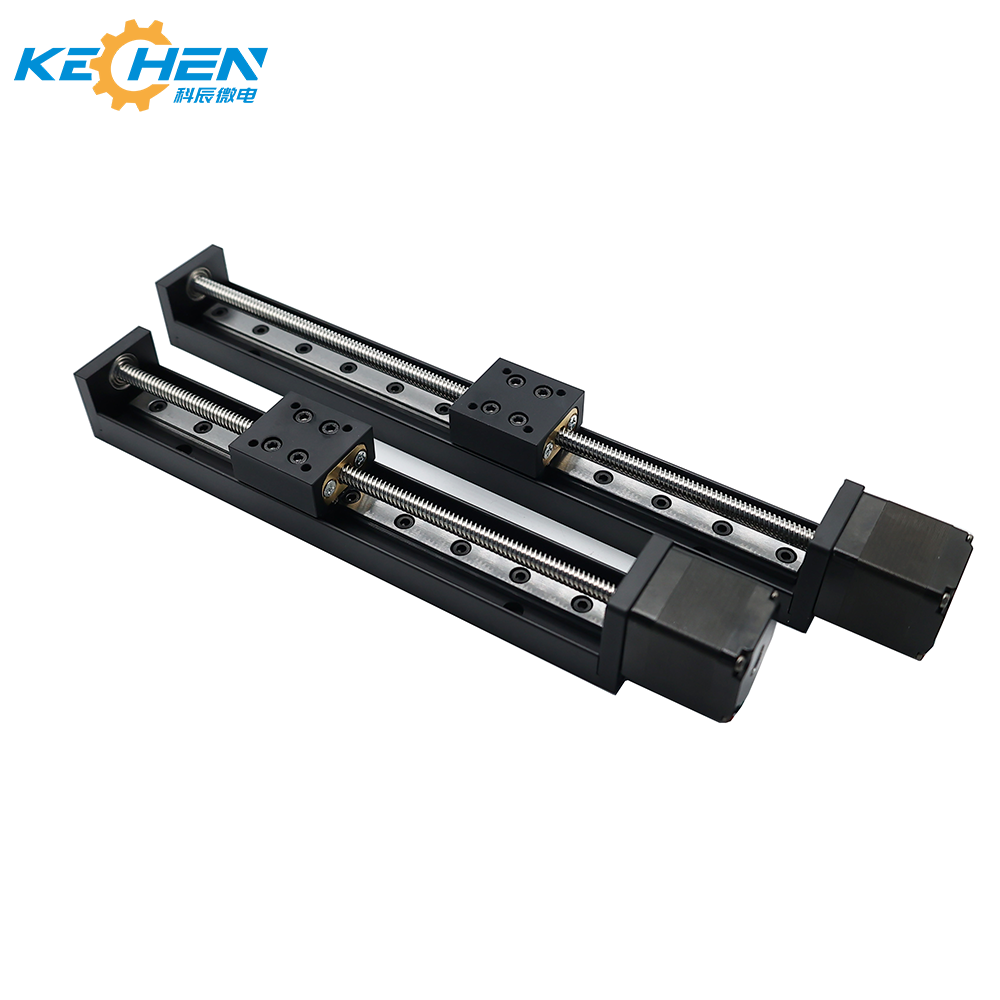

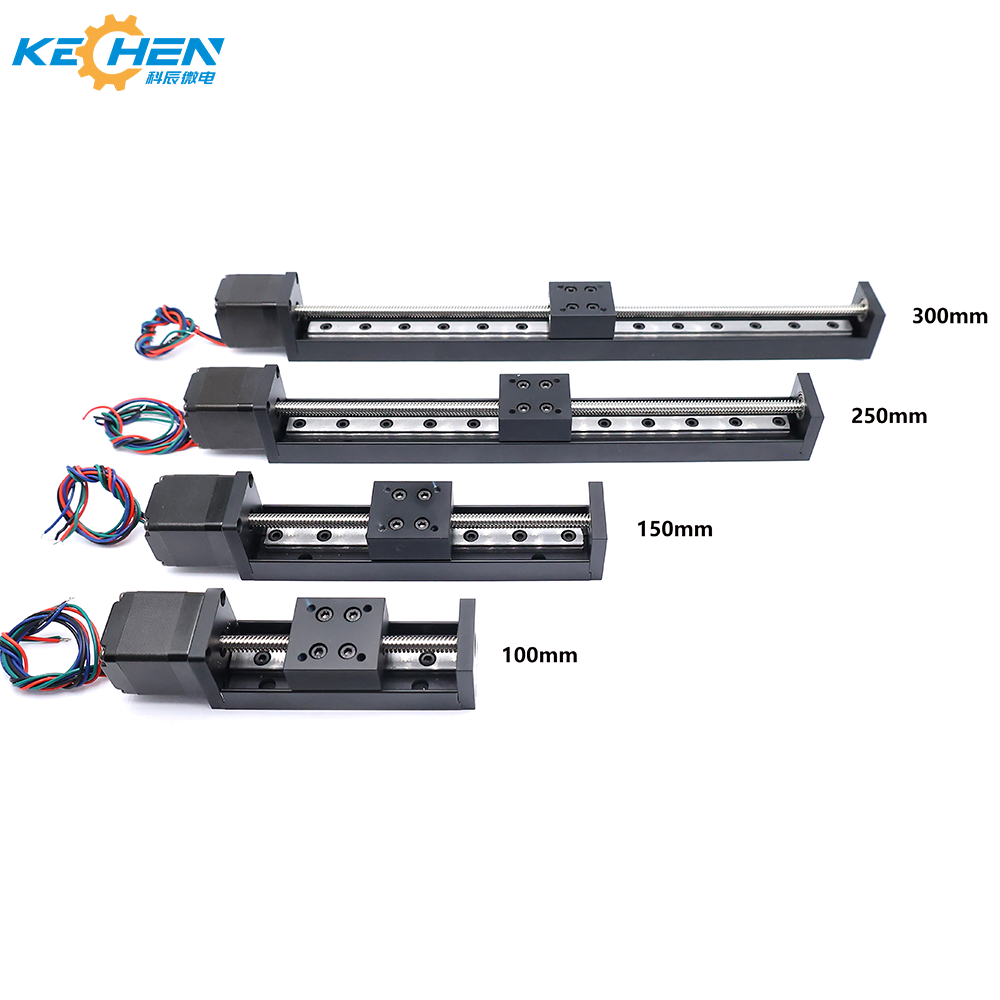

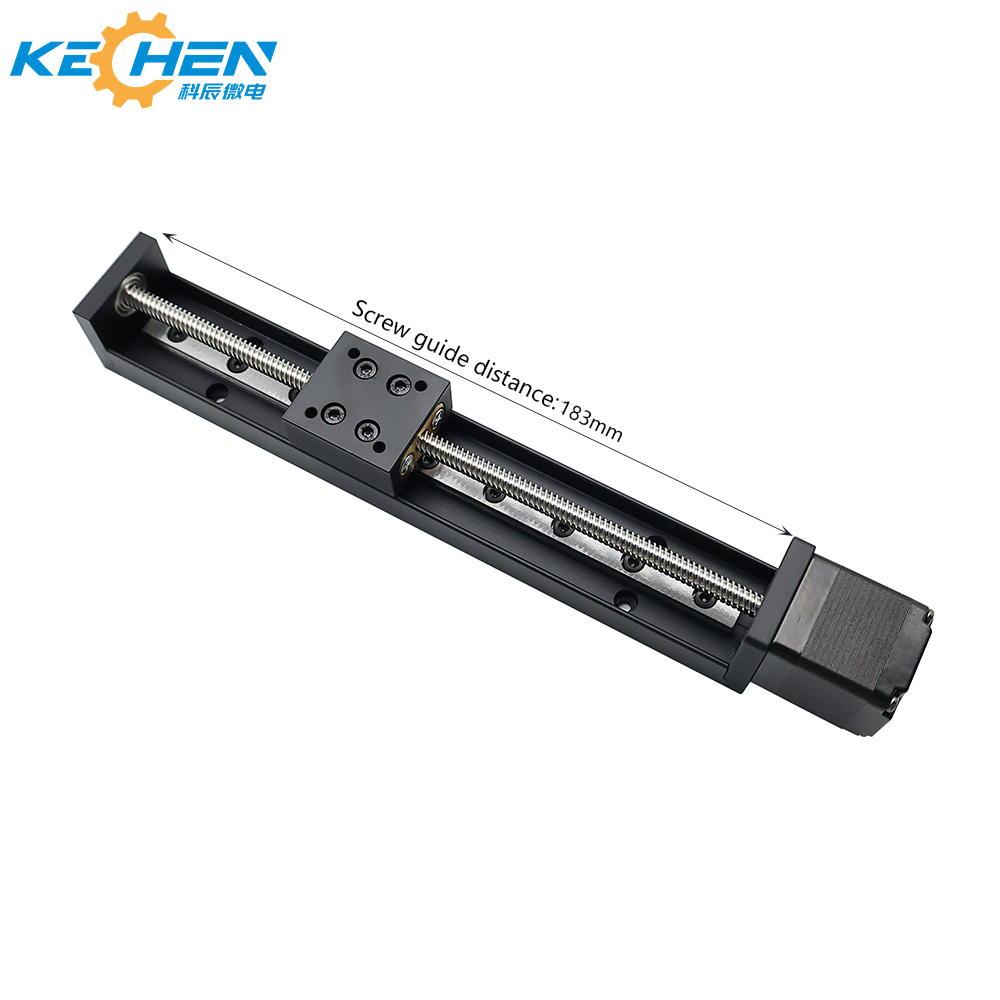

28mm Linear Stepper Motor 3D Printer 50mm 100mm 150mm 200mm 250mm 300mm Travel Linear Stepper for Laboratory Instruments

Product Description

Products Description

NEMA 11 Linear Stepper Motor Specifications
External dimensions 28 mm × 28 mm
Rated voltage 5V / 12V
Motor length 28mm/30mm/34mm/40mm/48mm/54mm/60mm/68mm
Step angle 1.8° / step (200 steps /RPM)
Phases 2 phases
Phase current 0.5 A – 1.0 A / phase
Phase resistance 3.2 Ω – 10 Ω (depending on the winding)
Lead screw material SUS304 / 45# steel
Threaded rod diameter Φ6 mm
Screw length 50–300 mm (customizable)
Nut type POM / brass / stainless steel nuts are available
Maximum thrust 10–120 N (depending on length and lead)
Electric wire JST 4Pin / UL1007
Exercise Linear screw drive / external nut slider structure
Weight 120–260 g (varying with length)

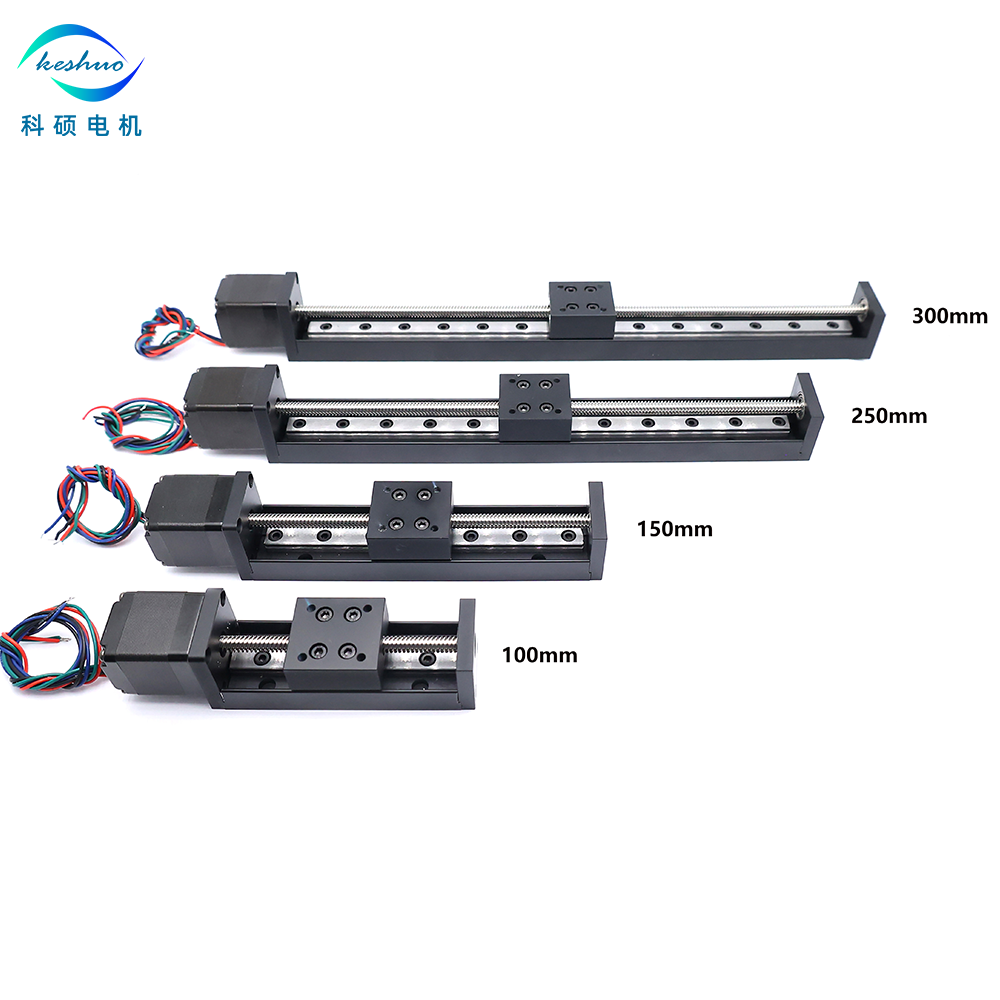

Product Layout Diagram
Product Technical Blueprint

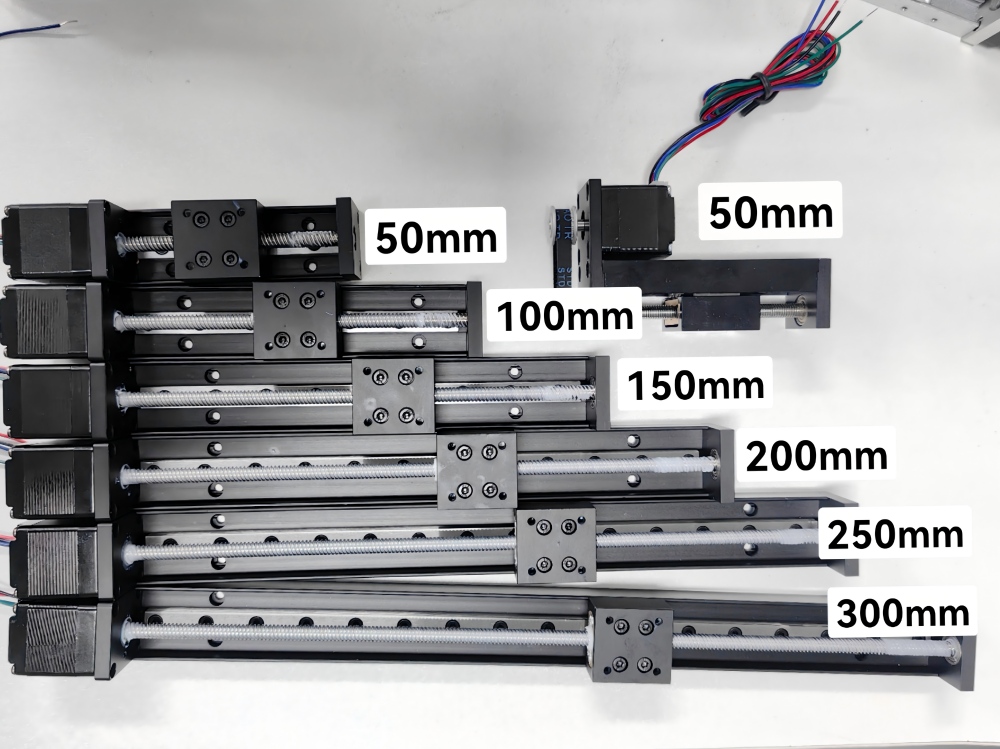

NEMA 11 Linear Stepper Motor Side View

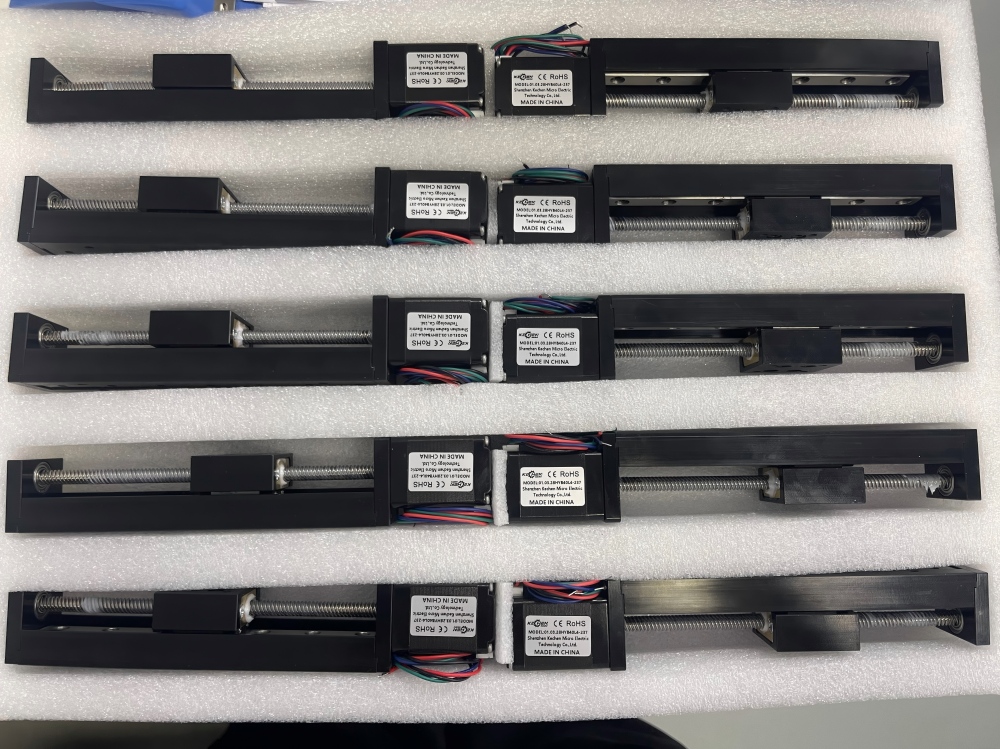

NEMA 11 Linear Stepper Motor Detail View

Recommend Products

Recommended Micro Motor Family

Motor Raw Materials

High Quality Raw Materials Overview

Production Equipment

Winding and Assembly Machine
Automation Production Line
Precision Inspection Equipment

Company Profile

Manufacturing Plant Overview

The manufacturing facility was established in August 2017. It is a high-tech enterprise that integrates the research and development, production, and marketing of micro motor series products. The main products include: various precision DC motors, stepper motors, reduction motors, planetary reduction motors, and brushless motors.

Micro motors are widely used in medical equipment, medical detection and analysis, financial security, 5G applications, automotive appliances, intelligent communication, iris technology, AI intelligence, smart grid, smart home, commercial intelligent locks, smart switches, smart medicine cabinets, fresh food cabinets, smart wear, outdoor equipment, intelligent robots, electric tools, beauty tools, etc. Since establishment, it has adhered to the concept of "people-oriented, pioneering and innovative spirit". After eleven years of rapid development, it has a group of young and pragmatic, professional and efficient work teams, advanced production facilities, efficient management, excellent quality, and high-quality services to meet customers' needs of continuously improving product levels, reducing energy consumption, facilitating production, and improving efficiency, winning more and more recognition from customers.

Certifications

Quality Standard Certificates

Application Scenario

Various Application Scenarios Overview
Applications List
Medical equipment sphygmomanometer, Massaging mattress, Air pump, Urine Analyzer.
Business Machines Intelligent robot, Copiers and Scanners, 3D Printers, Tattoo pen.
Electric powered equipment Electric toothbrush, Electric tool, Electric toy car, Electric curtain.
Smart Home Intelligent window opener, vacuum cleaner, Smart coffee machine, hair drier, Fascia gun, fan, air cleaner, Hair removal device, door lock, Intelligent door lock.
Food and Beverage Hand Blenders, Blenders, Mixers, Coffee Machines, Food Processors, Juicers, Fryers, Ice Makers, Soy Bean Milk Makers.
Robotics Servicing robotics, Food delivery robot, Reception robot, Medical serving robot, AGV & AMR, Conveying robot, Inspection robot.

Global Market Distribution

Global Market Coverage Map
Global Sales Graph
Shipping Logistics Operations

Frequently Asked Questions

Q: What are your main products?
We currently produce Brushed DC Motors, Brushed DC Gear Motors, Planetary DC Gear Motors, Brushless DC Motors, Stepper Motors, and Coreless Motors.
Q: How do I select a suitable motor?
If you have motor pictures or drawings, or detailed specs like voltage, speed, torque, motor size, working mode, expected lifespan, and noise level, please let us know. We can recommend a suitable motor based on your requirements.
Q: Do you offer customized services for standard motors?
Yes, we can customize voltage, speed, torque, and shaft size/shape. We can also add wires/cables, connectors, capacitors, or EMC components.
Q: How do you ensure motor quality?
We employ strict inspection procedures: we sign off on samples and drawings for incoming raw materials, and perform in-process inspections during production, followed by a final inspection before shipping.
Q: What certifications do you have?
We currently hold CE, RoHS, ISO13485, IATF16949, and REACH certifications.
Q: What is your shipping method for motors?
For samples and packages under 100kg, we suggest express shipping. For heavier shipments, we recommend air or sea freight depending on your needs.
