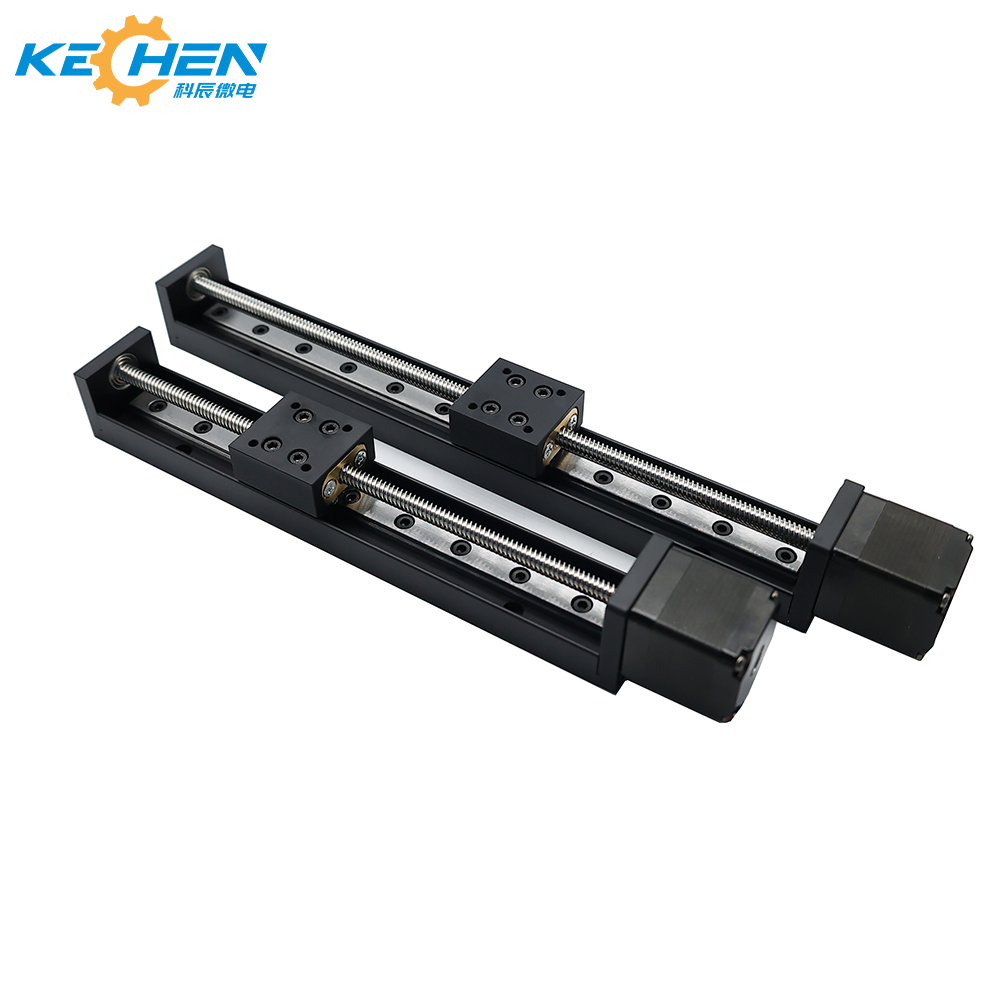

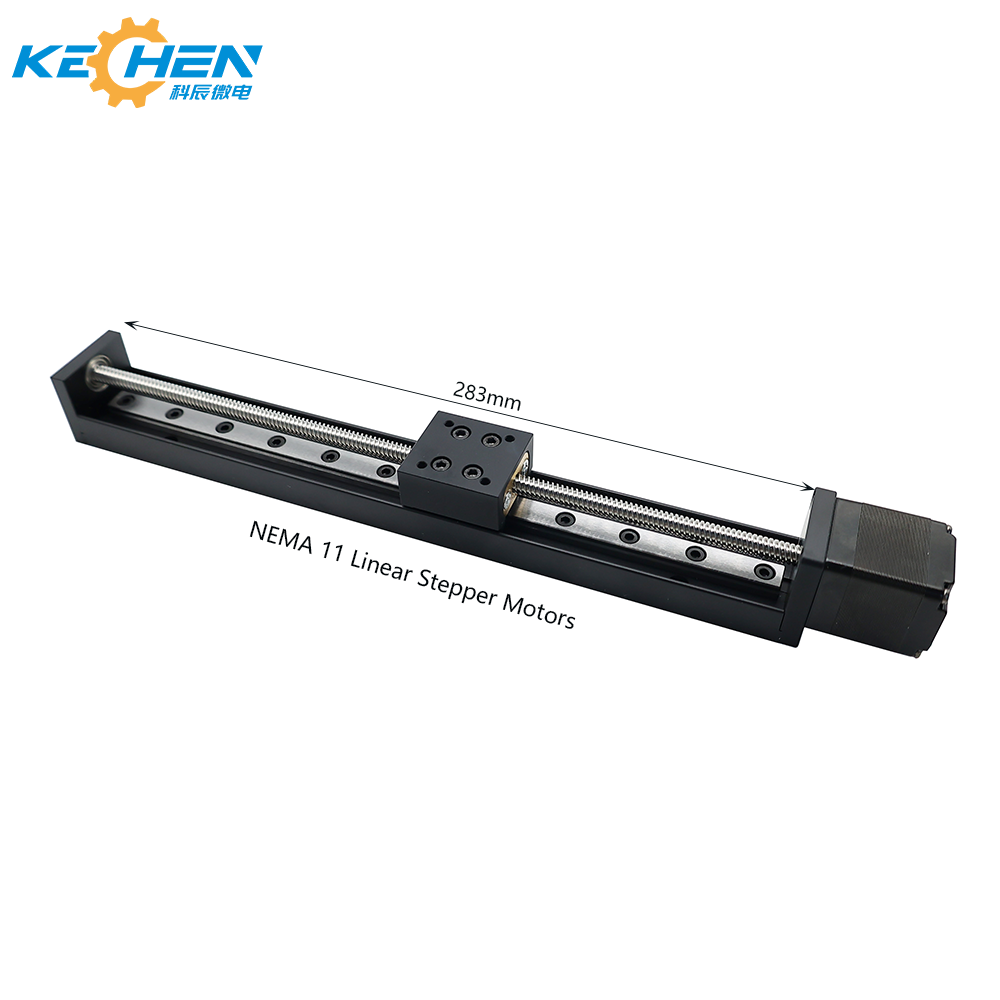

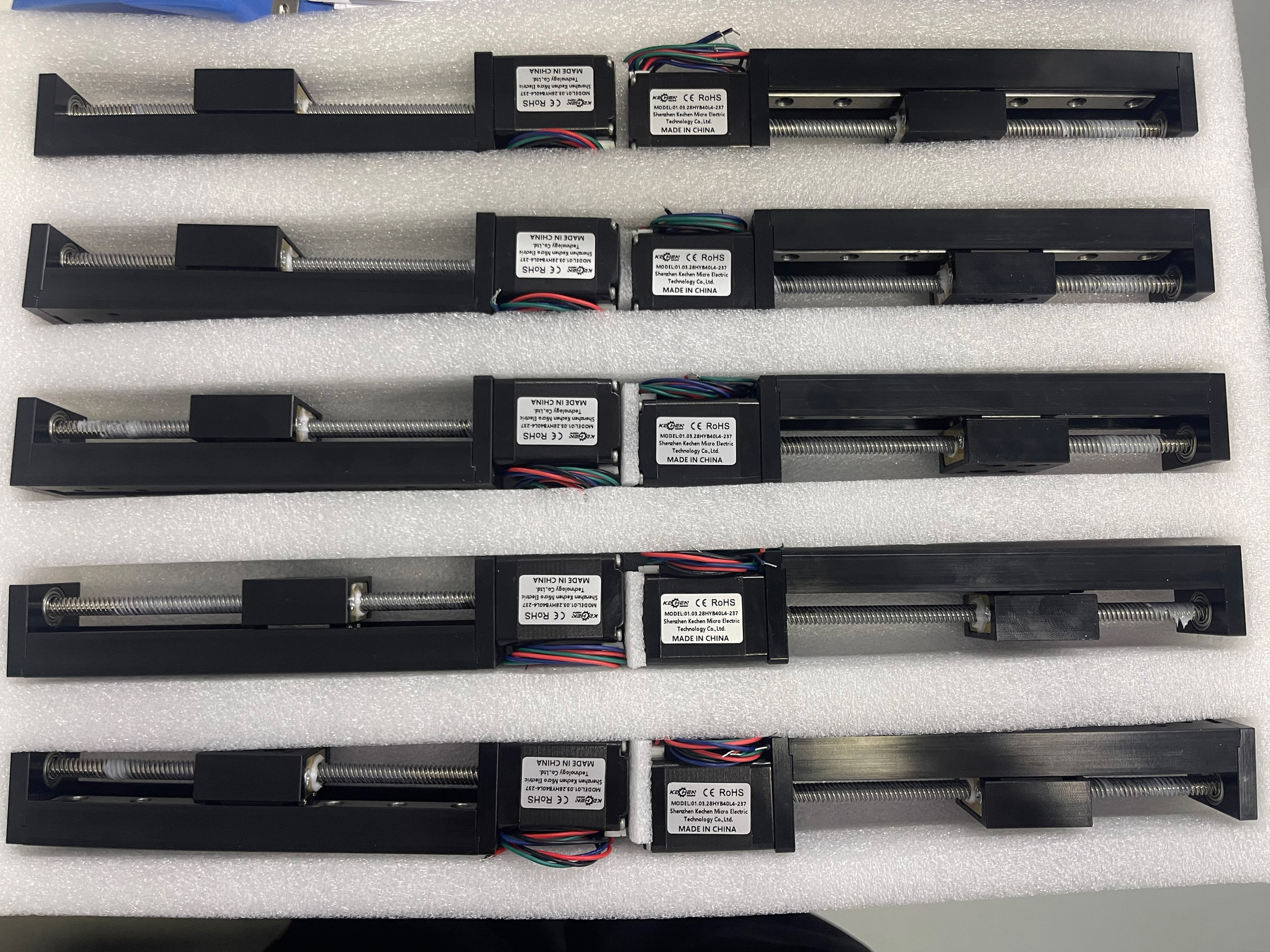

| NEMA 11 Linear Stepper Motor | |
| External dimensions | 28 mm × 28 mm |
| Rated voltage | 5V / 12V |
| Motor length | 28mm/30mm/34mm/40mm/48mm/54mm/60mm/68mm |
| Step angle | 1.8° / step (200 steps /RPM) |
| Phases | 2 phases |
| Phase current | 0.5 A – 1.0 A / phase |
| Phase resistance | 3.2 Ω – 10 Ω (depending on the winding) |
| Lead screw material | SUS304 / 45# steel |
| Threaded rod diameter | Φ6 mm |

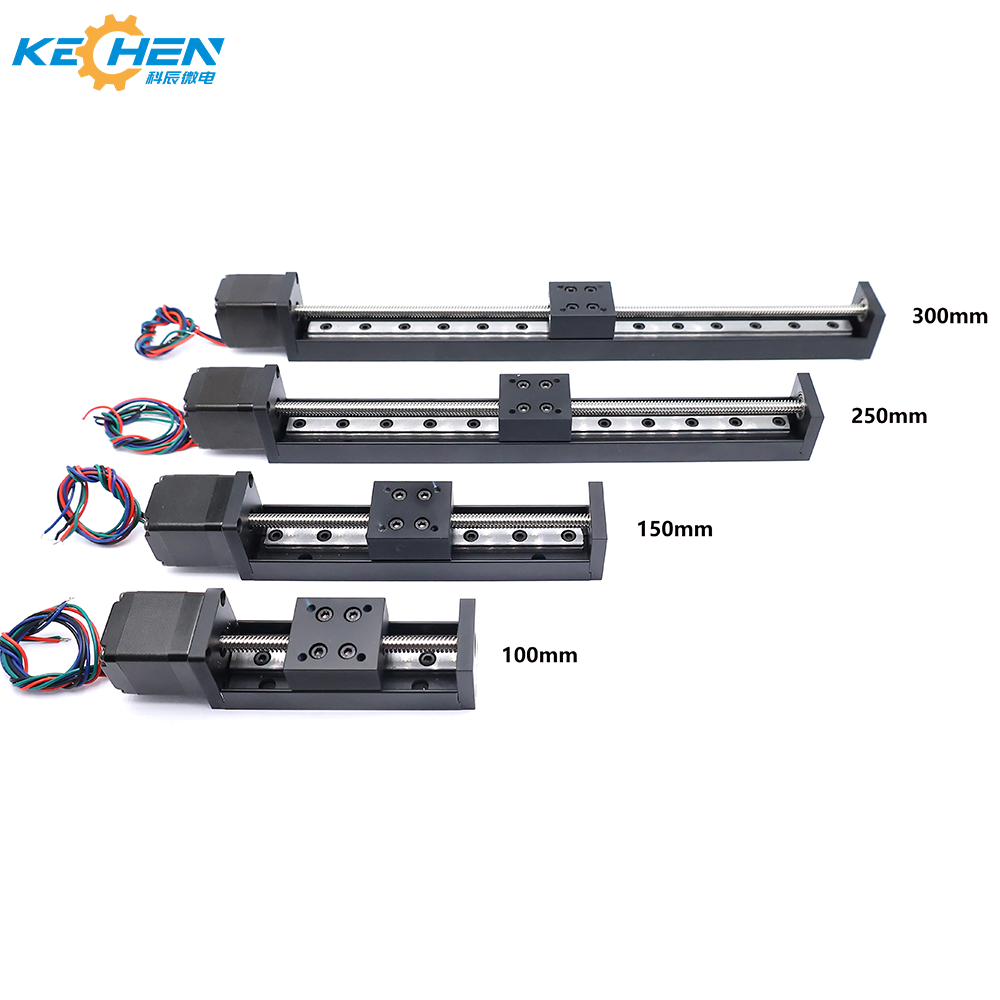

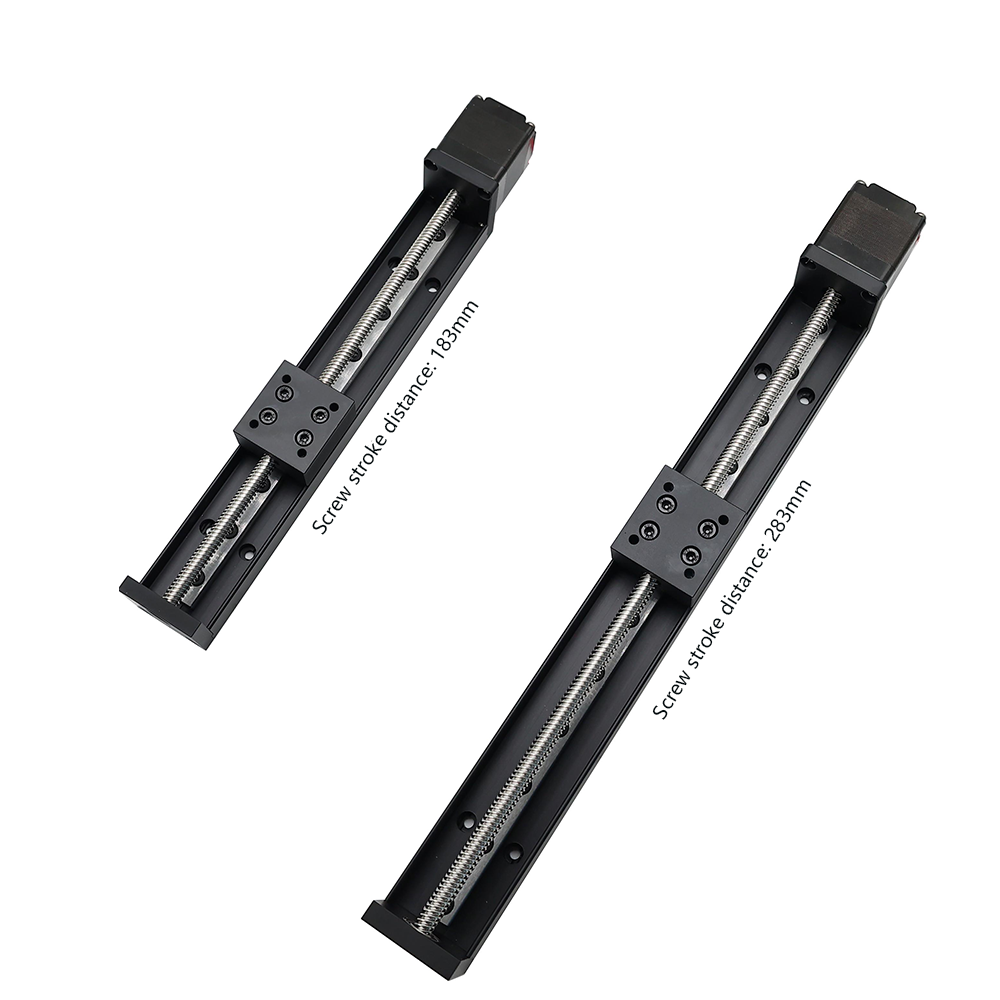

| Screw length | 50–300 mm (customizable) |
| Nut type | POM / brass / stainless steel nuts are available |
| Maximum thrust | 10–120 N (depending on length and lead) |
| Electric wire | JST 4Pin / UL1007 |
| Exercise | Linear screw drive / external nut slider structure |
| Weight | 120–260 g (varying with length) |
| Medical equipment | sphygmomanometer, Massaging mattress, Air pump, Urine Analyzer. |
| Business Machines | Intelligent robot, Copiers and Scanners, 3D Printers, Tattoo pen. |
| Electric powered equipment | Electric toothbrush, Electric tool, Electric toy car, Electric curtain. |
| Smart Home | Intelligent window opener, vacuum cleaner, Smart coffee machine, hair drier, Fascia gun, fan, air cleaner, Hair removal device, door lock, Intelligent door lock. |
| Food and Beverage | Hand Blenders, Blenders, Mixers, Coffee Machines, Food Processors, Juicers, Fryers, Ice Makers, Soy Bean Milk Makers. |
| Robotics | Servicing robotics, Food delivery robot, Reception robot, Medical serving robot, AGV & AMR, Conveying robot, Inspection robot. |
We currently produce Brushed Dc Motors, Brushed Dc gear Motors, Planetary Dc Gear Motors, Brushless Dc Motors, Stepper motors and Coreless Motors etc. You can check the specifications for above motors on our website and you can email us to recommend needed motors per your specification too.
If you have motor pictures or drawings to show us, or you have detailed specs like voltage, speed, torque, motor size, working mode of the motor, needed life time and noise level etc, please do not hesitate to let us know, then we can recommend suitable motor per your request accordingly.
Yes, we can customize per your request for the voltage, speed, torque and shaft size/shape. If you need additional wires/cables soldered on the terminal or need to add connectors, or capacitors or EMC we can make it too.
Yes, we would like to design motors individually for our customers, but it may need some mold charge and design charge.
We have our own inspection procedures: for incoming materials, we have signed sample and drawing to make sure qualified incoming materials; for production process, we have tour inspection in the process and final inspection to make sure qualified products before shipping.
We currently have CE, ROSH, ISO13485, IATF16949, and REACH certifications.
